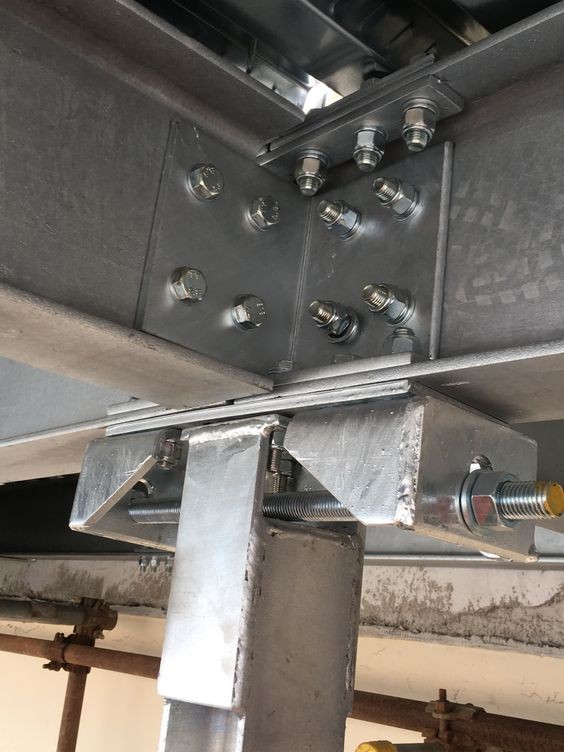

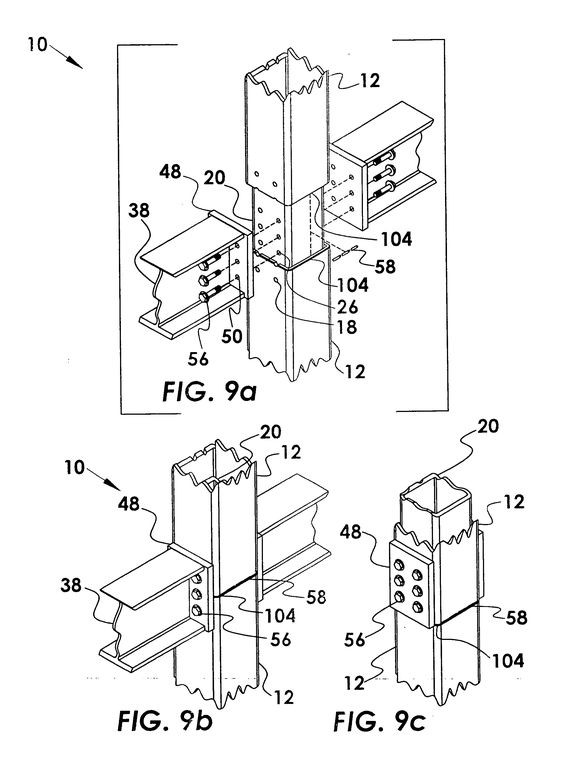

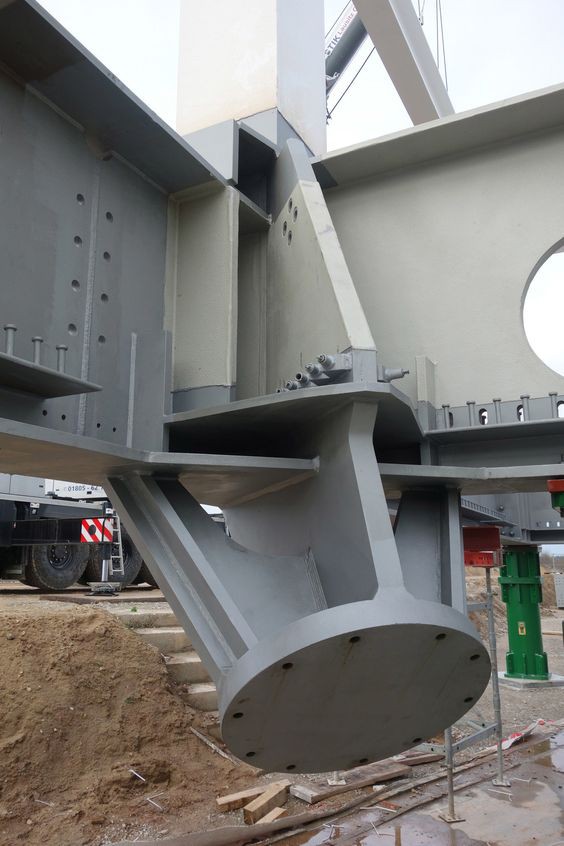

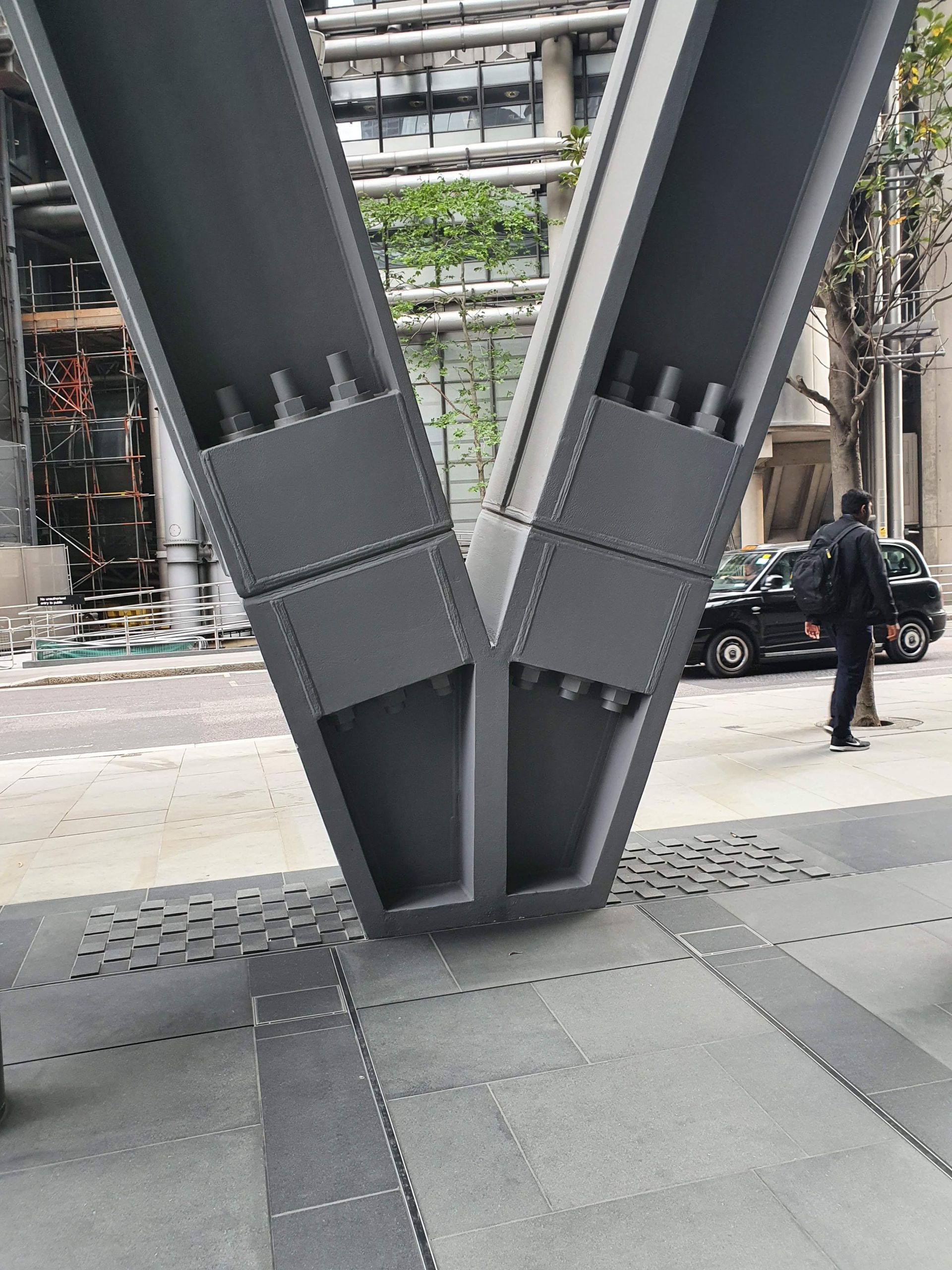

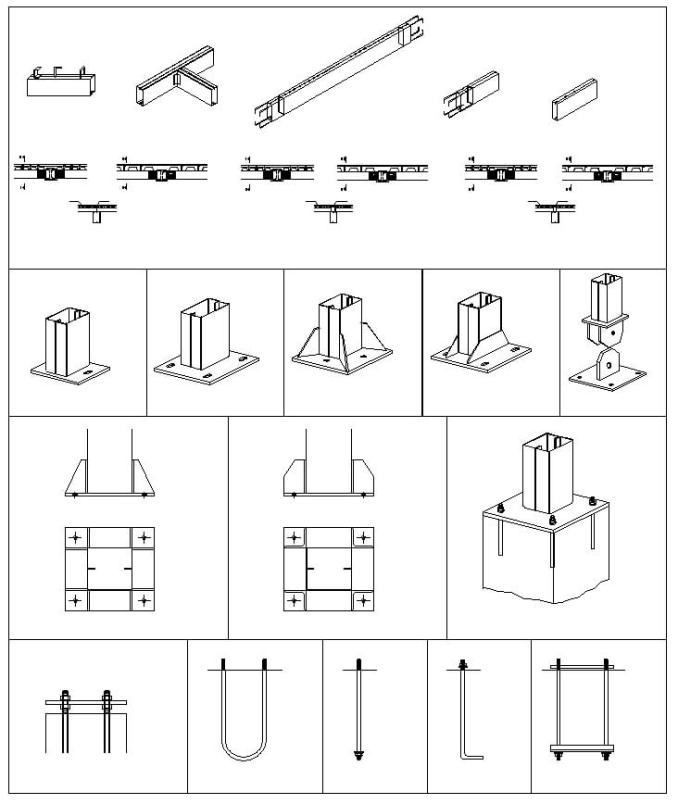

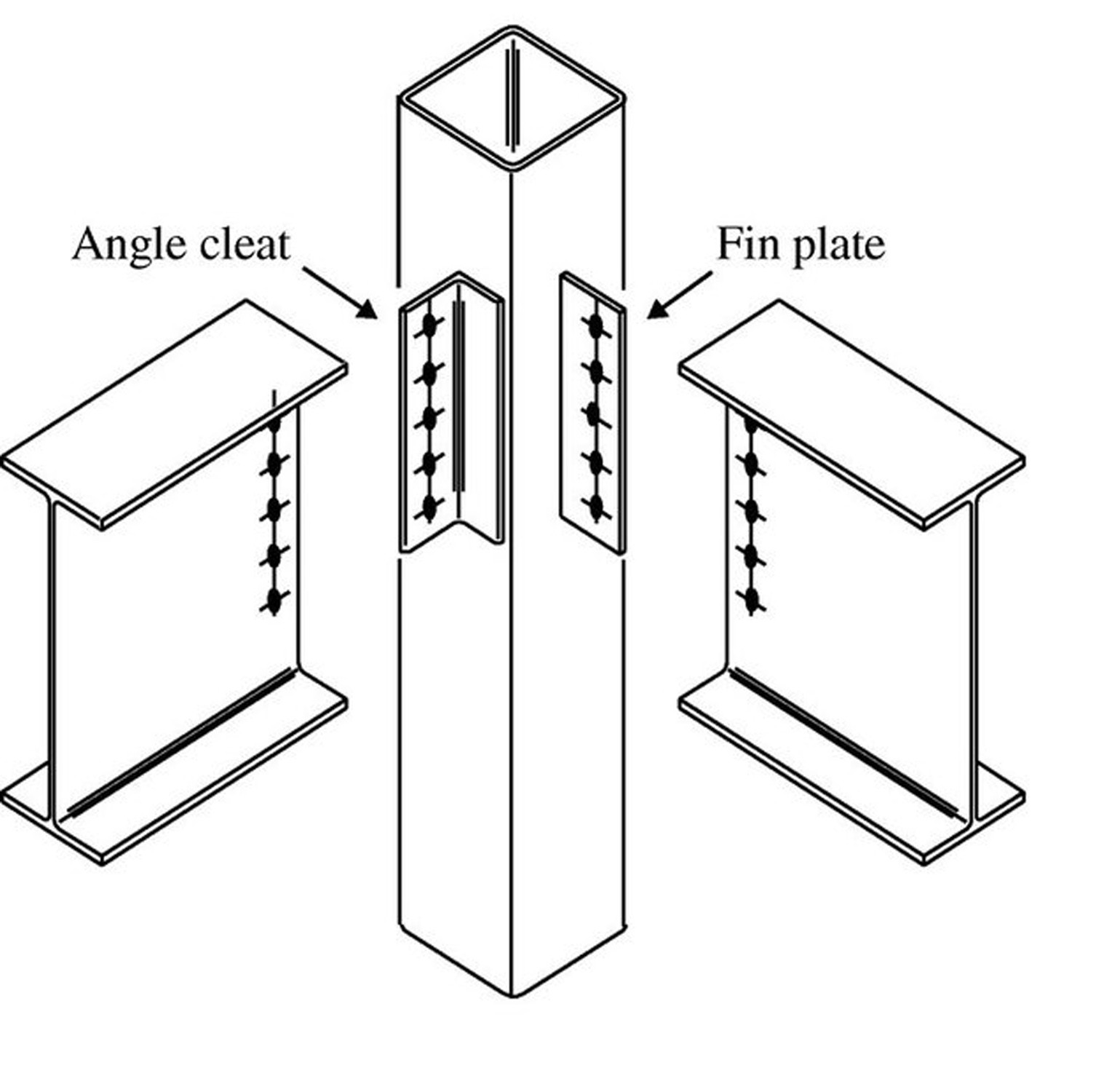

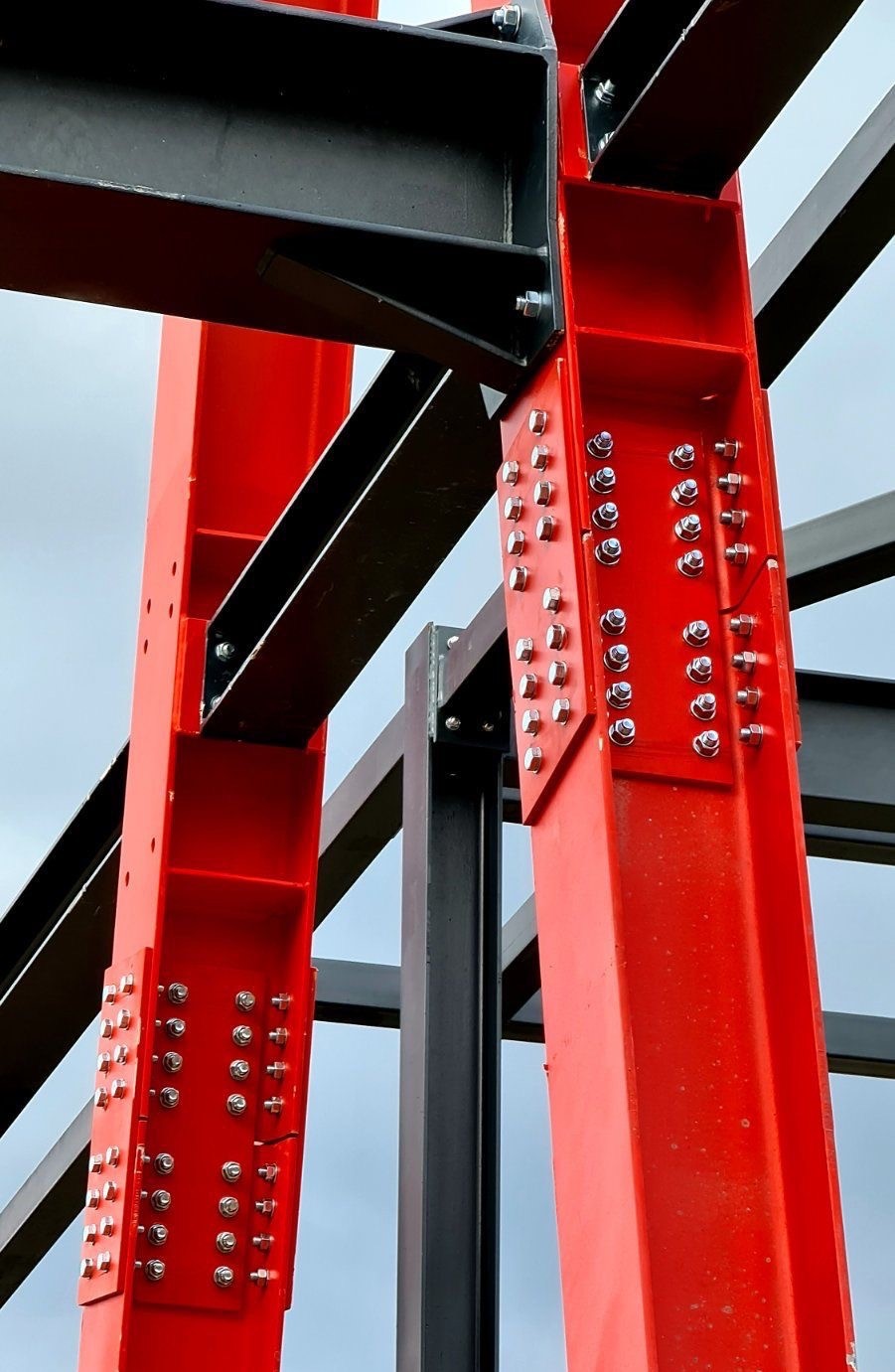

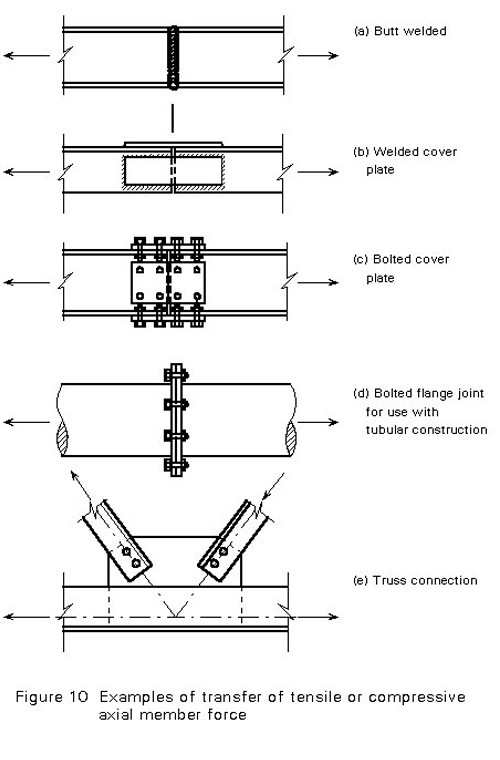

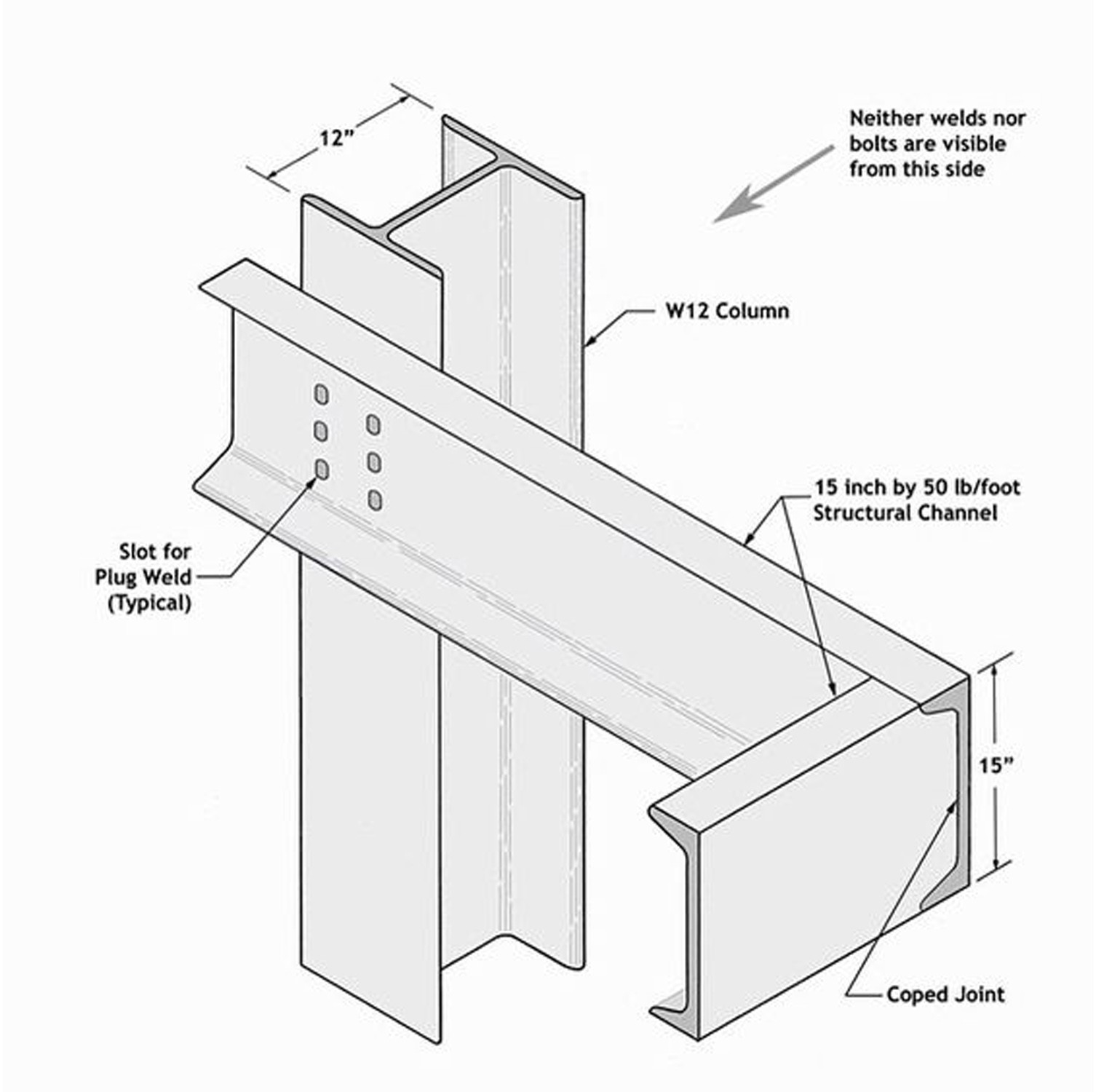

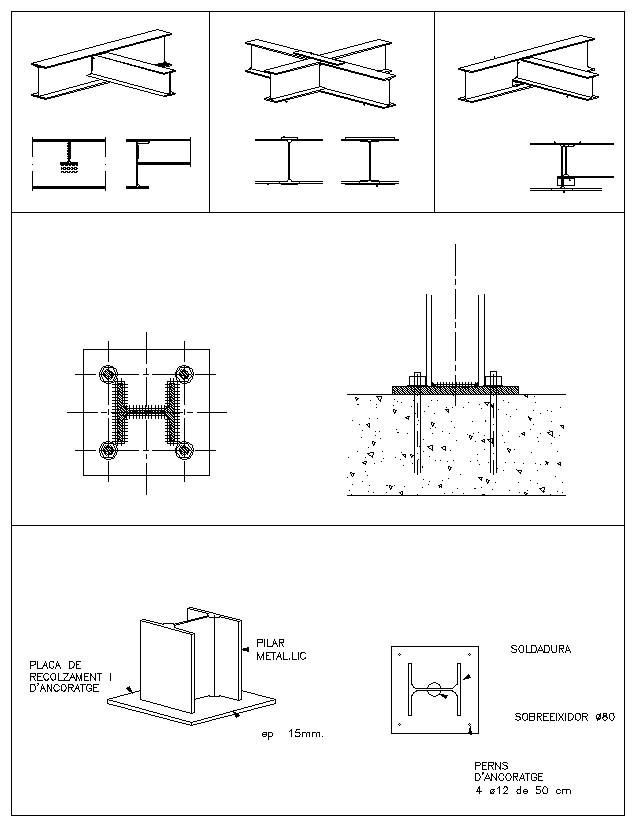

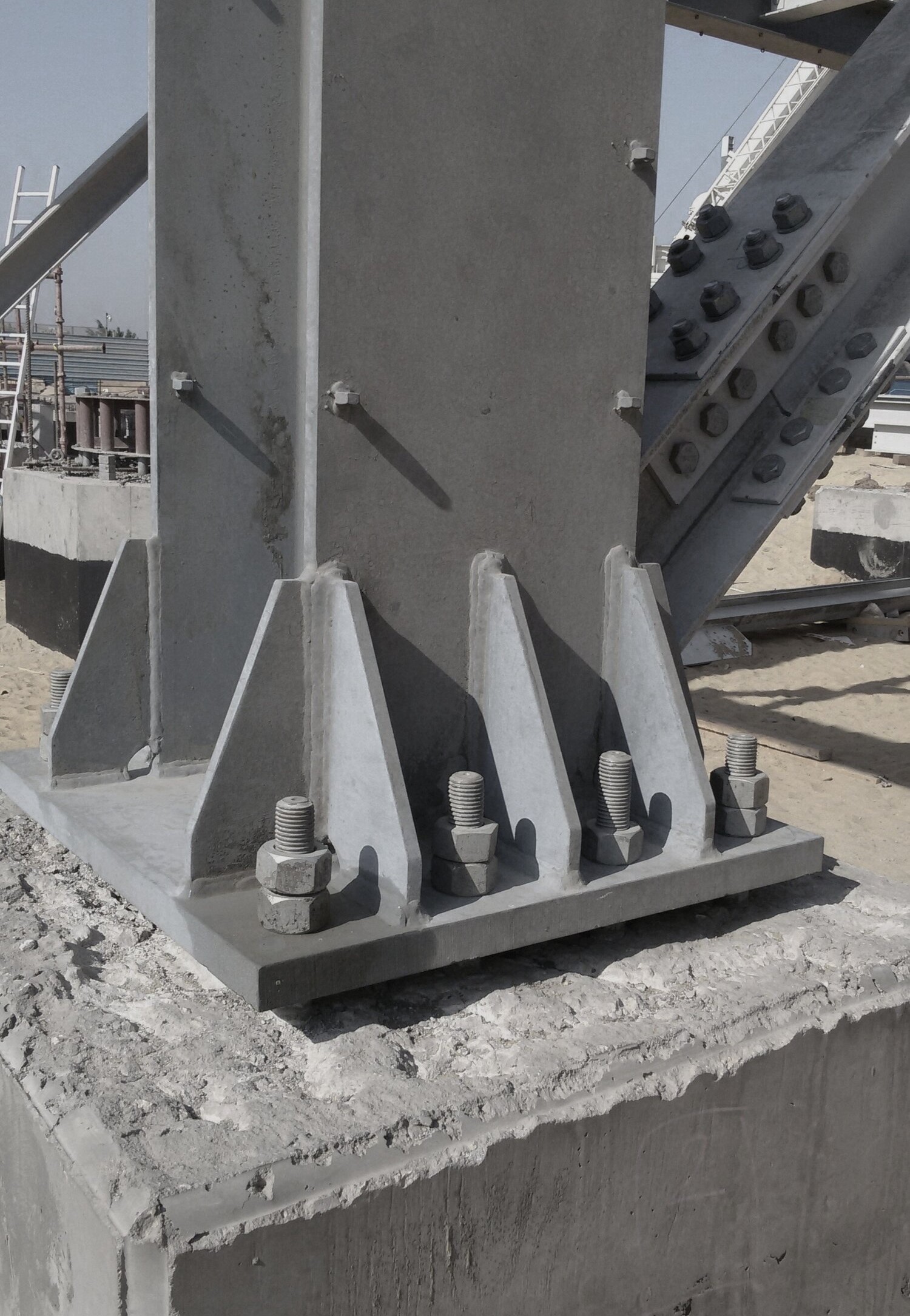

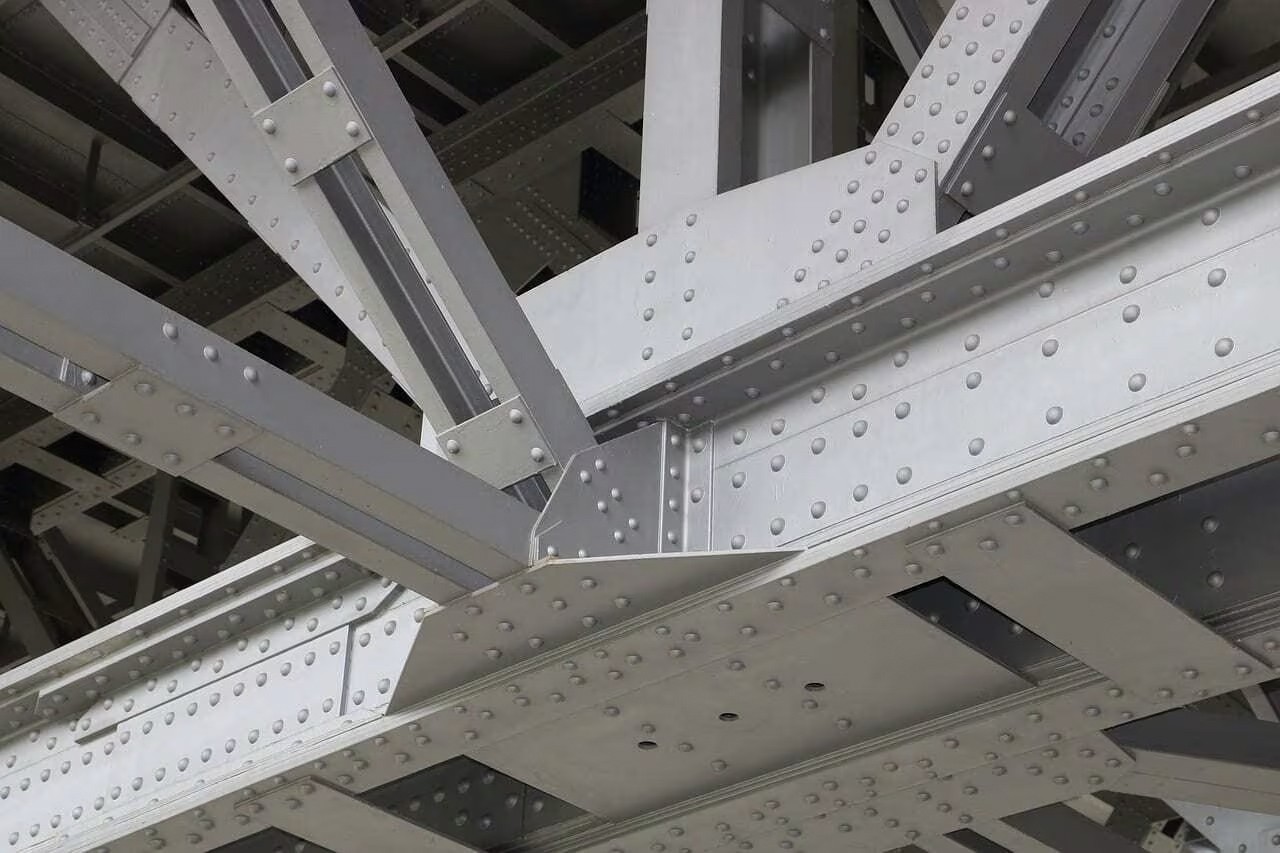

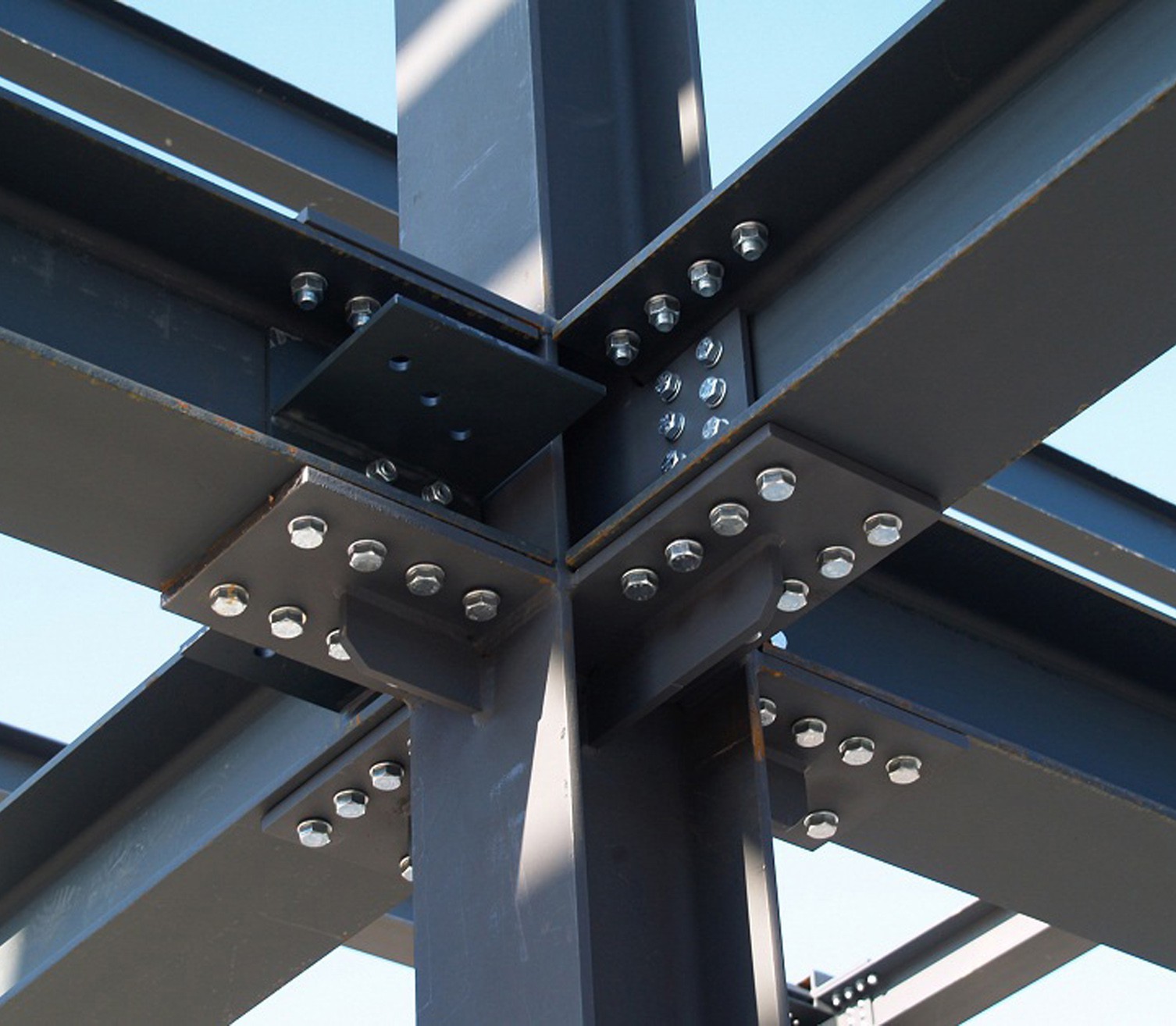

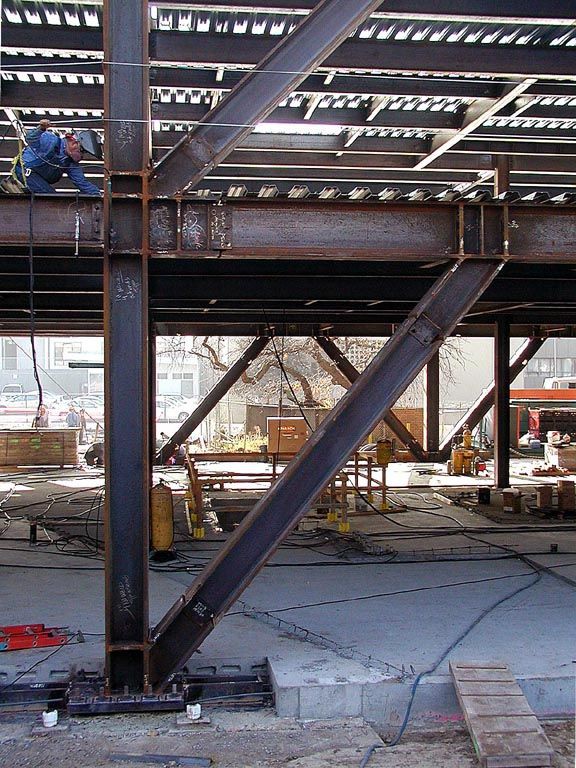

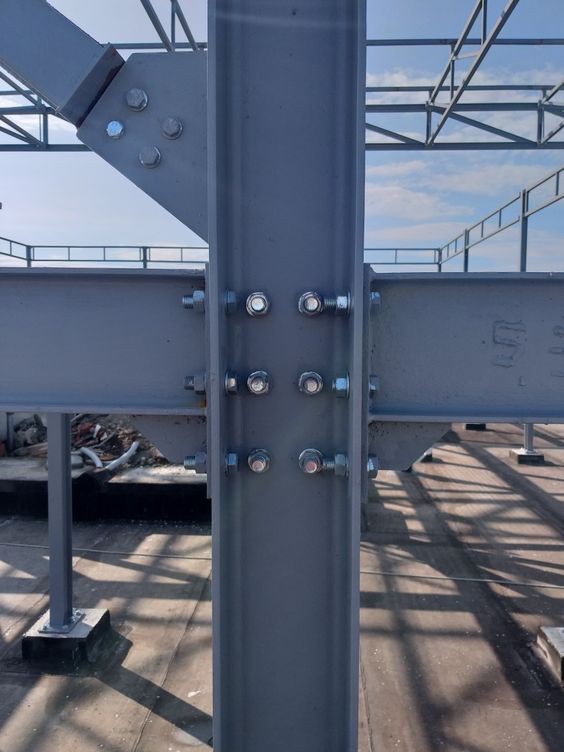

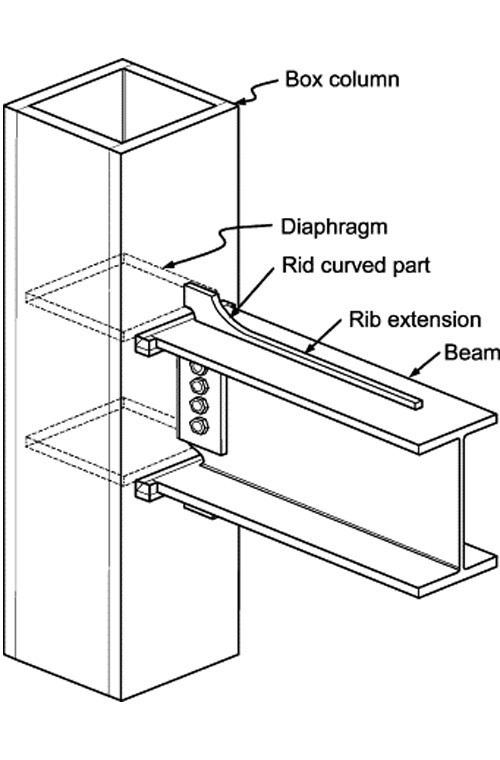

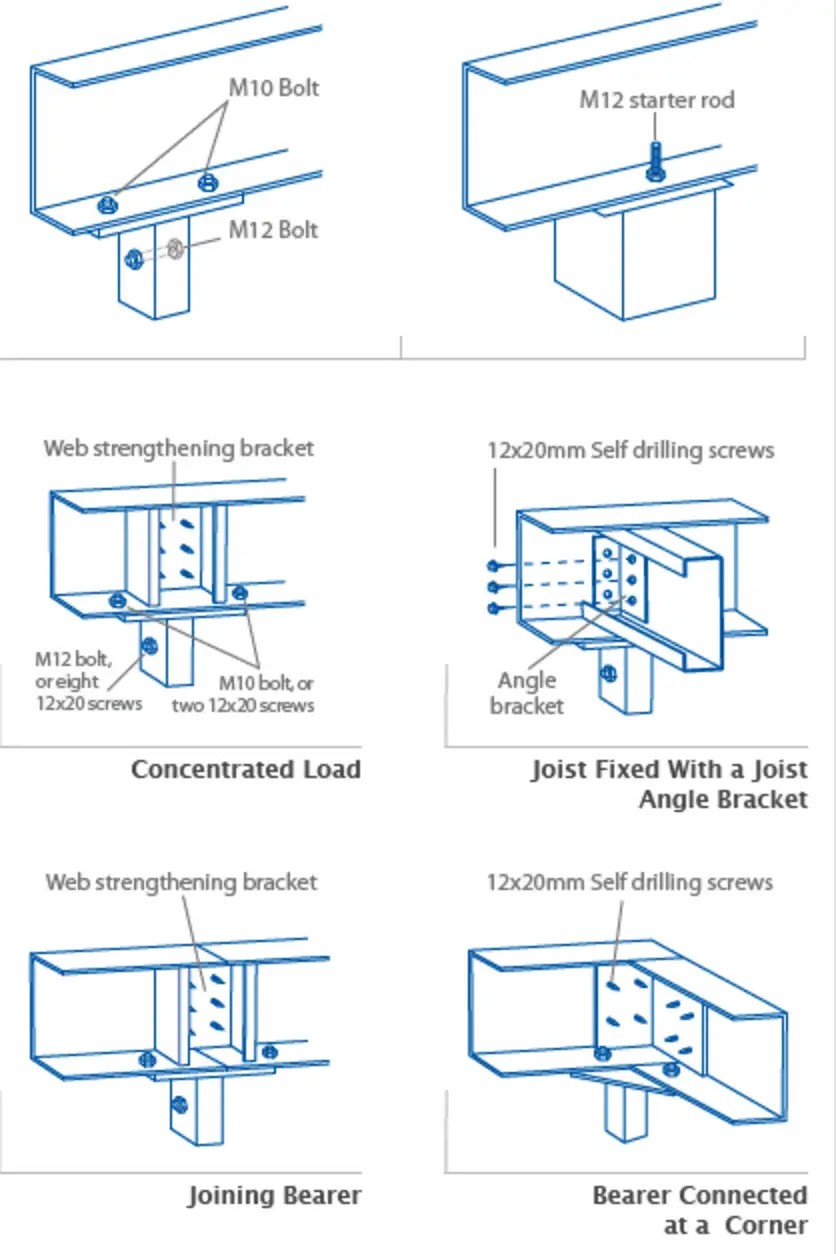

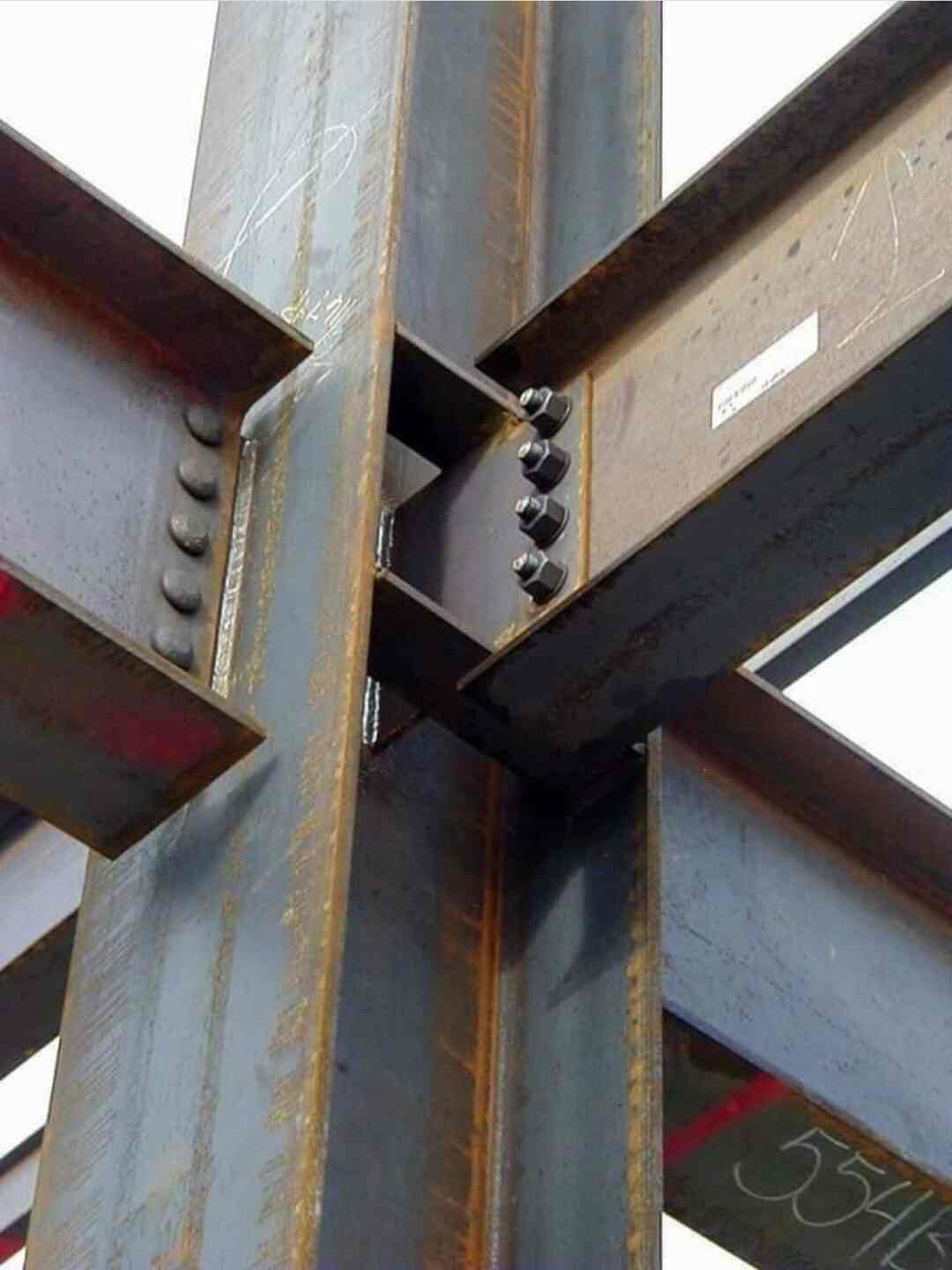

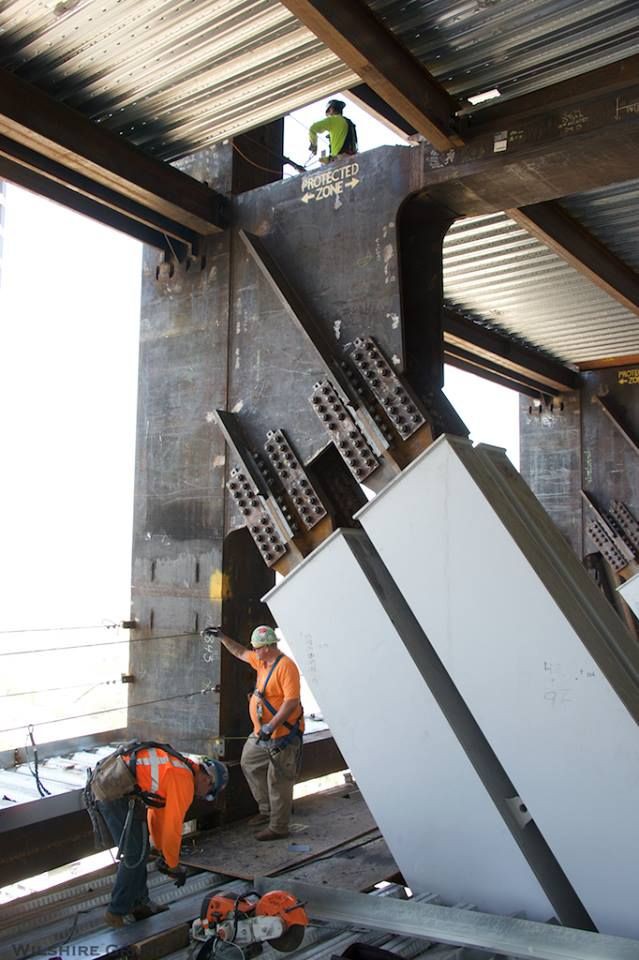

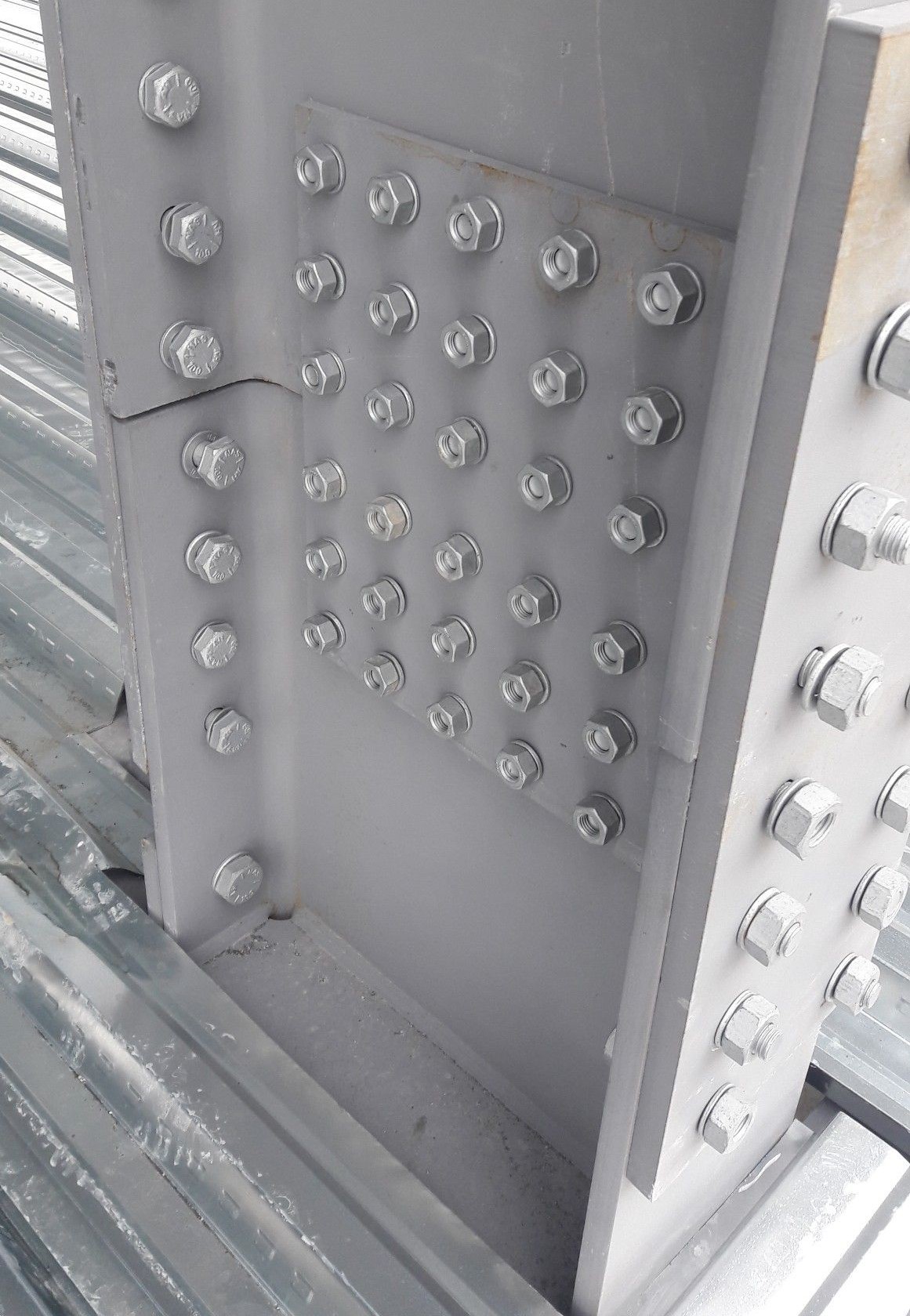

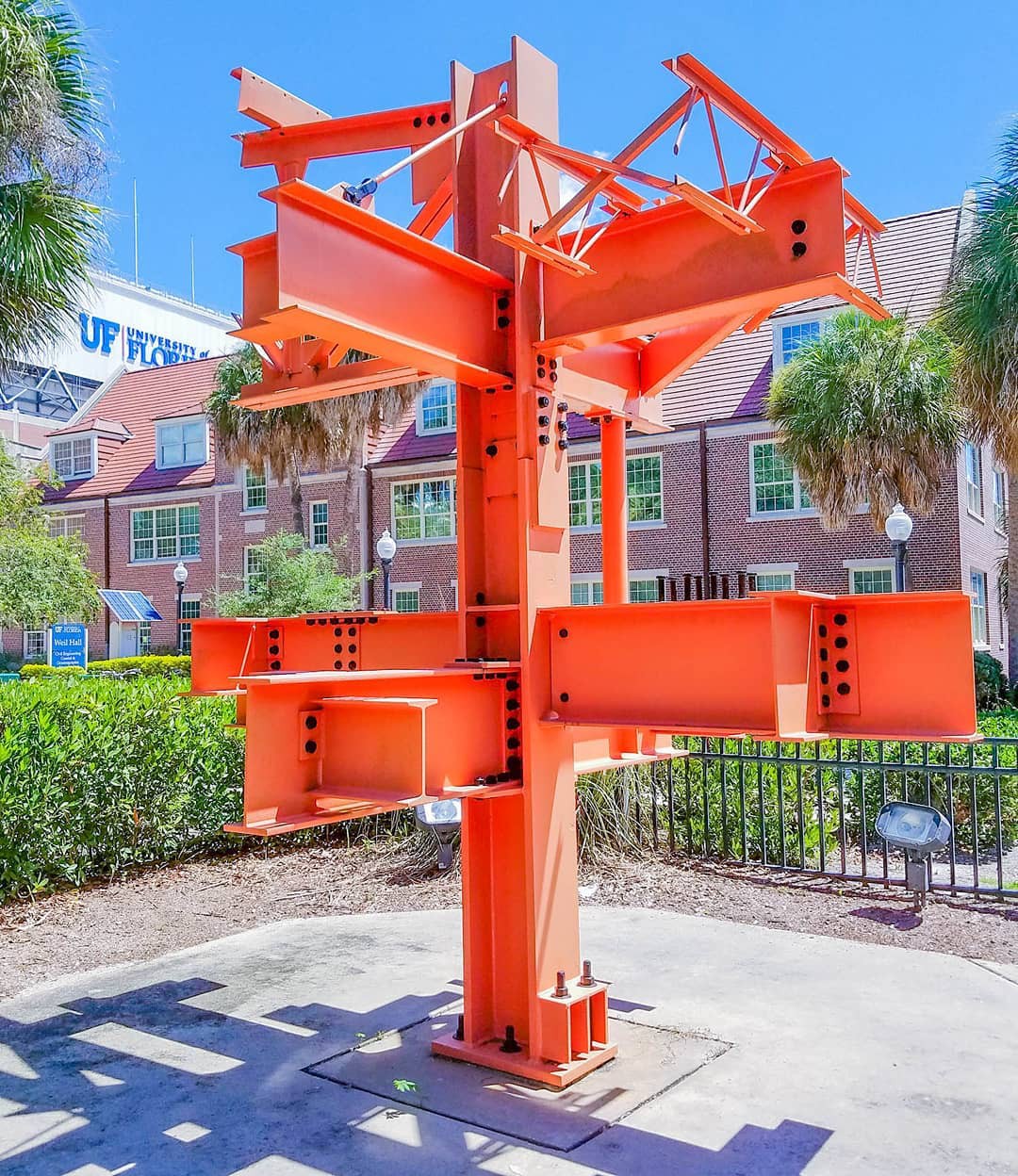

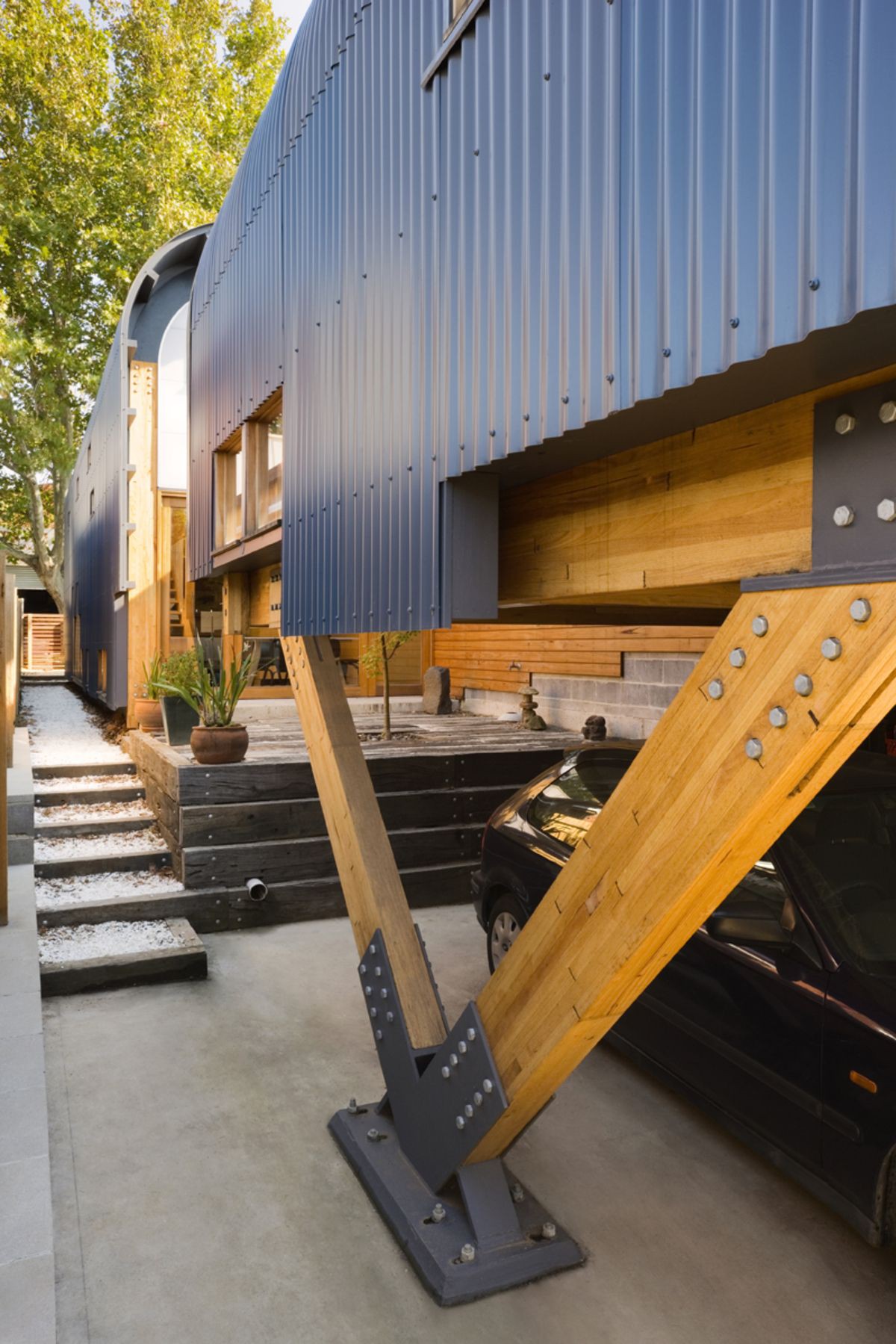

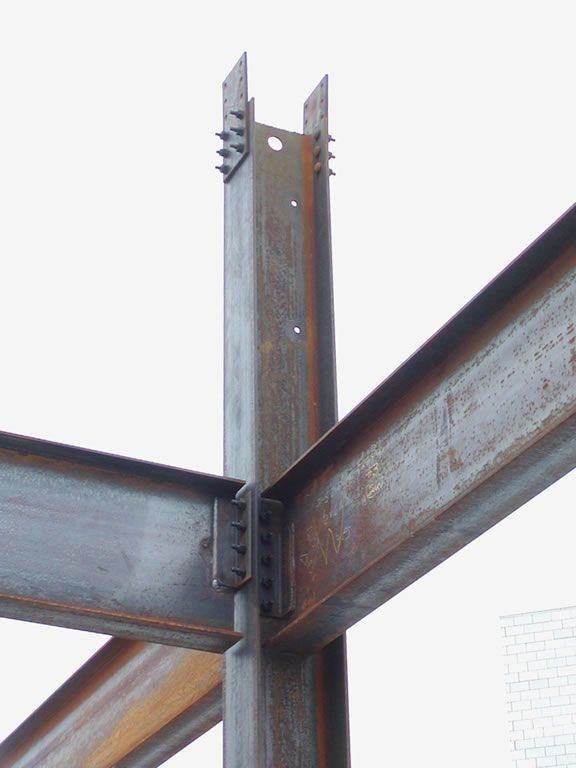

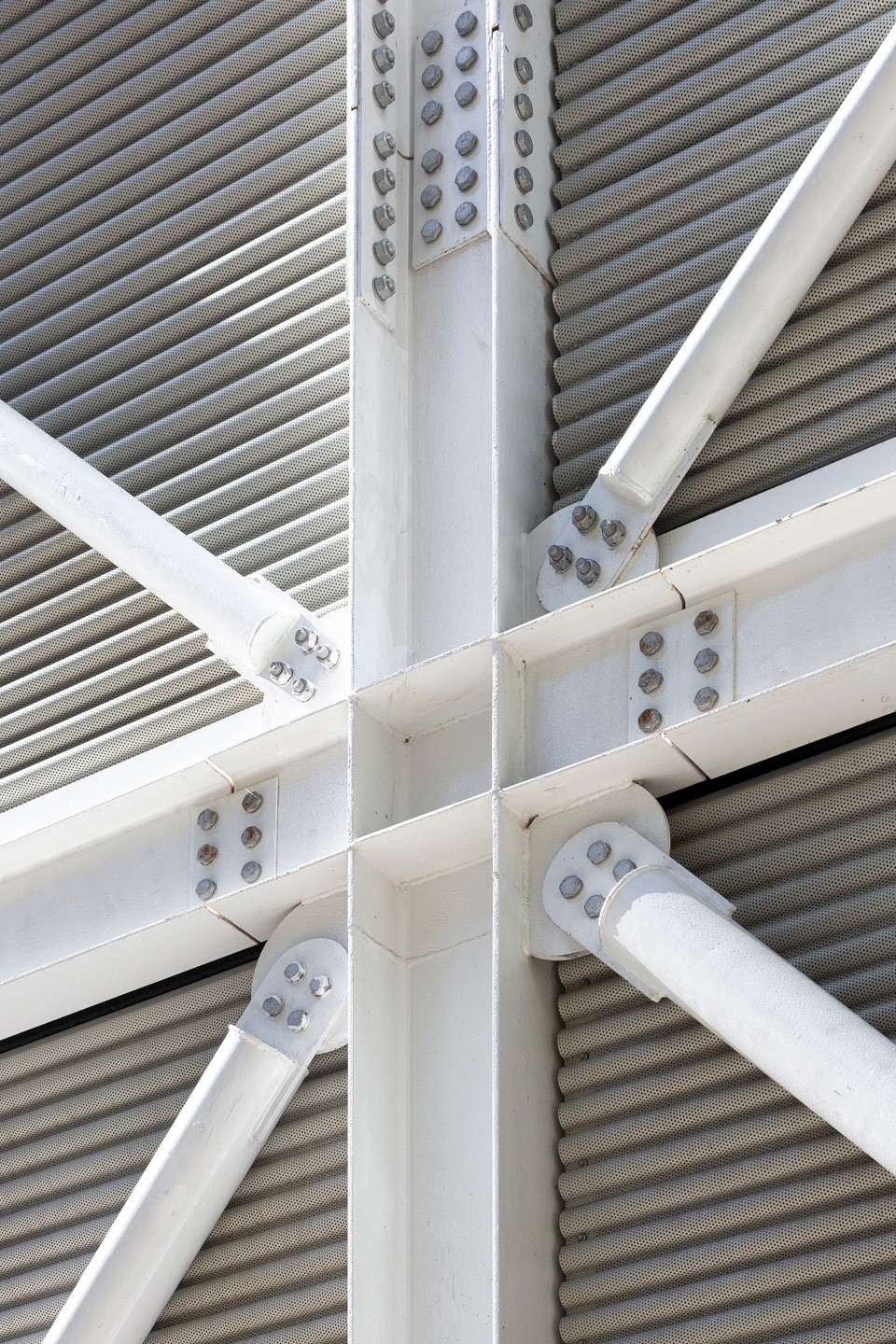

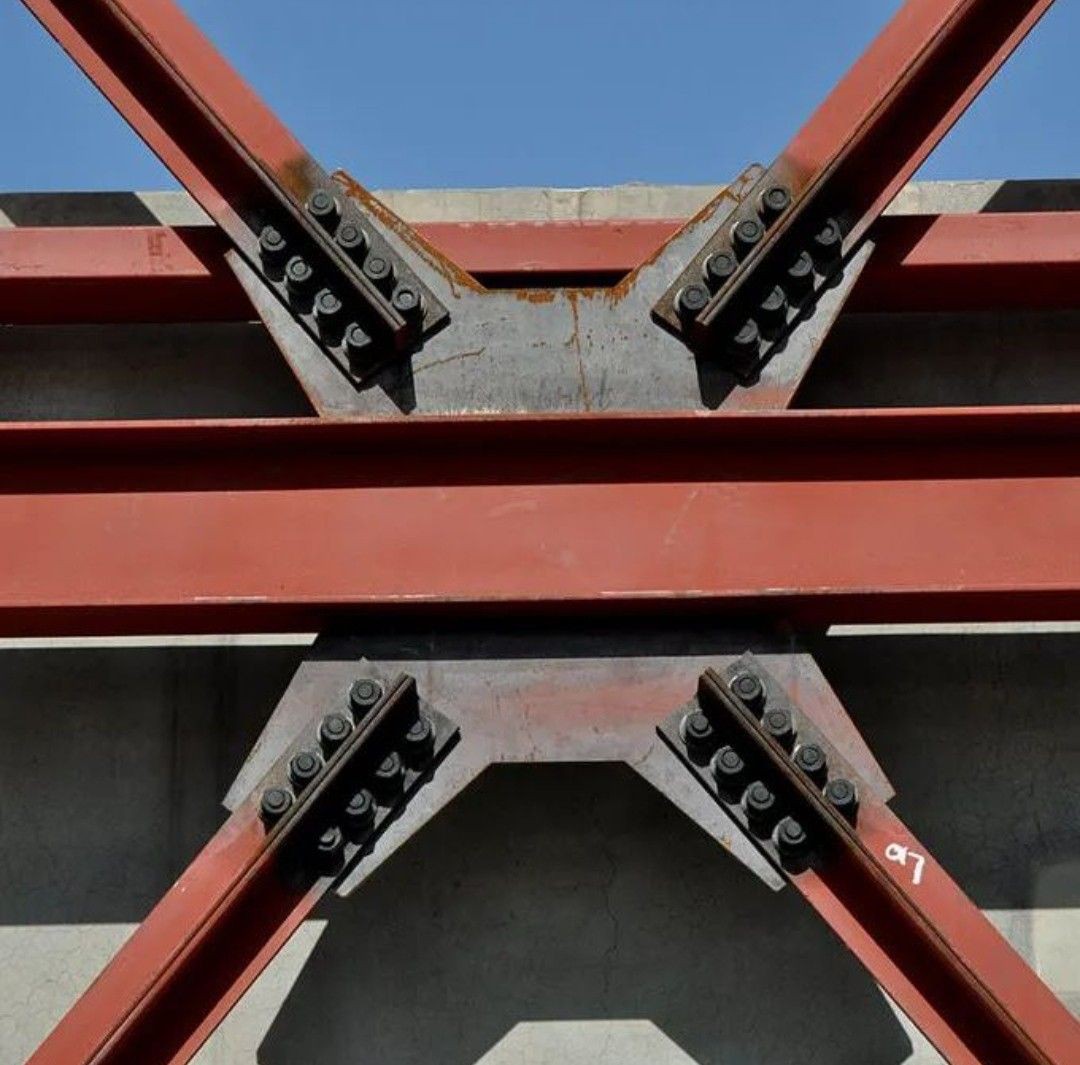

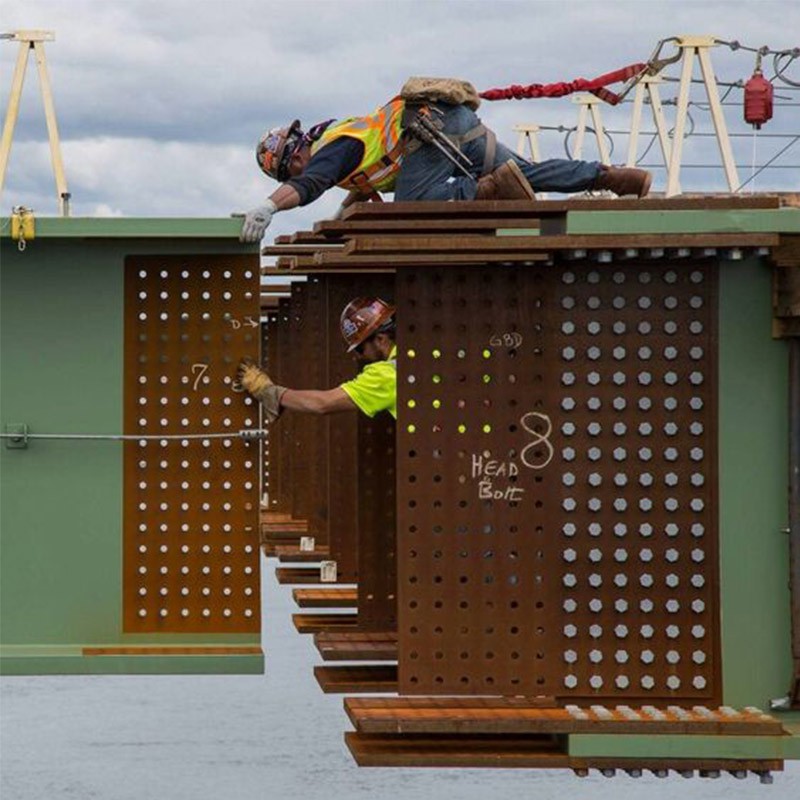

Structural steel assembly involves the meticulous process of fabricating and erecting steel structures, which are essential for various types of buildings and infrastructures. This process includes detailing, which is the preparation of precise shop drawings that specify every connection, bolt, and weld required for the structure. The assembly of steel structures focuses heavily on the joints, which are critical points where different steel members connect. These joints must be designed to handle specific loads and stresses, ensuring the integrity and stability of the entire structure. Examples of steel assembly include the construction of skyscrapers, bridges, and industrial facilities, where beams, columns, and trusses are assembled to form a robust framework. Visual documentation of these connections is vital for both educational and practical purposes. Thus, a collection of 27 photos showcasing various steel connections can provide valuable insights into the complexity and precision required in steel construction. These images highlight different types of connections such as bolted, welded, and riveted joints, illustrating the diverse techniques used to achieve strong and reliable steel assemblies.
