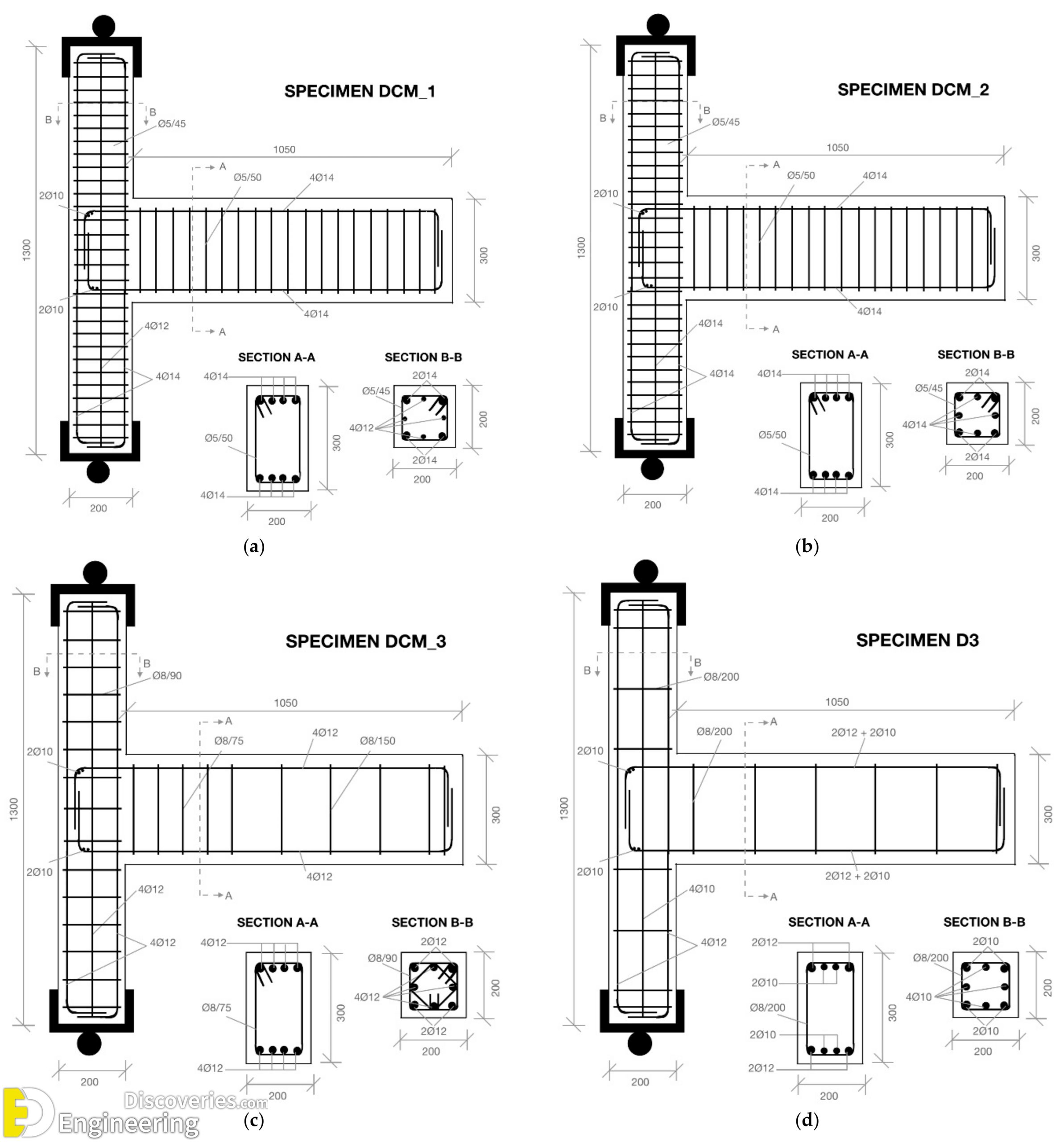

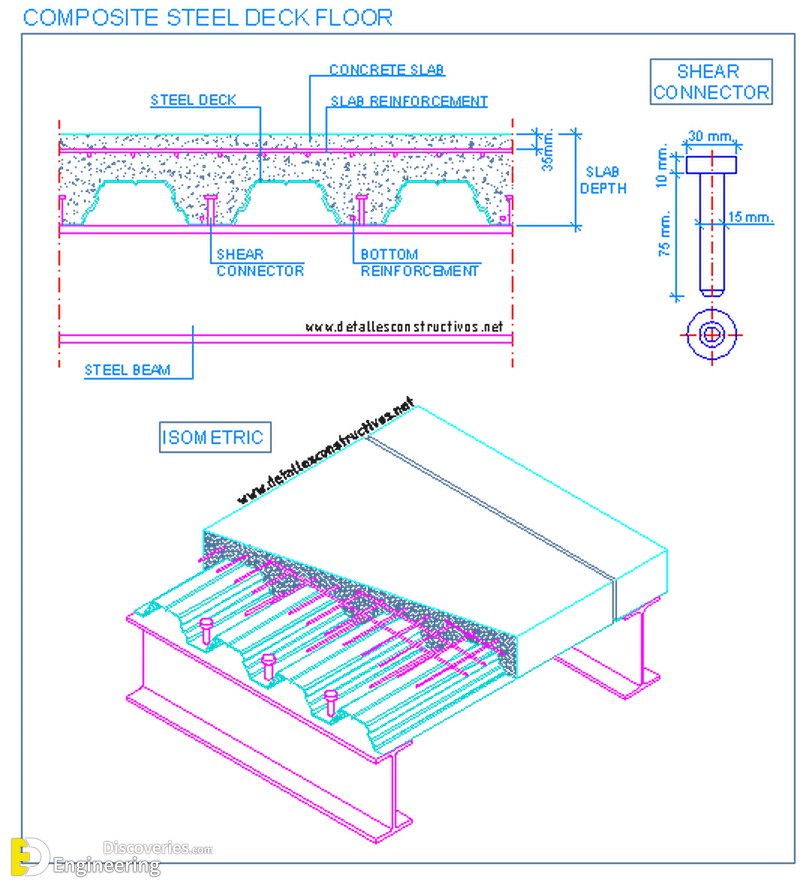

Reinforcement detailing plays a crucial role in ensuring the strength, durability, and stability of concrete structures. The 33 photos showcasing reinforcement detailing provide a comprehensive visual guide to the intricate arrangements of steel bars in various structural elements such as footings, columns, beams, slabs, and stairs. Proper reinforcement design helps in resisting tensile forces, preventing cracks, and enhancing the overall load-bearing capacity of the structure. From well-anchored footings that distribute loads efficiently to precisely spaced rebar in beams and slabs for optimal stress distribution, these images highlight the importance of correct detailing. The reinforcement in columns ensures vertical stability, while staircase reinforcement provides adequate strength for safe movement. These photos serve as an essential reference for engineers, architects, and construction professionals, emphasizing best practices in concrete reinforcement to achieve structurally sound and long-lasting buildings.
