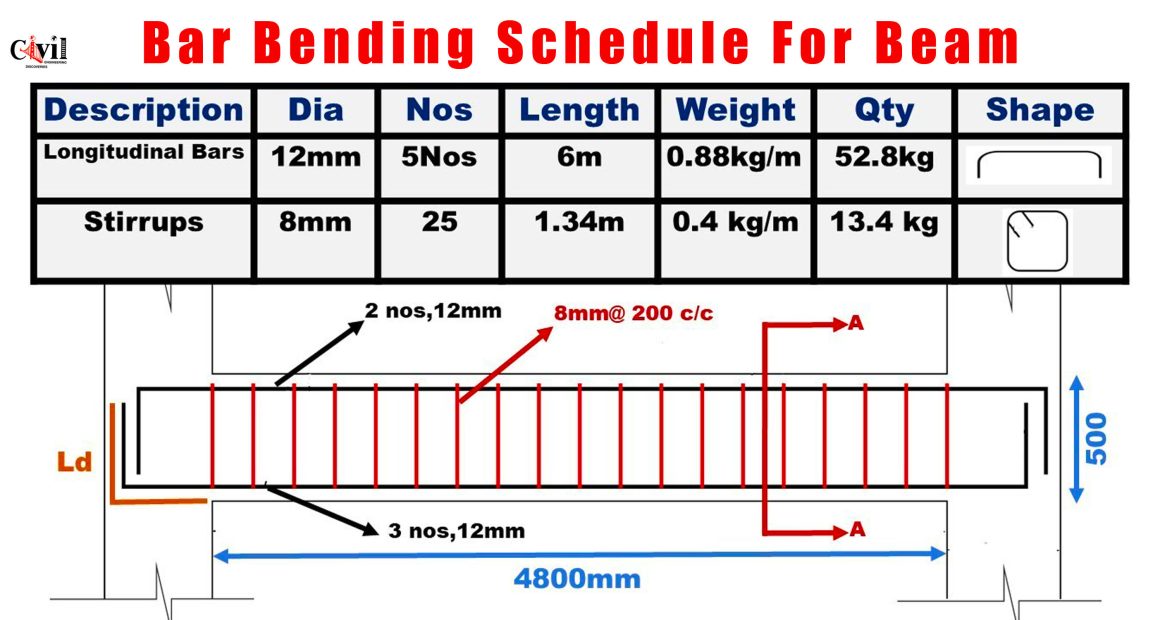

What is a Bar Bending Schedule (BBS)?
A bar bending schedule (BBS) is a detailed list that outlines the quantity, size, length, shape, and position of reinforcement bars used in construction projects. It ensures precise cutting and bending of bars for structural components like beams.
Importance of Bar Bending Schedule for Beams
- Accurate Material Estimation: BBS prevents material wastage and ensures cost-effective construction.
- Time Efficiency: Clear specifications streamline the cutting and bending process.
- Structural Integrity: Properly planned reinforcement enhances the strength of the beam.
Components of a Bar Bending Schedule
1. Bar Details
Each beam requires specific bar diameters, lengths, and shapes. The BBS includes this critical data.
2. Bar Identification Numbers
Every bar is assigned a unique number for easy identification and placement.
3. Cutting Lengths
Precise cutting lengths reduce material wastage and ensure bars fit perfectly.
4. Shapes and Bending Details
Diagrams in the BBS illustrate the bending shapes for proper placement in the beam.
5. Quantity and Weight
The schedule includes the total number of bars and their cumulative weight for procurement planning.
Steps to Prepare a Bar Bending Schedule for a Beam

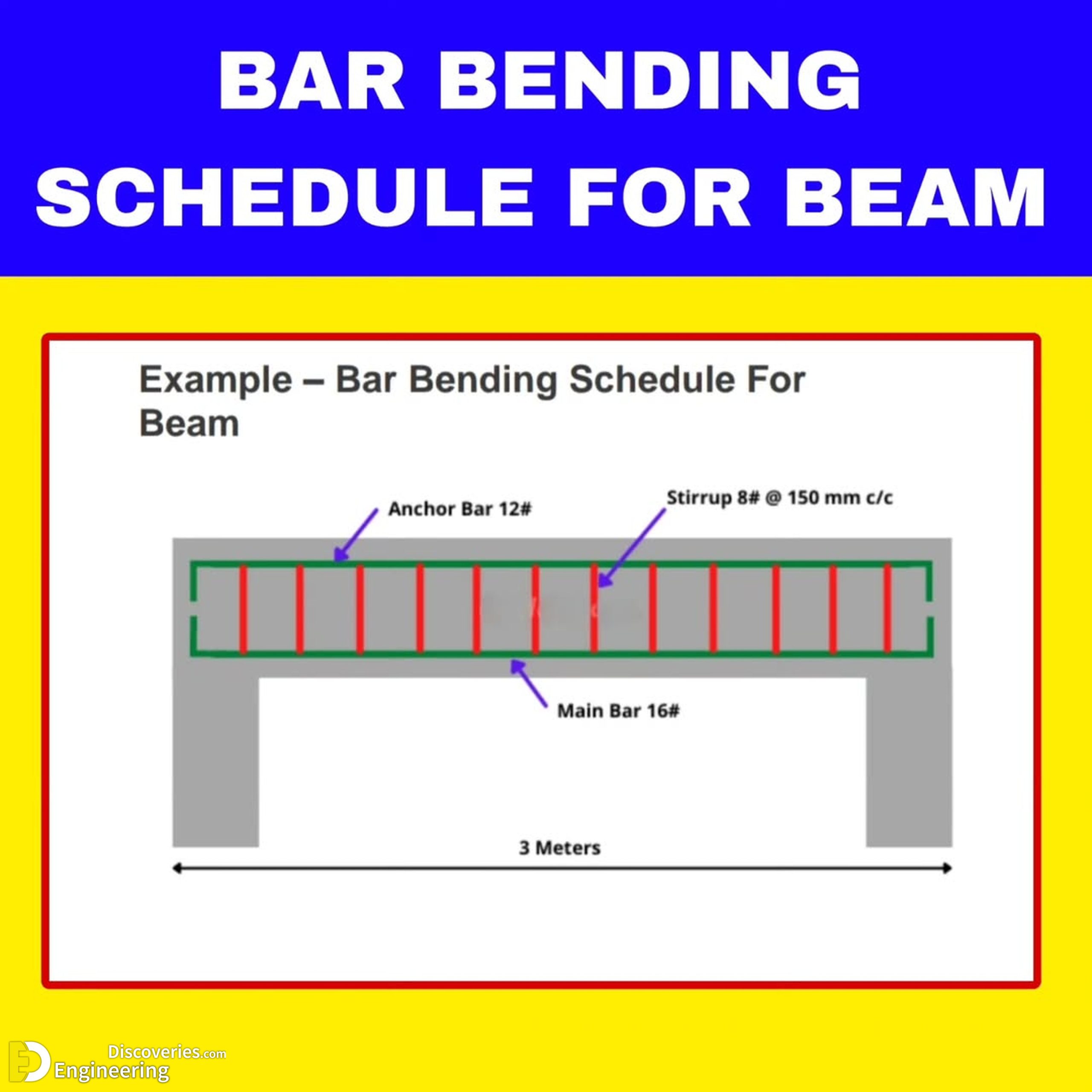

1. Study the Structural Drawings
Analyze the beam’s design and reinforcement details provided in the drawings.
2. Classify Bars by Type
Categorize bars into main bars, stirrups, and other reinforcement elements.
3. Determine Cutting Lengths

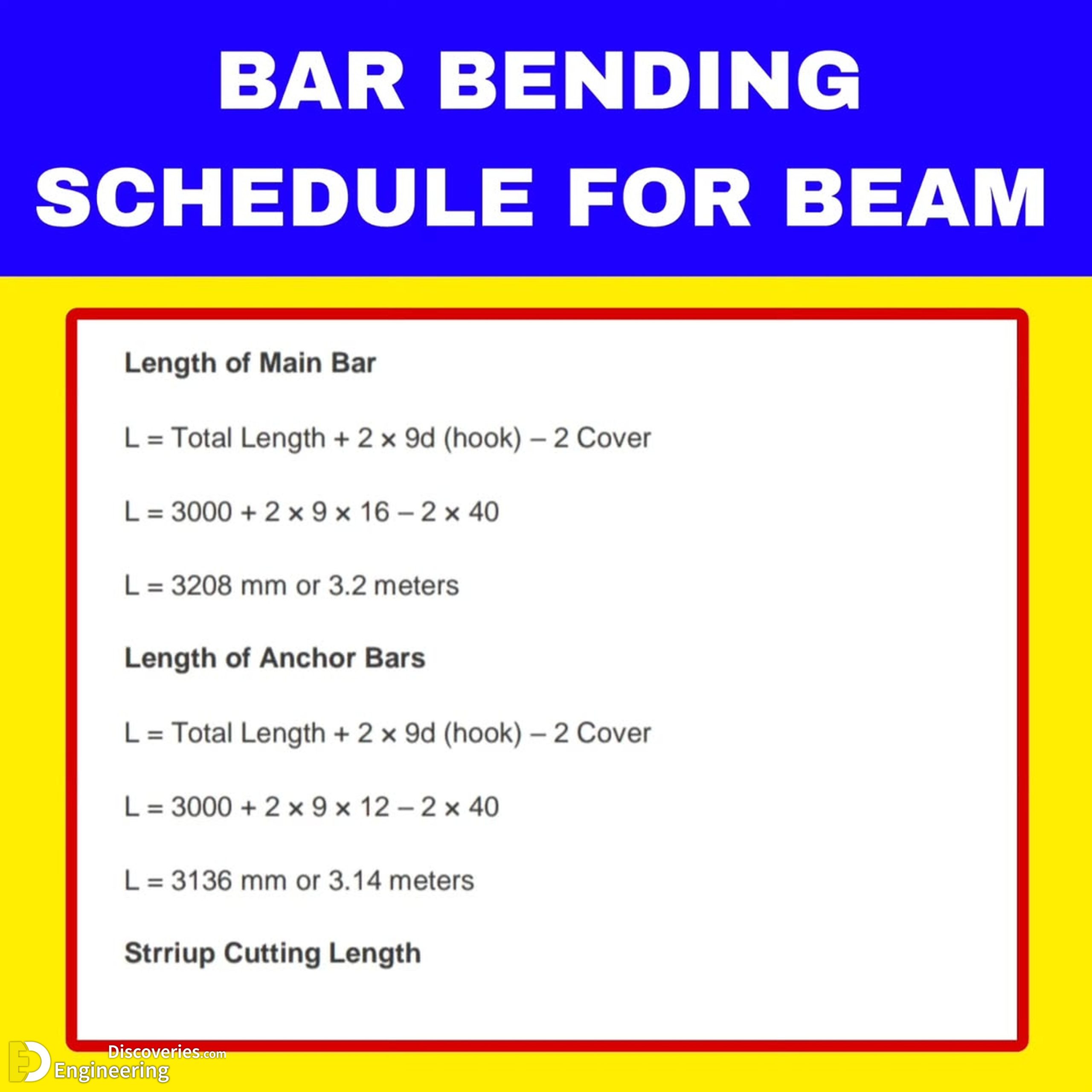

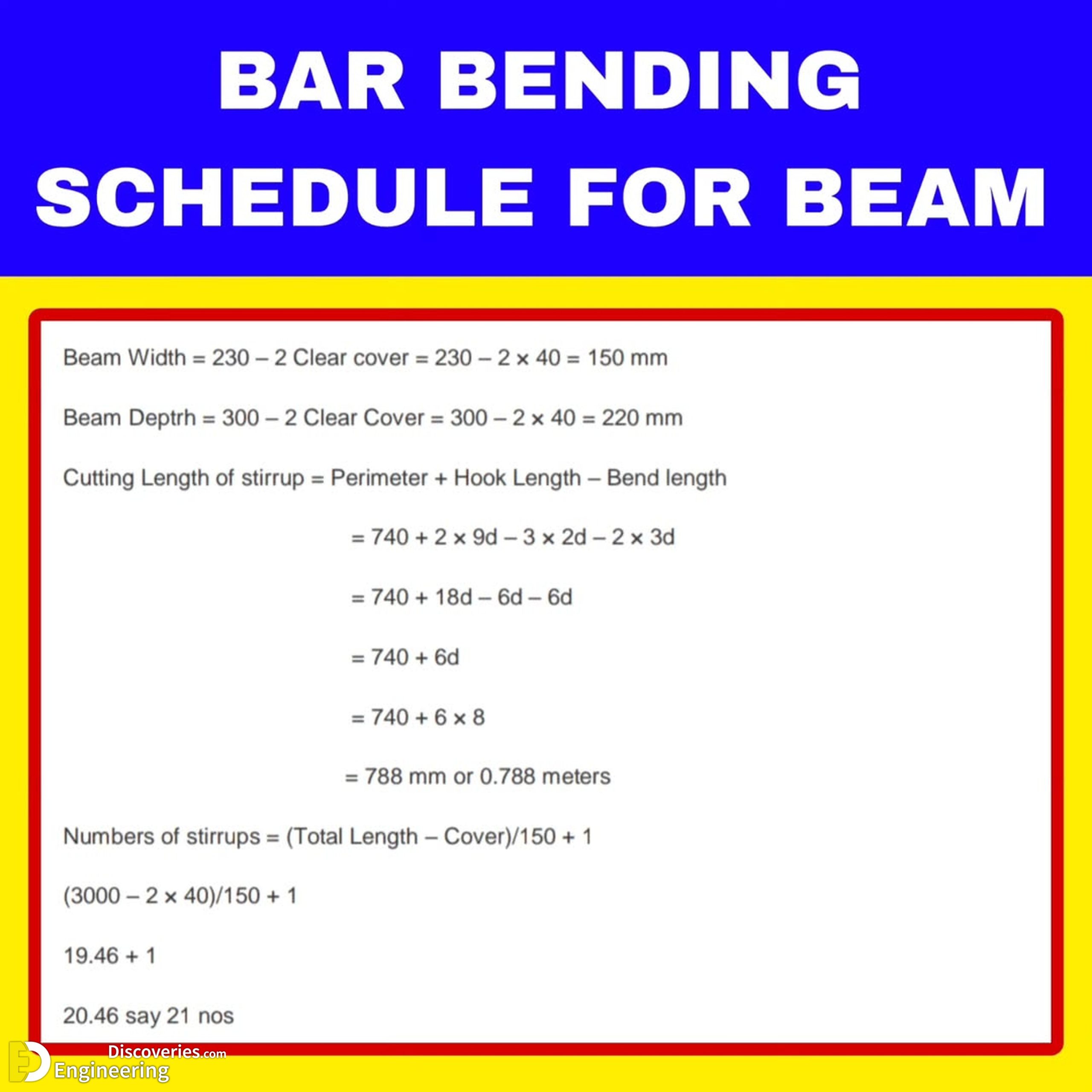

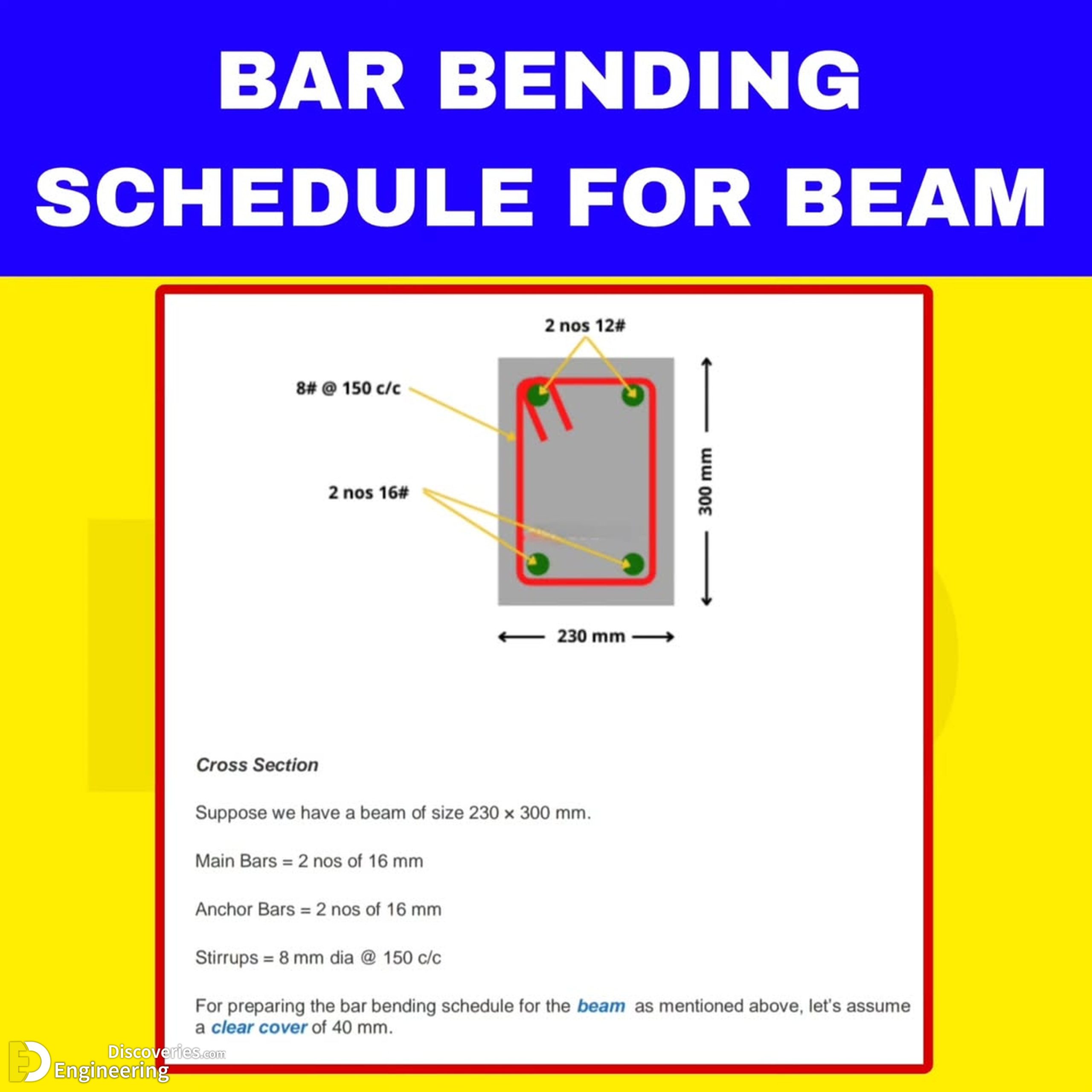

Calculate the cutting lengths based on the bar’s shape, anchorage, and lap lengths.
4. Draft the Schedule
Prepare the BBS table, including bar types, lengths, quantities, and weights.
5. Verify and Approve
Cross-check the BBS with design specifications for accuracy before implementation.
Common Bar Bending Schedule Formats

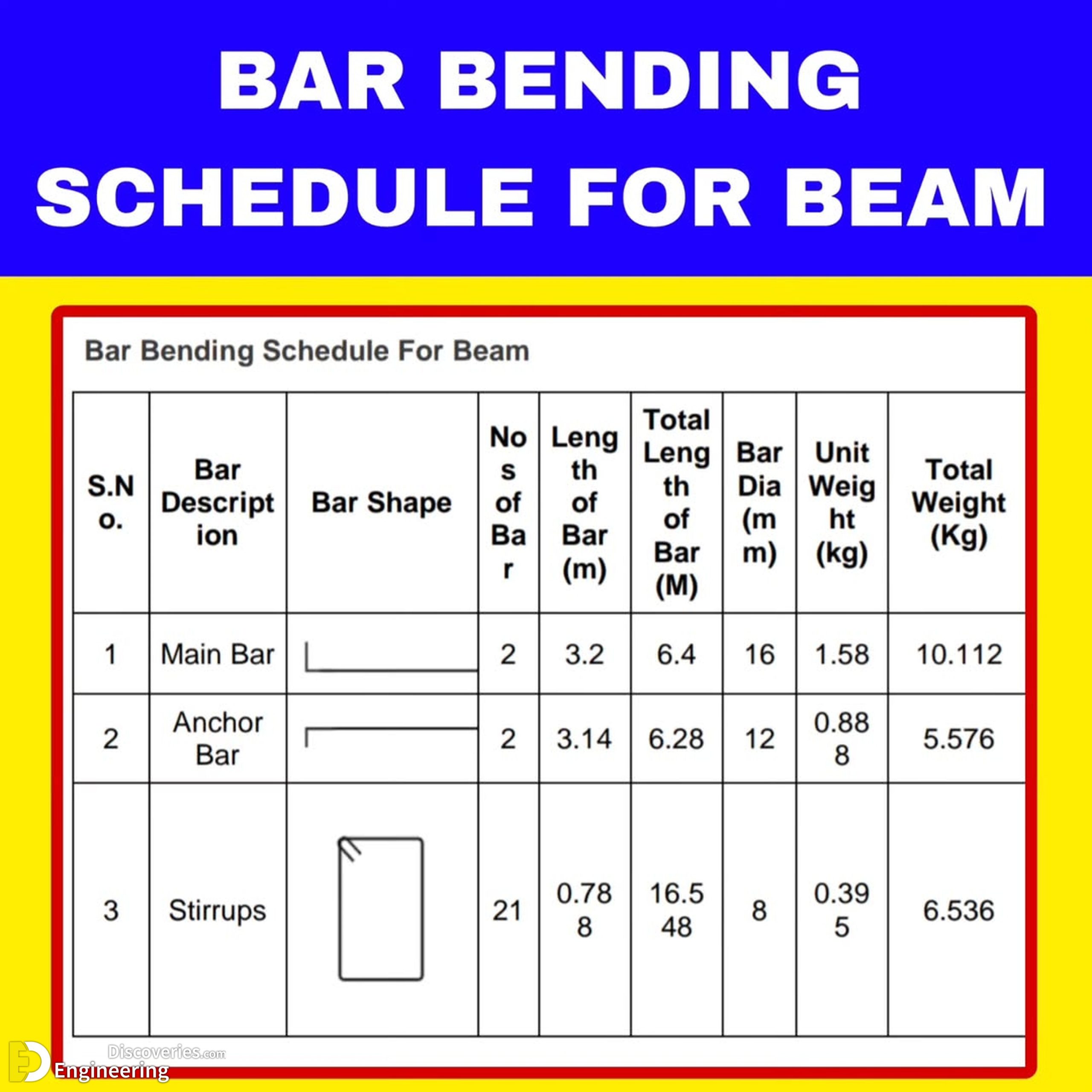

Tabular Format
| Bar Mark | Diameter (mm) | Length (m) | Shape | Quantity | Weight (kg) |
|---|---|---|---|---|---|
| B1 | 16 | 5.2 | Lshape | 10 | 65 |
Software-Based BBS
Software like AutoCAD and STAAD can automate BBS preparation, improving accuracy and efficiency.
Benefits of Using Bar Bending Schedule
- Enhanced Project Management: Simplifies monitoring and procurement.
- Cost Savings: Reduces material and labor costs by eliminating errors.
- Improved Quality Control: Ensures adherence to design standards.
Tips for Effective BBS Implementation
- Double-check cutting lengths and bend angles before fabrication.
- Use high-quality reinforcement steel to maintain structural integrity.
- Train the workforce to interpret and implement the BBS correctly.
Click Here To See Building Stronger Structures: Key RCC Elements Explained
