1-Abutment: A retaining wall supporting the ends of a bridge, and, in general, retaining or supporting the approach embankment.
2-Approach: The part of the bridge that carries traffic from the land to the main parts of the bridge.
3-Approach Span: The span or spans connecting the abutment with the main span or spans.
4-Backwater: The increase in the upstream water elevation resulting from an obstruction to flow, such as a bridge and/or embankment placed in the floodplain.
5-Barrier Rail: A low, reinforced concrete wall along the edges of a bridge to prevent vehicles from going over the sides. The railing may or may not adopt some form of safety shape.
6-Beam: A horizontal structural member supporting vertical loads by spanning from one support to another. A box beam is a hollow box; its cross-section is a rectangle or square.
7-Bearing: A device at the ends of beams that are placed on top of a pier or abutment. The ends of the beam rest on the bearing, which is an element that provides the interface between the superstructure and the substructure.
The bearing transmits the load from the superstructure to the substructure as well as allows for thermal movements and rotations due to traffic.
8-Bearing Pile: A member constructed of steel and/or concrete driven into the ground to carry axial loads. A member of the Substructure.
9-Bedrock: The solid rock layer beneath sand or silt.
10-Bent: A type of pier comprised of multiple columns. A rigid frame is commonly made of reinforced concrete or steel that supports a vertical load and is placed transverse to the length of a structure. Bents are commonly used to support beams and girders. An end bent is the supporting frame forming part of an abutment.
The vertical members of a bent are columns or piles. The horizontal member resting on top of the columns is a bent cap. The columns stand on top of some type of foundation, either a footing or a drilled shaft, that is usually hidden below grade.
11-Bent Cap: A horizontal substructure element that receives the load from the superstructure and transfers the load to columns or piles.
12-Condition Ratings: According to the National Bridge Inspection Standards (NBIS), condition ratings are used to describe an existing bridge or culvert compared with its condition if it were new.
The ratings are based on the materials, the physical condition of the deck (riding surface), the superstructure (supports immediately beneath the driving surface), and the substructures (foundation and supporting posts and piers). General condition ratings range from 0 (failed condition) to 9 (excellent).
13-Cast-in-Place: Concrete poured within formwork on-site to create a structural element in its final position. On Safe & Sound bridges, the most likely elements to be cast-in-place include bent, bent cap, abutment, wing wall, and in some cases deck.
14-Crashworthy: A system that has been crashing tested to establish that its structural and geometric performance is of/at an established level.
15-Culvert: A drain, pipe, or conduit that allows water to pass under a road or railroad embankment.
16-Deck: The component of a bridge which is driven upon, including shoulders. Some Safe and Sound decks are asphalt while others are constructed as reinforced concrete slabs. Average Daily Traffic determines which surface is used.
17-Diversion Channel: A bypass created to divert water around a structure so that construction can take place.
18-Drilled Shaft: The “legs” of the bridge that support the piers and pile cap or footing located underneath the water or ground line; a deep foundation unit embedded in the ground by placing fresh concrete in a drilled hole with steel reinforcement.
Drilled shafts derive their capacity from the surrounding soil and/or rock. Sometimes referred to as caissons, bored piles, or drilled piers.
19-Embankment: A raised area of fill used in roadway approaches. In some cases, retaining walls are used to support or “hold in” the fill area where other constraints exist adjacent to the approaches.
20-End Treatment: The approach end of a parapet or railing that may or may not have a crashworthy configuration depending on approach speeds, geometry, and traffic characteristics.
21-Fill: Earth, stone, or other material used to raise the ground level, form an embankment, or fill the inside of an abutment, pier, or closed-spandrel.
22-Flood Frequency: The concept of the probable frequency of a given flood. More precisely it is the inverse of the probability that a flood will be exceeded at least once in a given year.
23-Footing: The enlarged lower portion of the substructure or foundation that transfers load from a column directly to the soil, bedrock, or piles; usually below grade and not visible.
24-Freeboard: The clearance between the bottom of the superstructure and the design high-water elevation.
Functionally Obsolete A functionally obsolete bridge is one that was built to standards that are not used today. These bridges are not automatically rated as structurally deficient, nor are they inherently unsafe.
Functionally obsolete bridges are those that do not have adequate lane widths, shoulder widths, or vertical clearances to serve current traffic demand, or those that may be occasionally flooded. A functionally obsolete bridge is similar to an older house. A house built in 1950 might be perfectly acceptable to live in, but it does not meet all of today’s building codes. Yet, when it comes time to consider upgrading that house or making improvements, the owner must look at ways to bring the structure up to current standards.
25-Headwall: The device placed at the end of a bridge that comprises a large portion of the abutment. Headwalls are used to retain the road formation soil around and above the abutments and prevent erosion at the abutment.
26-Parapet: A railing system made of reinforced concrete along the outside edge of a bridge deck used to protect vehicles and pedestrians.
27-Pier: Also called bent. Typically bents with one column are called piers.
28-Pile: A long column drove deep into the ground to form part of a foundation or substructure. (See Bearing Pile).
29-Post-tensioning: Application of tensile forces to the steel tendons after the segments are in place. These forces allow the span to carry the desired loads.
30-Pre-Cast Girder: is fabricated off-site of Portland cement using reinforcing steel and post-tensioning cables. These girders are shipped to the construction site by truck and hoisted into place by cranes.
31-Prestressed Concrete: A type of pre-cast concrete girder in which compressive stresses are introduced by the application of prestressing forces in a fabrication facility. The prestressing tendons are stretched, the concrete cast and set around them, and then released from the form. These forces allow the member to carry larger loads than conventional reinforcement.
Reinforced Concrete with steel bars or mesh embedded in it for increased strength and durability.
Revetment A facing of masonry or stones to protect an embankment from erosion.
32-Rip Rap: Gabions, stones, blocks of concrete, or other protective covering material of like nature deposited upon the river and stream beds and banks, to prevent erosion and scour by water flow.
33-Scour Removal: of material from the streambed or embankment as a result of the erosive action of streamflow.
34-Simple Span: A span in which the effective length is the same as the length of the spanning structure. The spanning superstructure extends from one vertical support, abutment, or pier to another without crossing over intermediate support or creating a cantilever.
35-Skew: When the superstructure is not perpendicular to the substructure, a skew angle is created. The skew angle is the angle between the alignment of the superstructure and the alignment of the substructure.
36-Span: The horizontal space between two supports of a structure. Also refers to the structure itself. The clear span is the space between the inside surfaces of piers or other vertical supports. The effective span is the distance between the centers of two supports.
37-Structurally Deficient Bridges: are considered structurally deficient if significant load-carrying elements are found to be in poor condition due to deterioration or the adequacy of the waterway opening provided by the bridge is determined to be extremely insufficient to the point of causing intolerable traffic interruptions. Every bridge constructed goes through a natural deterioration or aging process, although each bridge is unique in the way it ages.

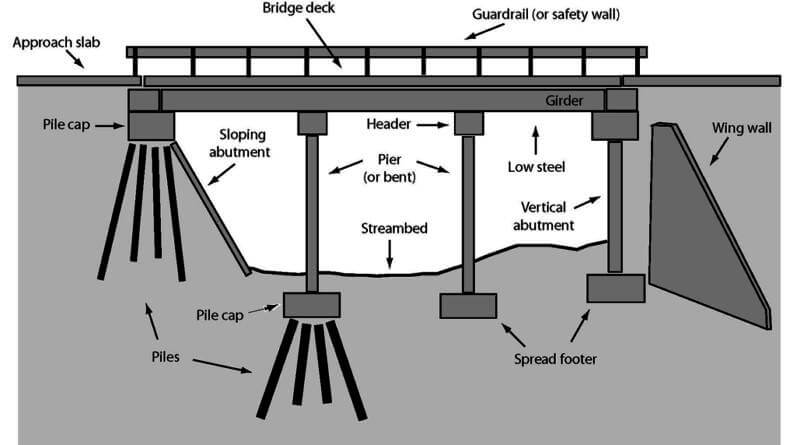

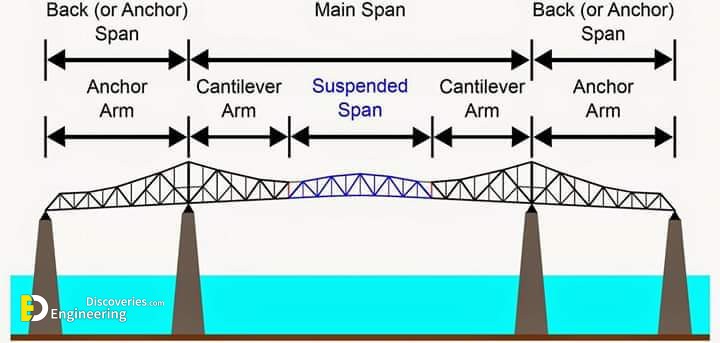

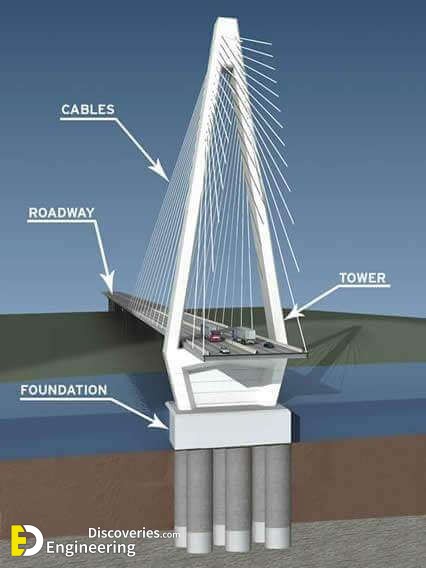

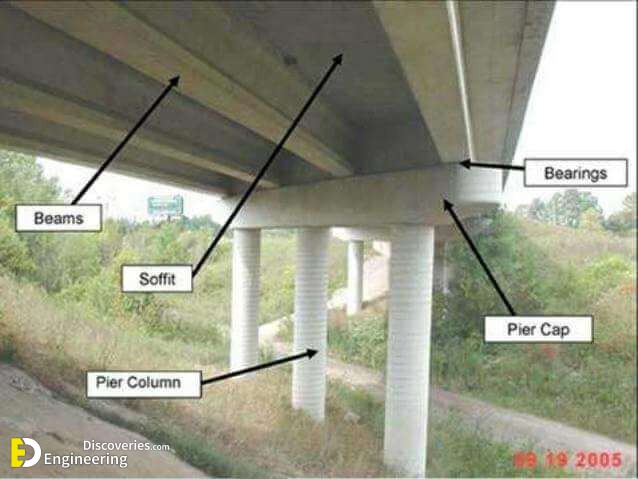

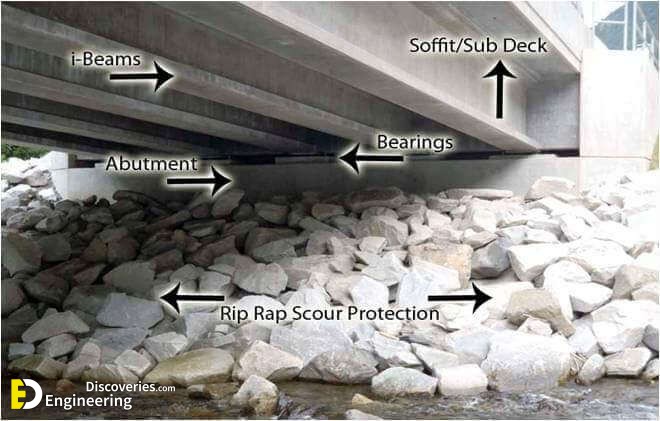

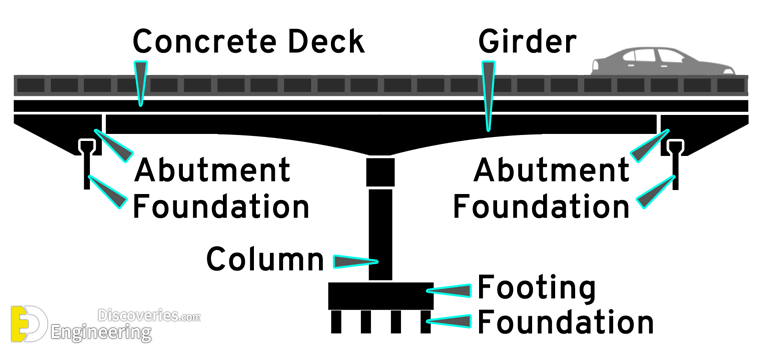

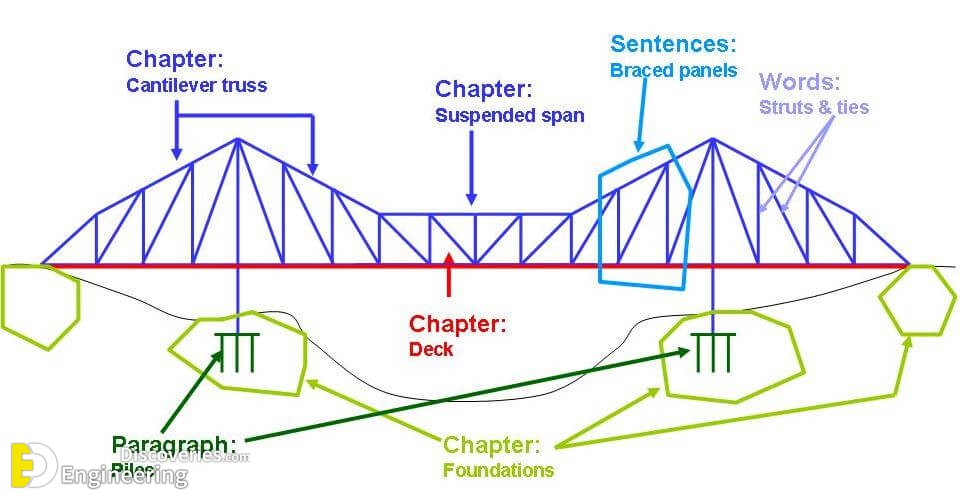

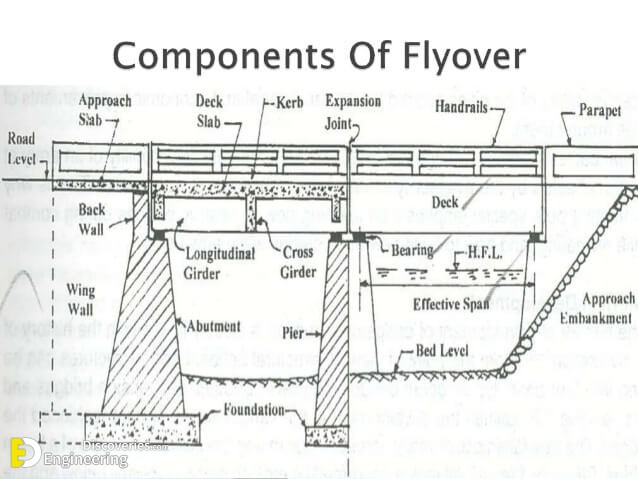

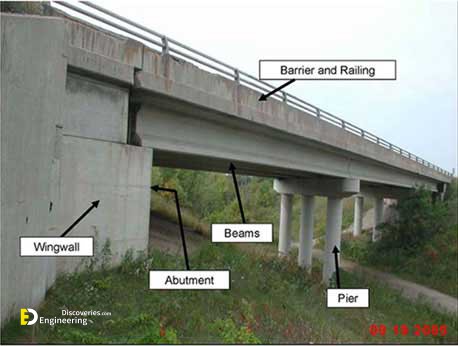

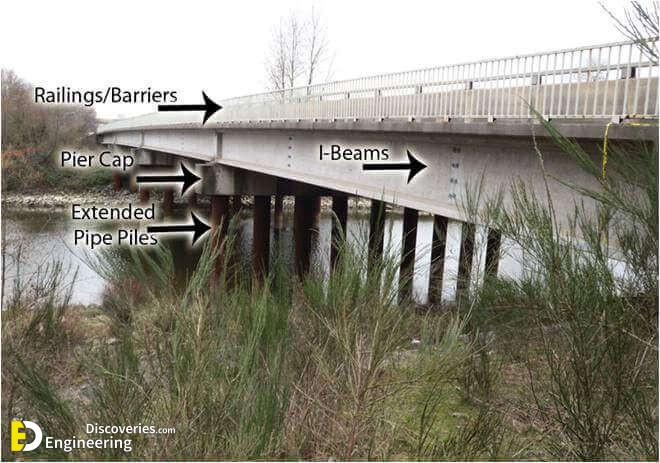

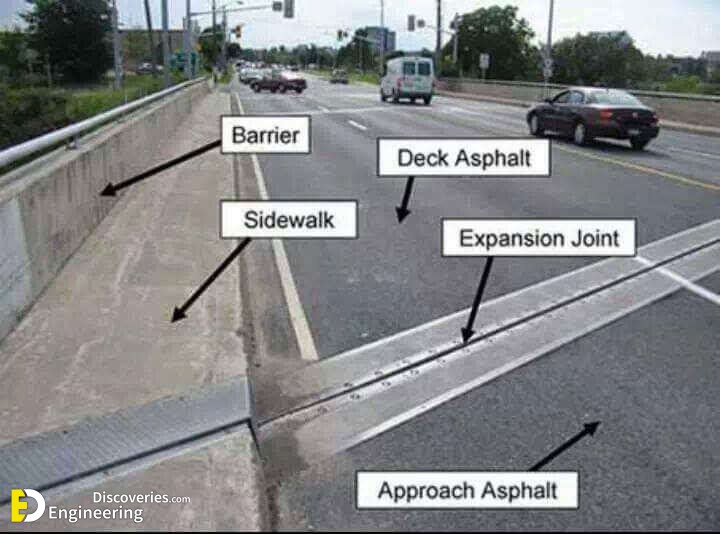

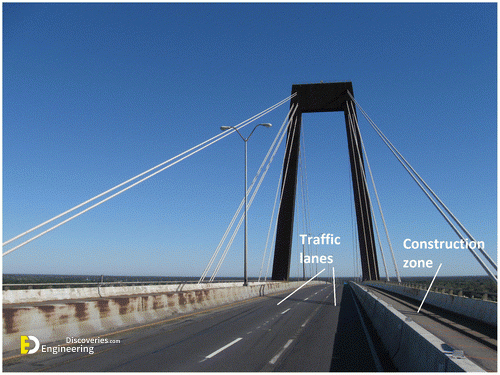

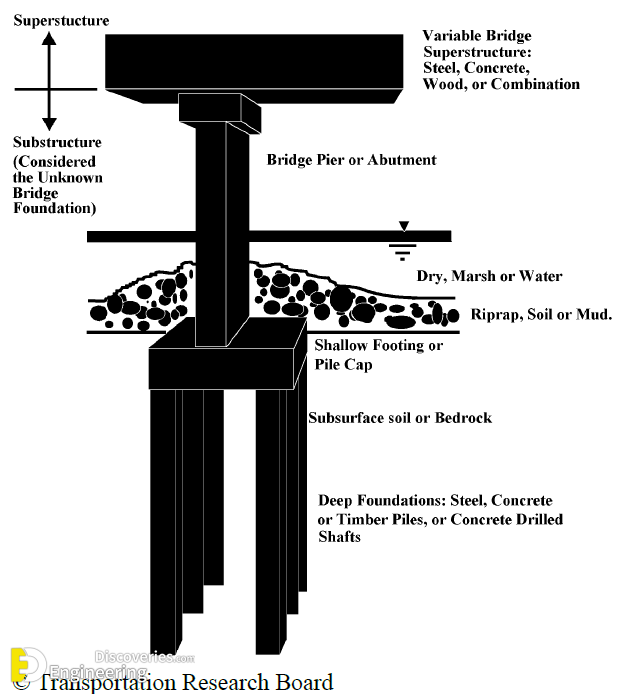

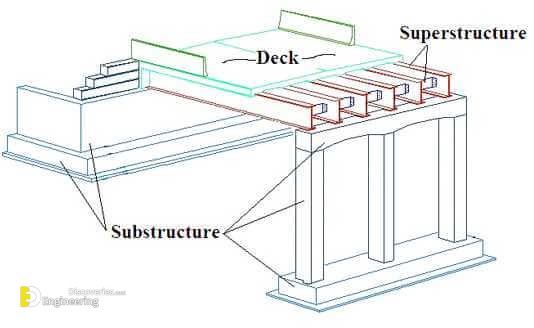

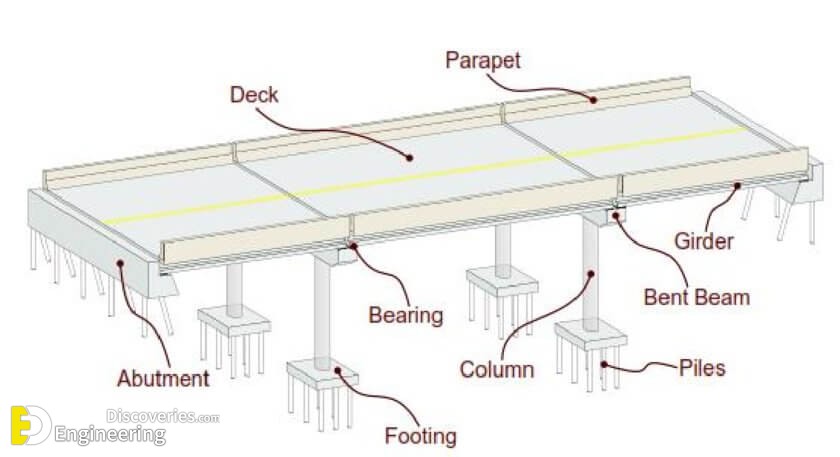

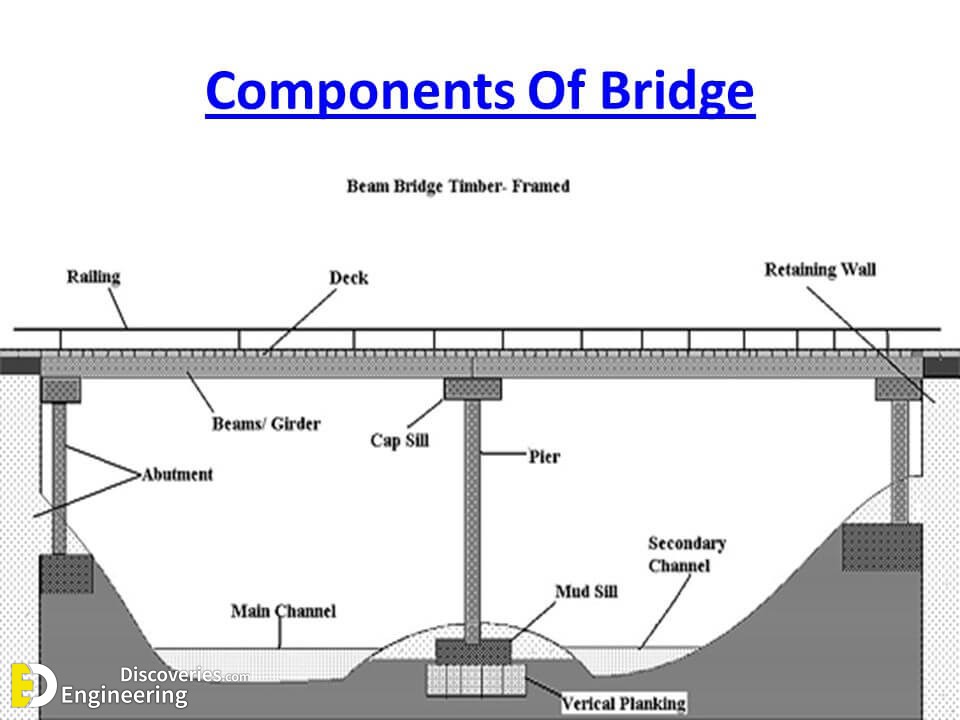

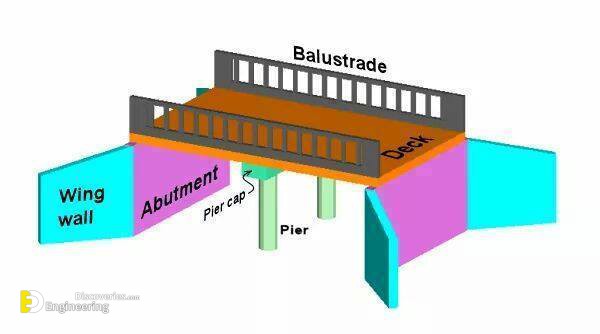

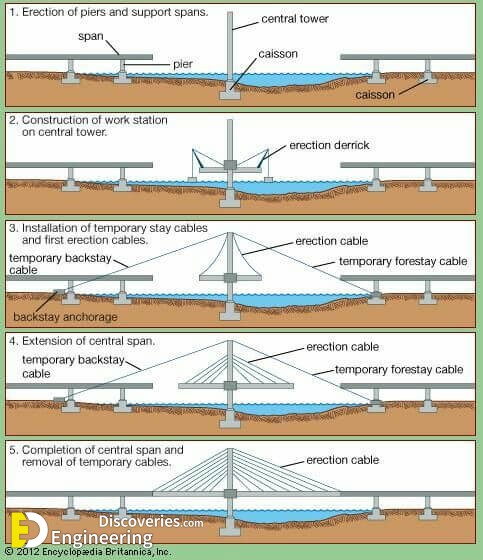

For More Info Watch This Video and Pictures Below
