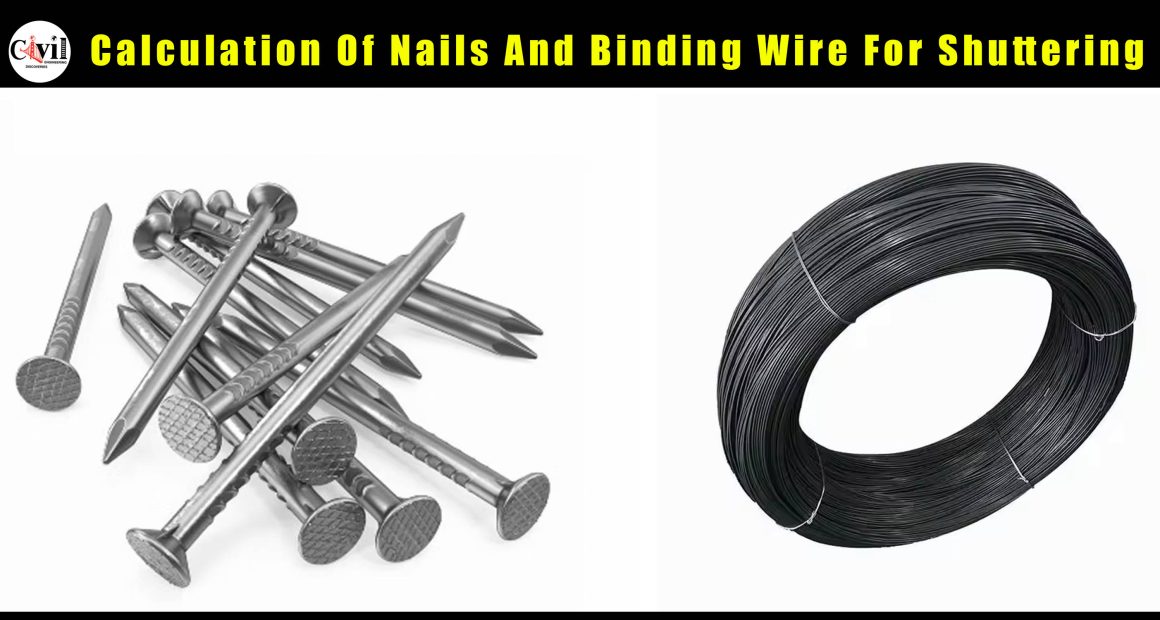

Shuttering is a critical process in construction that requires precise materials and measurements. Nails and binding wire are essential components that ensure the shuttering framework remains intact during concrete pouring. Here’s a detailed guide to calculating nails and binding wire for shuttering.

Understanding the Requirements

Importance of Nails in Shuttering

Nails hold the wooden planks or panels together. Choosing the correct size and quantity ensures stability and strength.

Role of Binding Wire

Binding wire ties reinforcing bars and secures the framework, preventing displacement during concrete pouring.

Steps to Calculate Nails for Shuttering

1. Determine the Shuttering Area

Calculate the total shuttering area by multiplying the framework’s length and width. This helps estimate the number of nails needed.

2. Choose the Nail Type and Size

Select nails based on the shuttering material. Typically, 2 to 4-inch nails are used for wooden shuttering.

3. Estimate Nail Quantity

Approximately 50 to 60 nails are required for every square meter of shuttering. Multiply the shuttering area by this factor to calculate the total.

Example Calculation:

• Shuttering Area: 50 sq. meters
• Nails per Sq. Meter: 55 (average)
• Total Nails: 50 × 55 = 2,750 nails

Steps to Calculate Binding Wire

1. Measure Reinforcement Bars

Determine the length and diameter of the steel bars in the framework. These values are crucial for estimating binding wire.

2. Use the Standard Formula

Approximately 8 to 10 kg of binding wire is required for every ton of steel reinforcement.

Example Calculation:

• Steel Weight: 5 tons
• Binding Wire per Ton: 9 kg (average)
• Total Binding Wire: 5 × 9 = 45 kg

3. Consider Wastage

Account for 5-10% extra binding wire to cover wastage during tying.

Factors Affecting Nail and Wire Usage

• Type of Shuttering Material: Wooden planks may need more nails compared to metal panels.
• Complexity of Design: Intricate designs require additional binding wire.
• Environmental Conditions: Wet or windy conditions may demand stronger securing methods.

Tips for Efficient Usage

• Opt for Quality Materials: Use high-grade nails and binding wire for durability.
• Avoid Overuse: Excess materials increase costs and may weaken the structure.
• Check Regularly: Inspect the framework to ensure nails and wire are holding securely.
