Understanding Column and Beam Design

Structural integrity is crucial in construction. The column and beam sizes depend on factors such as material, load requirements, and span distance. A 25-foot span demands careful planning to ensure safety and durability.

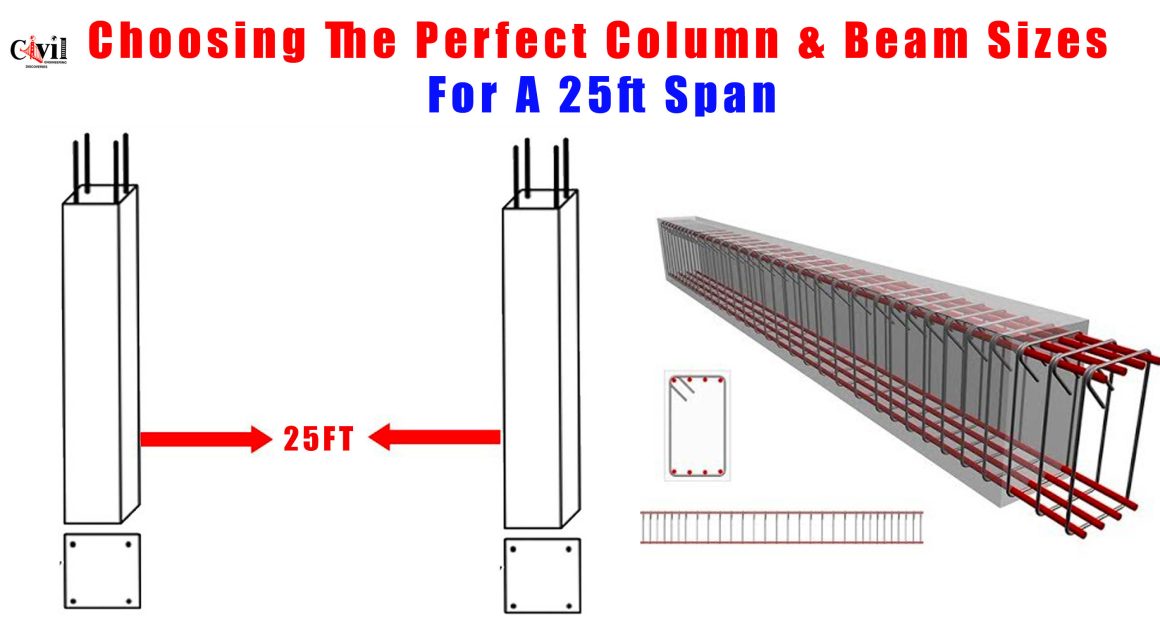

Column Dimensions for a 25-foot Span

• Concrete Columns: A concrete column for a 25-foot span typically measures 12×12 inches for medium loads. For heavier loads, sizes may increase to 16×16 inches.
• Steel Columns: Steel columns can be slimmer, often around 8×8 inches, depending on the load and design.
• Reinforcement: Proper reinforcement with rebar is essential for concrete columns to bear the load effectively.

Beam Dimensions for a 25-foot Span

• Concrete Beams: Concrete beams for a 25-foot span are usually 12 inches deep and 8 inches wide. For heavy loads, a depth of 18 inches may be required.
• Steel Beams: A steel beam, such as an I-beam, should have a depth of at least 10 inches. Thicker beams might be necessary for higher loads.
• Load-Bearing Factors: The beam dimensions depend on the load type (dead, live, or dynamic) and distribution across the span.

Key Factors Affecting Column and Beam Sizes

• Material Strength: High-strength materials allow for smaller dimensions without compromising safety.
• Load Requirements: Larger loads require thicker columns and deeper beams.
• Design Standards: Local building codes influence size and material choices to ensure compliance.

Tips for Accurate Column and Beam Sizing

• Consult Engineers: Always work with a structural engineer for precise calculations.
• Use Software: Structural design software can help determine the optimal dimensions for your project.
• Factor in Safety Margins: Always include safety margins in your design to account for unforeseen loads.
