Proper placement of tees, wyes, 1/8 bends, and combos in horizontal plumbing drain lines is critical for ensuring the system operates efficiently and complies with plumbing codes. Here’s a breakdown of how and where these fittings should be used:

1. Tees (T-Joints)

• Usage: Tees are typically used to connect a horizontal drain pipe to a vertical vent or to a smaller horizontal branch drain.
• Placement:

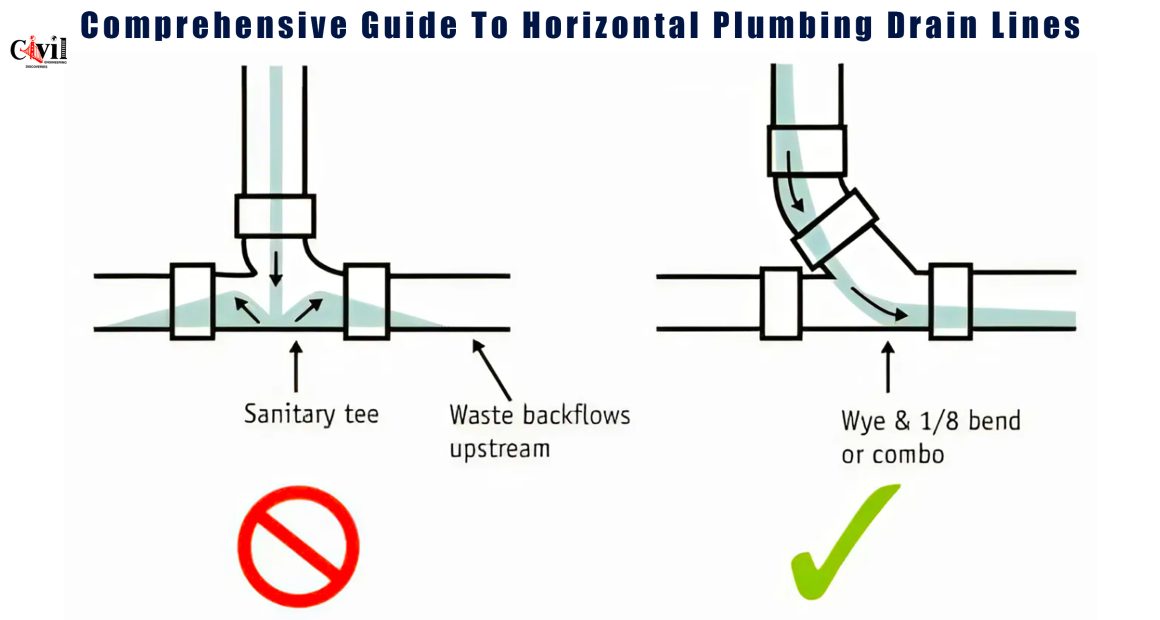

  • A sanitary tee can only be used in a vertical orientation (e.g., connecting a horizontal drain to a vertical stack).
  • Never use a tee to connect horizontal pipes as it can cause blockages.
• Key Tip: Ensure the tee’s sweep is in the direction of flow to reduce resistance and prevent clogs.

2. Wyes (Y-Joints)

• Usage: Wyes are used to connect a branch line to a main horizontal drain line at a 45-degree angle, which helps maintain smooth flow.
• Placement:
  • Ideal for connecting horizontal to horizontal or horizontal to vertical pipes.
  • Use for cleanout access points as well, ensuring easy maintenance.
• Key Tip: The 45-degree entry of a wye fitting promotes better drainage by reducing turbulence in the flow.

3. 1/8 Bend (45-Degree Elbow)

• Usage: The 1/8 bend is often used to change the direction of a drain line by 45 degrees.
• Placement:
  • Use to make gentle directional changes in horizontal drain lines to avoid sharp angles that could slow down the flow or cause clogging.
  • It can also help navigate around obstacles in the building structure.
• Key Tip: Avoid using 90-degree bends in horizontal runs; opt for two 45-degree bends (1/8 bends) instead to reduce the chances of clogs.

4. Combos (Combination Wye and 1/8 Bend)

• Usage: Combos are used when you need to combine the benefits of a wye and a 1/8 bend, allowing a smoother transition from one pipe into another at a 45-degree angle.
• Placement:
  • Typically used in horizontal drain lines where a branch connection at a 45-degree angle is needed, ensuring a smooth flow transition.
• Key Tip: Combos are excellent for minimizing resistance and turbulence in the flow, making them preferable over sanitary tees in horizontal lines.

General Tips

• Slope: Ensure all horizontal drain lines are sloped at a minimum of 1/4 inch per foot for pipes up to 3 inches in diameter. This ensures gravity can effectively move waste and water through the system.
• Cleanouts: Install cleanouts at key points in your drain system, such as at the base of vertical stacks and every change of direction exceeding 135 degrees.
• Code Compliance: Always refer to local plumbing codes for specific requirements, as they may vary by location.
