Steel bars are the backbone of modern construction projects. They provide structural integrity and ensure durability. Whether you’re a civil engineer, contractor, or DIY enthusiast, understanding the weight of steel bars is crucial for material estimation and cost analysis. Below is a detailed breakdown of steel bar diameters, weights, and applications.

Understanding Steel Bar Weight Calculations

The weight of a steel bar is calculated using the formula:
Weight per meter = (D² / 162),
where D is the diameter of the bar in millimeters, for a standard 12-meter steel bar, the weight can be obtained by multiplying the weight per meter by 12.

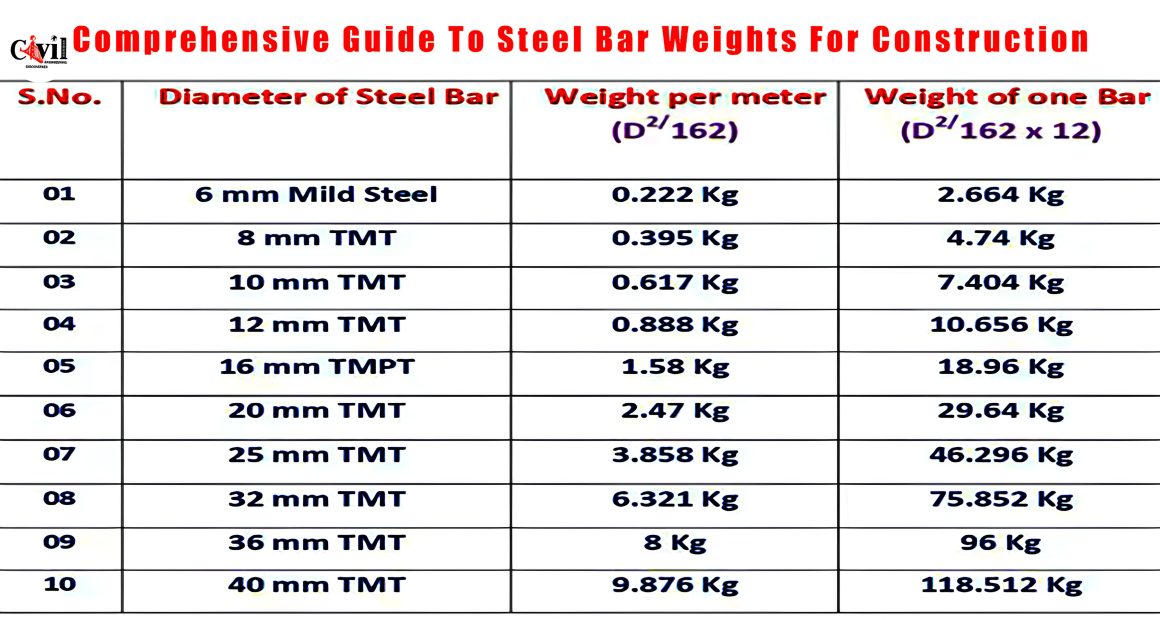

Weight Chart for Steel Bars

Here’s a handy reference table for commonly used steel bars:

S.No	Diameter of Steel Bar (mm)	Weight per Meter (kg)	Weight of One Bar (kg)
1	6 mm Mild Steel	0.222 kg	2.664 kg
2	8 mm TMT	0.395 kg	4.74 kg
3	10 mm TMT	0.617 kg	7.404 kg
4	12 mm TMT	0.888 kg	10.656 kg
5	16 mm TMPT	1.58 kg	18.96 kg
6	20 mm TMT	2.47 kg	29.64 kg
7	25 mm TMT	3.858 kg	46.296 kg
8	32 mm TMT	6.321 kg	75.852 kg
9	36 mm TMT	8 kg	96 kg
10	40 mm TMT	9.876 kg	118.512 kg

What is TMT Steel?

TMT (Thermo Mechanically Treated) steel bars are renowned for their strength, flexibility, and corrosion resistance. They are widely used in reinforced concrete structures such as bridges, buildings, and dams.

Advantages of TMT Bars

• High Strength: TMT bars have superior tensile strength compared to mild steel.
• Earthquake Resistance: The flexibility and ductility of TMT bars make them ideal for seismic zones.
• Corrosion Resistance: These bars have an anti-corrosive coating, extending their lifespan.
• Cost-Efficient: Due to their strength, TMT bars reduce the quantity of steel required in a project.

Applications of Different Bar Sizes

6 mm to 12 mm Steel Bars

These smaller bars are commonly used for lighter structures like fences, gates, and small residential projects.

16 mm to 25 mm Steel Bars

These bars are perfect for beams, columns, and medium-sized commercial structures. They ensure stability and can bear heavier loads.

32 mm to 40 mm Steel Bars

These large-diameter bars are suitable for industrial and large-scale construction. They reinforce bridges, high-rise buildings, and other heavy-load structures.

Key Tips for Choosing the Right Steel Bars

1. Know the Project Requirements: Select the bar diameter based on load-bearing capacity and structural needs.
2. Opt for Certified Bars: Always choose TMT bars from certified manufacturers to ensure quality.
3. Weight Accuracy: Use the weight chart to calculate the exact quantity needed to avoid wastage.

Conclusion

Steel bars are essential in construction, and their weight is vital in project planning. From small-scale projects to massive infrastructure, understanding the weight and type of steel bar required ensures efficiency and cost-effectiveness. Use the chart provided to guide your next project and make informed decisions to achieve durable and reliable results.
