What is bridge?

A bridge is a structure providing passage over an obstacle without closing the way beneath. The required passage may be for a road, a railway, pedestrians, a canal or a pipeline. The obstacle to be crossed may be a river, a road, railway or a valley. In other words, bridge is a structure for carrying the road traffic or other moving loads over a depression or obstruction such as channel, road or railway.

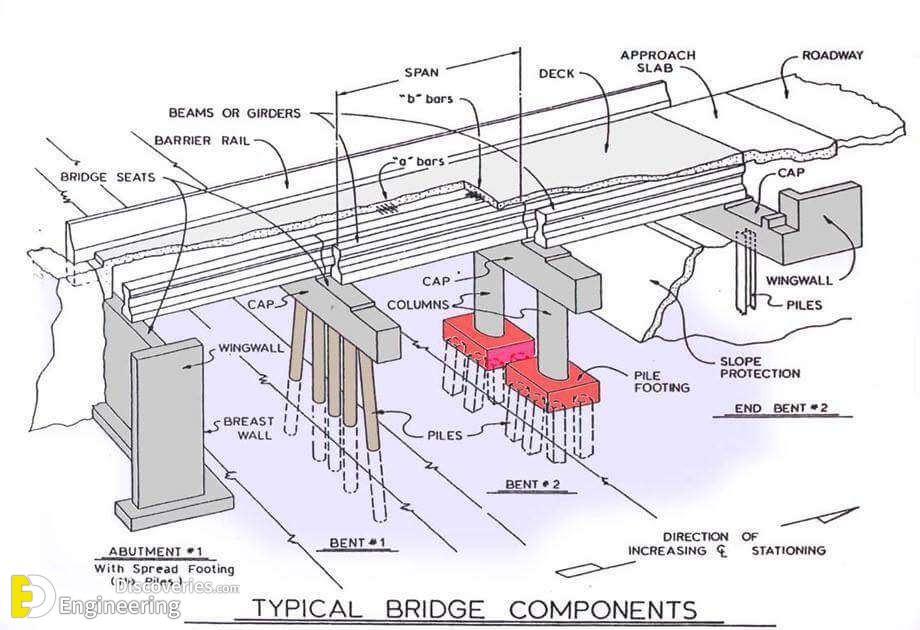

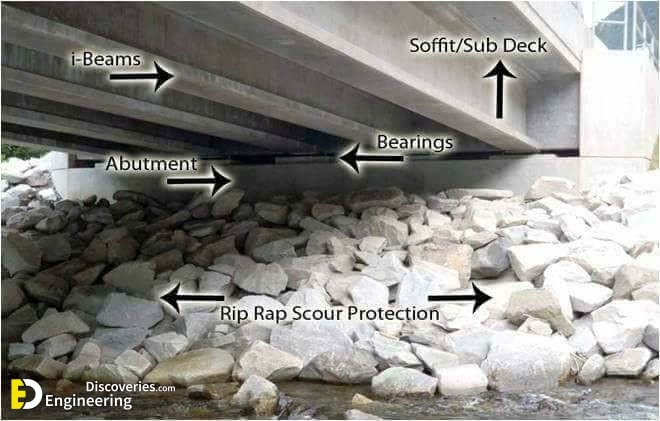

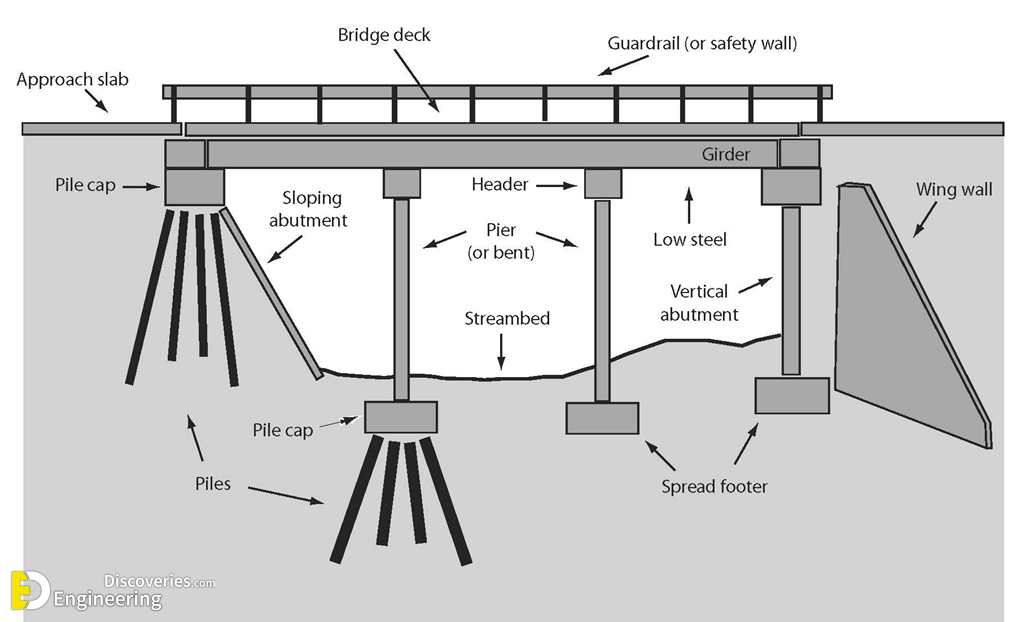

Components of bridge

1- Superstructure or Decking
This includes slab, girder, truss, etc. This bears the load passing over it and transmits the forces caused by the same to the substructures.
2- Bearings
The bearings transmit the load received from the decking on to the substructure and are provided for distribution of the load evenly over the substructure material which may not have sufficient bearing strength to bear the superstructure load directly.

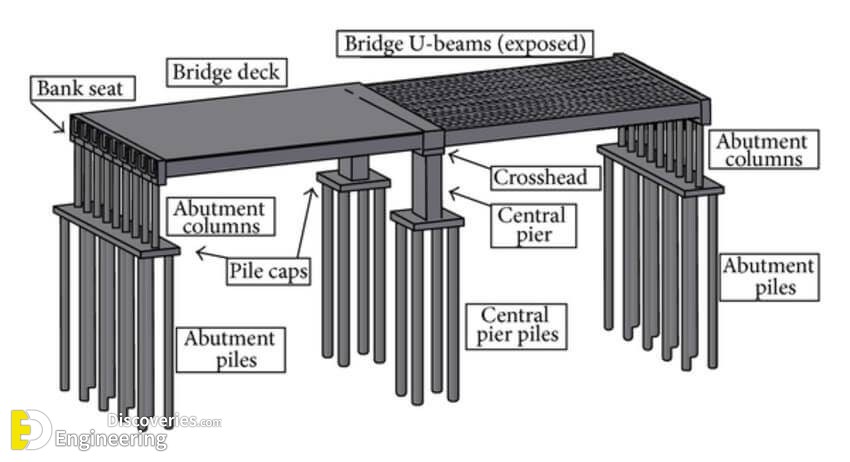

3- Substructure
This comprises piers and abutments, wing walls or returns and their
foundation.
· Piers and Abutments
These are vertical structures supporting deck/bearing provided for transmitting the load down to the bed/earth through foundation.
· Wing walls and Returns
These are provided as extension of the abutments to retain the earth of approach bank which otherwise has a natural angle of repose.


· Foundation
This is provided to transmit the load from the piers or abutments and wings or returns to and evenly distribute the load on to the strata. This is to be provided sufficiently deep so that it is not affected by the scour caused by the flow in the river and does not get undermined. While the above mentioned are structurally operational parts, for safety hand rails or parapets, guard rails or curbs are provided over the decking in order to prevent vehicle or user from falling into the stream or for the separation of traffic streams.

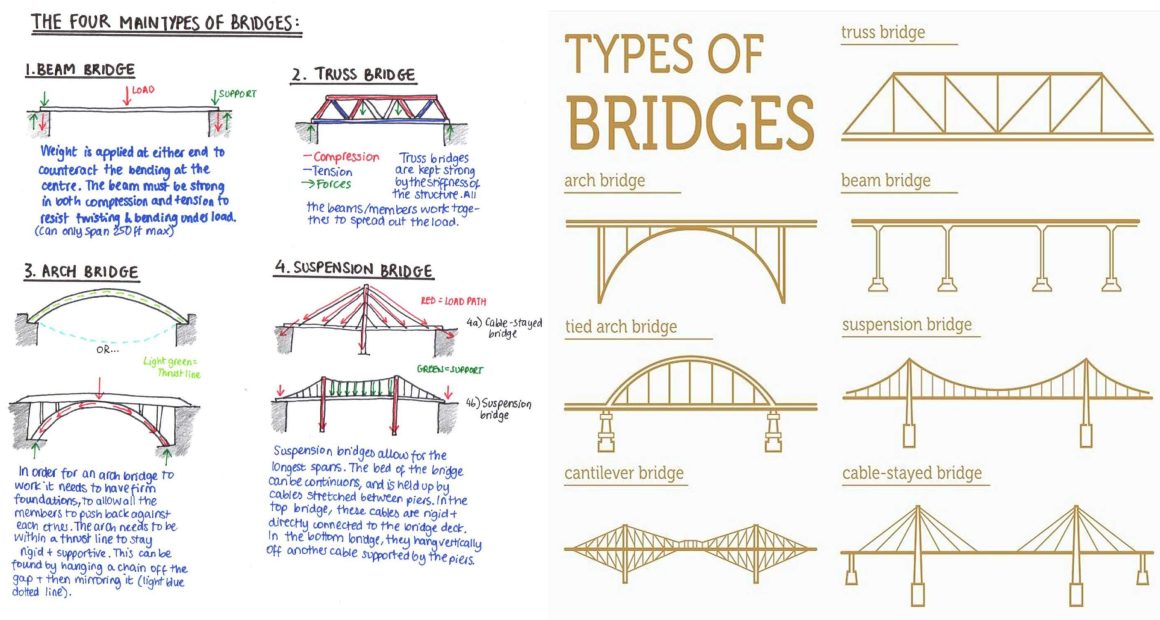

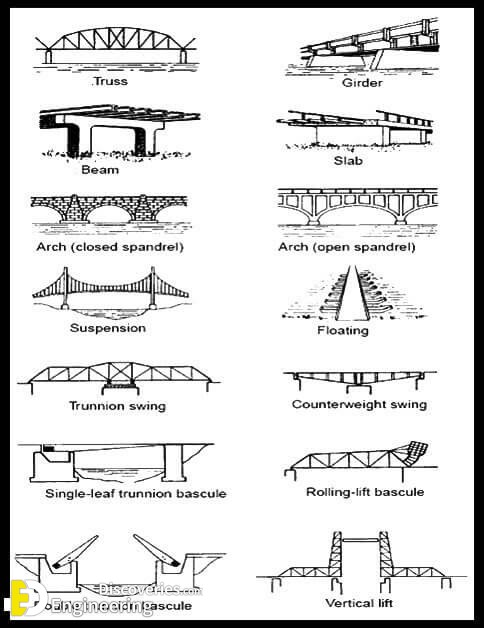

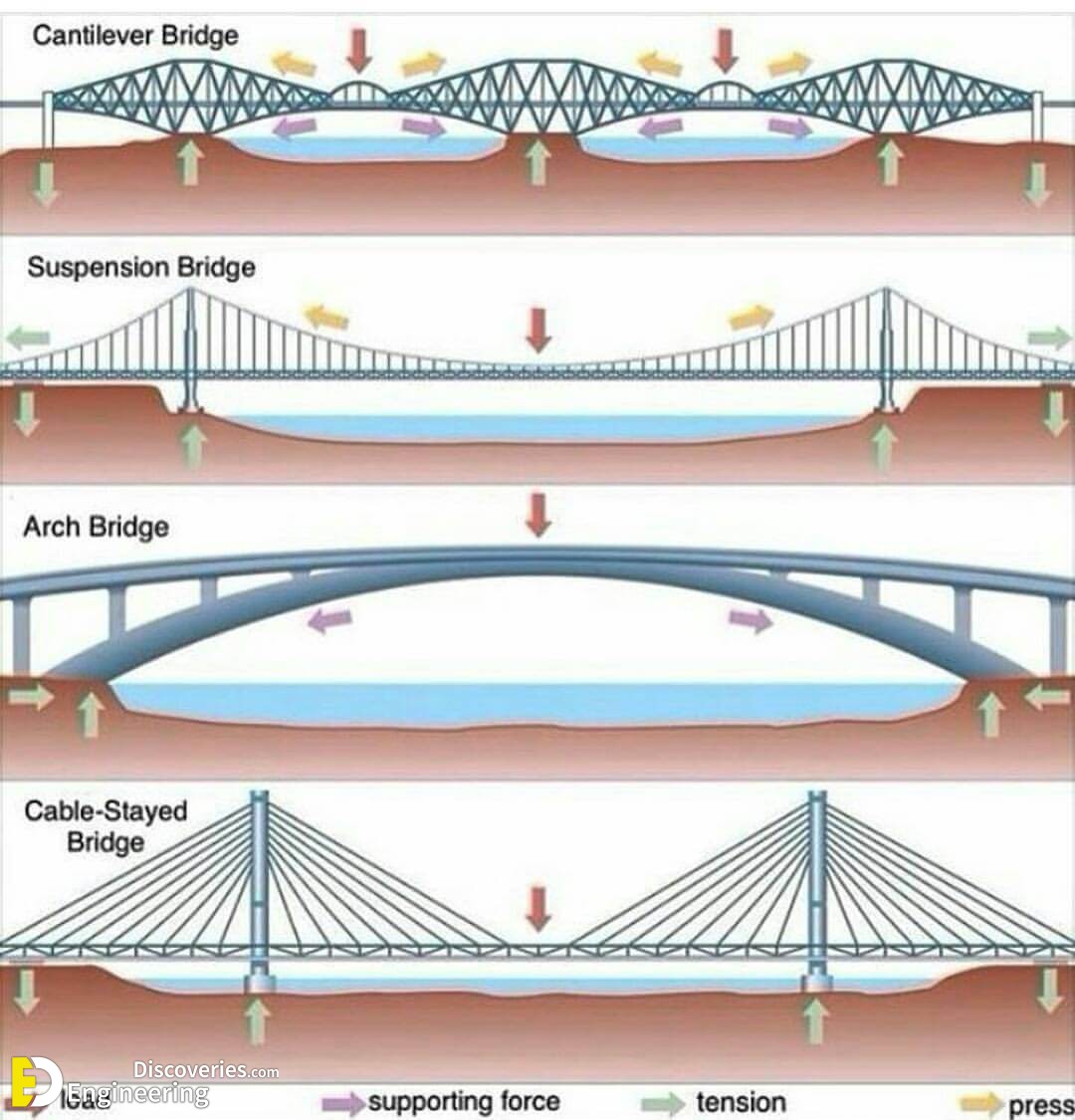

Types Of Bridges

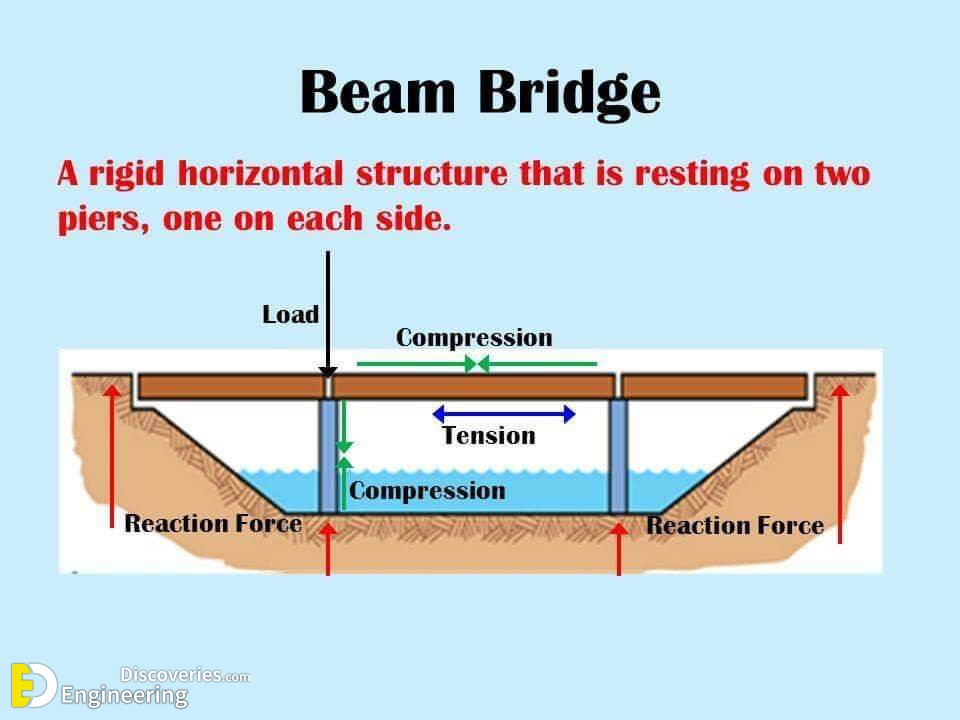

1- Beam Bridges

Beam bridges are the simplest bridge type normally consists of one or more spans, supported by abutment or pier at each end. Beam bridges are usually constructed of RCC or steel or a combination of both RCC and Steel. The concrete elements used in beam bridges may be reinforced, prestressed or post-tensioned.

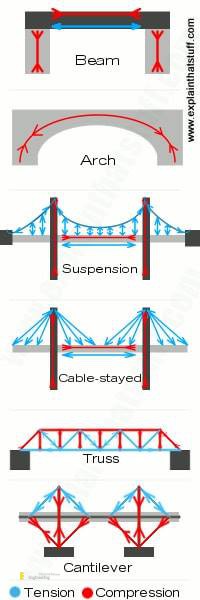

Compression and Tension

Compression: As live loads, such as cars and trucks, travel across the bridge, the force of compression acts on the top of the roadway and passes down into the piers.
Tension: The force of tension acts on the underside of the roadway, which is pulled apart by the live loads pressing down on the top of the roadway.

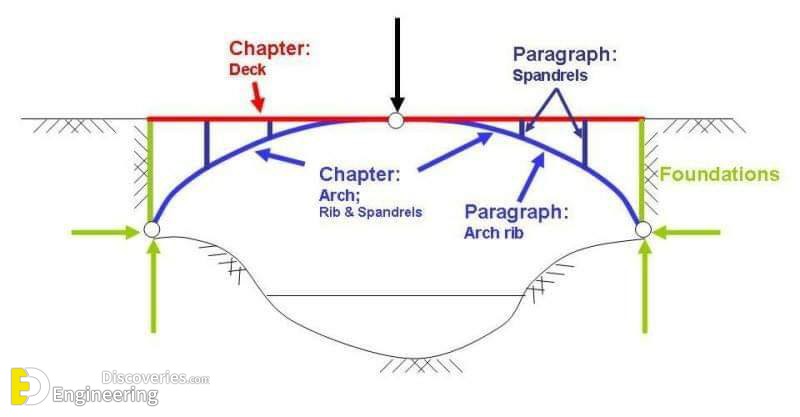

2- Arch Bridges

Arch bridges were built by the Romans and have been in use ever since. They are often chosen for their strength and appearance. It is the shape of the arch that gives the bridge its strength, which is reinforced by placing supports, or abutments, at its base. Arch bridges can be built from various materials, including wood, stone, concrete, and steel.

Compression and Tension

Compression: The force of compression is greatest at the top of the arch. The abutments press against the bottom of the arch, preventing the bases of the arch from being pushed outward.
Tension: The force of tension is strongest at the bottom of the arch and pulls the sides outward. In general, the larger and shallower the arch, the greater the effects of tension and need for abutment support.



Types of arch bridge

1- Hinge-less arch bridge

2- Two hinged arch bridge

3- Three hinged arch bridge

4- Tied arch bridge

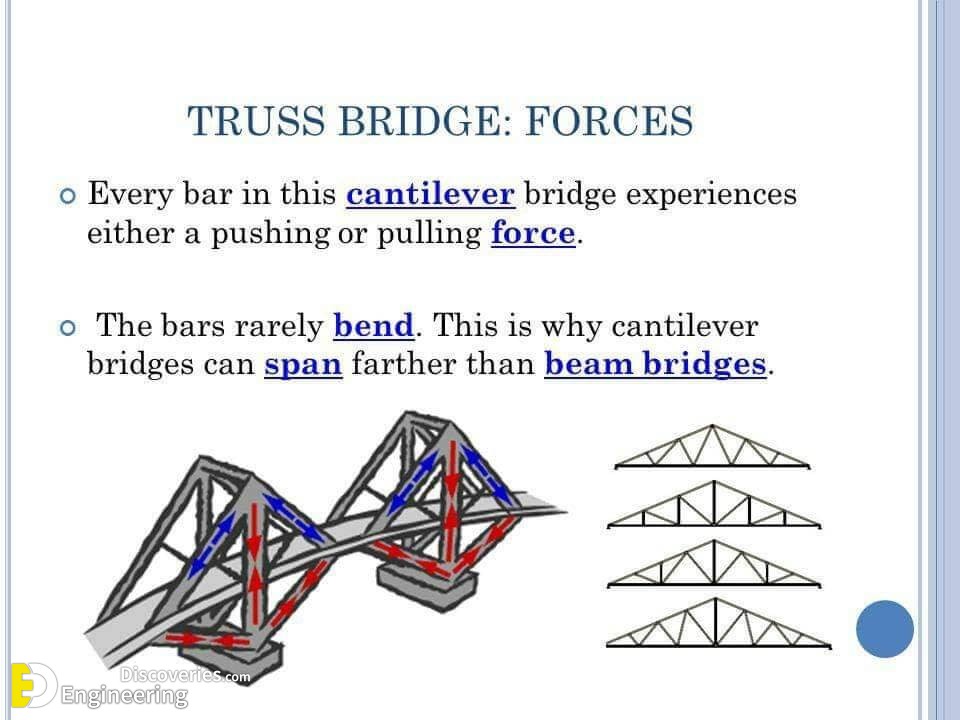

3- Truss Bridges

The superstructure of truss bridge is constructed by using trusses which are comprised of many small elements forming triangular trusses. Truss is used because it is very rigid structure and it can transfer the load from a single point to much wider area.

Compression: As traffic pushes down on the roadway, compression acts on the upper horizontal members of the truss structure.
Tension: Tension acts on the bottom horizontal members of the truss structure. The forces of tension and compression are shared among the angled members.

4- Suspension Bridges

In suspension bridge, the deck slab is suspended using ropes, chains or high tensile strength steel cables. The roadway hangs from massive steel cables, which are draped over two towers and secured by anchors on both ends of the bridge. The anchors are made from solid concrete blocks. The cables transfer the loads into compression in the two towers. usually, this type of bridge can span 2000 – 7000 feet.

Compression and Tension

Compression: Traffic pushes down on the roadway, but because it is suspended from the cables, the weight is carried by the cables, which transfer the force of compression to the two towers.
Tension: The force of tension is constantly acting on the cables, which are stretched because the roadway is suspended from them.

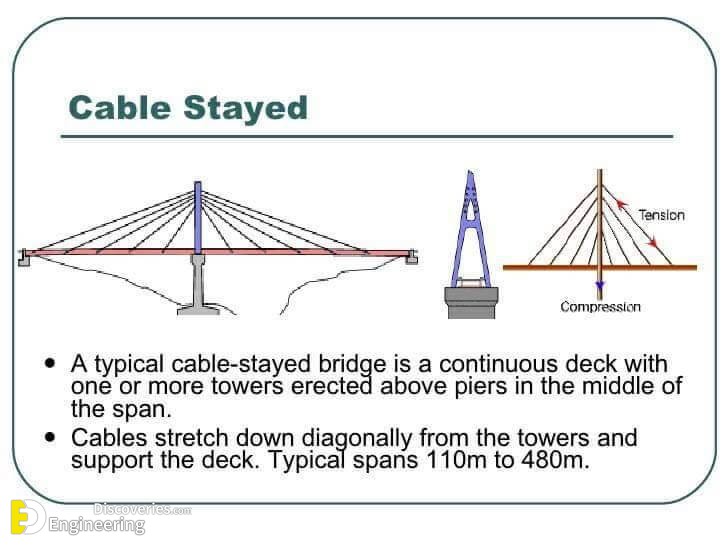

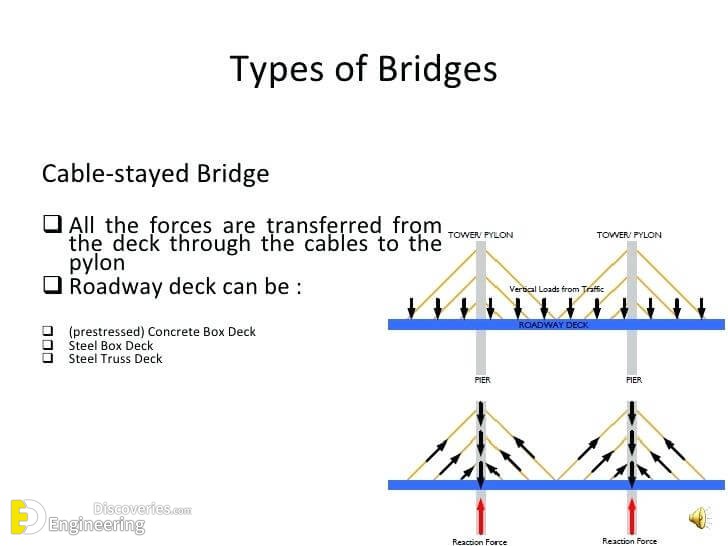

5- Cable-Stayed Bridges

Cable-stayed bridges are similar to suspension bridges as they also use cables but in different form. They consist of fewer cables and the height of the towers is much greater than suspension bridge.

Compression and Tension

Compression: As traffic pushes down on the roadway, the cables, to which the roadway is attached, transfer the load to the towers, putting them in compression.
Tension: The force of tension is constantly acting on the cables, which are stretched because they are attached to the roadway.

6- Cantilever Bridges

A cantilever bridge is formed of cantilevers projecting from supporting piers. The ends of a cantilever bridge are treated as fixed. A cantilever bridge combines the advantages of a simply supported span and a continuous span. For long spans and deep valleys and at places where it will not be practicable to use centering, cantilever bridges are more suitable. They are suitable in case of uneven settlement of foundation. The construction of a cantilever bridge may either be of simple type or of balanced type.
