DO’S-GENERAL Reinforcement Detailing

Prepare drawings properly and accurately if possible label each bar and show its shape for clarity
1- a cross-section of retaining wall which collapsed immediately after placing of soil backfill because of 1/4″ rather than 1-1/4″ dia. was used. an error occurred because of correct rebar dia. Was covered by a dimension line.

2- Prepare bar-bending schedule, if necessary.

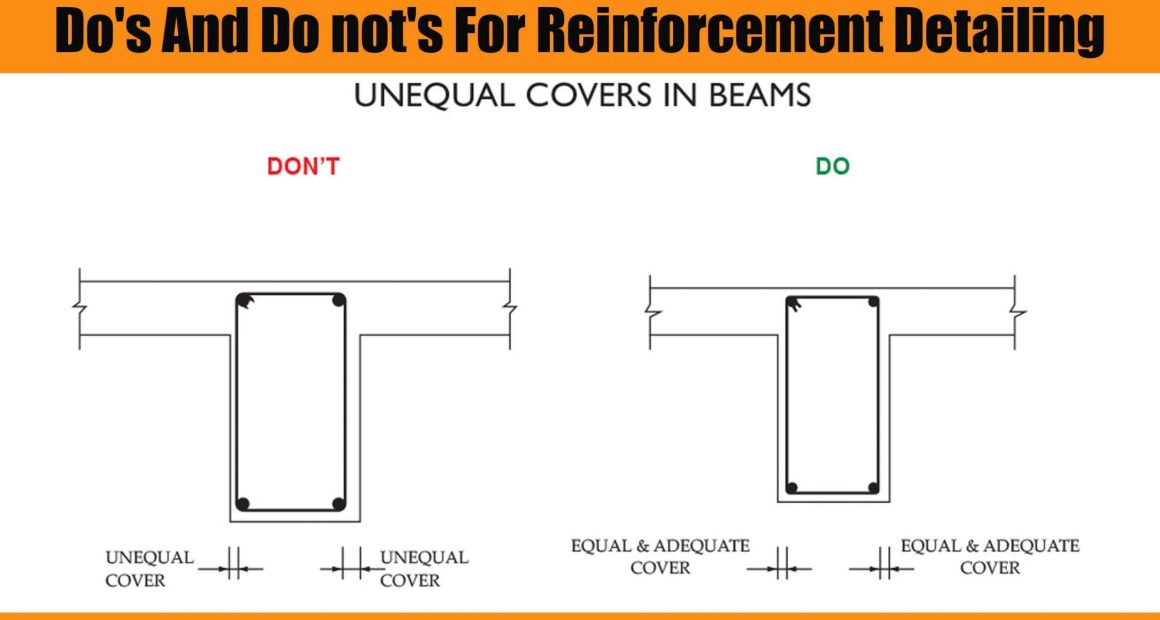

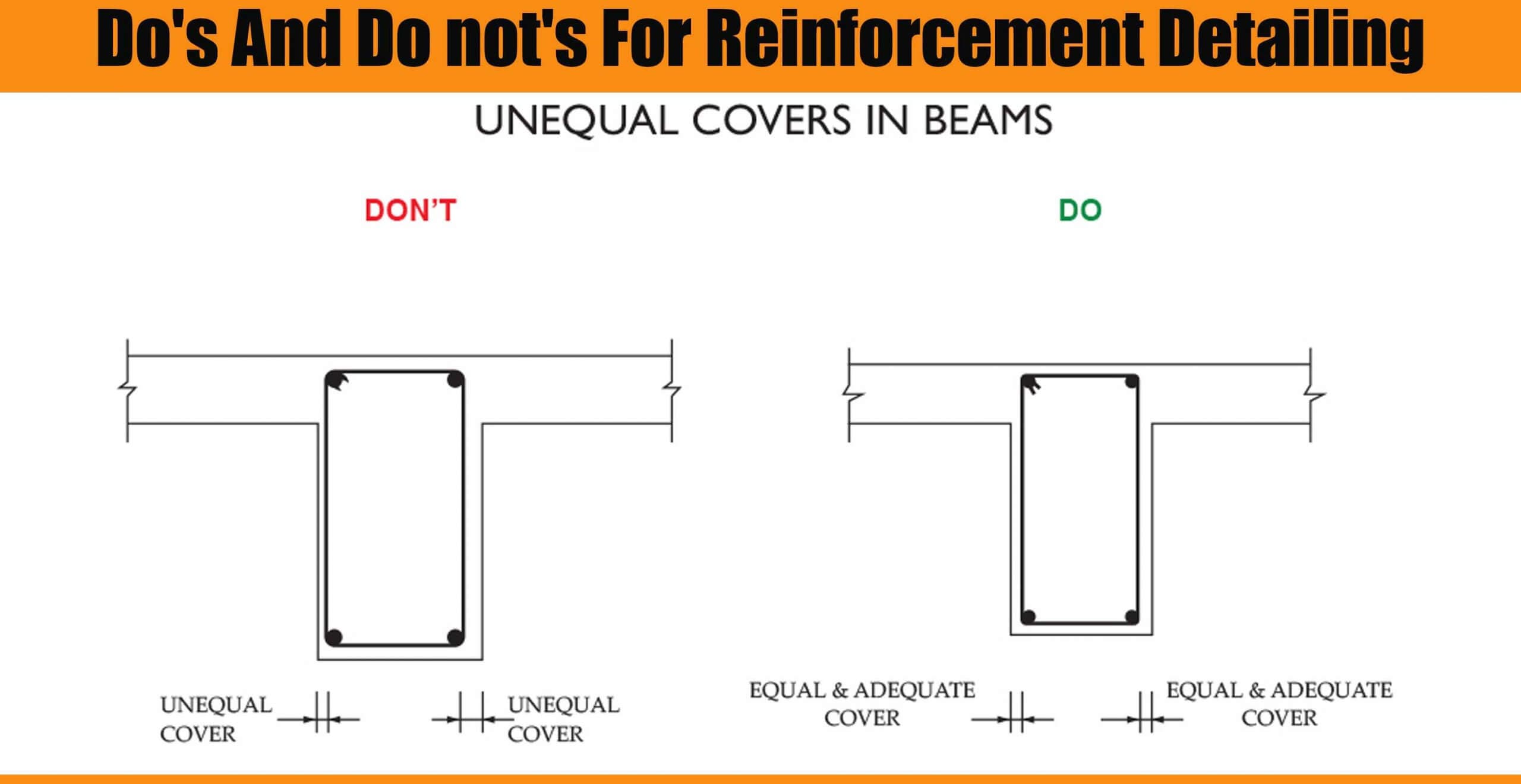

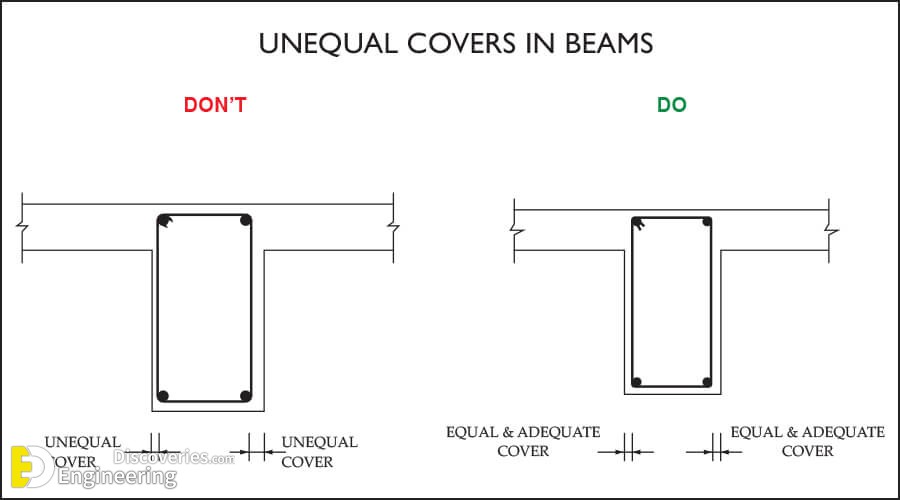

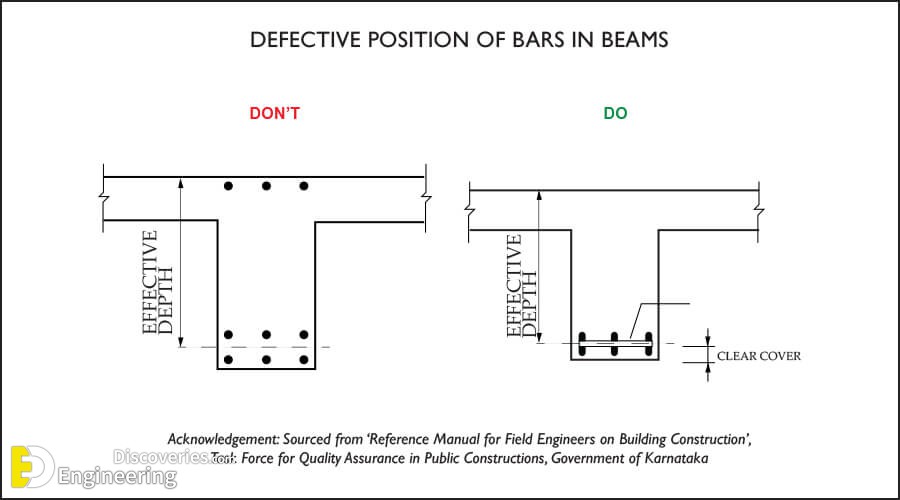

3- Indicate proper cover-clear cover, the nominal cover of effective cover to reinforcement.

4- Decide the detailed location of opening/hole and supply adequate details for reinforcements around the openings.

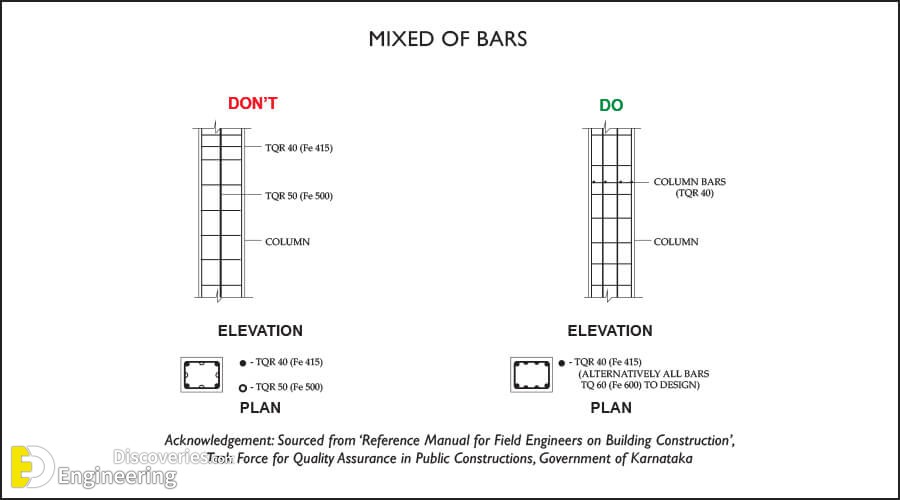

5- Use the commonly available size of bars and spirals. For a single structural member, the number of different sizes of bars shall be kept minimum.
6- The grade of the steel shall is clearly stated in the drawing. Deformed bars need not have hooks at their ends.

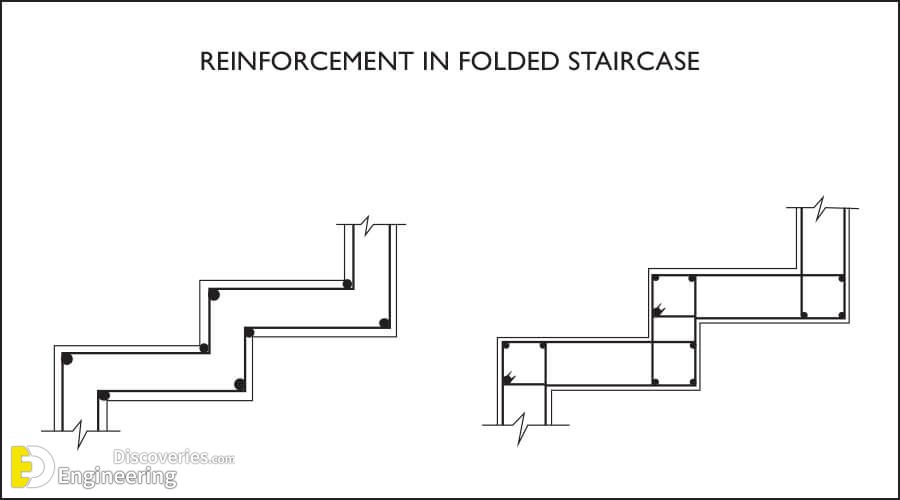

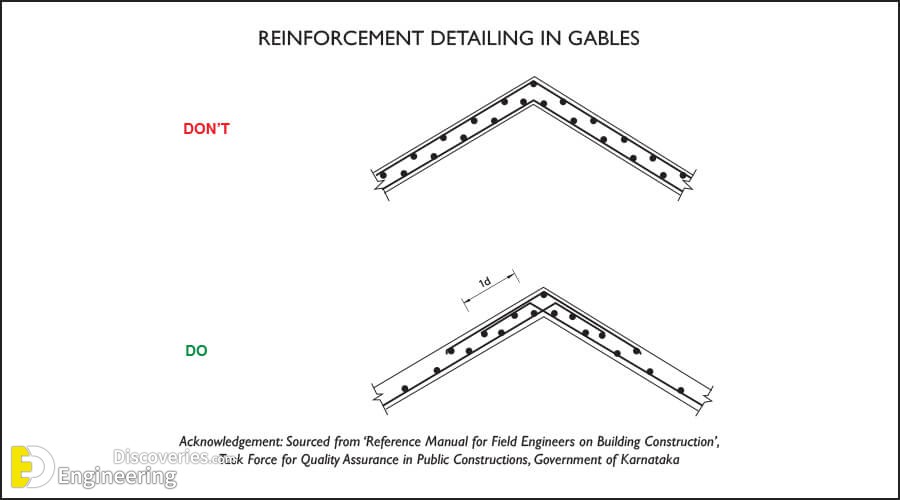

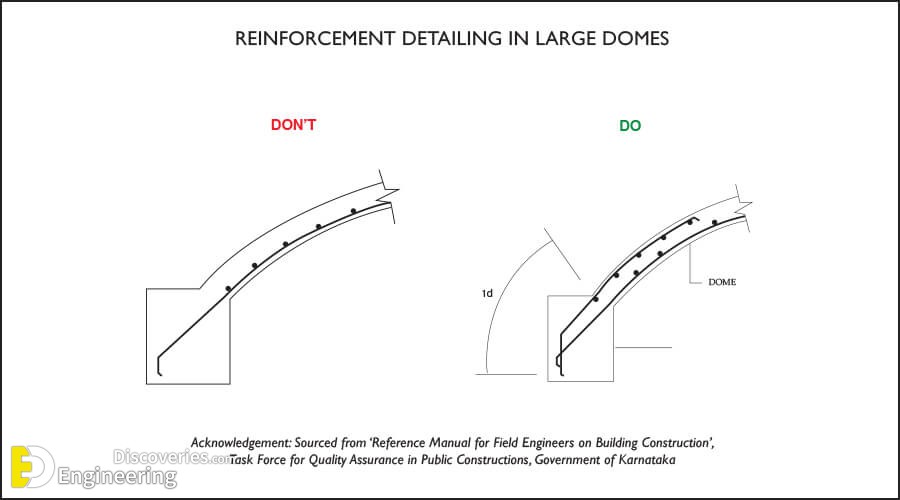

7- Show enlarged details at corners, intersections of walls, beams and column joint and at similar situations. Congestion of bars should be avoided at points where members intersect and make certain that all rein. Can be properly placed.

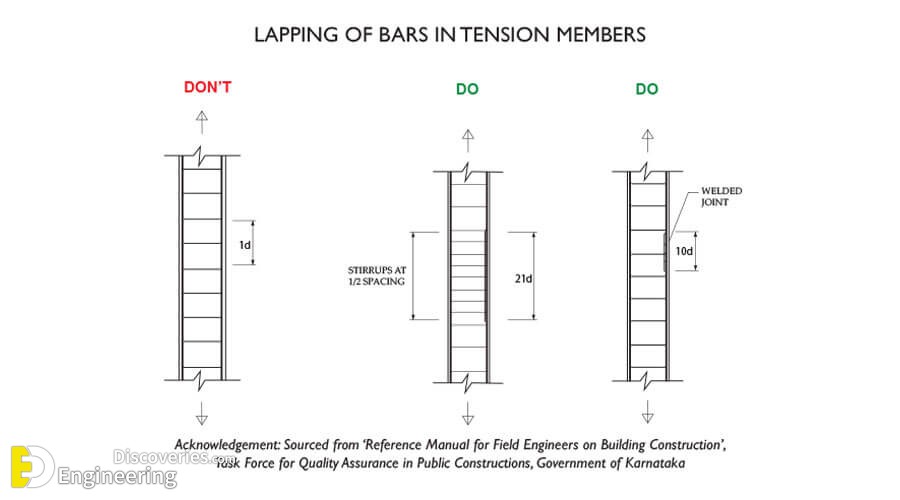

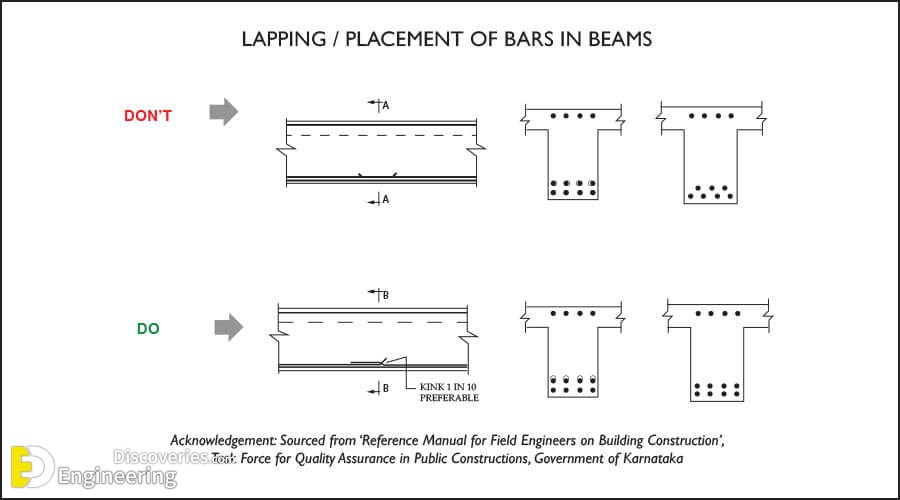

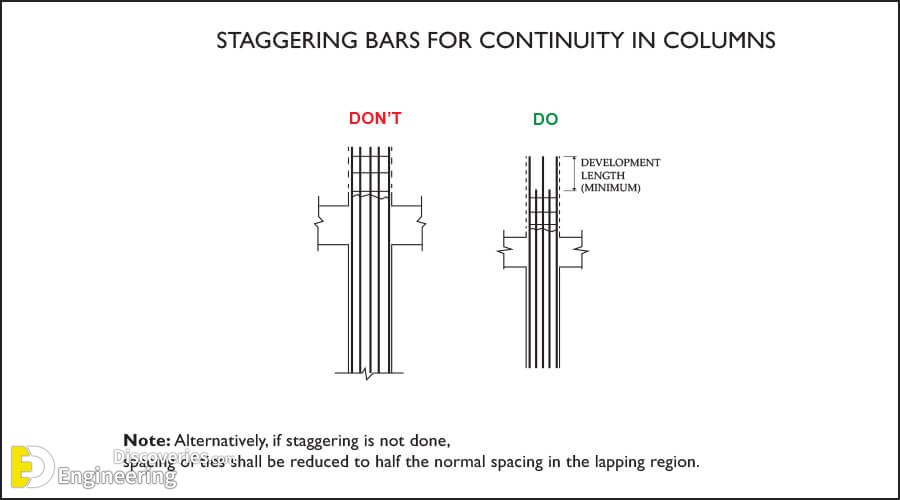

8- In the case of bundled bars, lapped splice of bundled bars shall be made by splicing one bar at a time such individual splices within the bundle shall be staggered.

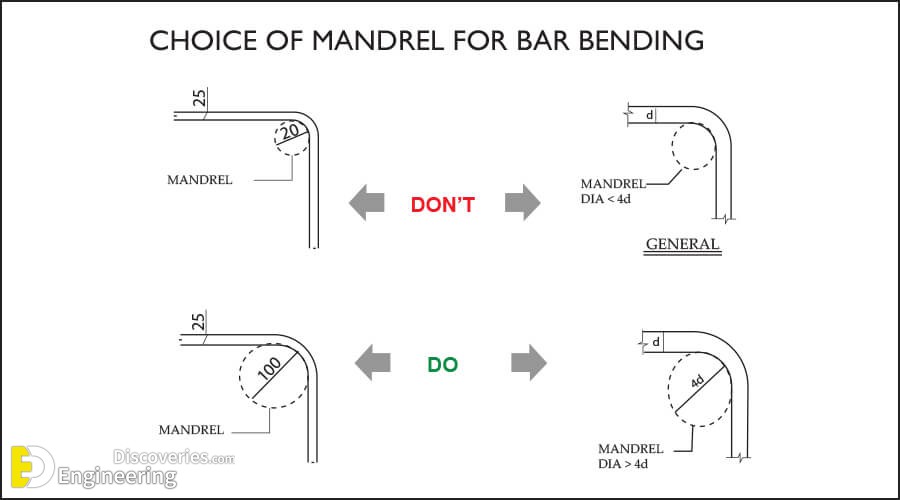

9- Make sure that hooked and bent up bars can be placed and have adequate concrete protection.
10. Indicate all expansion, construction and contraction joints on plans and provide details for such joints.
11- The location of construction joints shall be at the point of minimum shear approximately at mid or near the midpoints. It shall be formed vertically and not in a sloped manner
General points for calculations of reinforcement

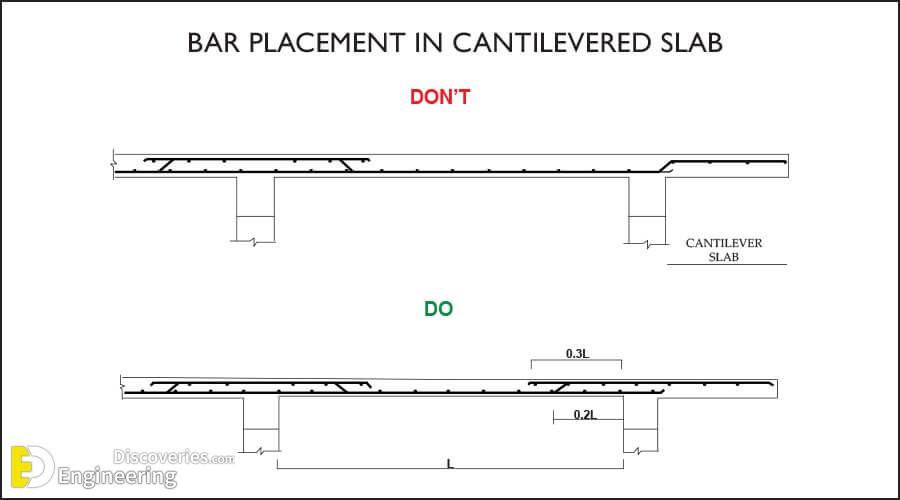

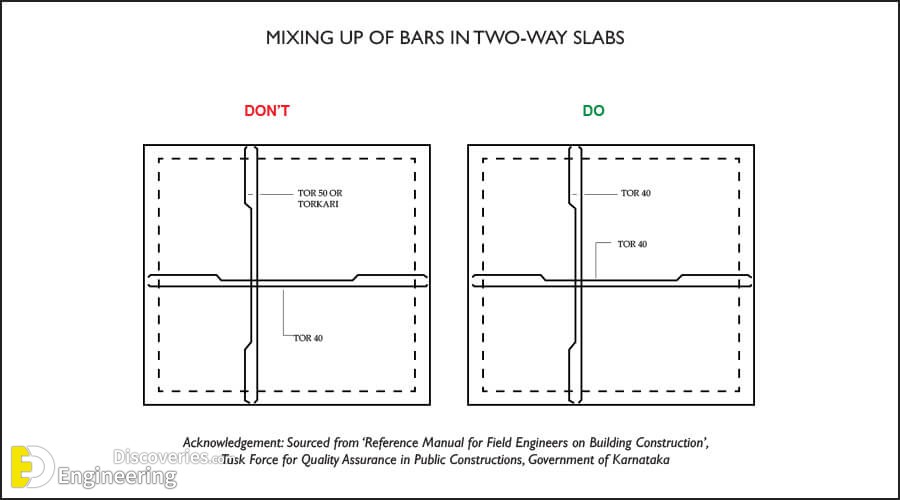

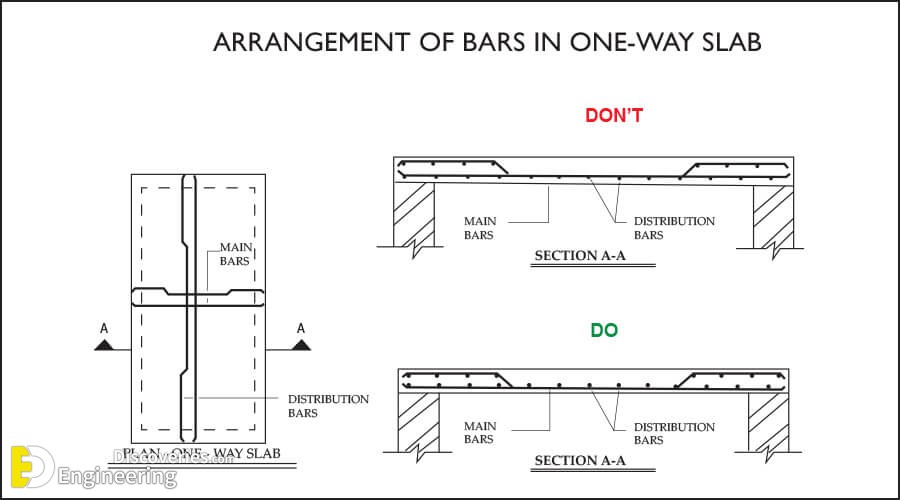

Do’s- beams and slabs Reinforcement Detailing:

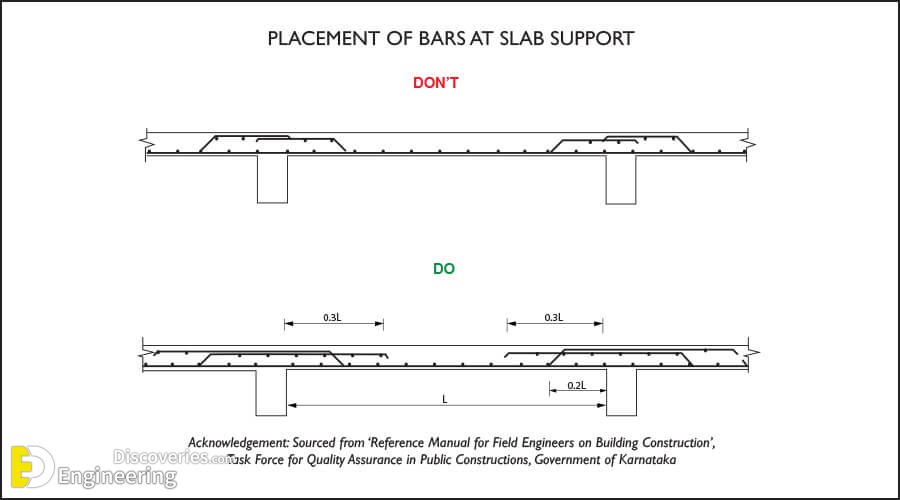

Where splices are provided in bars, they shall be, as far as possible, away from the sections of maximum stresses and shall be staggered. Where the depth of beams exceeds 750mm in case of beams without torsion and 450mm with torsion provide face rein. as per IS456-2000.
Deflection in slabs/beams may be reduced by providing compression reinforcement. Only closed stirrups shall be used for transverse rein. For members subjected to torsion and for members likely to be subjected to reversal of stresses as in Seismic forces.
