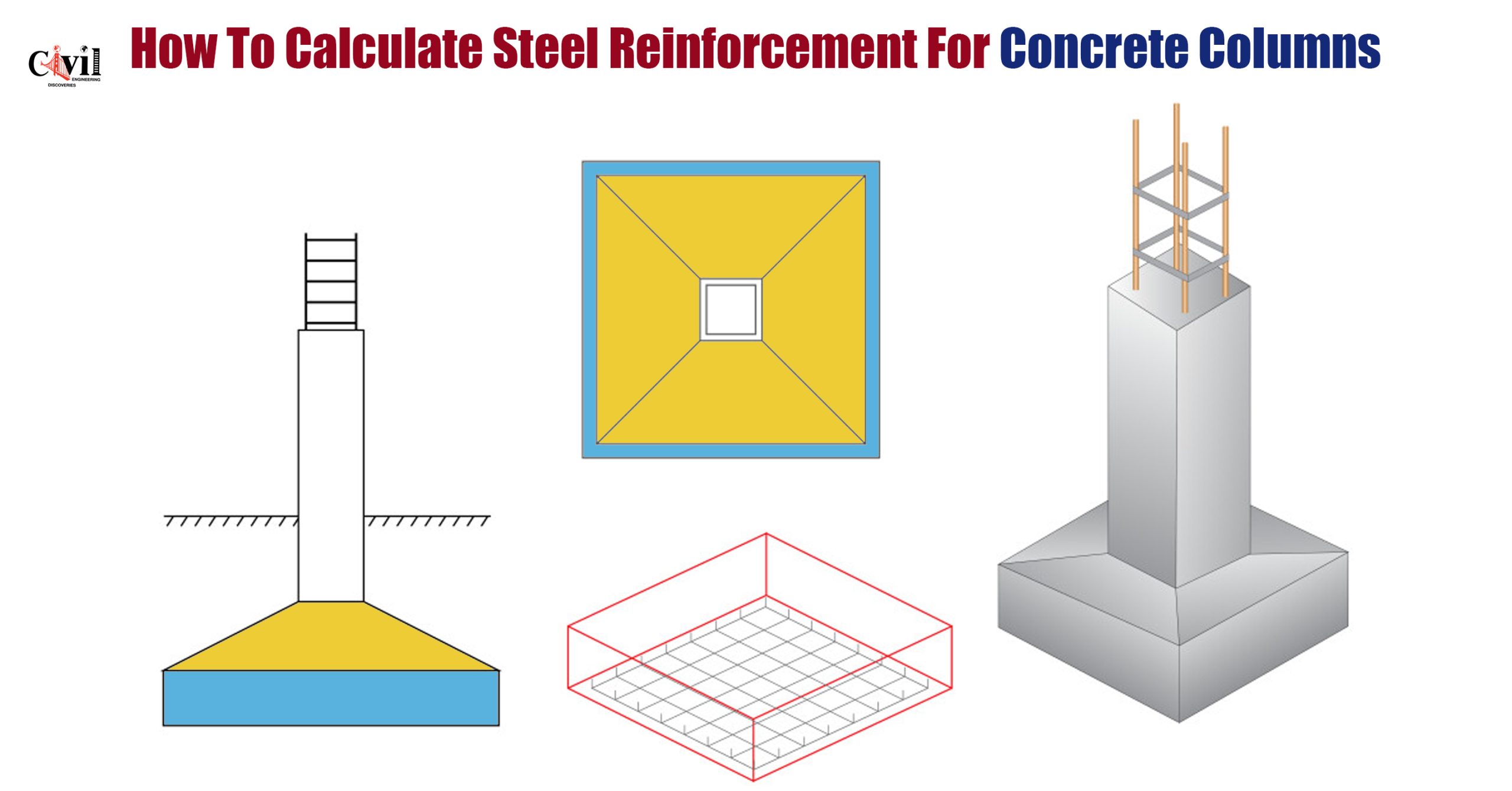

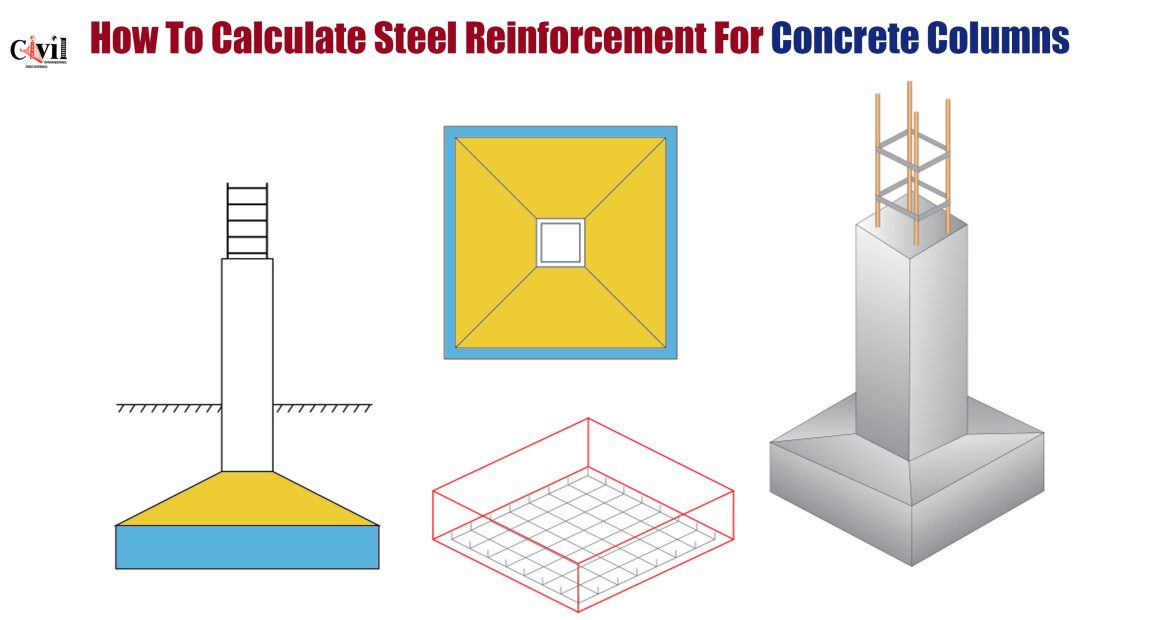

Calculating steel reinforcement is crucial in any concrete structure. Accurate estimation ensures both safety and cost-efficiency. Here, we focus on determining the amount of steel needed for a square column.
Column Specifications
To begin, let’s define the given data:
Column Dimensions: 400mm x 400mm
Number of Vertical Bars: 4
Bar Diameter: 20mm
Column Height: 4 meters
Density of Steel: 7850 kg/m³
These dimensions are standard in many reinforced concrete structures. The steel calculation depends on volume and density.
Step-by-Step Calculation of Steel Volume
1. Volume of a Single Steel Bar
To find the volume, we use the formula:
Volume (V) = π × r² × h
Where:
π ≈ 3.14
r = Radius = Diameter / 2 = 20mm / 2 = 10mm = 0.01m
h = Height = 4m
So,
V = 3.14 × (0.01)² × 4
V = 3.14 × 0.0001 × 4 = 0.001256 m³
This is the volume of one steel bar.
2. Total Volume for All Steel Bars
Multiply the volume of one bar by the number of bars:
Total Volume = 0.001256 m³ × 4 = 0.005024 m³
Now, we have the combined steel volume for all vertical bars in the column.
Converting Volume to Weight
To convert the volume into weight, we apply the steel density:
Weight (kg) = Volume × Density
Weight = 0.005024 m³ × 7850 kg/m³ = 39.44 kg
Hence, the total steel weight required for the vertical bars in one column is approximately 39.44 kilograms.
Practical Considerations for On-Site Work
Always round up the steel weight slightly to account for cutting and overlaps. In this case, considering 40 kg per column would be safer. Don’t forget to factor in stirrups and ties if needed. This calculation only includes the main vertical bars.
Why Accurate Steel Estimation Matters
Incorrect estimation leads to either material wastage or shortage. Both situations can delay projects and increase costs. Precision helps in budgeting and ensures structural integrity.
Conclusion
Using the standard formula for volume and steel density, you can easily calculate steel requirements for any column size. Just remember to double-check units and include all bar details. These small steps lead to a safer and more efficient construction process.
