Understanding the Basics of Compressive Strength

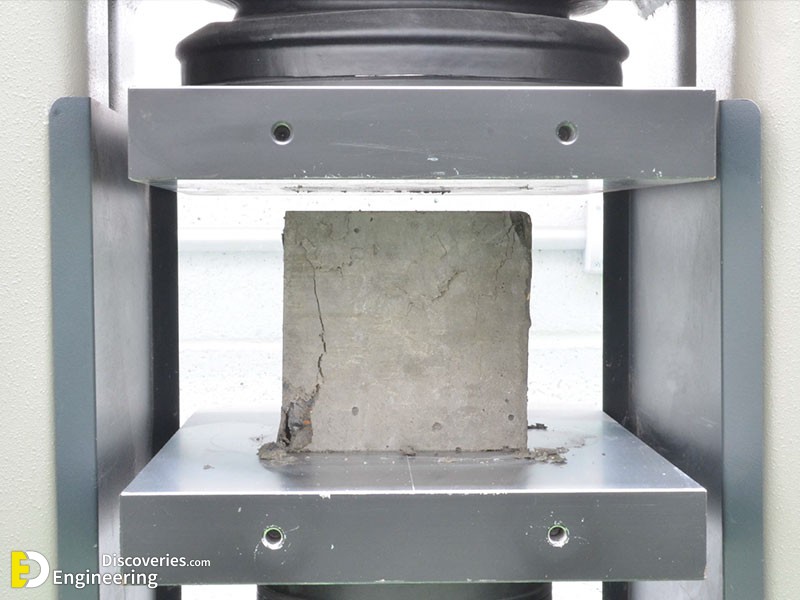

Compressive strength is a crucial property of concrete. It determines its capacity to withstand loads without crushing. Engineers test concrete cubes under load to determine their strength. The standard size of a test cube is 150mm × 150mm × 150mm.

Step 1: Measure the Cross-Sectional Area

The first step is finding the area where the load will act. Use the formula:

Area = Length × Width

Substitute the standard dimensions:

Area = 150mm × 150mm = 22500mm²

This area represents the surface that resists the applied load during testing.

Step 2: Convert Load from Kilonewtons to Newtons

Machines often apply force in kilonewtons (kN). However, for accuracy, convert this to newtons (N).

1 Kilonewton = 1000 Newtons

If the machine shows:

Load = 450kN
Then,

Load in Newton = 450 × 1000 = 450,000N

This conversion ensures consistency with the metric units used for area.

Step 3: Apply the Compressive Strength Formula

Now, calculate the compressive strength using this formula:

Compressive Strength (N/mm²) = Maximum Load (N) / Cross-sectional Area (mm²)

Plug in the values:

= 450,000N / 22,500mm²
= 20N/mm²

This result means the concrete cube can handle 20 Newtons of force per square millimeter before failing.

Why 20N/mm² Matters

A strength of 20N/mm² is typical for standard-grade concrete. This strength ensures reliability for residential and light commercial structures, and builders and contractors rely on it to meet safety codes and engineering standards.

Tips for Accurate Results

• Always use calibrated testing machines.

• Ensure the cube has cured for 28 days before testing.

• Avoid surface irregularities for better accuracy.

• Apply load gradually to prevent sudden failure.

Common Testing Errors to Avoid

Even small mistakes can lead to incorrect readings. Watch out for:

• Misaligned cube placement.

• Sudden application of force.

• Using damaged or broken samples.

• Incorrect unit conversion.

By eliminating these issues, results remain reliable and compliant with testing standards.

Importance in Construction Projects

Accurate compressive strength ensures concrete meets the design requirements. Weak concrete can lead to structural failure, while strong concrete offers durability and long-term performance. Every site test assures that the mix meets specifications.
