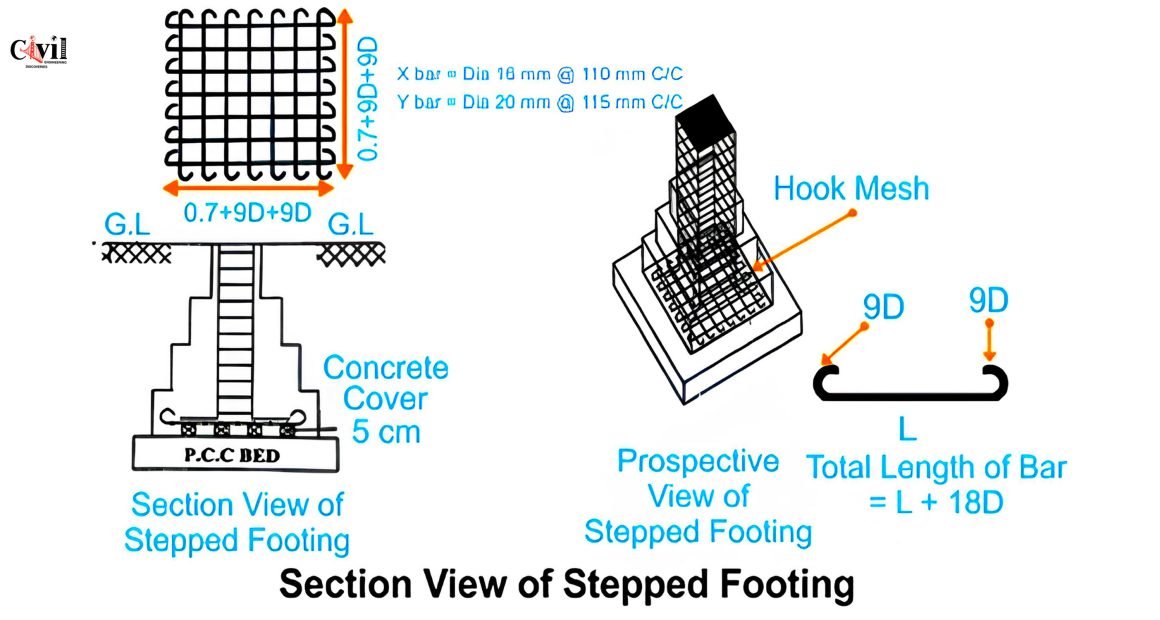

Accurate steel quantity calculation for a footing is essential for cost efficiency and structural integrity in construction. Footings bear the load of structures and transfer it to the ground, making steel reinforcement a critical component. This article provides a comprehensive guide on calculating the steel required for a footing.

Understanding the Basics of Steel Calculation

Key Parameters in Steel Calculation

Before diving into the calculations, familiarize yourself with the following terms:

• Clear Cover: The distance between the surface of the concrete and the nearest steel bar. In this case, it’s 2 inches (50 mm).
• End Hook Length: The length of the hooked ends of a bar to ensure anchorage, typically 6 inches (150 mm).
• Unit Weight Formula: Steel weight is determined using the formula:
  • In meters: D^2/162
  • In feet: D^2/533
    Here, D represents the diameter of the bar.

Step-by-Step Calculation of Steel Quantity

1. Determine the Number of Bars

The number of bars required depends on the width of the footing, clear cover, and spacing between bars. Use this formula:

2. Calculate the Length of Bars

Each bar’s length includes the footing, accounting for clear covers and hooks at both ends. Use the formula:
Length of Bars = Length of Footing − 2 × Clear Cover + 2 × End Hook

For instance, if the footing length is 1200 mm:

Length of Bars = 1200 − 2 × 50 + 2 × 150 = 1400 mm

3. Calculate the Weight of Steel Bars

The weight of steel is derived using the unit weight formula and the total length of the bars.
Weight of Steel Bars = Length of Bars × Unit Weight

For a bar diameter of 12 mm:
Unit Weight (in meters) = 12^2/162  =  0.888 kg

Total Weight = Length of Bars (in meters) × 0.888

Practical Tips for Steel Calculation

1. Always double-check measurements to avoid overestimation or underestimation.
2. Factor in the wastage of steel during cutting and bending.
3. Use standardized bar diameters and spacing for consistency and code compliance.

Conclusion

Calculating the steel quantity for a footing involves determining the number of bars, the length of each bar, and the total weight based on the unit weight formula. Accurate calculations help optimize costs and ensure the structure’s safety. Following the outlined steps, you can easily estimate the required steel for any footing.
