A stepped footing is a type of foundation used to distribute structural loads evenly over sloping ground. It consists of multiple steps that provide stability and prevent soil erosion.

Why Use Stepped Footing?

• Provides a stable base for structures on sloped terrain
• Reduces soil pressure and prevents settlement
• Enhances structural durability
• Cost-effective compared to deep foundations

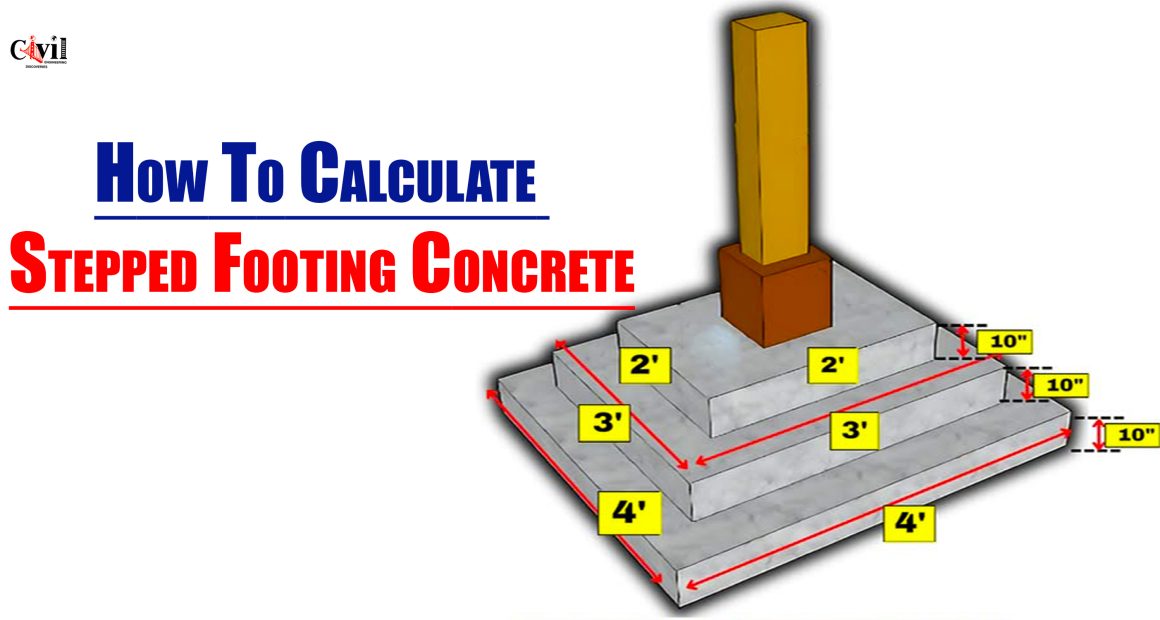

Volume Calculation for Stepped Footing

Step-1 Volume Calculation A

Volume = Length × Width × Depth = 4’ × 4’ × 0.83’ = 13.28 cubic feet

Step-2 Volume Calculation B

Volume = Length × Width × Depth = 3’ × 3’ × 0.83’ =  7.47 cubic feet

Step-3 Volume Calculation C

Length × Width × Depth = 2’ × 2’ × 0.83’ = 3.32 cubic feet

Total Volume of Concrete

Step 1 + Step 2 + Step 3 = 13.28 + 7.47 + 3.32 = 24.07 cubic feet

Conversion of Volume to Cubic Meters

1 cubic foot = 0.0283 cubic meters

24.07 × 0.0283 = 0.681 cubic meters

Wet Volume to Dry Volume Conversion

Concrete Grade: M20 (1:1.5:3)

Since concrete shrinks due to the setting process, a dry volume factor 1.54 is used.

Dry Volume = 1.54 × Wet Volume = 1.54 × 0.681 = 1.051 cubic meters

Material Calculation for M20 Concrete

Cement Calculation

• Formula: (Dry Volume × Cement Ratio) / Total Ratio × 1440
• Calculation: (1.051 × 1) / 5.5 × 1440
• Result: 275.38 kg (6 bags)

Sand Calculation

• Formula: (Dry Volume × Sand Ratio) / Total Ratio
• Calculation: (1.051 × 1.5) / 5.5
• Result: 0.286 cubic meters

Aggregate Calculation

• Formula: (Dry Volume × Aggregate Ratio) / Total Ratio
• Calculation: (1.051 × 3) / 5.5
• Result: 0.573 cubic meters

Factors Affecting Concrete Calculation

• Soil Type: Affects foundation stability
• Load Distribution: Determines required footing thickness
• Moisture Content: Impacts concrete setting time
• Weather Conditions: Extreme conditions affect curing

Common Mistakes to Avoid

• Incorrect unit conversions
• Ignoring wet-to-dry volume adjustment
• Neglecting reinforcement calculations
• Failing to account for material wastage

Best Practices for Stepped Footing Construction

• Proper Site Preparation: Remove loose soil and debris
• Accurate Measurements: Use precise measuring tools
• Quality Materials: Ensure high-grade cement and aggregate
• Adequate Curing: Prevents cracks and ensures durability
