Calculating the concrete volume of a retaining wall is essential for structural planning and budgeting. This simple yet effective guide walks you through the exact process to estimate the concrete needed for a standard retaining wall, including both the stem and the base slab.

Let’s break it down step by step using practical dimensions.

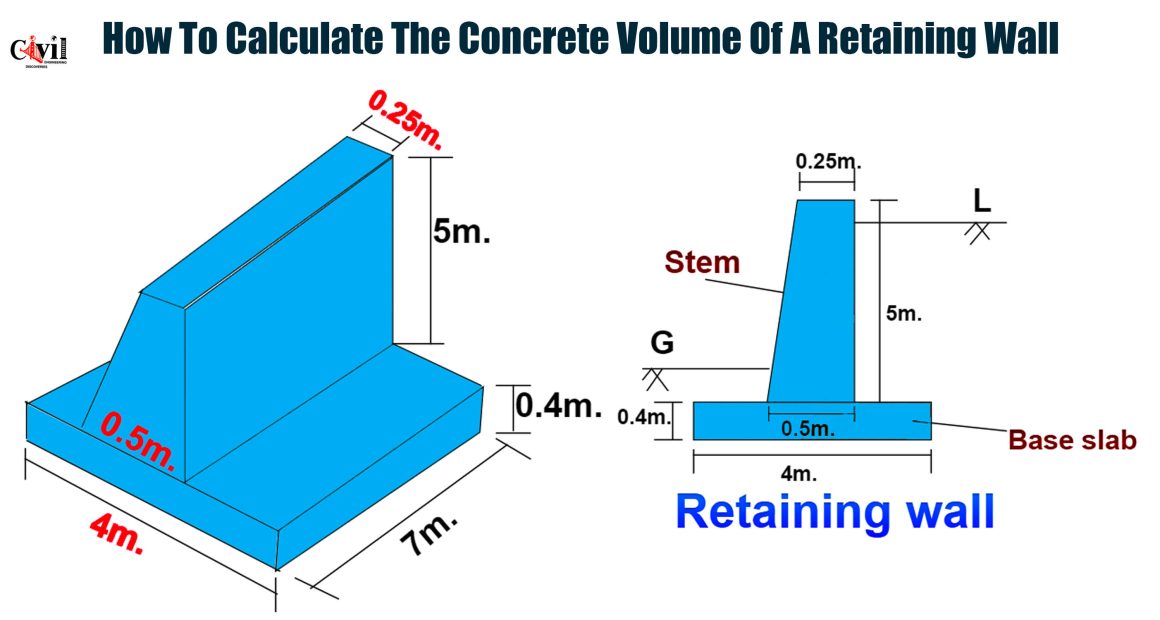

Given Dimensions for the Retaining Wall

Stem Dimensions:

• Height (h): 5 meters

• Top Width (w₁): 0.25 meters

• Bottom Width (w₂): 0.50 meters

• Length (L): 7 meters

Base Slab Dimensions:

• Width (W): 4 meters

• Thickness (T): 0.4 meters

• Length (L): 7 meters

With these values, we can begin the calculation.

Step 1: Calculate Concrete Volume of the Base Slab

Use the formula:

Volume = Length × Width × Thickness

Plugging in the values:

Volume = 7m × 4m × 0.4m = 11.2 cubic meters

This gives the concrete required for the base slab alone.

Step 2: Calculate the Concrete Volume of the Stem

The stem is a trapezoidal section. Use the formula for volume:

Volume = Length × [(Top Width + Bottom Width) ÷ 2] × Height

Apply the given dimensions:

Volume = 7m × [(0.25m + 0.5m) ÷ 2] × 5m
= 7m × 0.375m × 5m
= 13.125 cubic meters

This is the volume of concrete needed for the stem.

Step 3: Total Concrete Volume of the Retaining Wall

Now, combine both components:

Total Volume = Volume of Base Slab + Volume of Stem
= 11.2m³ + 13.125m³
= 24.325 cubic meters

This is the total amount of concrete required.

Summary of the Retaining Wall Volume Estimation

Tips for Accurate Estimation

• Always double-check dimensions on-site.

• Consider an additional 5–10% for wastage.

• Use proper curing methods after pouring the concrete.
