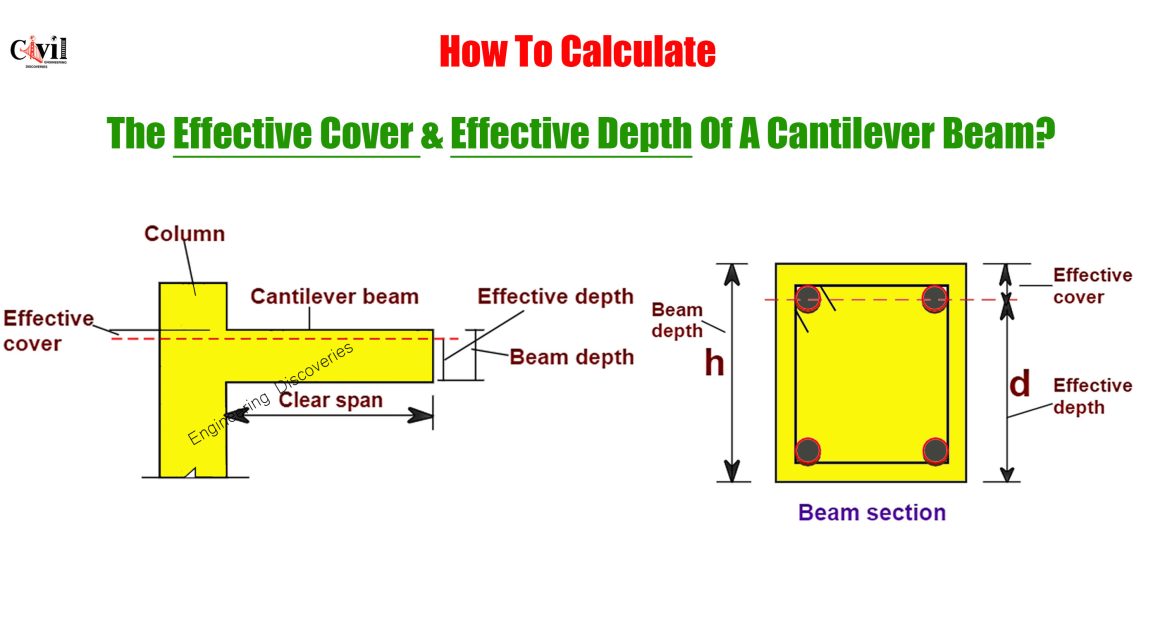

Understanding Effective Cover and Effective Depth

Calculating the effective cover and effective depth of an RCC cantilever beam is essential for structural integrity. These calculations ensure the beam can withstand loads while maintaining stability.

Given Data for the Beam

• Beam depth = 450mm
• Clear cover = 25mm
• The diameter of the stirrup bar = 8mm
• The diameter of the bottom bar = 12mm
• The diameter of the top bar = 16mm

Step 1: Calculate Effective Depth

According to IS-456:2000, the effective depth of a beam is the distance between the centroid of the area of tension reinforcement and the maximum compression fiber. For cantilever beams, the top bars act as tension reinforcements, while the bottom surface is the last end of the compression fiber.

The formula for Effective Depth

Effective Depth = Beam Depth – (Clear Cover + Stirrup Diameter + 1/2 Diameter of Top Bar)

Calculation:

Effective Depth = 450mm – (25mm + 8mm + 1/2 × 16mm)

Effective Depth = 450mm – 41mm

Effective Depth = 409mm

Step 2: Calculate the Effective Cover

The effective cover is the distance from the outer compression fiber to the centroid of the tensile reinforcement. It can be calculated using either of the following formulas:

Formula for Effective Cover

Effective Cover = Beam Depth – Effective Depth

Or

Effective Cover = Clear Cover + Stirrup Diameter + 1/2 Diameter of Top Bar

Calculation:

Effective Cover = 450mm – 409mm

Effective Cover = 41mm

Or,

Effective Cover = 25mm + 8mm + 1/2 × 16mm = 41mm

Effective Cover = 41mm

Conclusion

• Effective Depth = 409mm
• Effective Cover = 41mm

By following this method, engineers can ensure the proper design and strength of cantilever beams. This calculation is crucial for achieving durability and safety in structural elements.
