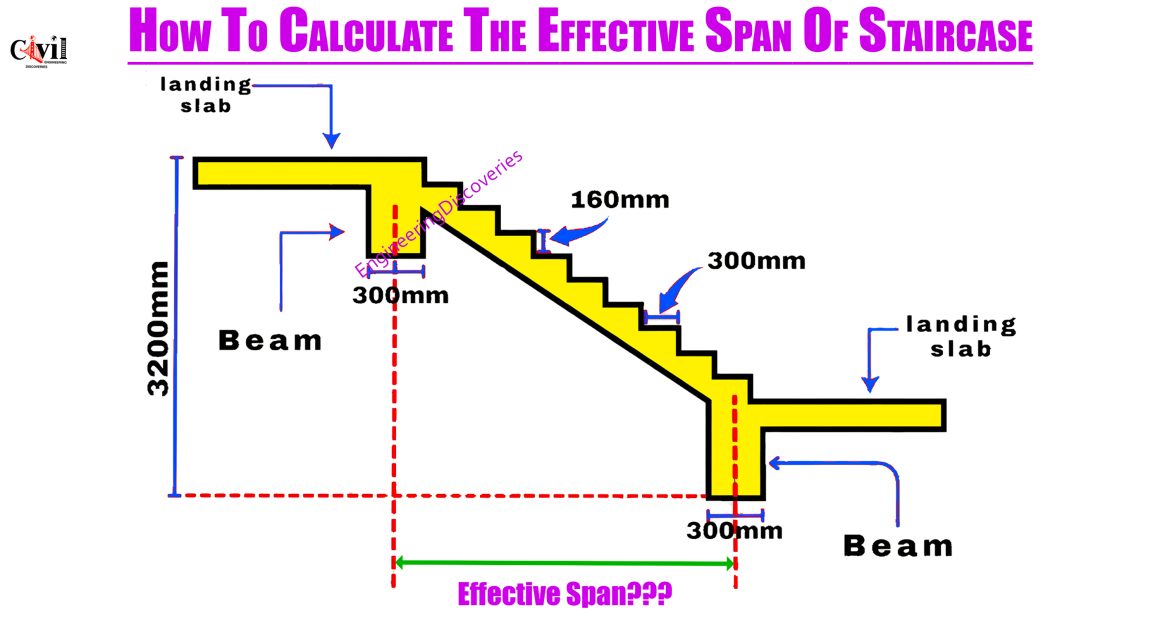

In structural engineering, the effective span of a staircase plays a crucial role in determining its structural integrity and load-bearing capacity. The span is calculated based on various factors including the staircase height, riser dimensions, tread dimensions, and the support beams. This article provides a comprehensive guide to calculating the effective span of a staircase according to IS: 456-2000, P.63, CL. 33.1 (a).

Given Data

• Stair Height: 3.20m (3200mm)
• Top and Bottom Beam: 300mm
• Riser: 160mm
• Tread: 300mm

Reference Standard

According to IS: 456-2000, P.63, CL. 33.1 (a).

Calculation of Number of Risers

The number of risers determines the vertical steps in the staircase.

Formula:
Number of Riser = Height of Floor / Height of Riser
Calculation:
= 3200mm / 160mm
= 20 Nos.

Calculation of Horizontal Length

The horizontal length depends on the number of treads.

Formula:
Horizontal Length = Number of Tread × Tread Length
Calculation:
= 19 × 300mm
= 5700mm

Effective Span of Staircase

The effective span is calculated as the center-to-center distance between the two supporting beams. This measurement includes the horizontal length of the staircase plus half the thickness of the top and bottom beams on both sides.

Formula:
Effective Span = Horizontal Length + Half Beam Width (Top Beam + Bottom Beam)

or

Summary of Calculations

Importance of Effective Span Calculation

The effective span directly affects the staircase’s design, including:

• Load Distribution
• Structural Stability
• Material Selection
• Deflection and Bending Moments

Accurate calculation ensures the staircase meets safety standards and performs efficiently under various loads.

Conclusion

The effective span of a staircase is a critical parameter in structural design. By following the guidelines set by IS: 456-2000, engineers can ensure optimal performance and safety. The step-by-step calculations presented in this article offer a clear method for determining the effective span, enabling precise and reliable staircase design.
