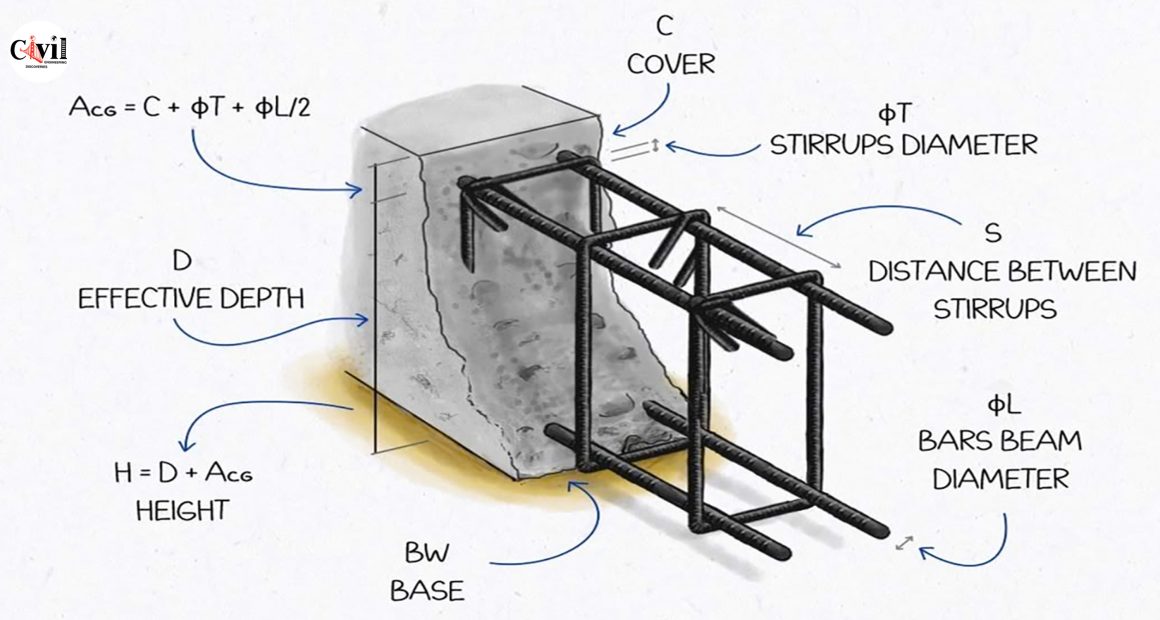

Reinforced Cement Concrete (RCC) beams are essential elements in structural construction. To ensure safety and durability, it is crucial to understand and incorporate specific dimensions into the design process. Below, we explore the most important factors influencing RCC beam design.
1. Cover (C)
The cover is the distance between the outer surface of the beam and the reinforcement bars. It protects the steel bars from environmental factors like moisture and corrosion. This layer also enhances the beam’s durability, ensuring longevity.
2. Stirrups Diameter (ΦT)
Stirrups’ diameter, or the transverse reinforcement’s diameter, plays a critical role in resisting shear forces. Common diameters range between 6mm and 10mm, depending on the beam’s structural requirements.
3. Bars Beam Diameter (ΦL)
The diameter of the main longitudinal reinforcement bars impacts the beam’s bending strength. The appropriate diameter is selected depending on the load the beam is designed to carry.
4. Effective Depth (D)
The effective depth is the vertical distance from the topmost surface of the beam to the center of the main reinforcement bars. It is a crucial parameter that influences the beam’s bending capacity and overall stability.
5. Base Width (BW)
The base width refers to the horizontal width of the beam. This dimension contributes to the beam’s resistance to shear and bending stresses. It must be proportionate to the beam height for optimal performance.
6. Height (H)
The height of the beam is calculated as the sum of the effective depth (D) and the additional concrete cover (ACG). This ensures sufficient space for the reinforcement while maintaining structural stability.
7. Distance Between Stirrups (S)
Spacing between stirrups is essential to control shear forces and prevent cracking. This distance is determined based on the beam’s load distribution and size.
8. Additional Concrete Cover (ACG)
The total additional concrete cover (ACG) can be calculated using the formula:
ACG = C + ΦT + (ΦL/2)
This accounts for the protective layer around the reinforcement and ensures the beam’s durability and strength.
Conclusion
Designing an RCC beam requires precision and careful attention to these critical dimensions. Properly accounting for cover, reinforcement diameters, depth, and spacing ensures the beam’s ability to handle stresses while maintaining structural integrity. Engineers must adhere to these guidelines to create safe, efficient, and long-lasting structures.
By integrating these factors into RCC beam design, construction projects can achieve superior results and withstand the test of time.
