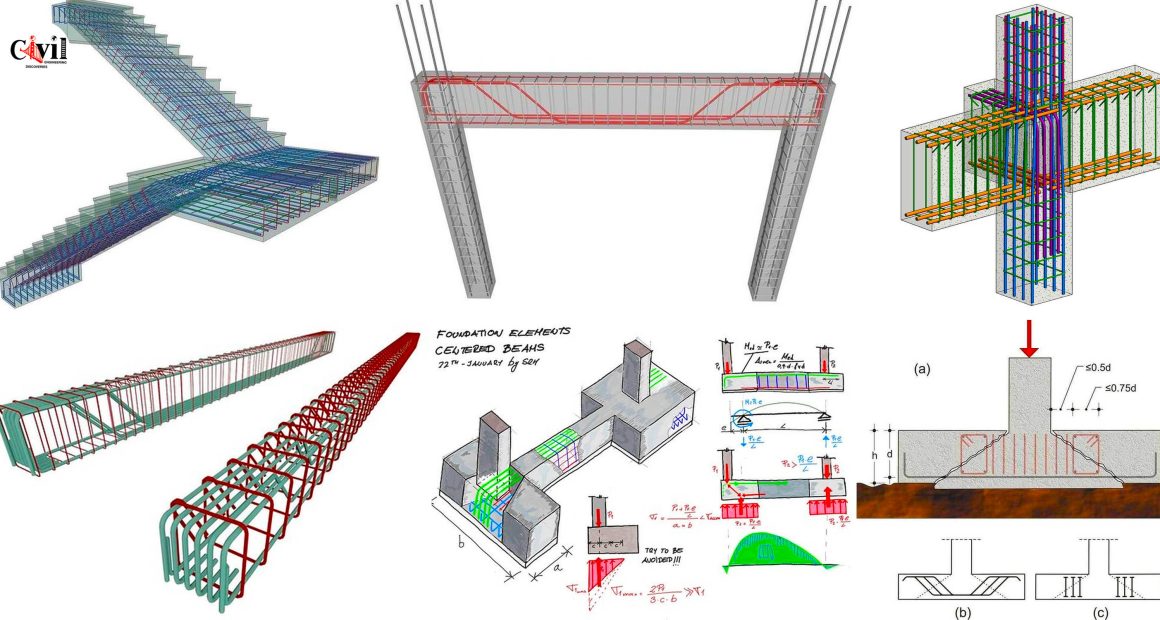

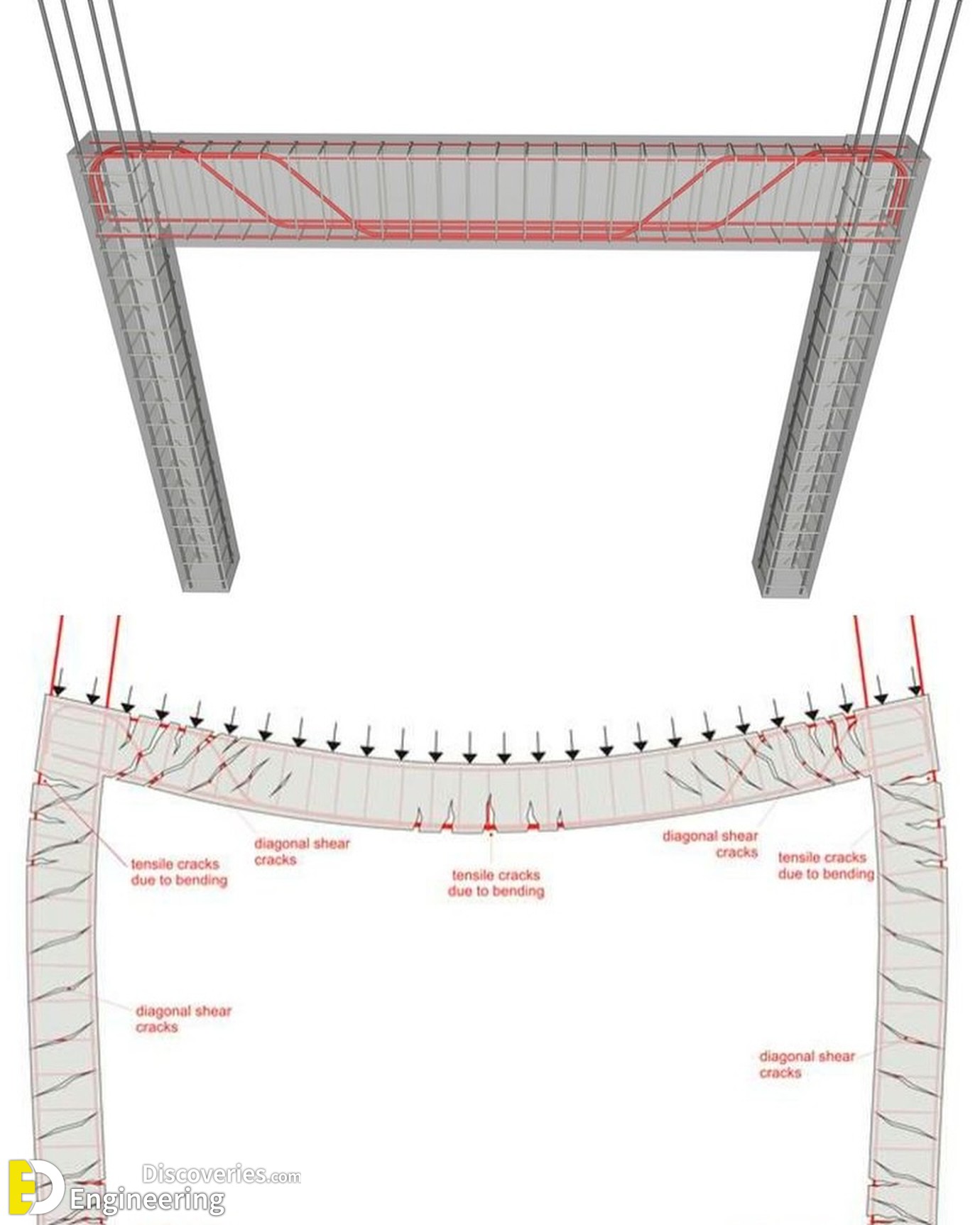

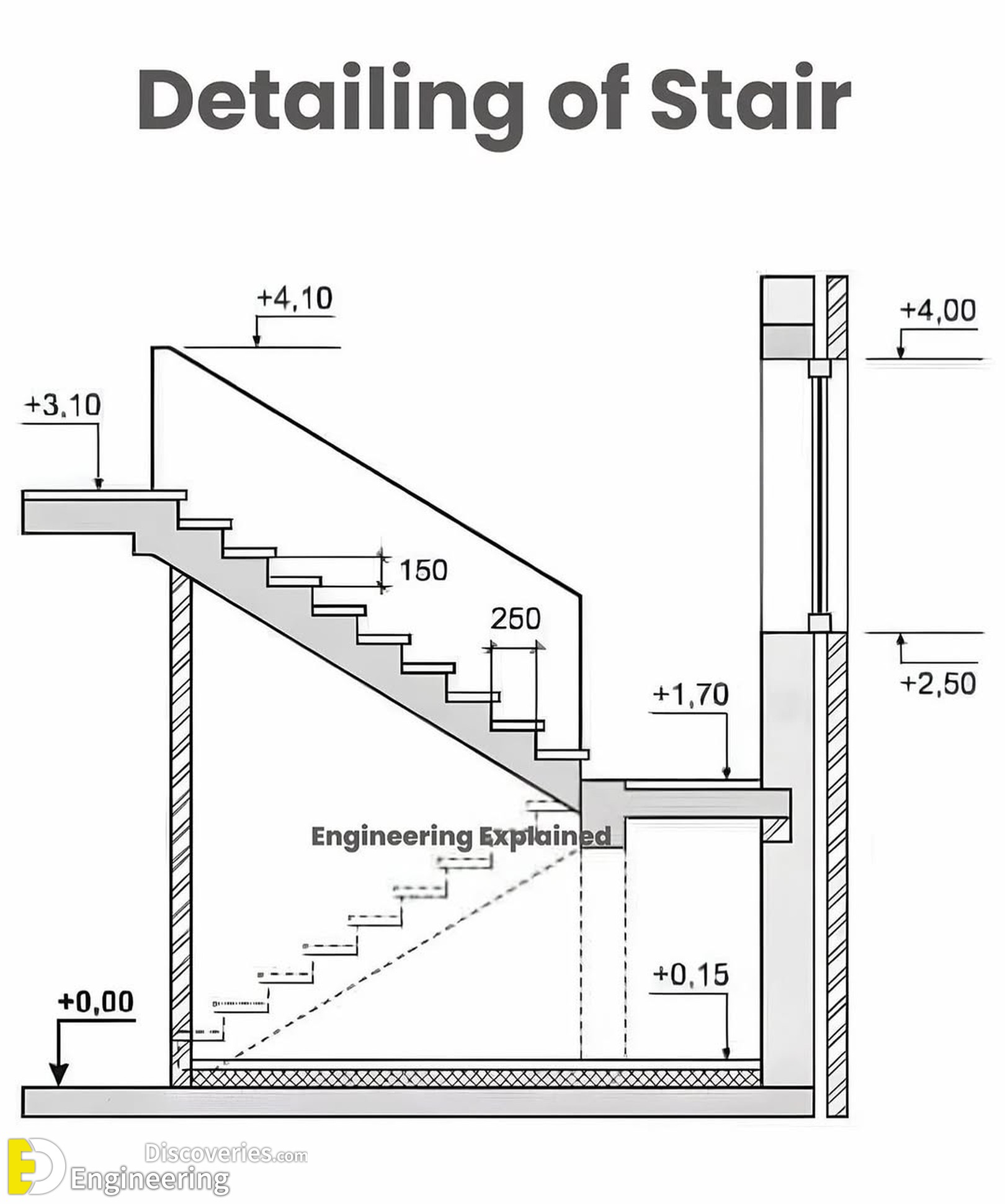

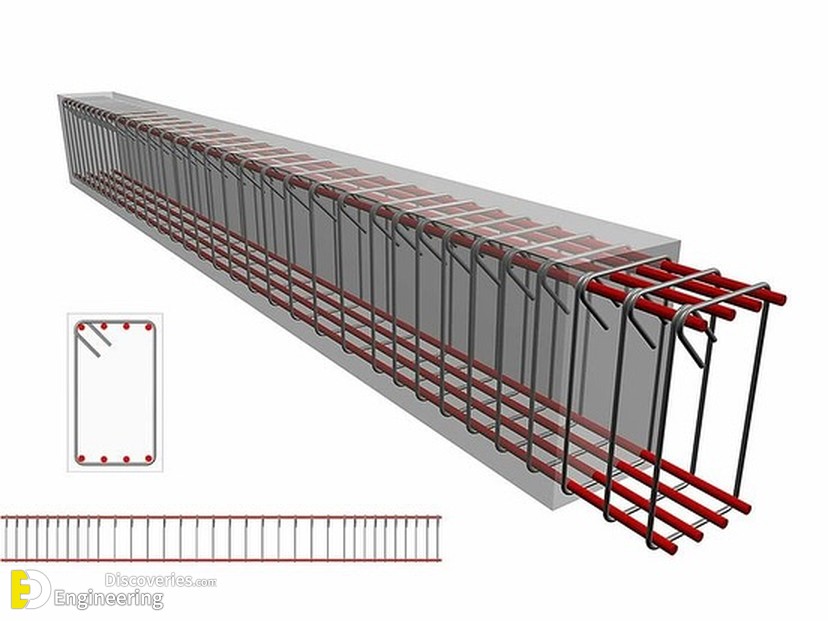

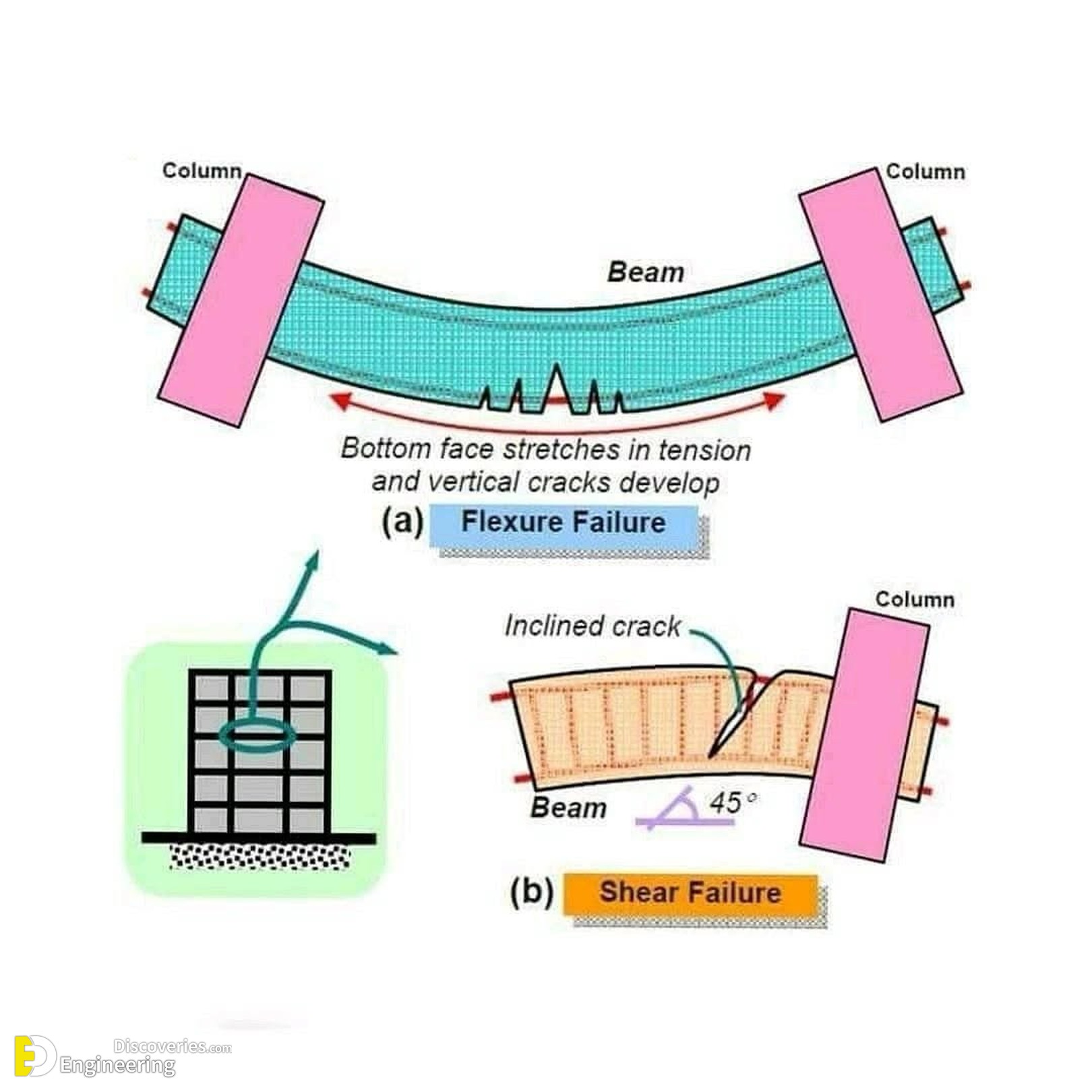

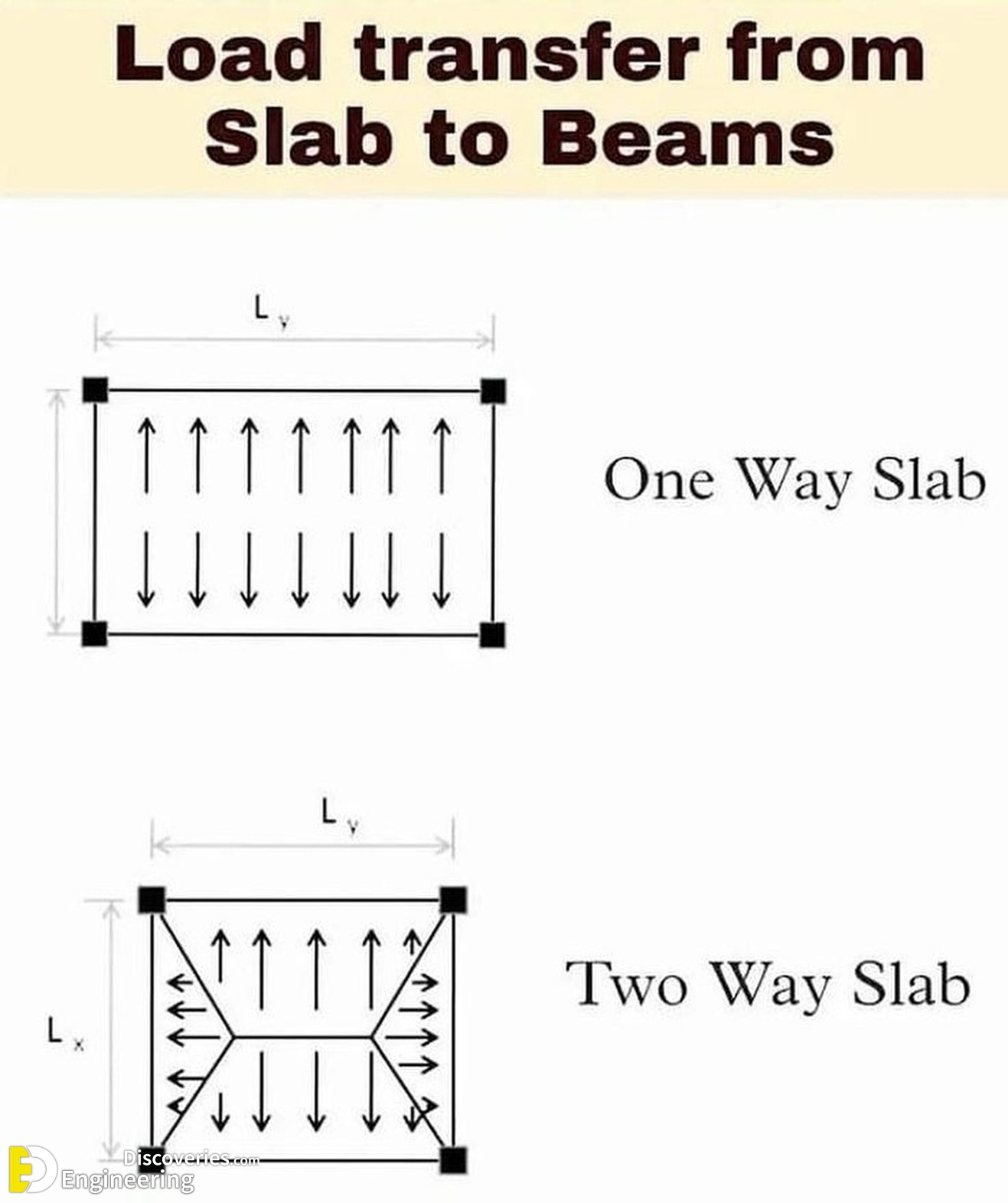

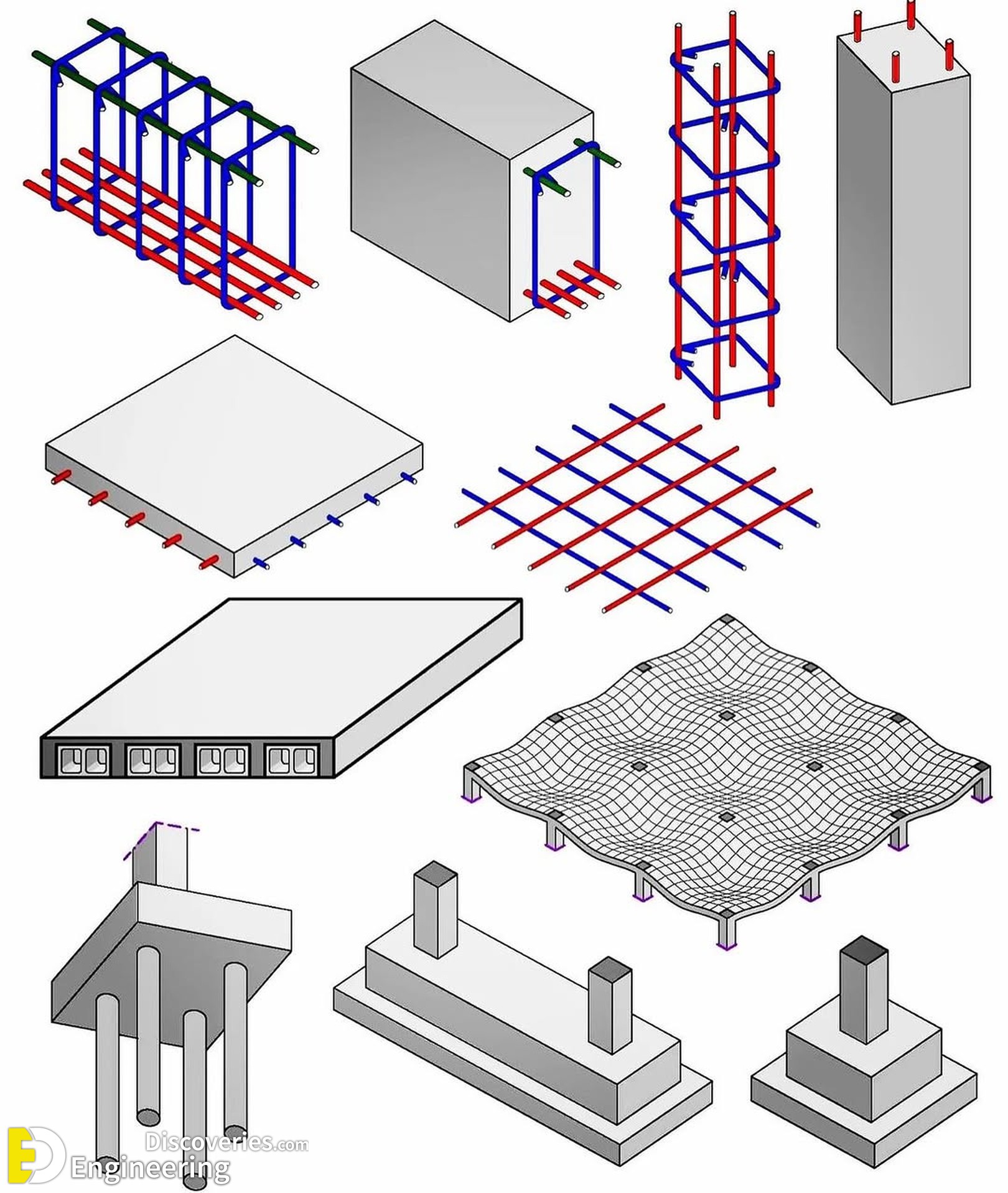

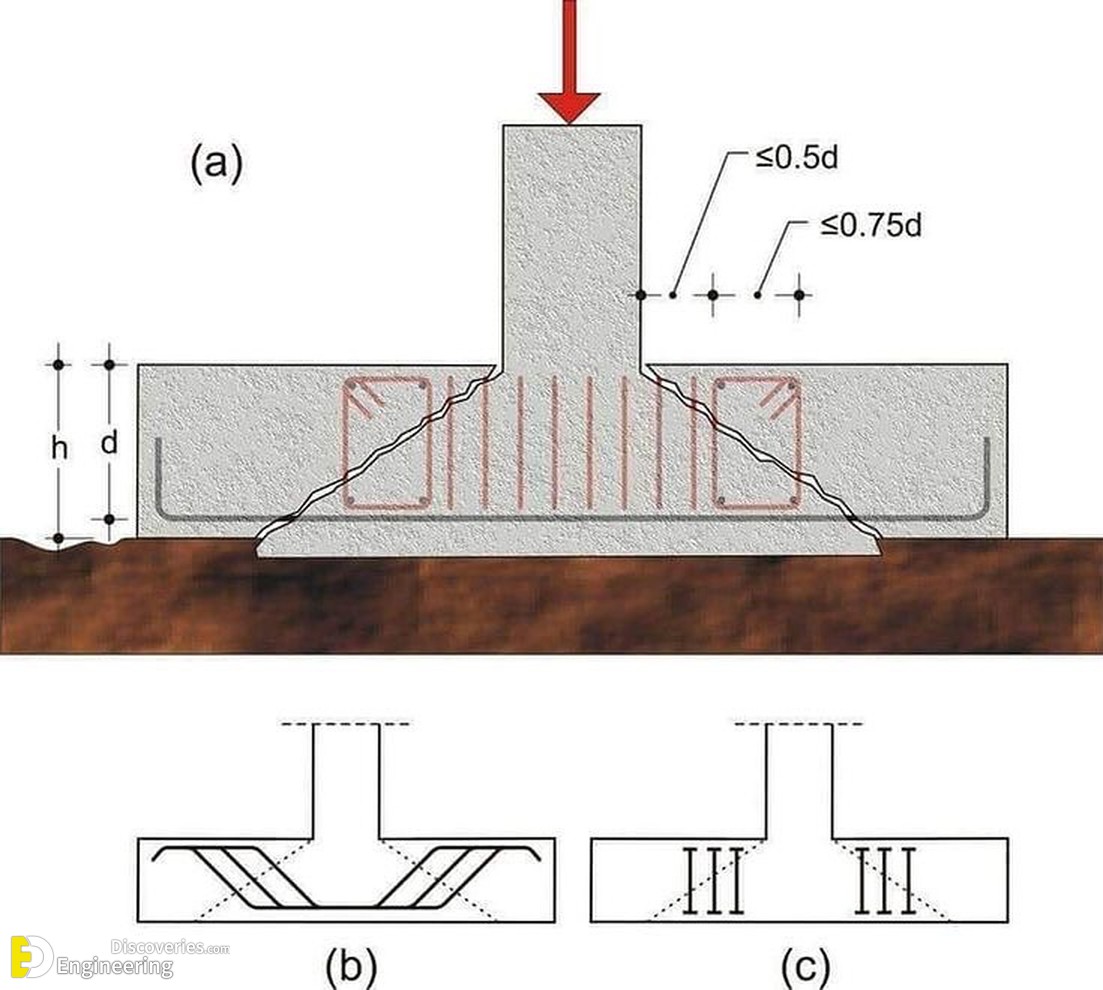

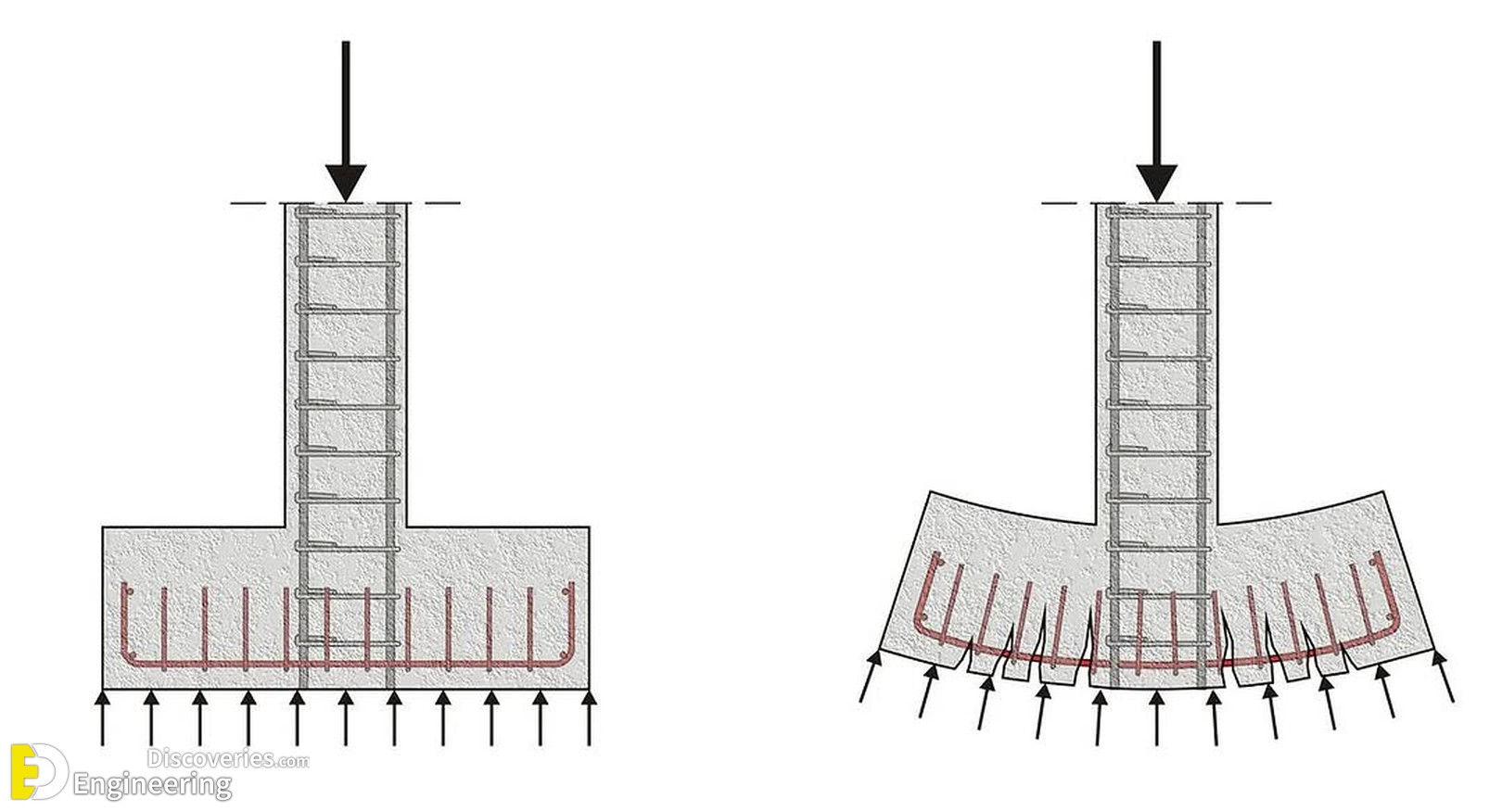

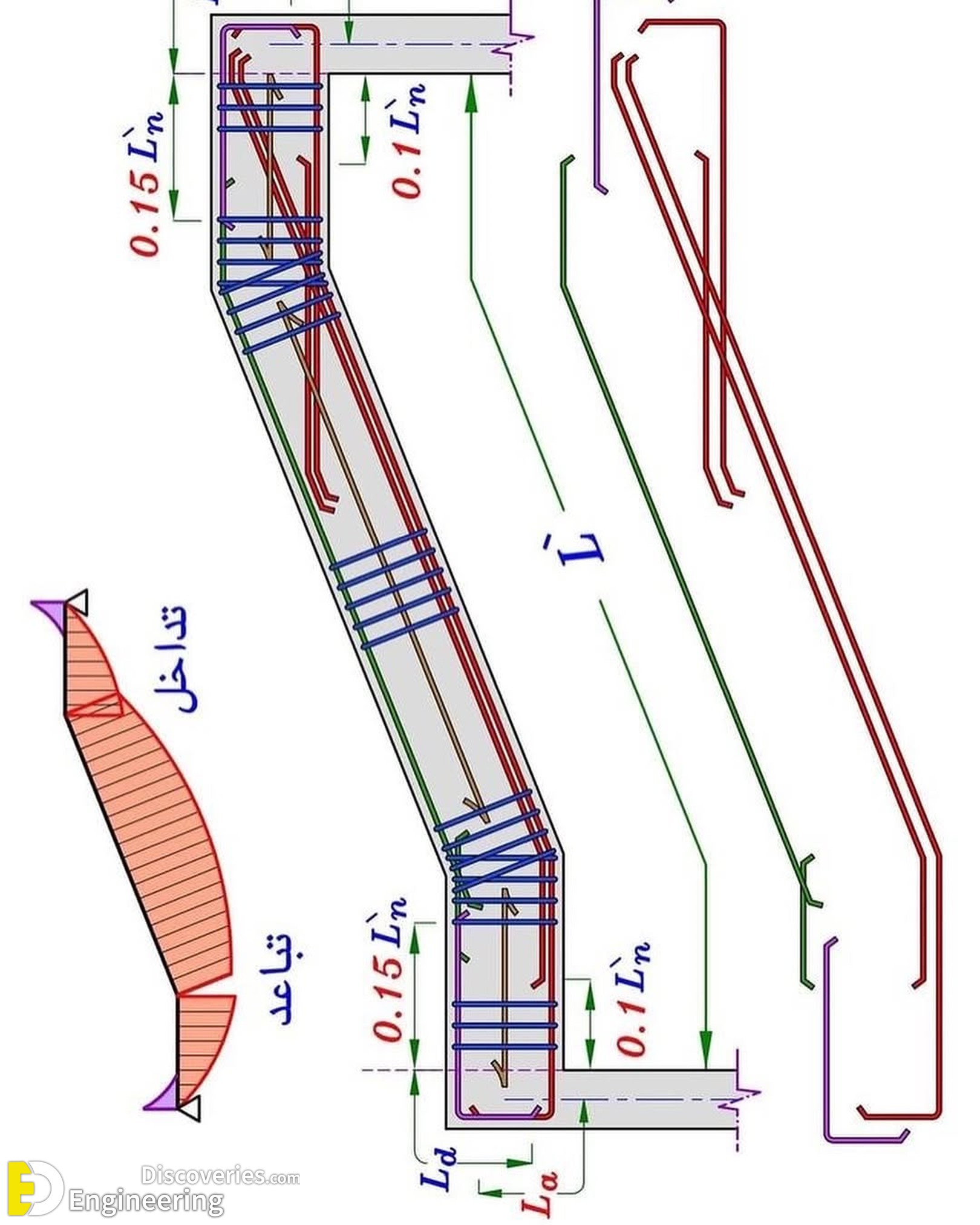

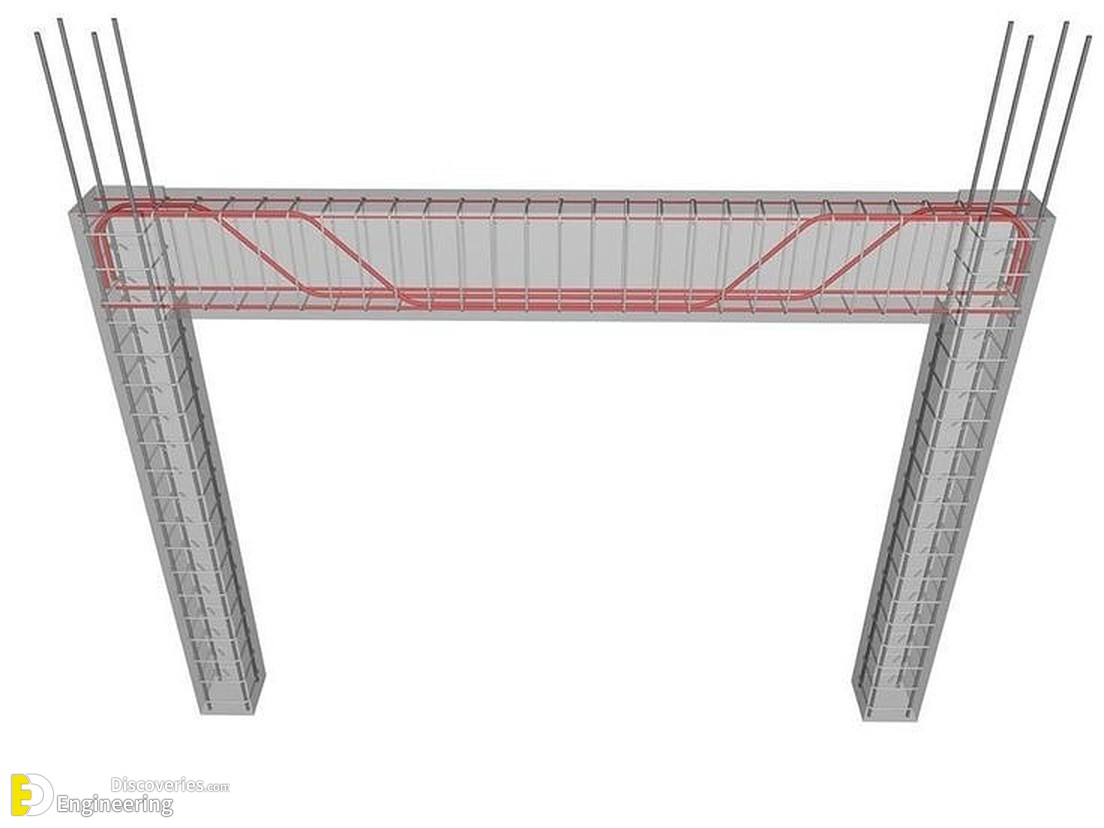

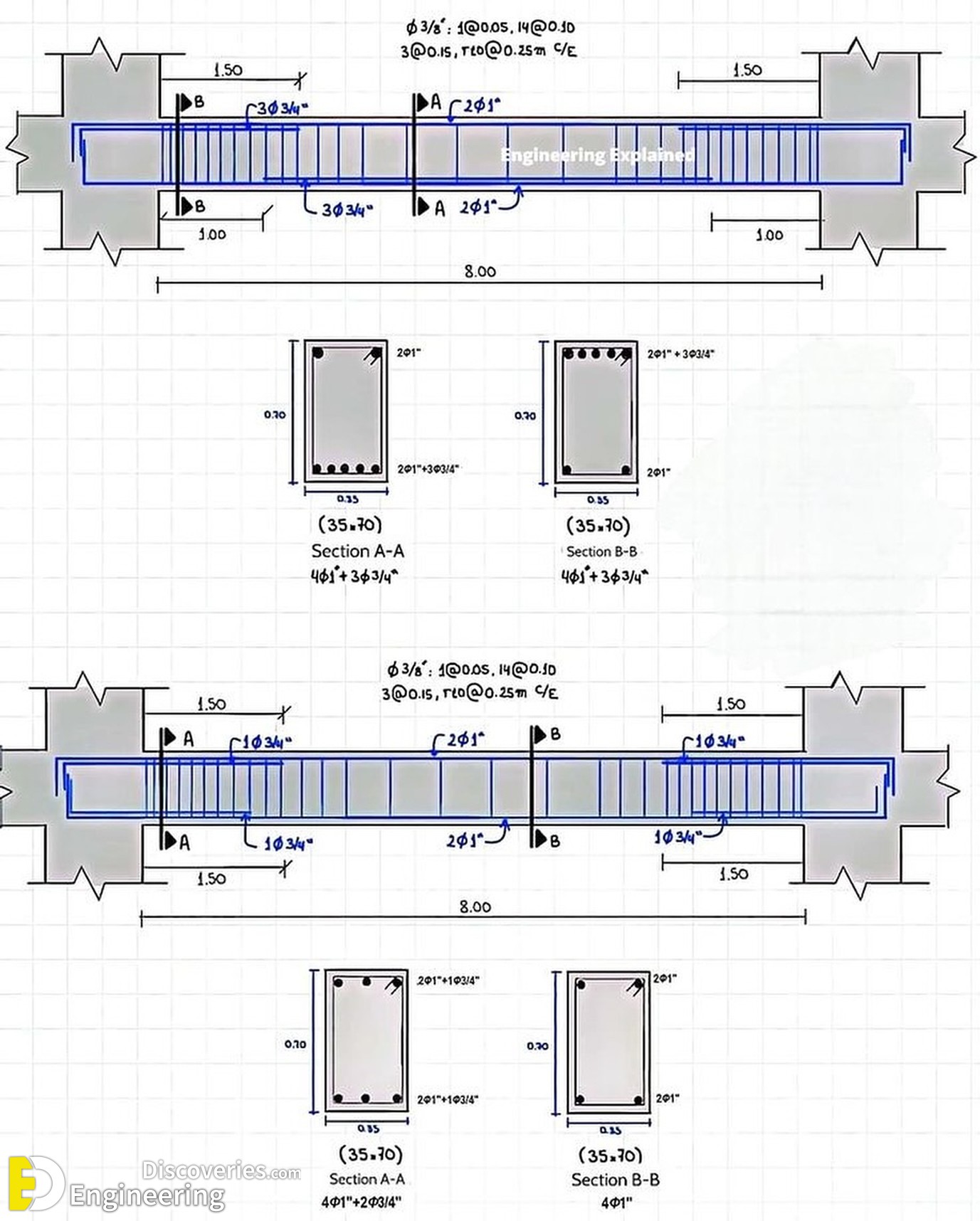

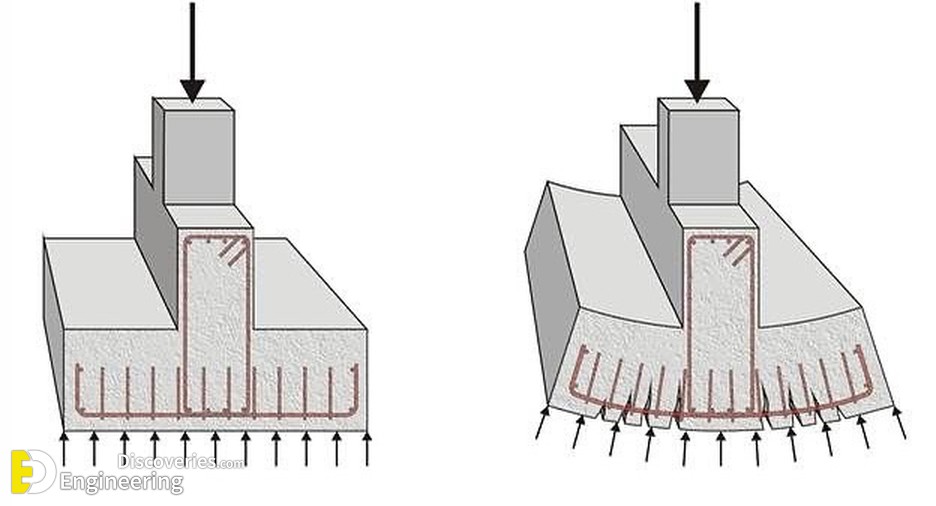

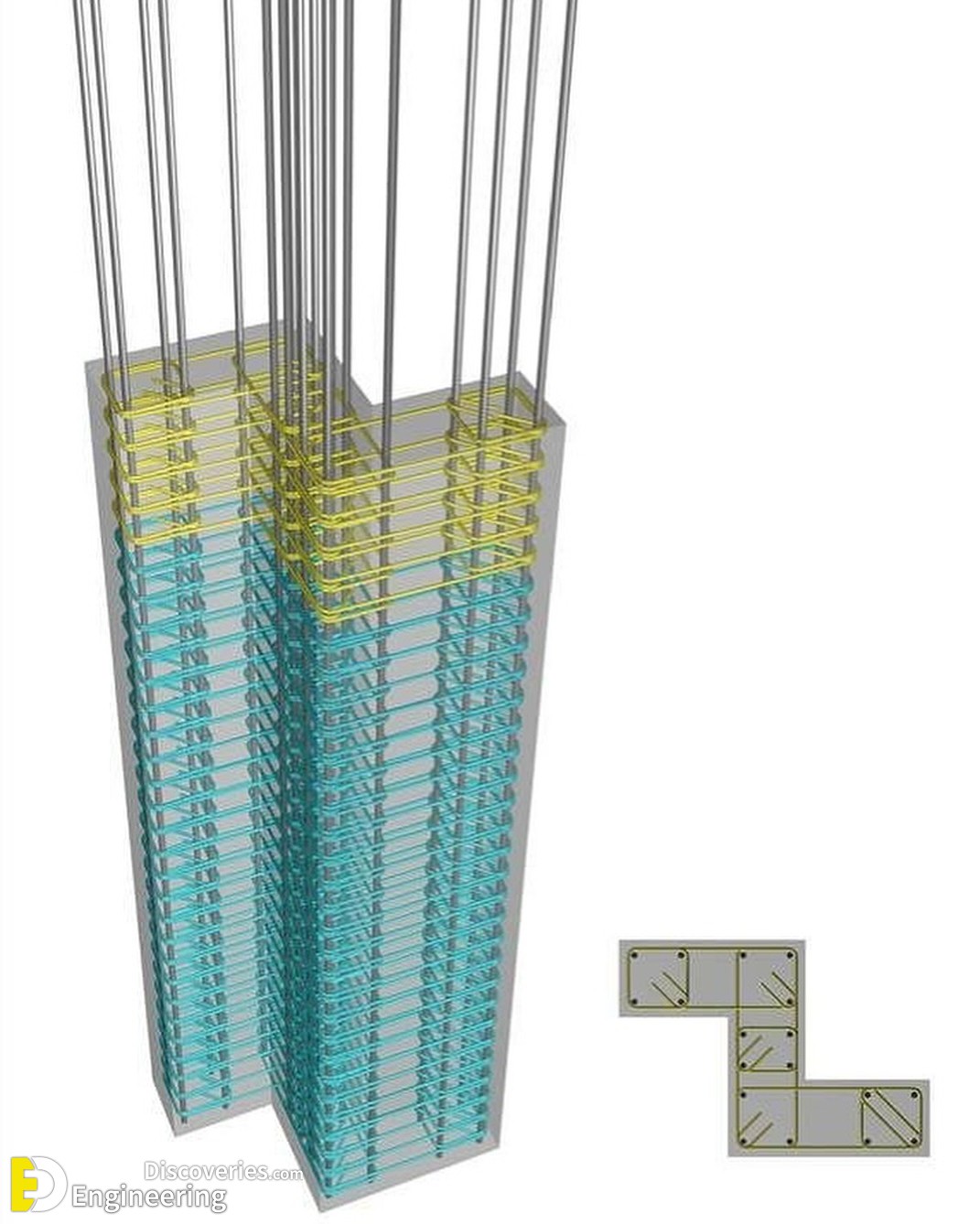

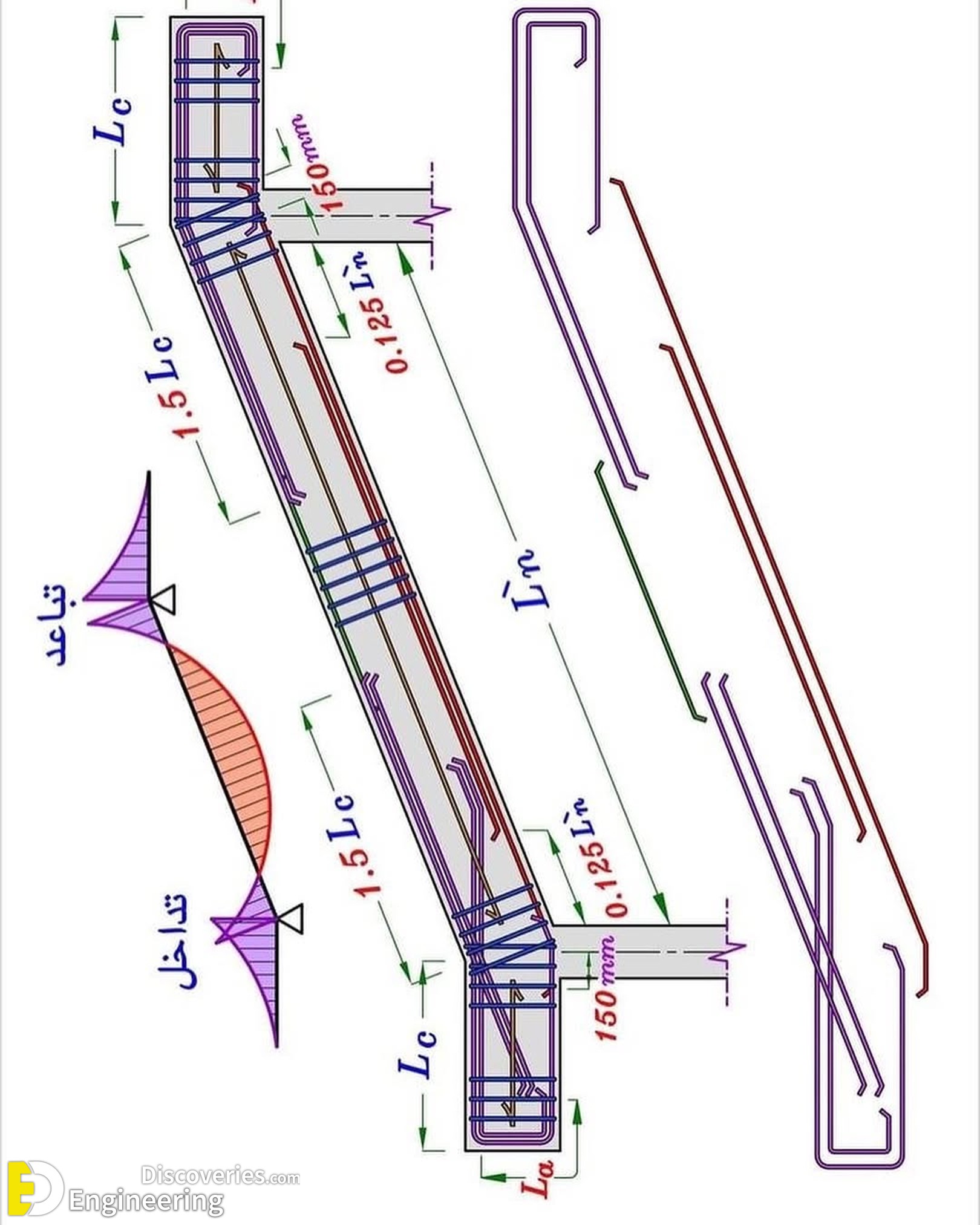

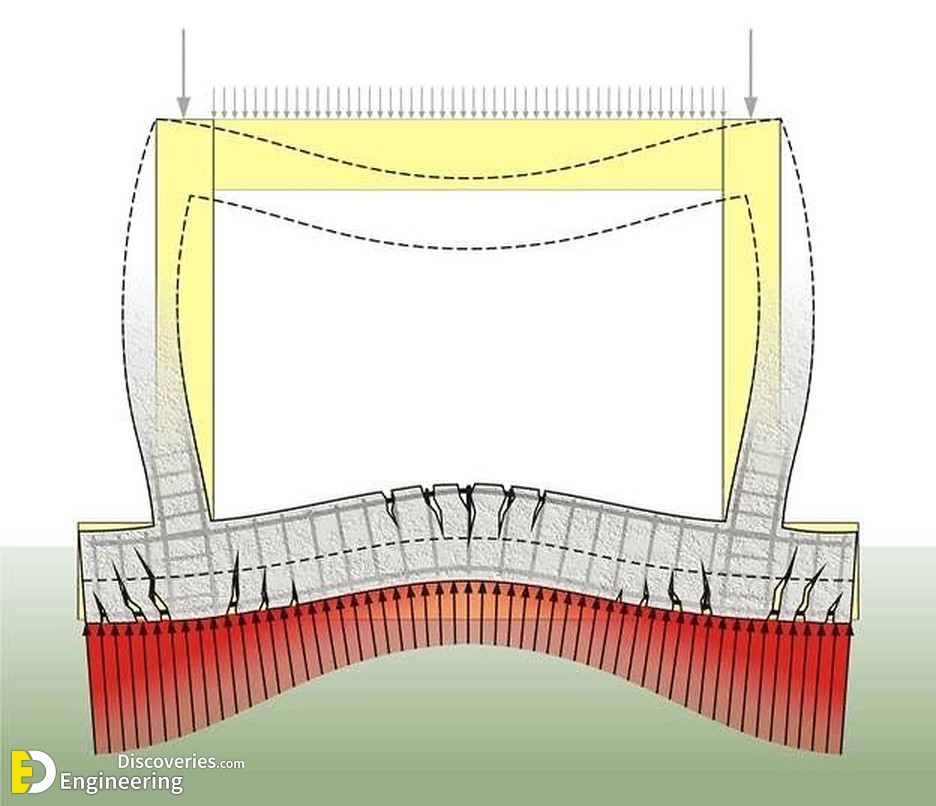

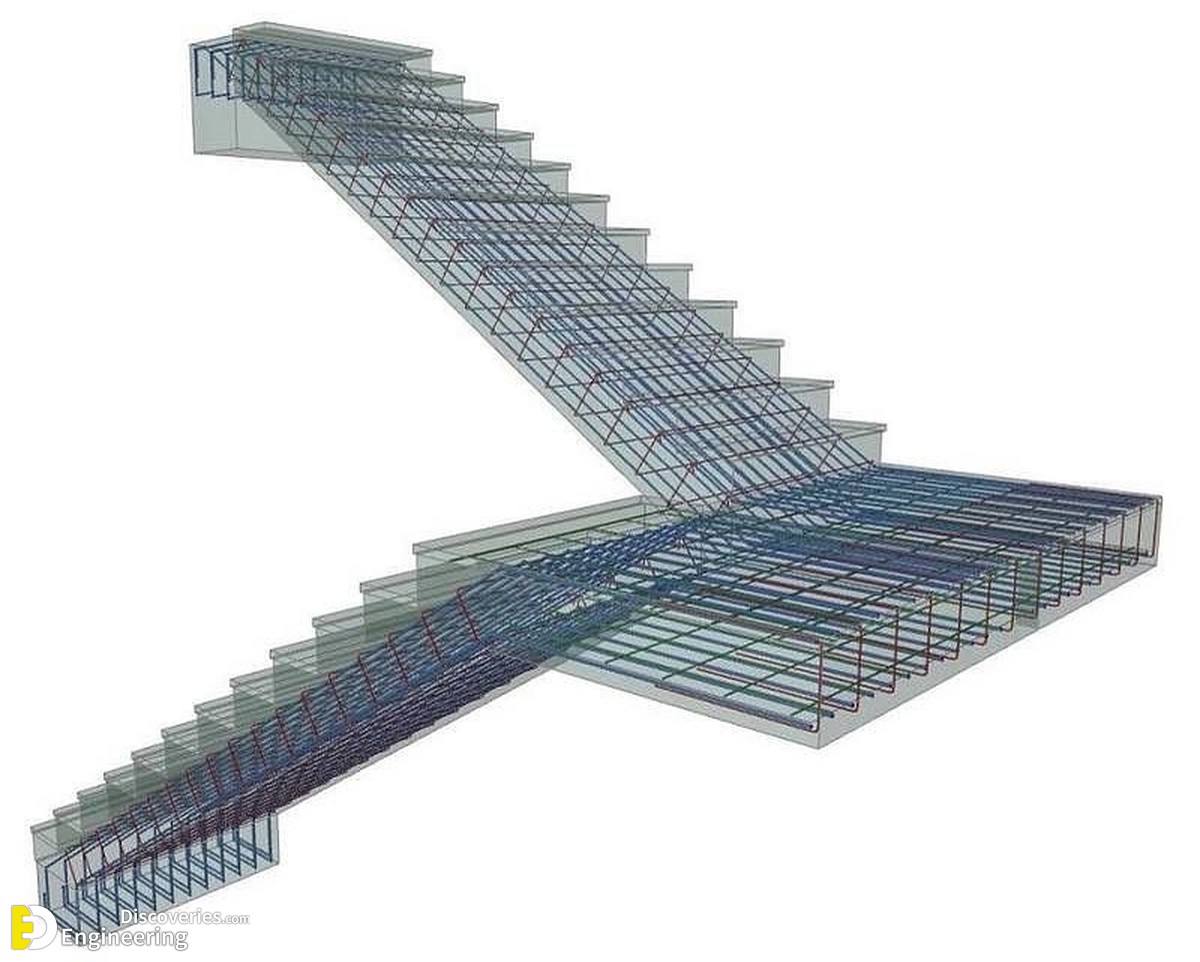

Reinforced Cement Concrete (RCC) is a crucial element in modern construction, and every engineer must be well-versed in its design details and structural components. RCC structures consist of key elements such as footings, columns, beams, slabs, and stairs, each playing a vital role in ensuring strength and stability. RCC footings distribute the load to the ground, commonly designed as isolated, combined, or raft foundations. Columns provide vertical support and are designed with proper reinforcement to resist axial and lateral forces. Beams transfer loads between columns and support the slab, requiring careful reinforcement detailing to prevent shear and bending failures. Slabs, either one-way or two-way, form the floors and roofs, requiring adequate thickness and reinforcement to withstand live and dead loads. Staircases, essential for multi-story buildings, are designed considering rise, tread, and reinforcement to ensure safe accessibility. Engineers must follow standard design codes and reinforcement detailing, including cover, spacing, and lapping of bars, to maintain structural integrity. Properly detailed diagrams and specifications are essential for executing RCC designs effectively on-site.
