Ramp design isn’t just about connecting two levels—it’s about ensuring accessibility, safety, and dignity for everyone. Poorly designed ramps can become barriers rather than facilitators for people with mobility challenges. Whether you’re designing for pedestrians, wheelchair users, or vehicles, understanding the dos and don’ts of ramp design is crucial.

Why Accessibility in Ramp Design Matters

Millions of people around the world rely on ramps for daily mobility—elderly individuals, wheelchair users, parents with strollers, and people with temporary injuries. Inaccessible ramps lead to exclusion and safety hazards. A properly designed ramp ensures equal access, promotes independence, and complies with accessibility standards like the Americans with Disabilities Act (ADA).

Legal and Safety Standards to Consider

• ADA Requirements (USA): Ramps must have a maximum slope of 1:12 for wheelchair users.
• ISO 21542 (International): Offers guidelines for accessible building design.
• Local Regulations: Always check country-specific building codes.

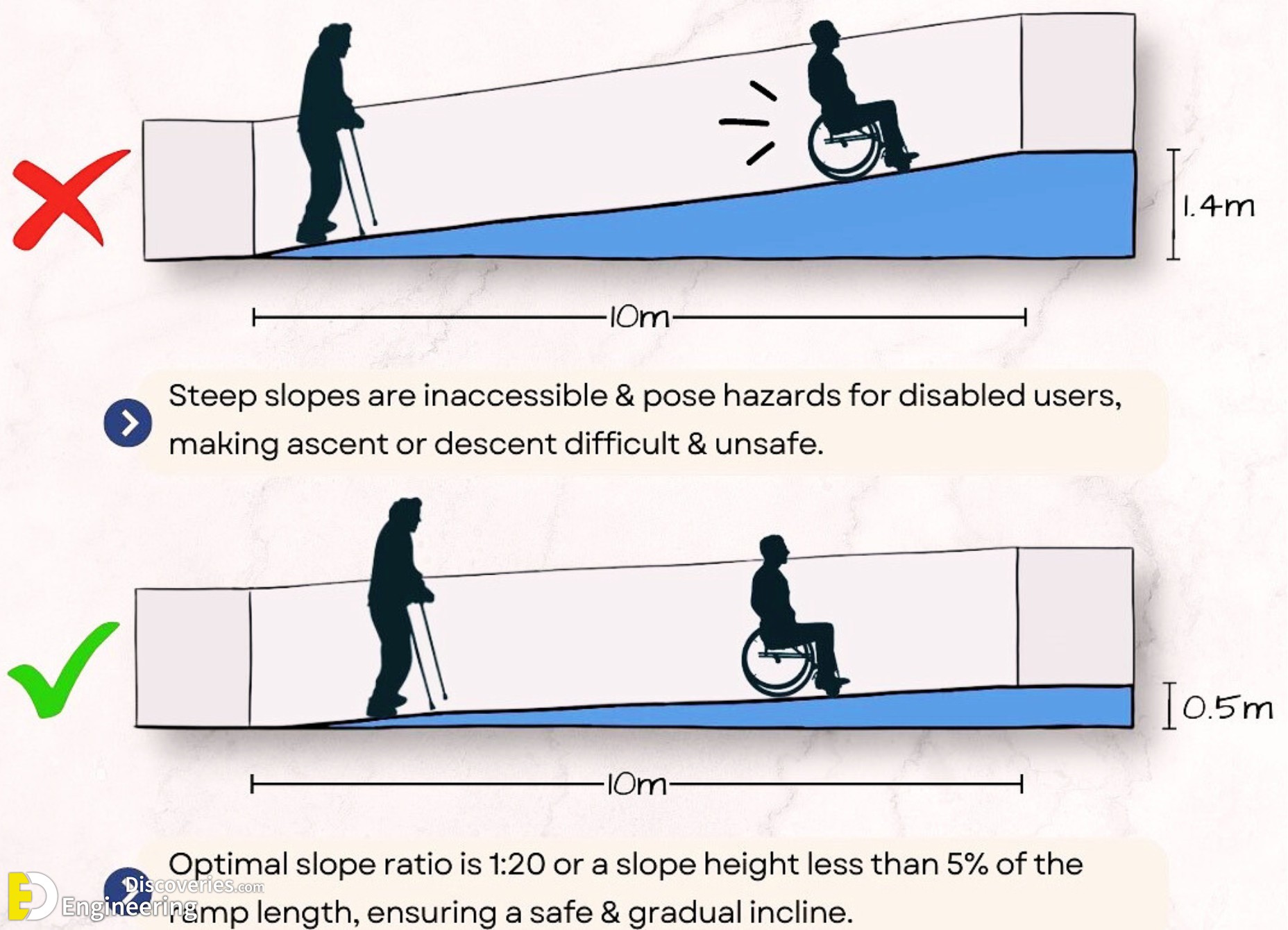

Mistake #1: Steep Ramp Slopes

The Hazard of High Inclines for Wheelchair Users

A ramp that’s too steep is a serious safety risk. Users in wheelchairs or with walking aids struggle to ascend and control descent, which can lead to accidents or falls.

• Example: A 1.4m rise over 10m = 14% slope (too steep)
• Impact: Unsafe, difficult to navigate, non-compliant

Correct Slope Ratio: 1:20 Explained

Experts recommend a 1:20 slope ratio—or a rise of 1 unit for every 20 units of length—especially for walking ramps. The ADA standard for wheelchair ramps is 1:12, but less steep (1:20) is preferable where space allows.

• Safe Alternative: 0.5m rise over 10m = 5% slope
• Benefit: Comfortable gradient, easier navigation

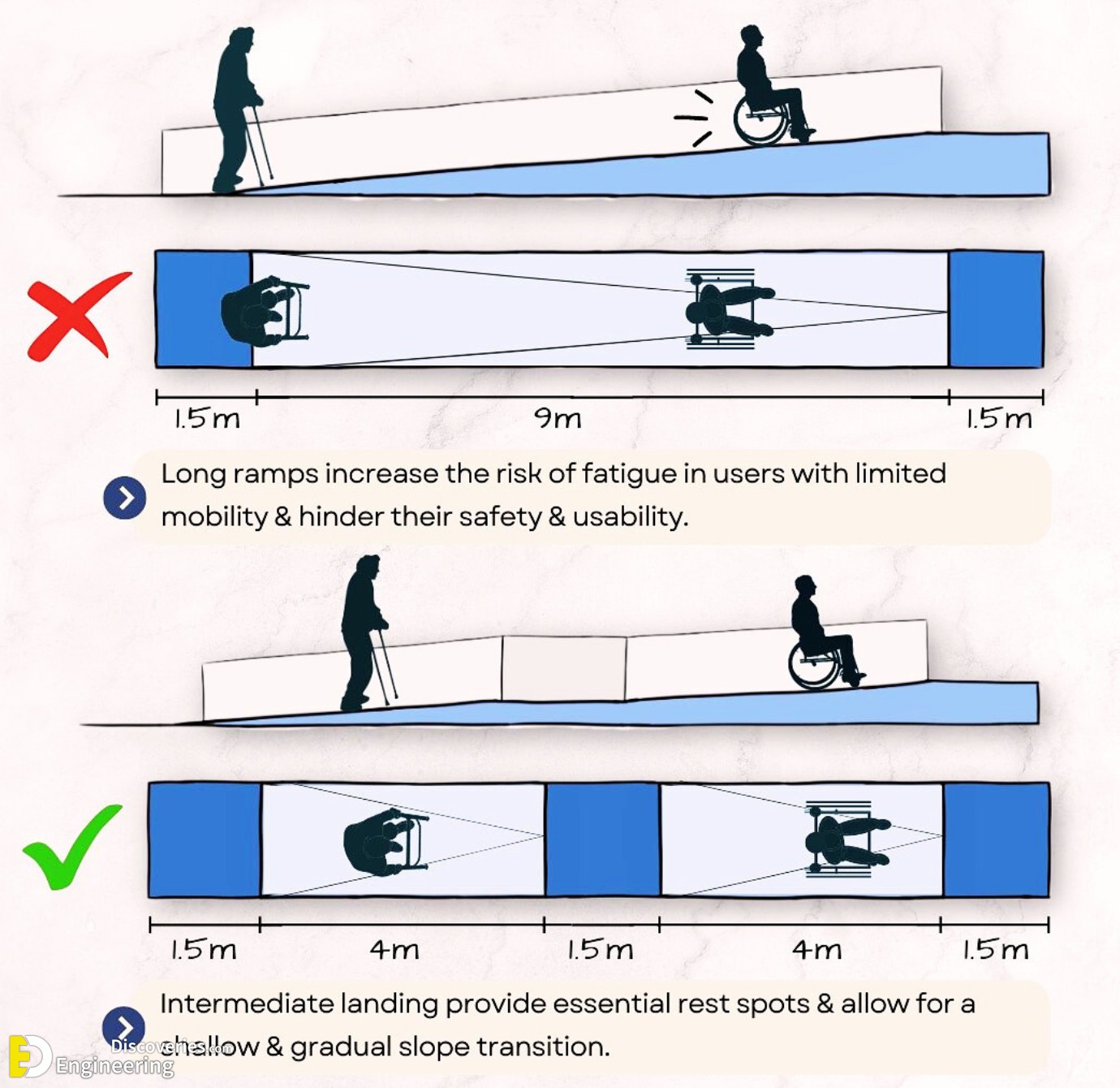

Mistake #2: Ignoring Rest Intervals on Long Ramps

The Impact of Fatigue on Users with Limited Mobility

Long, continuous ramps without rest points exhaust users, particularly those with limited strength or stamina. This can lead to abandonment or risk of collapse mid-way.

Intermediate Landings: A Smart Solution

Adding flat rest platforms (landings) every 9 meters or less allows users to pause and recover.

Best Practice:

• Landings every 4–5 meters on long ramps
• Each landing at least 1.5m wide for manoeuvrability

Example:

4m ramp + 1.5m landing + 4m ramp = Ideal usability

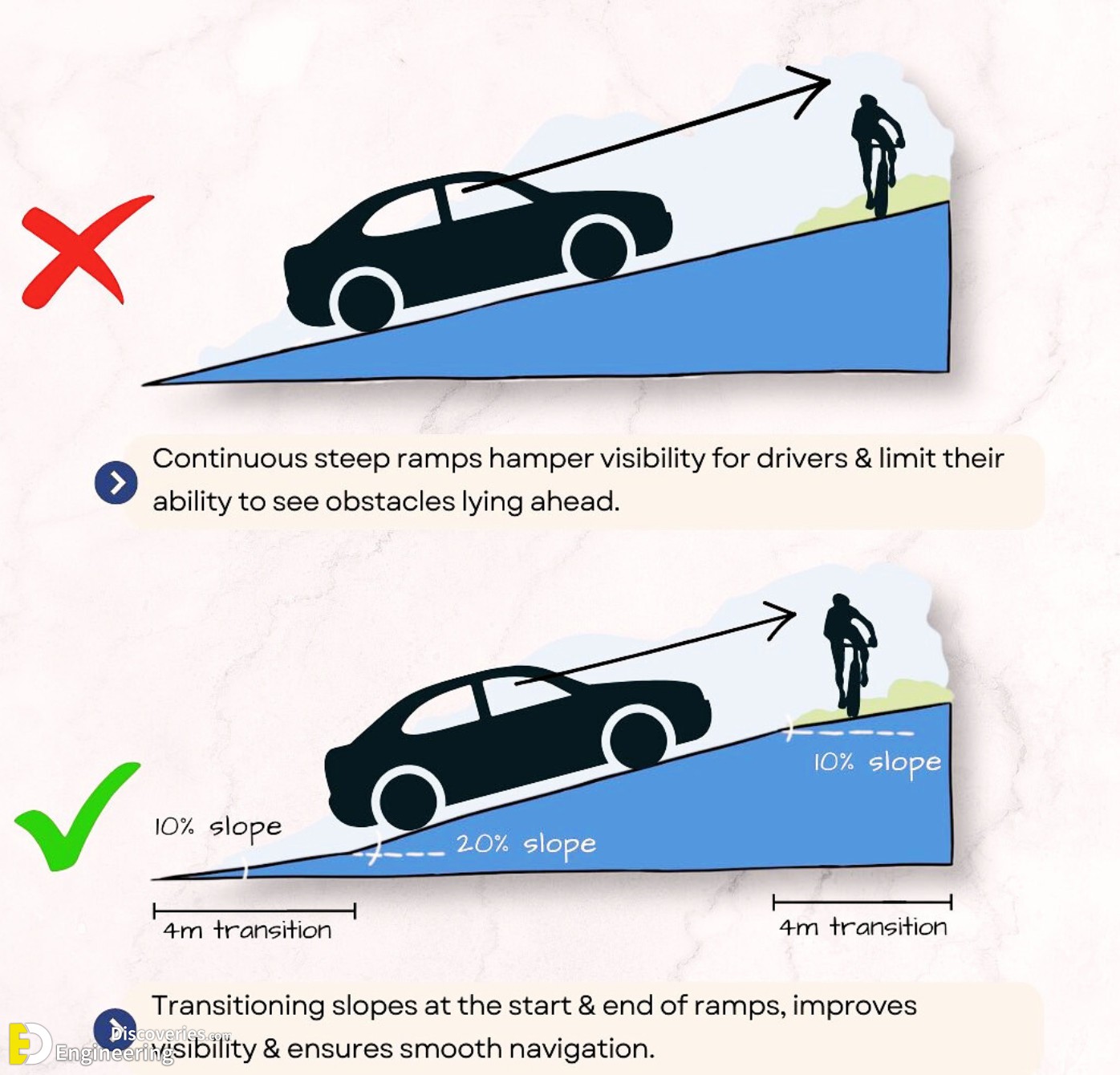

Mistake #3: Poor Visibility on Vehicle Ramps

Risks for Drivers on Steep Continuous Slopes

Drivers navigating steep ramps—especially in parking structures—struggle with blind spots. They can’t see obstacles or pedestrians at the top of the slope.

Transition Zones for Better Visibility

Design transitions with gradual inclines before and after the main slope. A tiered approach reduces abrupt height shifts and increases visibility.

Smart Slope Design:

• Start: 10% slope over 4m
• Middle: 20% slope
• End: 10% slope over 4m

Key Ramp Design Guidelines to Follow

Materials, Width, and Handrails

• Surface Material: Non-slip, weather-resistant
• Minimum Width: 36 inches (91 cm) for ADA compliance
• Handrails: Required on both sides if ramp rises >6 inches

Drainage, Surface Texture, and Lighting

• Include side gutters or perforated surfaces for water runoff
• Ensure textured finishes to prevent slipping
• Add proper lighting for night-time safety

Common Ramp Use Cases and Design Implications

Ramps for Public Buildings

• Wider ramps for high-traffic areas
• Include tactile ground indicators for visually impaired users

Ramps for Residential Settings

• Smaller scale, but same safety principles
• Smoother gradients to match user capability

Vehicle Access Ramps

• Prioritize visibility and transition zones
• Use warning signs and mirrors at turns

ADA & International Standards for Ramps

American Disabilities Act (ADA) Requirements

• Slope: Max 1:12
• Landings: Required every 30 feet
• Width: Minimum 36 inches
• Edge Protection: To prevent falls off the side

Other Global Best Practices

• UK (BS 8300): Similar to ADA, with extra emphasis on handrail height
• Australia (AS 1428.1): Mandates slip resistance and color contrast
