Creating a precise bar bending schedule (BBS) for a two-way slab is essential in construction projects. This step-by-step guide will break down the process clearly and efficiently. Follow these simple steps to streamline your work.

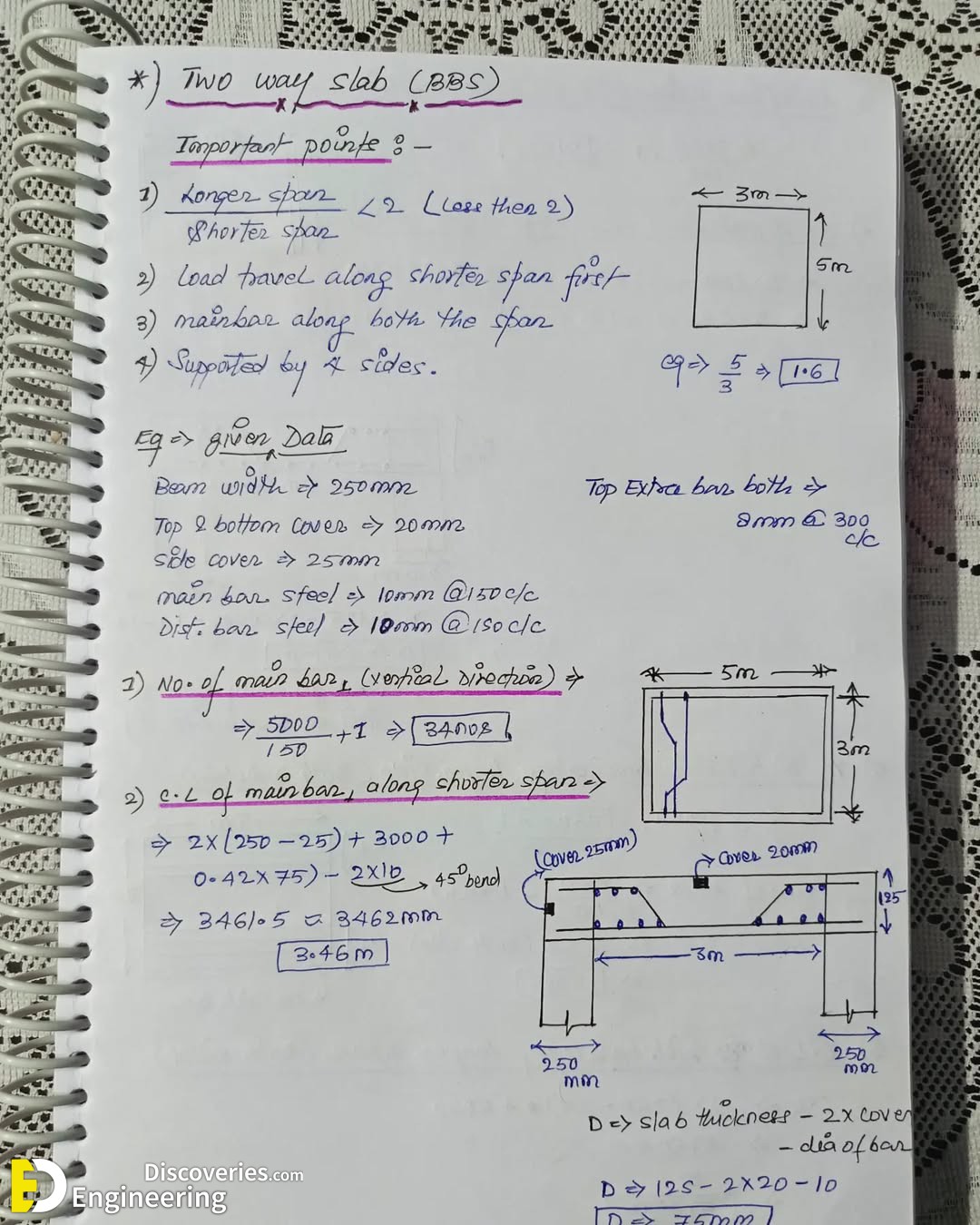

1. Understanding the Requirements of the Two-Way Slab

A two-way slab distributes loads in both horizontal directions. Before preparing the BBS, ensure you have the following details:

• Slab dimensions
• Reinforcement bar details
• Spacing of reinforcement
• Concrete cover thickness

2. Divide the Two-Way Slab into Regions

To prepare a proper schedule, divide the slab into zones. These include:

• Main Bars: Run in both directions, typically bottom reinforcement.
• Distribution Bars: Perpendicular to the main bars, often at the top layer.

3. Identify and List Bar Details

Make a list of bar properties, such as:

• Bar diameter (e.g., 8mm, 10mm, 12mm)
• Bar length based on span dimensions
• Quantity of bars
• Bending shapes and hooks

Ensure all dimensions comply with the structural drawing.

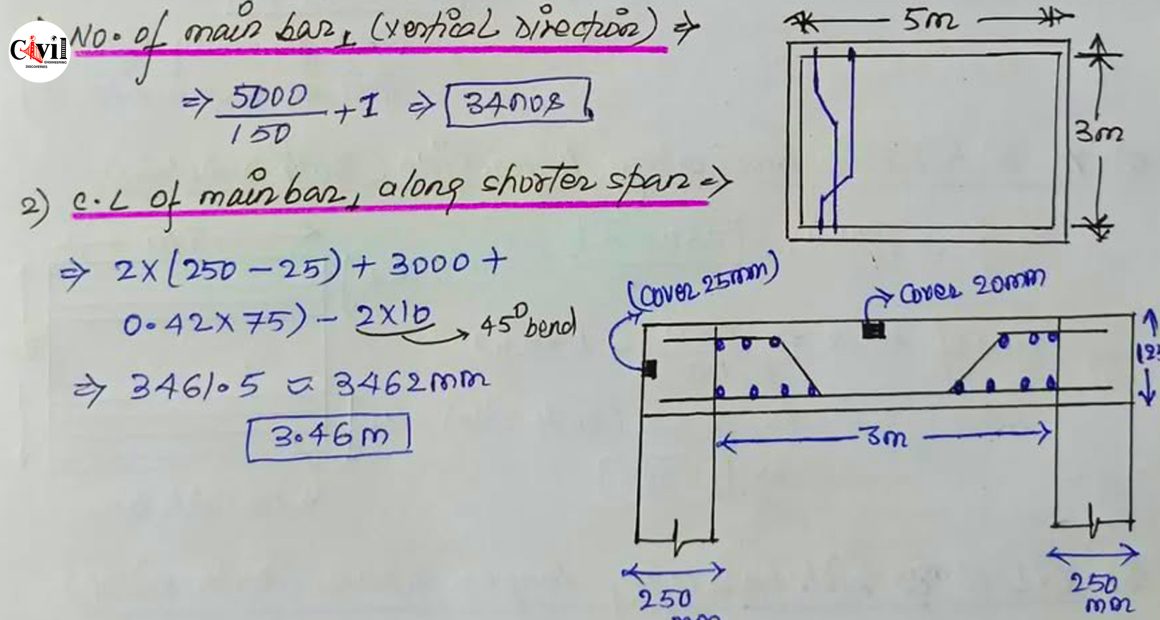

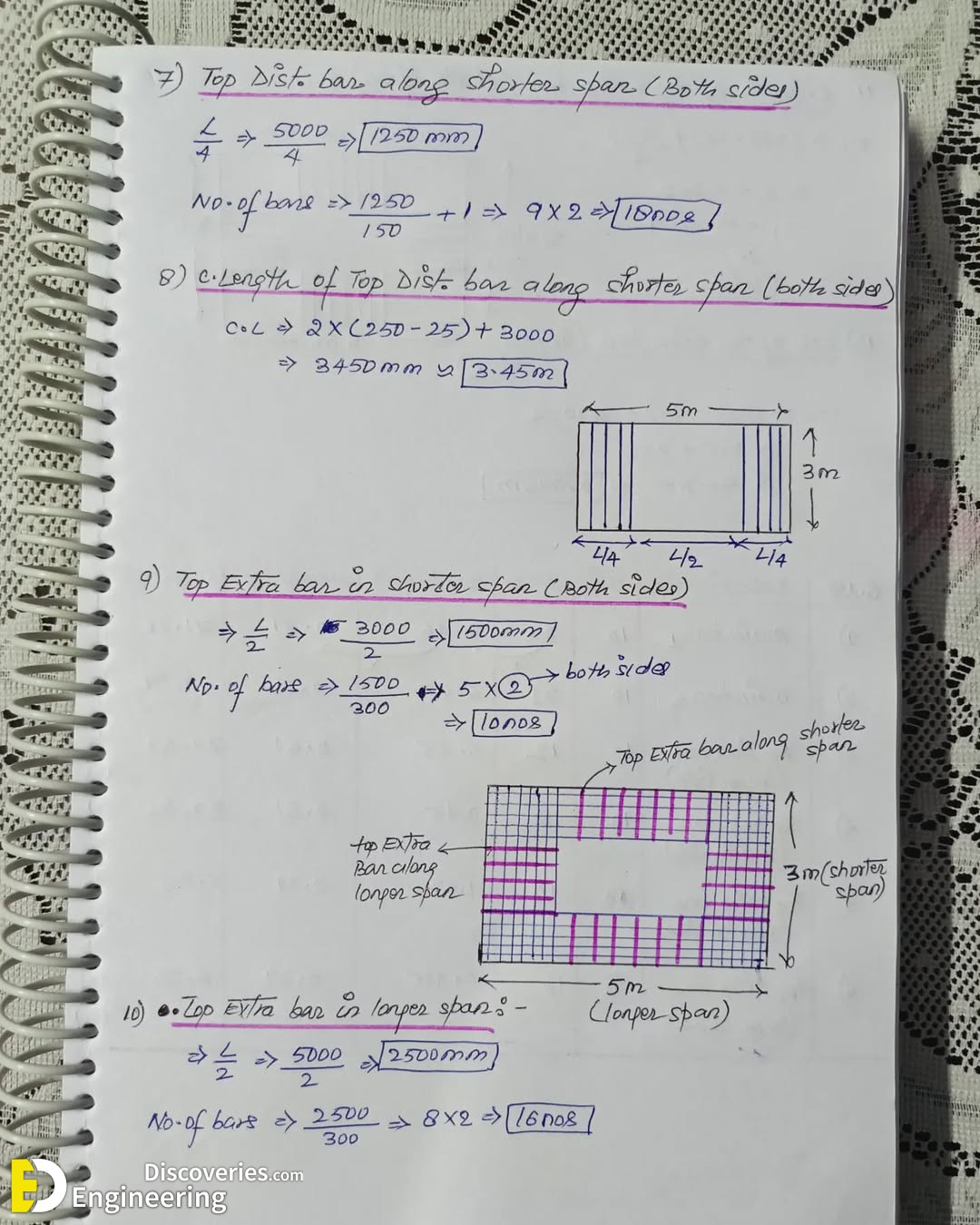

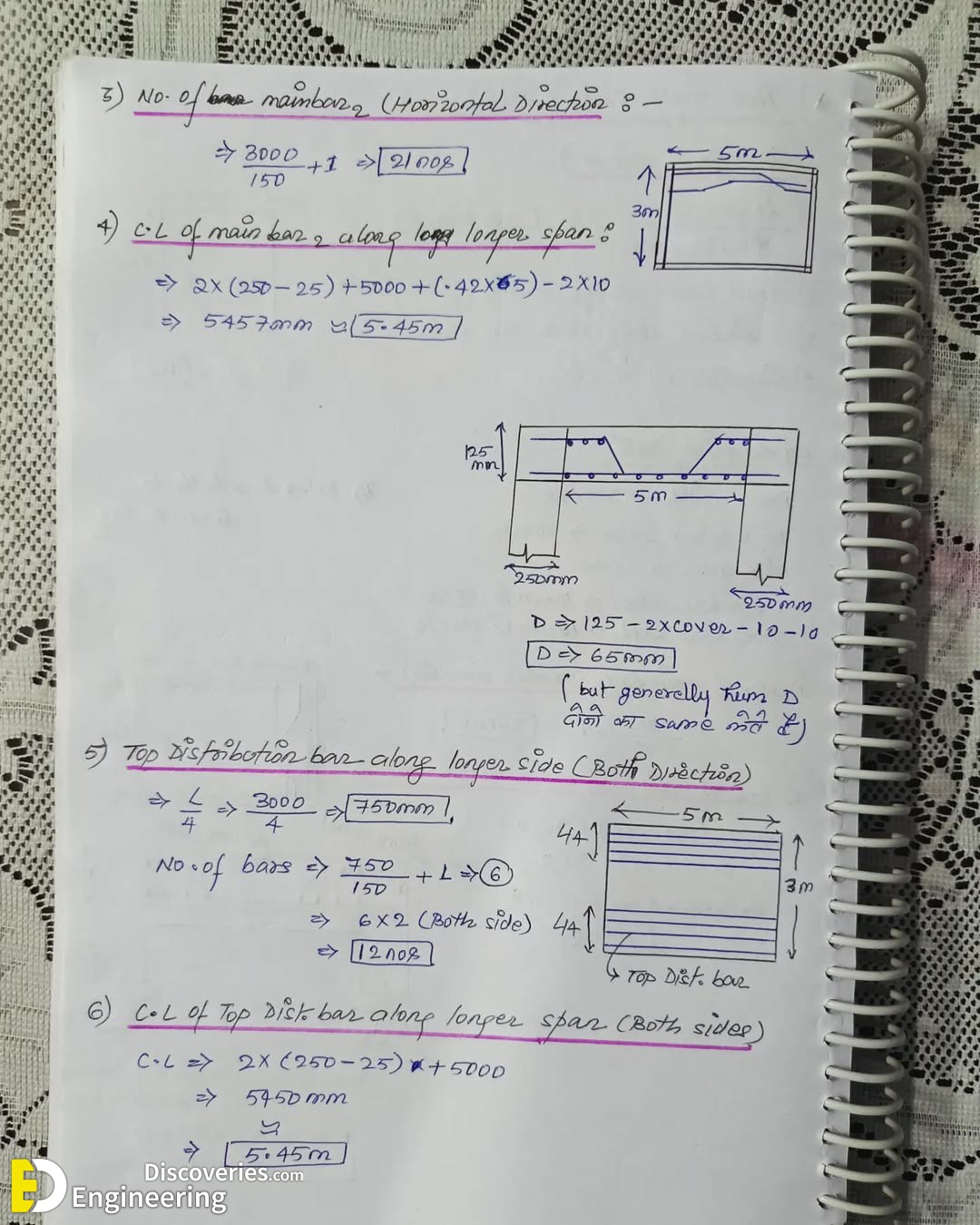

4. Calculate Cutting Length for Bars

To determine the cutting length:

1. Start with the clear span length of the slab.
2. Add the required development length on both sides.
3. Include the bends or hooks as per the standard bar bending rules.

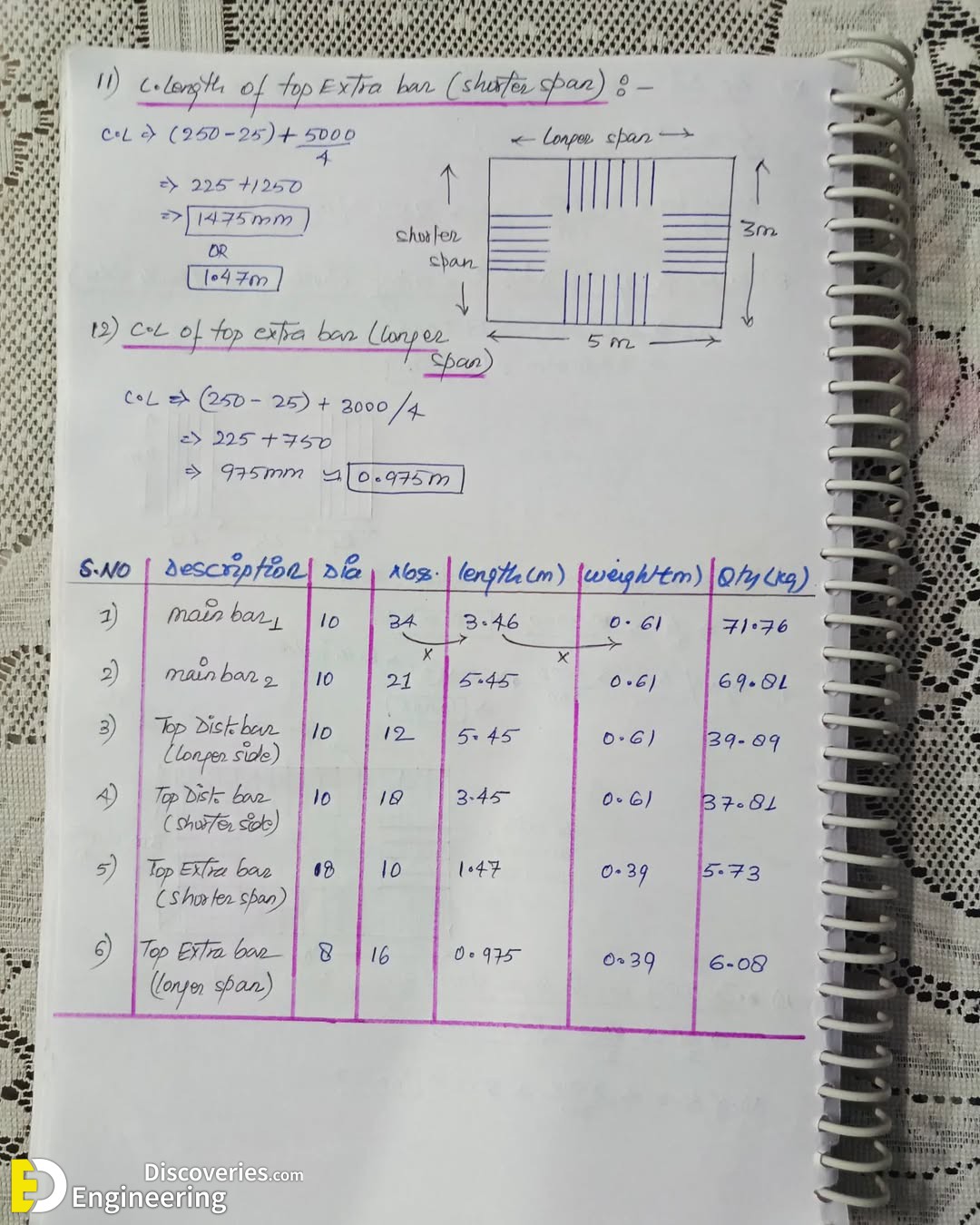

5. Prepare the Bar Bending Schedule Table

Structure the BBS in a clear format with the following columns:

• Bar Mark: Unique identification for each bar.
• Bar Diameter: Thickness of reinforcement bars.
• Bar Shape: Straight, bent, or hook-shaped.
• Length of Bars: Total cutting length.
• Number of Bars: Quantity needed for the slab.
• Total Length: Length per bar × number of bars.
