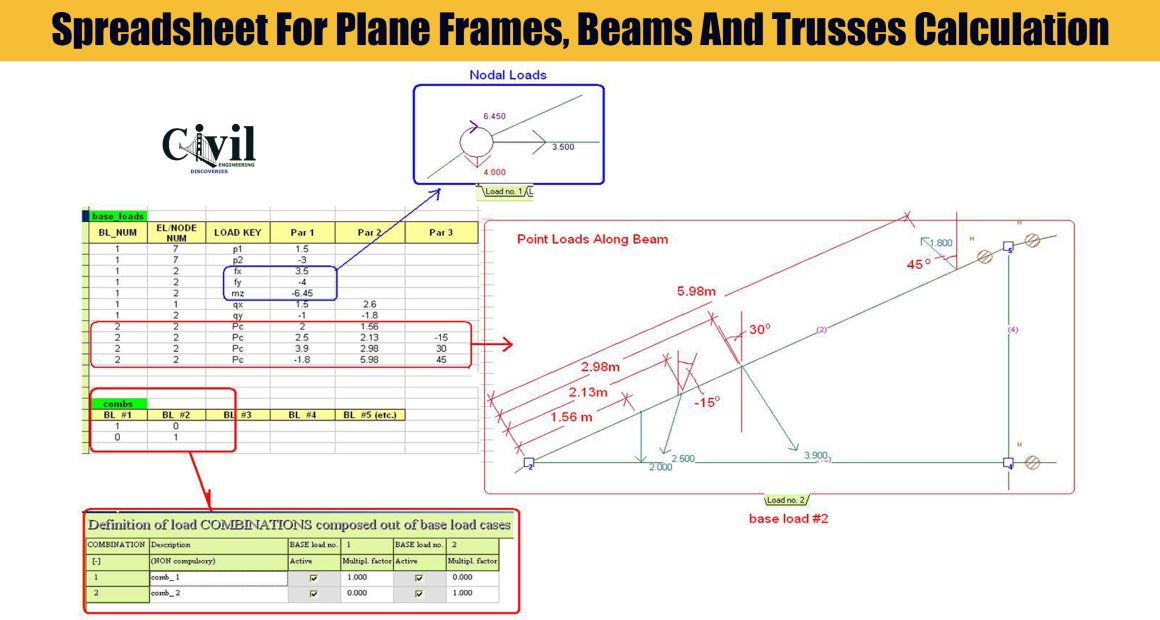

Spreadsheet for plane frames, beams, and trusses calculation. Finite Element Method for beam elements is used. After calculation, the program creates (recreates) several sheets: “Results”, “Graph” and (optional) – “Matrix”.
The “Results” sheet contains:
1- Nodal results (reactions and displacements at different base loads and load combinations)
2- Element results (extremal moments, axial and shear forces overall load combinations).
