Reinforced Cement Concrete (RCC) structures require a precise quantity of steel to ensure strength, stability, and durability. Below is an accurate breakdown of steel requirements for various structural elements—slab, beam, column, and footing—in 5 cubic meters of concrete.

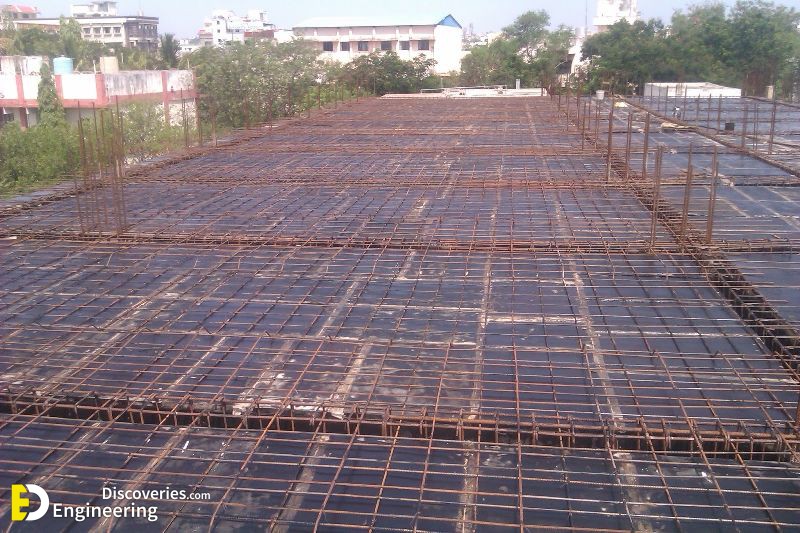

🔹 Steel Requirement for RCC Slab

Slabs are commonly reinforced using 1% steel of the total concrete volume. This provides adequate strength for load distribution.

Calculation:

• Volume of Concrete: 5 m³
• Density of Steel: 7850 kg/m³
• Steel Percentage: 1%

Formula:
Steel Weight = Volume × Density × Percentage
Steel = 5 × 7850 × 0.01 = 392.5 kg

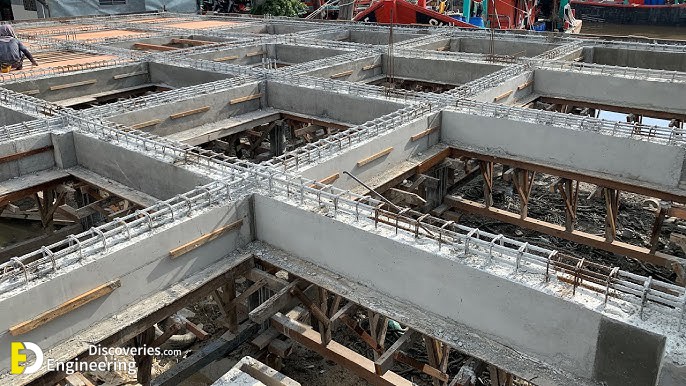

🔹 Steel Requirement for RCC Beam

Beams, due to their critical load-bearing role, generally require more reinforcement. A 2% steel content is standard in beam construction.

Calculation:

• Volume of Concrete: 5 m³
• Steel Percentage: 2%

Formula:
Steel = 5 × 7850 × 0.02 = 785 kg

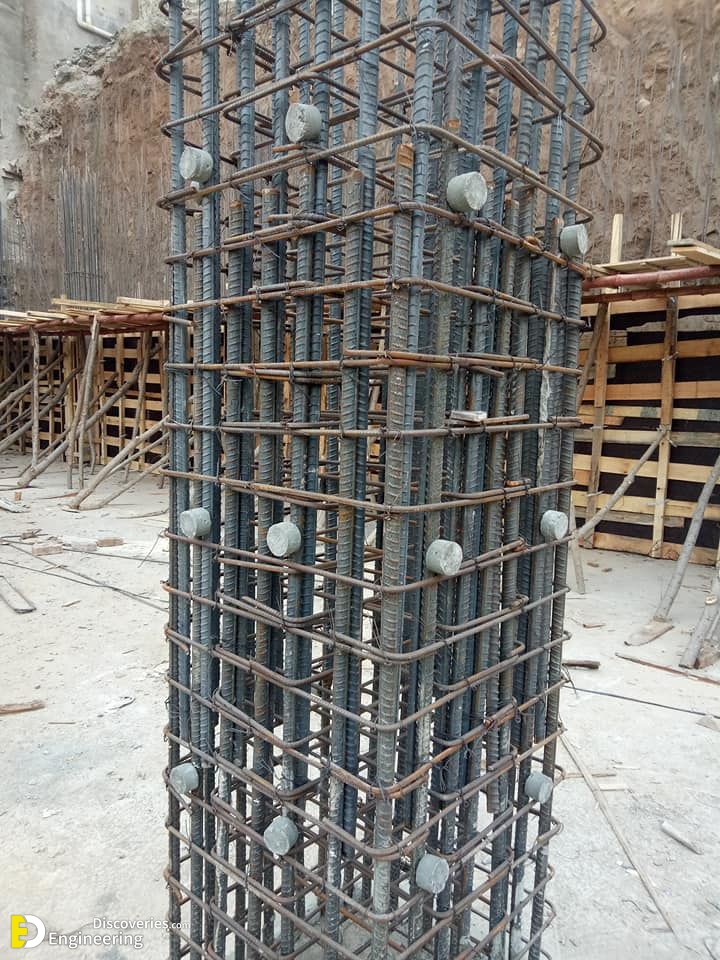

🔹 Steel Requirement for RCC Column

Columns carry axial loads and often require 2.5% steel to resist buckling and provide compressive strength.

Calculation:

• Volume of Concrete: 5 m³
• Steel Percentage: 2.5%

Formula:
Steel = 5 × 7850 × 0.025 = 981.25 kg

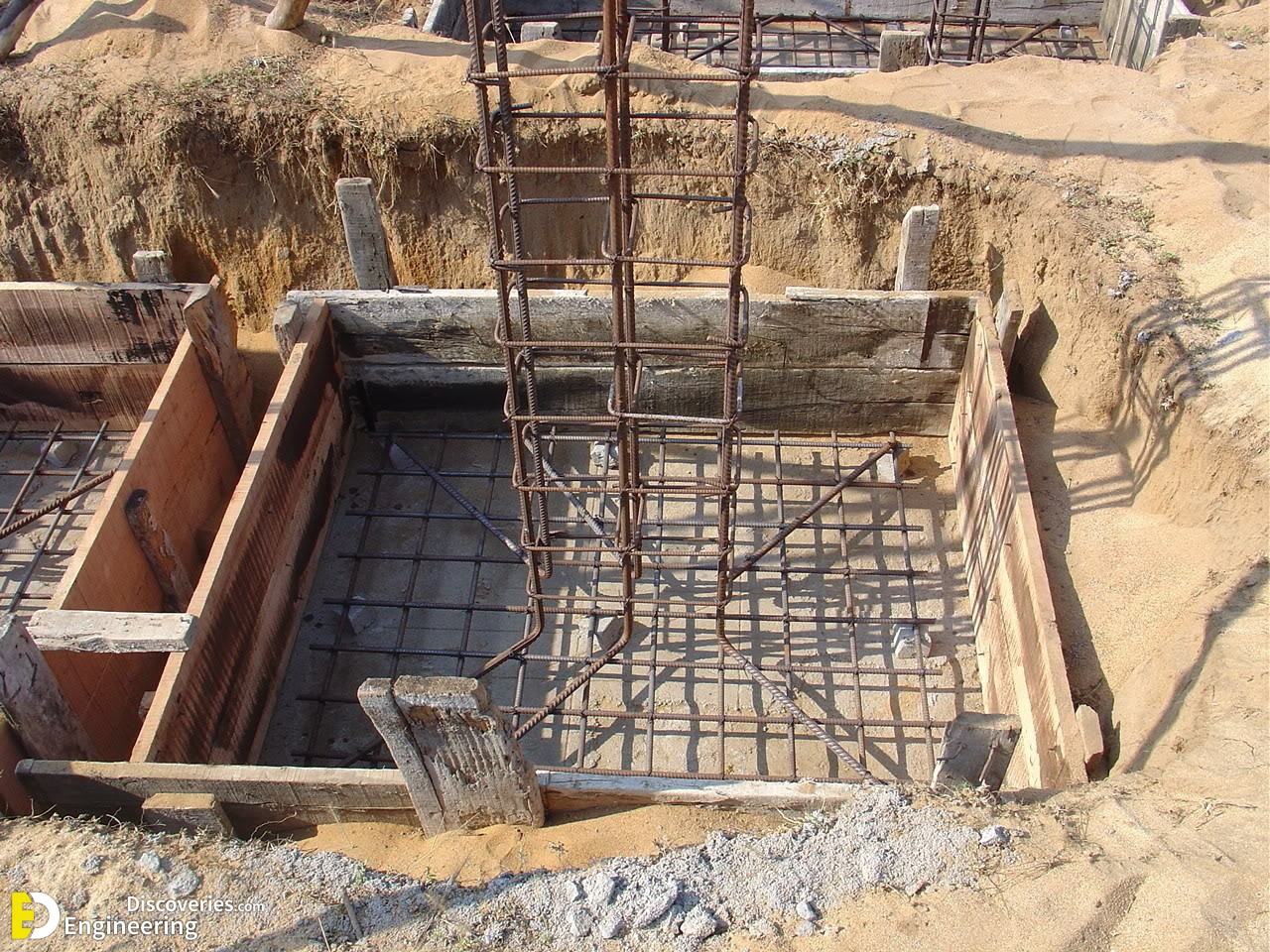

🔹 Steel Requirement for RCC Footing

Footings usually contain less steel compared to other structural members. An average of 0.8% reinforcement is enough to resist ground pressure.

Calculation:

• Volume of Concrete: 5 m³
• Steel Percentage: 0.8%

Formula:
Steel = 5 × 7850 × 0.008 = 314 kg

🔹 Summary of Steel Quantities in 5m³ RCC

🔹 Final Thoughts

Accurate steel estimation is critical for structural safety and cost control. Whether designing a small house or a high-rise building, these calculations offer a clear guide for determining steel reinforcement in RCC work. Always cross-check structural design codes and consult an engineer for detailed planning.

Proper reinforcement ensures both strength and serviceability. Keep your structure strong from the foundation to the roof.
