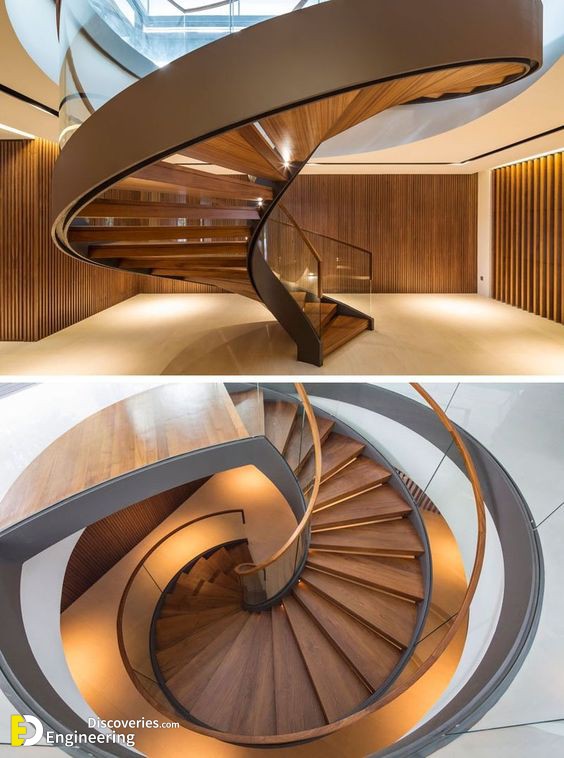

A spiral staircase is a captivating architectural feature that adds both functionality and aesthetics to a space.

Creating a well-designed spiral staircase involves careful planning and understanding of key factors. Let’s explore the steps and tips to calculate dimensions and design a functional and visually appealing spiral staircase:

Space-Saving Design:
Spiral staircases occupy significantly less floor area compared to conventional straight stairs. Their compact footprint makes them ideal for tight spaces or areas where a traditional staircase wouldn’t fit.

Structural Configurations:

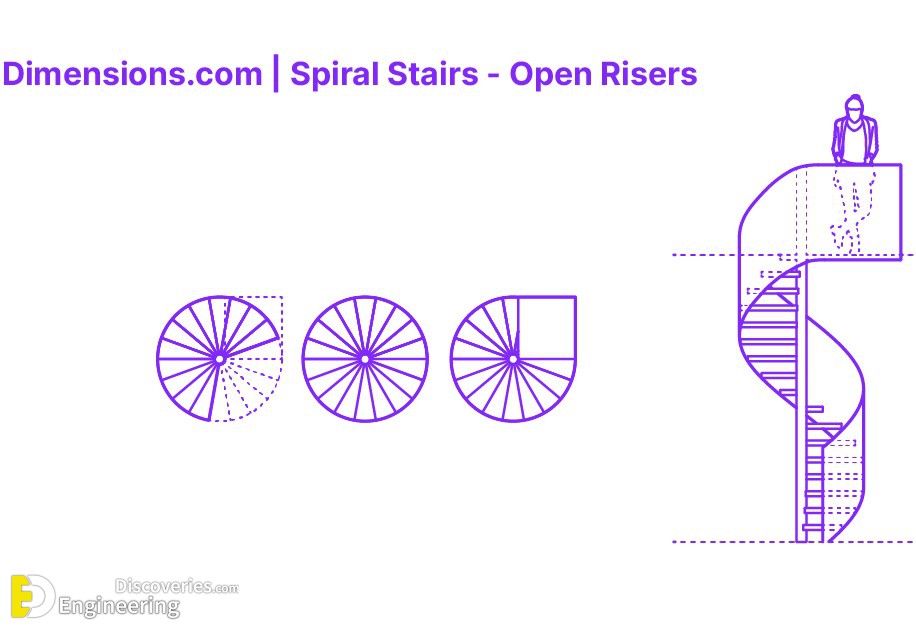

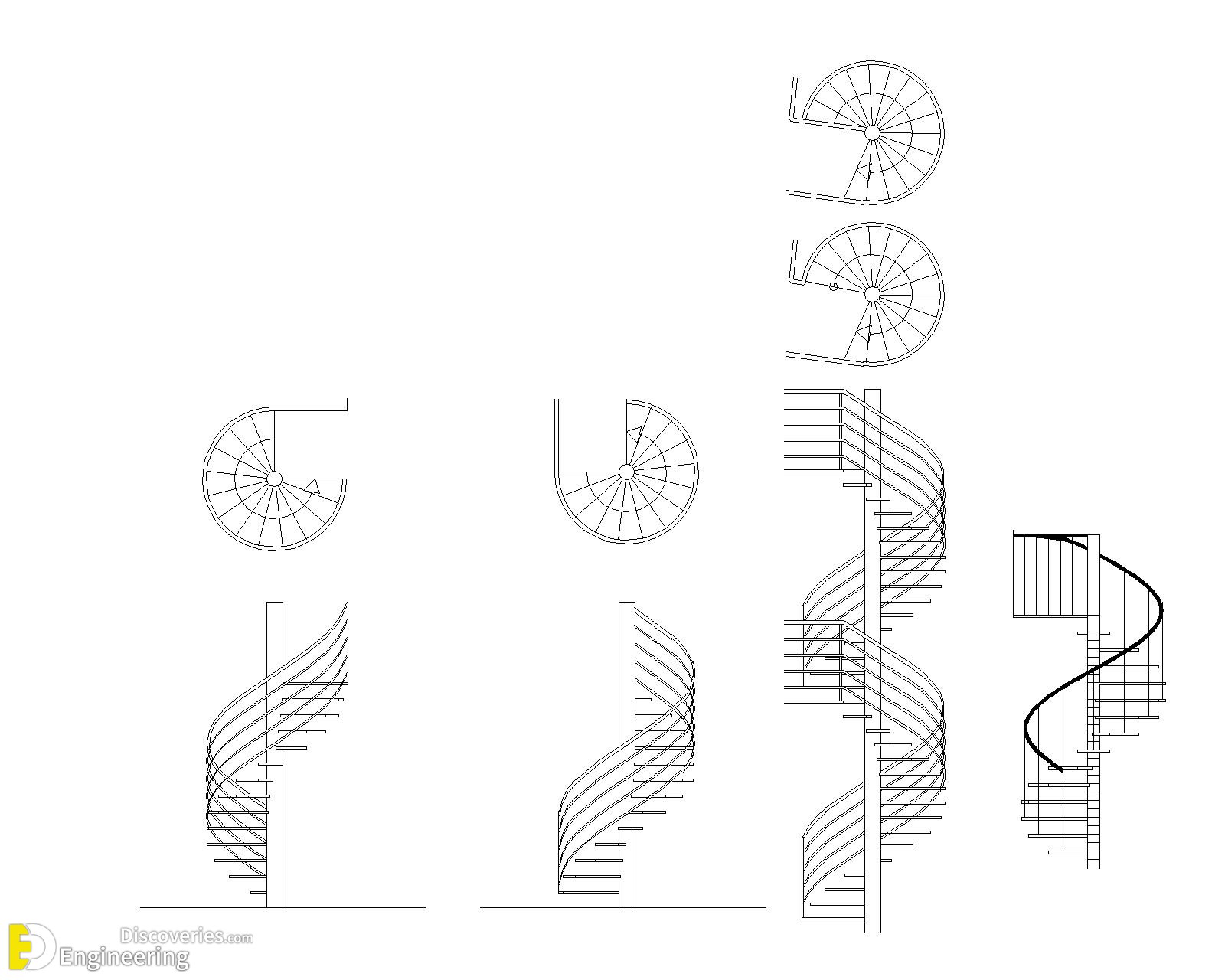

    • Spiral staircases come in various shapes, including circular, helical, double helix, square spiral, and rectangular spiral.
    • The five critical factors to consider are:

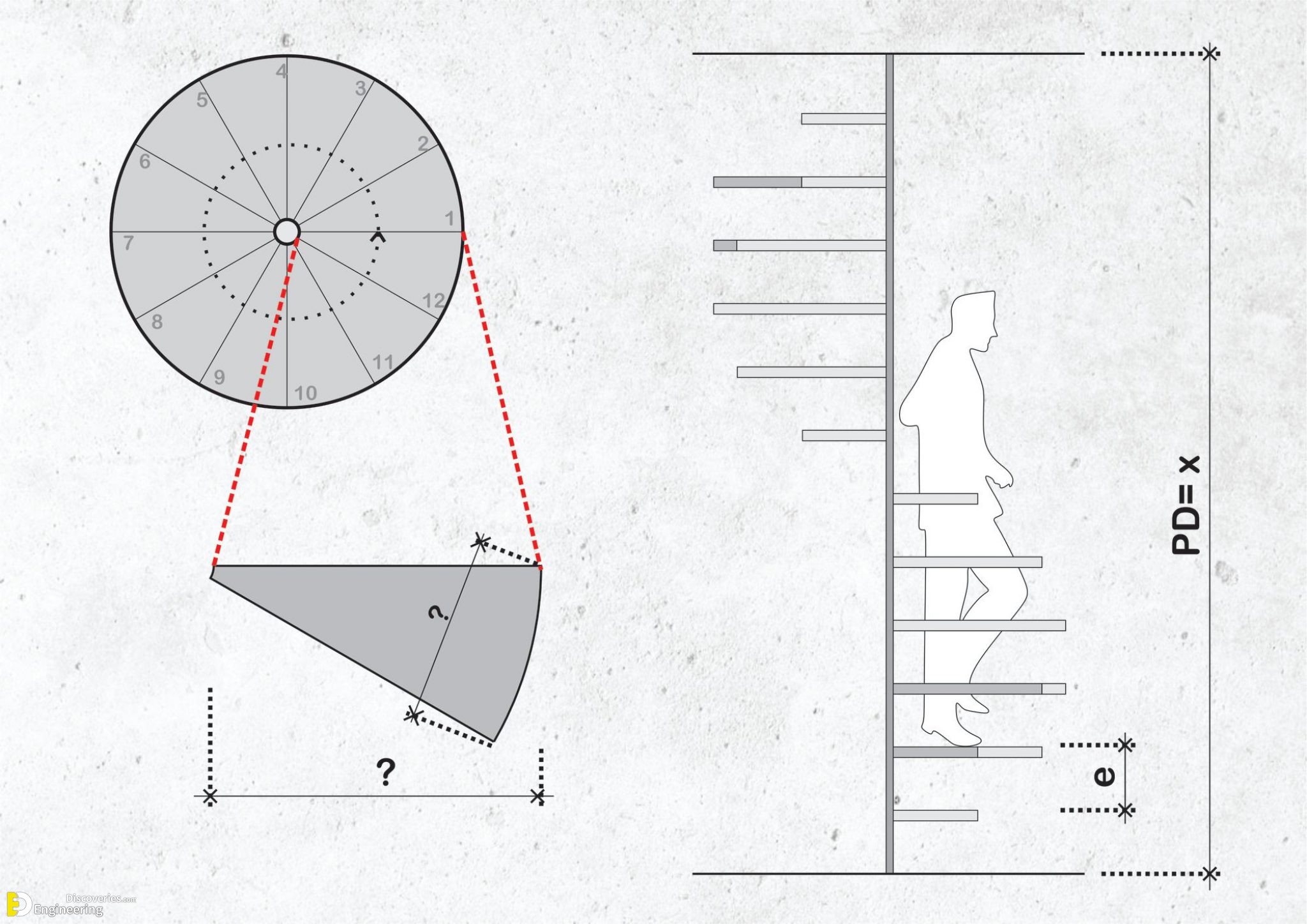

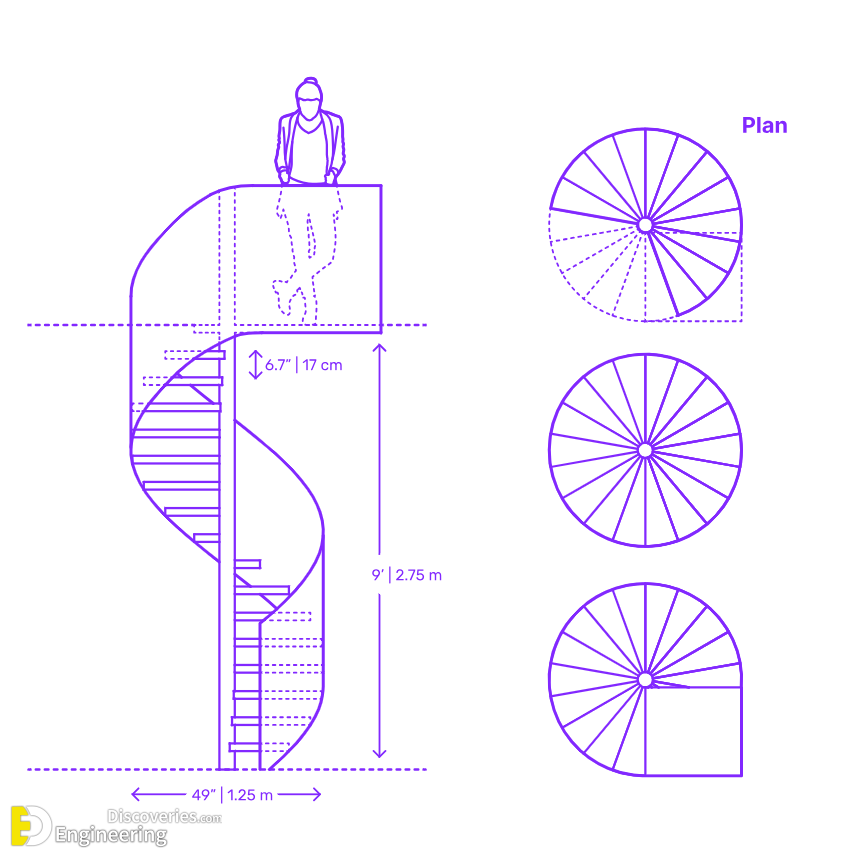

    • Height: Determine the vertical rise (distance between floors).
    • The angle of Rotation: Decide how many degrees the staircase will turn.
    • Diameter: The size of the central mast affects the overall design.
    • Useful Line: The area where users walk should be about 2/3 from the center.
    • Treads and Risers: Calculate the number of steps based on the diameter and length of the staircase.

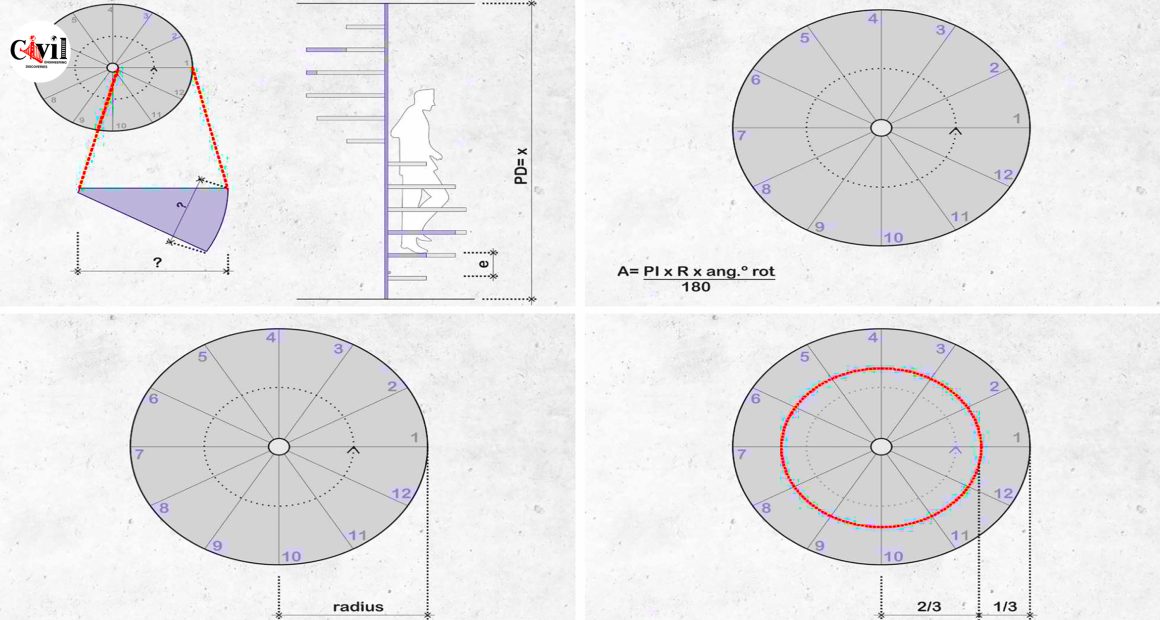

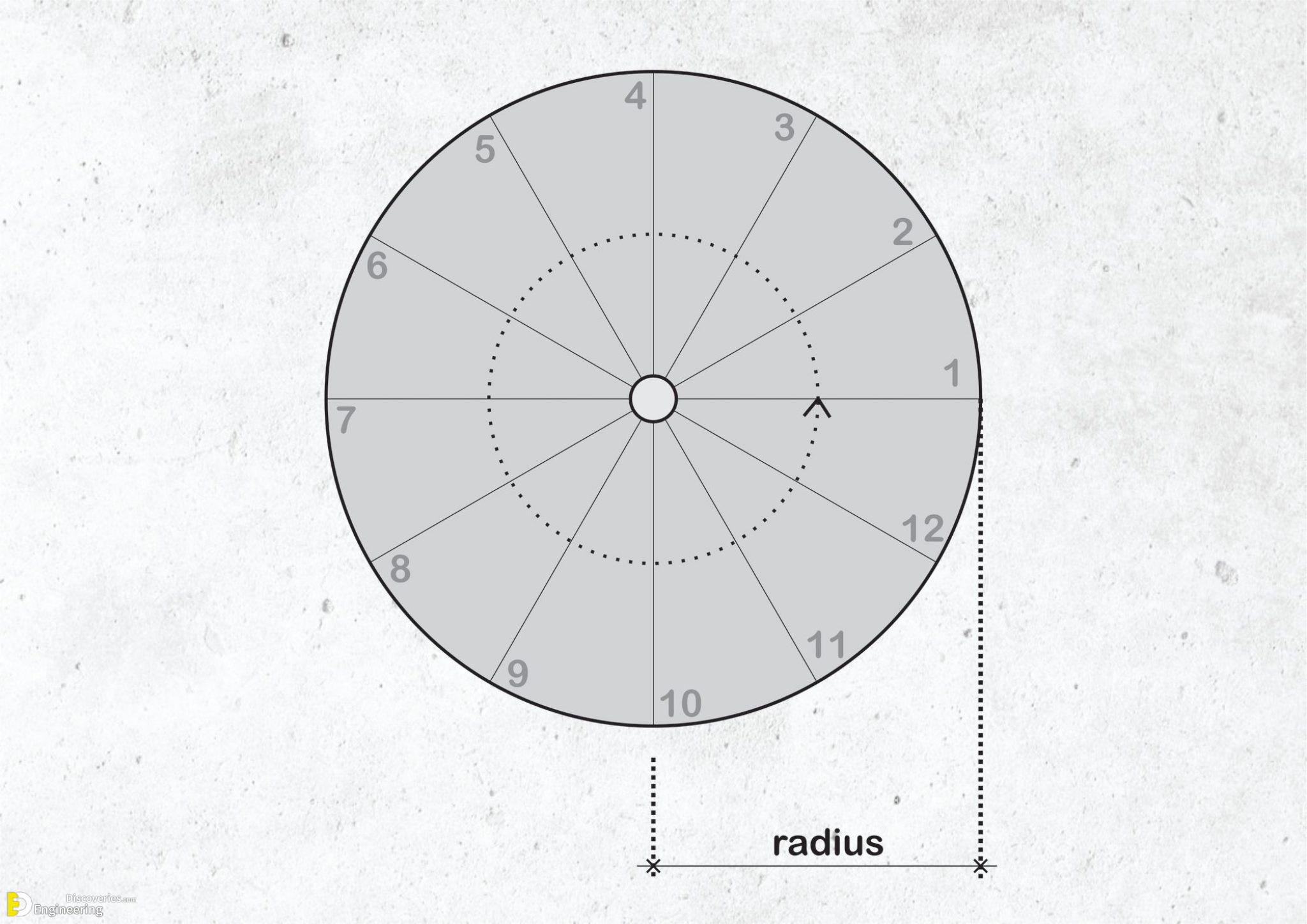

Calculating Length:

    • To measure the number of steps, you need to know the diameter and length of the staircase.

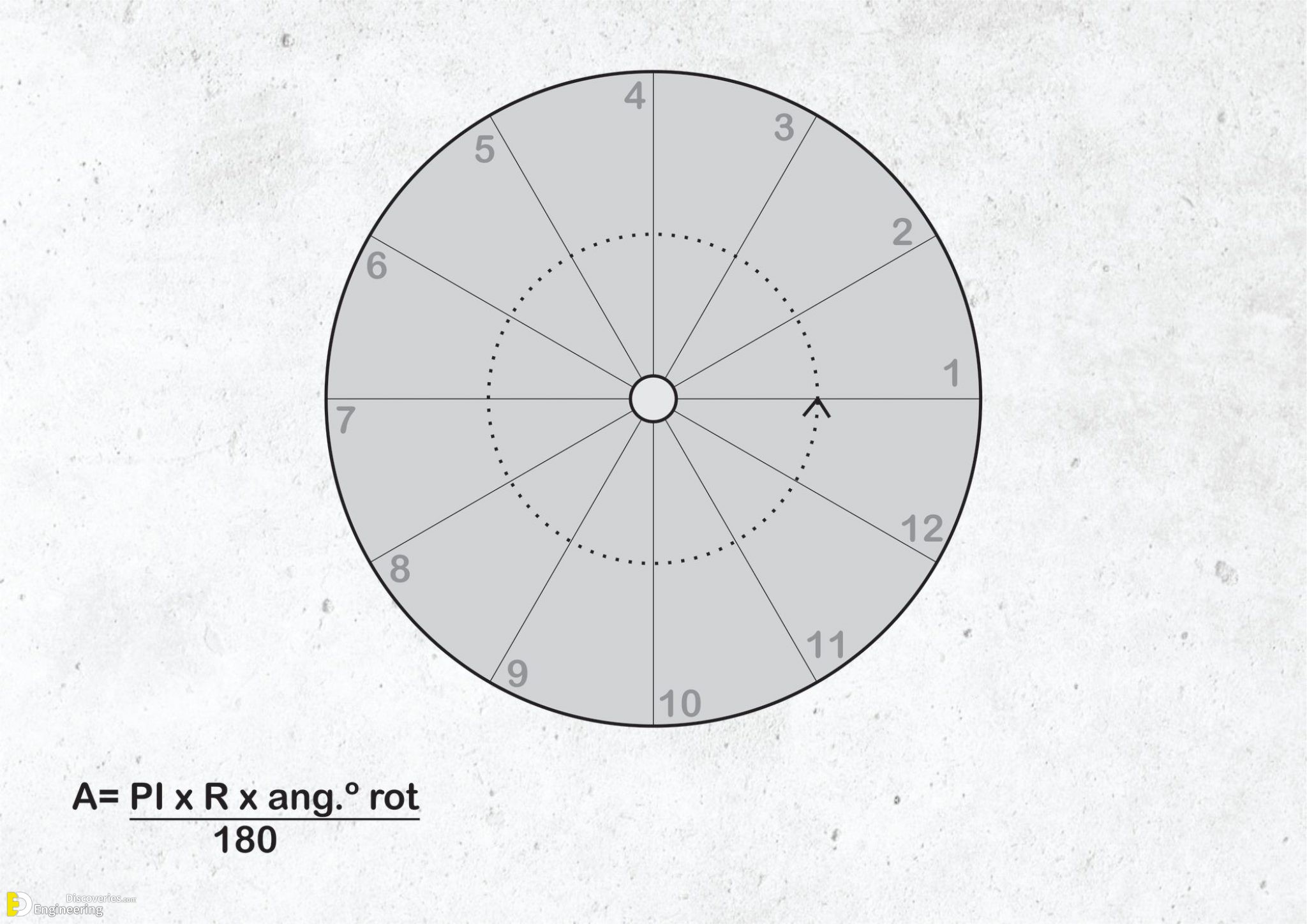

    • Use the following formula to calculate the total length:  (π (Pi) x radius x angle of rotation) / 180)

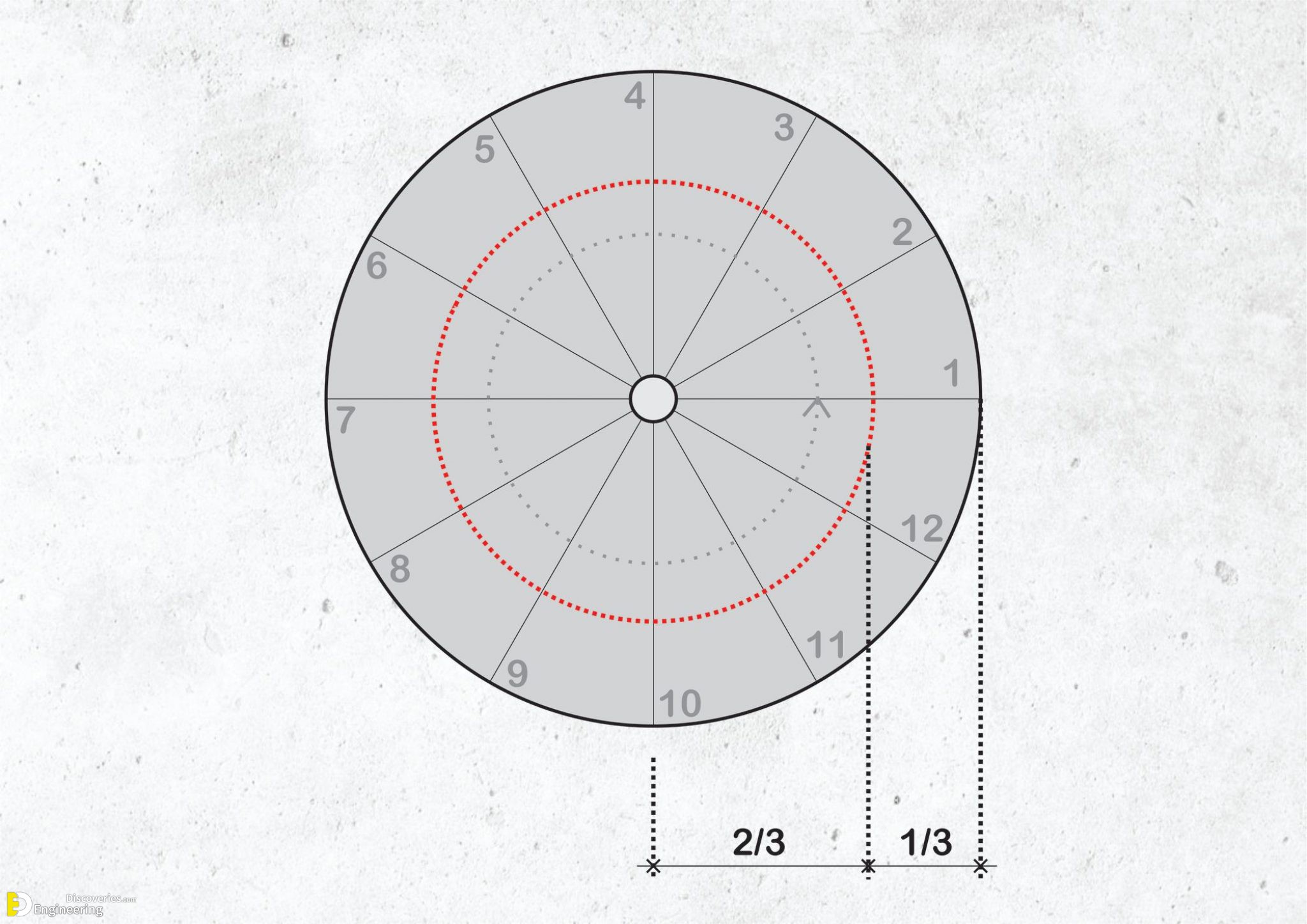

    • Consider that steps near the central mast have irregular shapes. Define the “useful line” where users walk, typically located 2/3 of the center.
    • Apply a method similar to conventional staircases, with a slightly higher tolerance due to the difficulty in adapting to the Blondel formula.

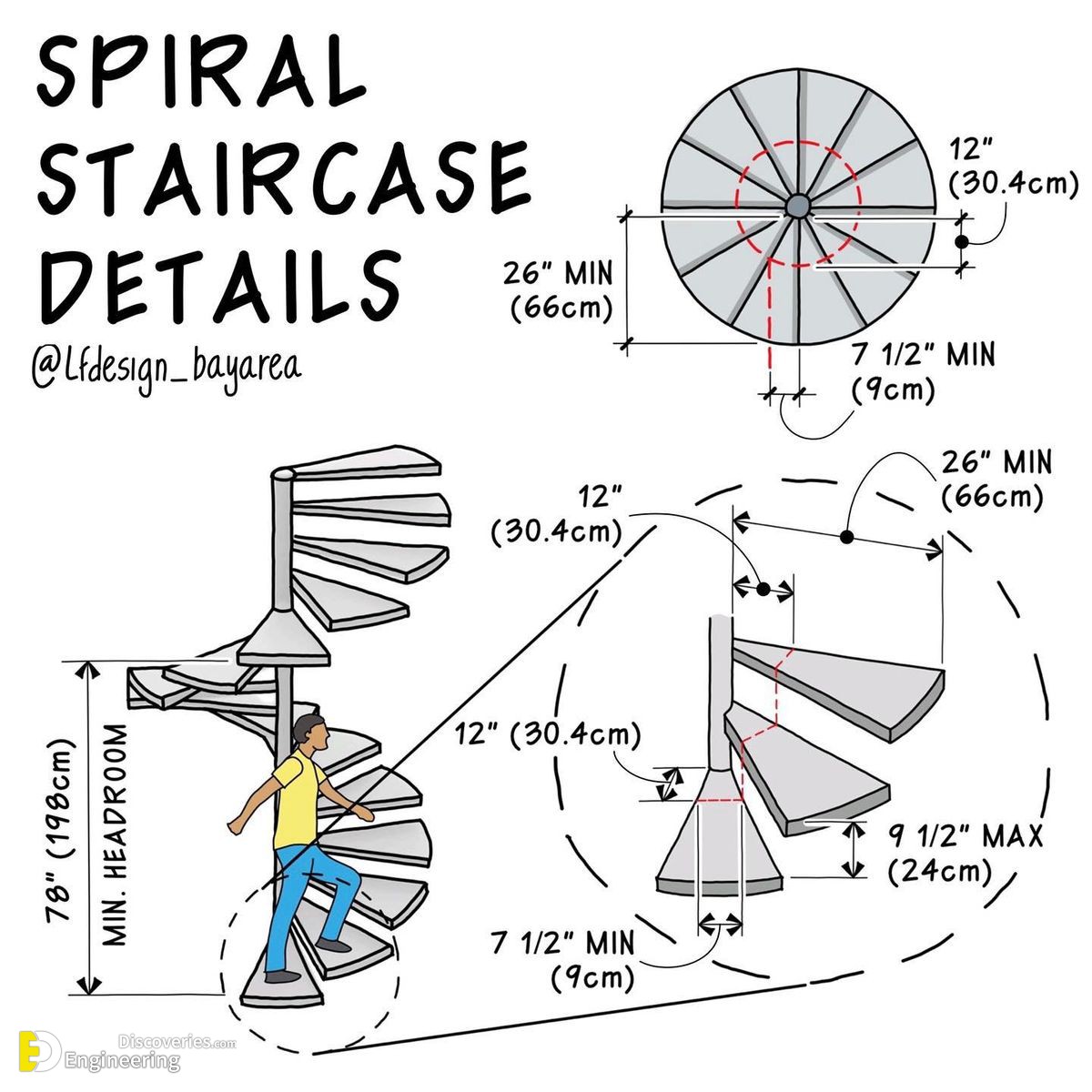

Minimum Requirements:

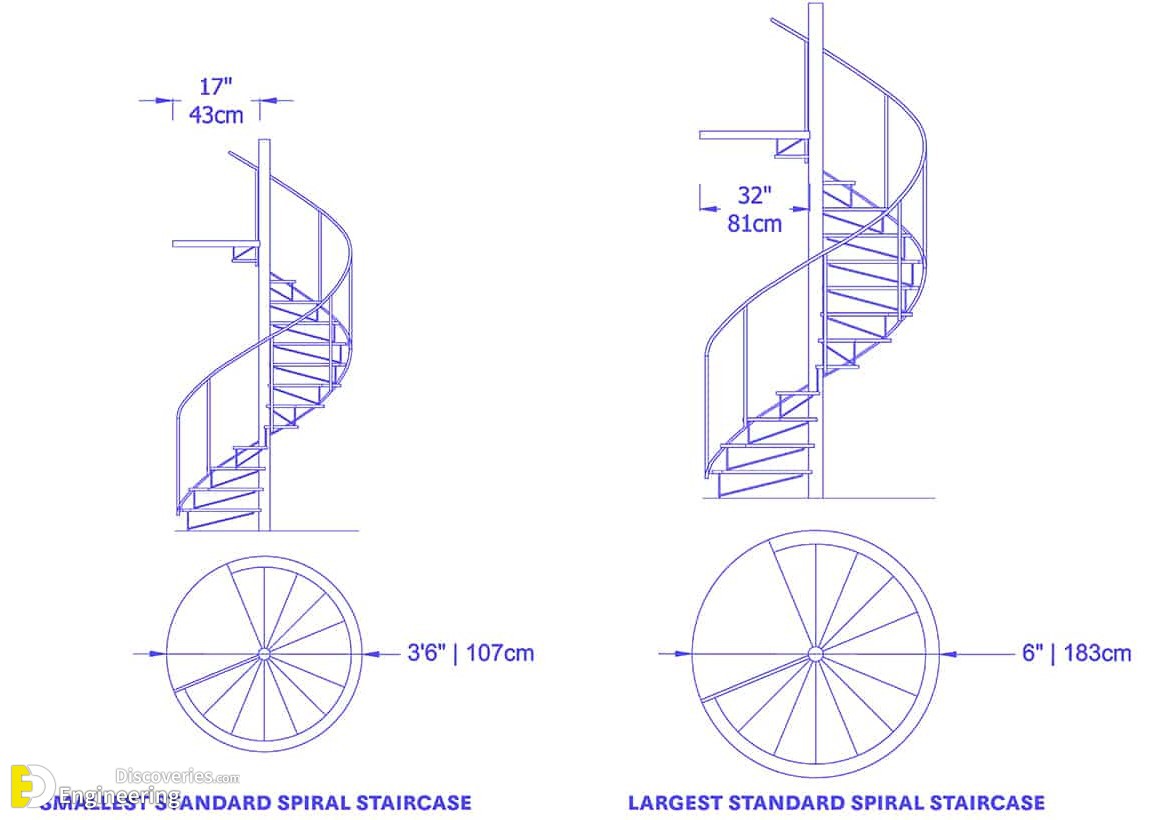

    • The minimum radius for a helical staircase is typically 70 centimeters, but it’s advisable to choose stairs with at least an 80-centimeter radius.
    • Maintain a minimum height of 2.10 meters between the steps and the ceiling.

5. Safety and Regulations:

      • Ensure a minimum height of 2.15 meters between steps and the ceiling.
      • Follow local building codes and safety guidelines.
      • Opt for a minimum radius of 80 centimeters for comfortable use.
