The effective height of a concrete column plays a crucial role in its structural stability. Concrete columns are designed to carry loads and resist buckling. The effective height depends on the end restraints at the column’s top and bottom.
Column Buckling and Restraint Conditions
Column buckling occurs when a column deforms laterally due to axial loads. The end conditions significantly influence the buckling capacity. These conditions include full restraint, partial restraint, and nominal restraint.
End Condition 1 (Fully Restrained)
When the column ends are fully restrained, they resist both rotation and lateral movement. This is achieved when the depth of beams at the column’s top and bottom is greater than or equal to the column’s depth. In this condition, the effective height is reduced to 0.75 Lo, where Lo is the actual unsupported column height. This scenario ensures maximum stability.
End Condition 2 (Partially Restrained)
If the column base is partially restrained, the column resists some rotation but allows limited lateral displacement. Here, beams or slabs at the top restrain the column, while the base is designed to partially resist moments. This condition increases the effective height to 0.8 Lo.
End Condition 3 (Nominally Restrained)
In this case, the base is not designed to resist moments. The column behaves similarly to a simply supported structure. The beams or slabs at the top restrain the column but with nominal fixity at the base. The effective height in this scenario rises to 0.95 Lo, indicating higher slenderness and lower buckling resistance.
British Standard BS 8110 Clause 3.8.1.3
According to BS 8110 Clause 3.8.1.3, the effective height factor (Le/Lo) is determined based on the end conditions:
* The effective height (le) of a column is calculated by multiplying its clear distance between supports (lateral restraints) by a coefficient (β) that reflects the fixity at its ends, as shown in Table.
| Top End Condition | Bottom End Condition | Le / Lo |
|---|---|---|
| Fully Restrained (1) | Fully Restrained (1) | 0.75 |
| Fully Restrained (1) | Partially Restrained (2) | 0.80 |
| Fully Restrained (1) | Nominally Restrained (3) | 0.90 |
| Partially Restrained (2) | Fully Restrained (1) | 0.80 |
| Partially Restrained (2) | Partially Restrained (2) | 0.85 |
| Partially Restrained (2) | Nominally Restrained (3) | 0.95 |
| Nominally Restrained (3) | Fully Restrained (1) | 0.90 |
| Nominally Restrained (3) | Partially Restrained (2) | 0.95 |
| Nominally Restrained (3) | Nominally Restrained (3) | 1.0 |
These factors are applied to braced columns only.

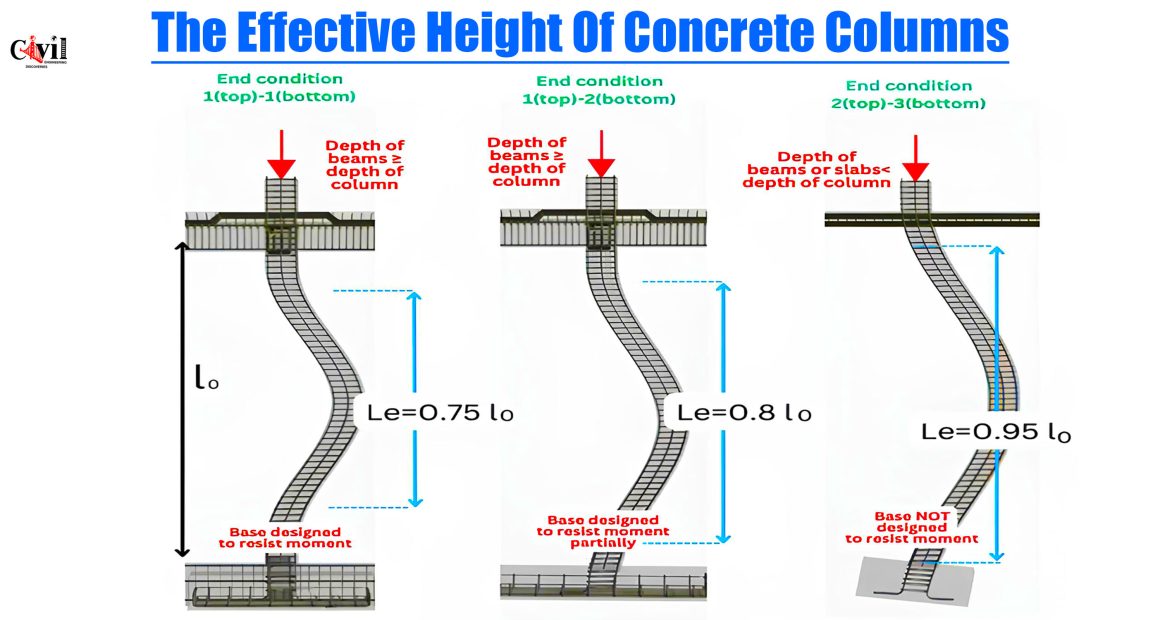

Visual Interpretation of Effective Heights
Case 1: Le = 0.75 Lo
- Condition: Both ends are fully restrained.
- Details: The base resists full moment, reducing effective height and improving buckling resistance.
Case 2: Le = 0.8 Lo
- Condition: Top fully restrained; base partially restrained.
- Details: Moment resistance at the base is partial, resulting in a slightly increased effective height.
Case 3: Le = 0.95 Lo
- Condition: Top restrained by beams/slabs; base free to rotate.
- Details: No moment resistance at the base, increasing effective height further.
Key Points for Design
- Always assess the depth of connecting beams relative to column depth.
- Design bases to resist or partially resist moments depending on structural needs.
- Apply BS 8110 guidelines to ensure compliance and optimal column performance.
- Effective height influences the slenderness ratio and, ultimately, the column’s load-carrying capacity.
Conclusion
Understanding effective height and end restraints is vital for safe and efficient column design. Following British Standards ensures structural integrity while optimizing material use.
