In the realm of structural engineering, safeguarding infrastructures against seismic forces is a critical challenge. Among the most effective technologies employed are base isolators and dampers, engineered to reduce earthquakes’ destructive impact on buildings. The integration of these systems has transformed earthquake-resistant design, reducing casualties and structural damages globally.

Understanding the Mechanics of Base Isolation

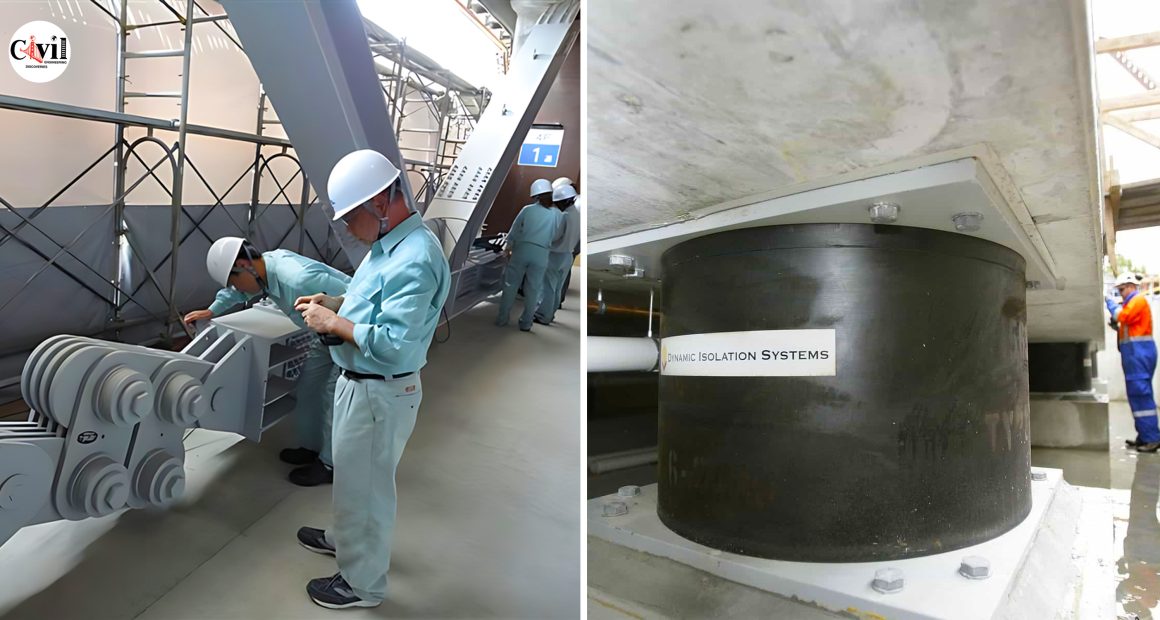

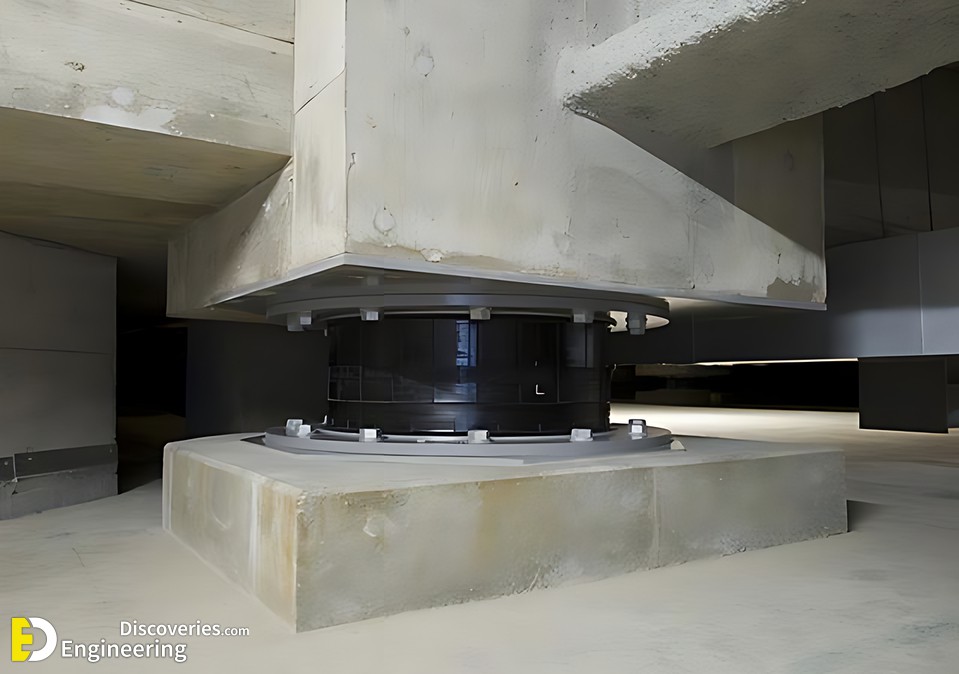

Base isolators function as seismic isolation devices placed between a structure’s foundation and its superstructure. These components significantly decouple a building from ground motion, mitigating the transfer of seismic energy.

Key Components and Materials of Base Isolators

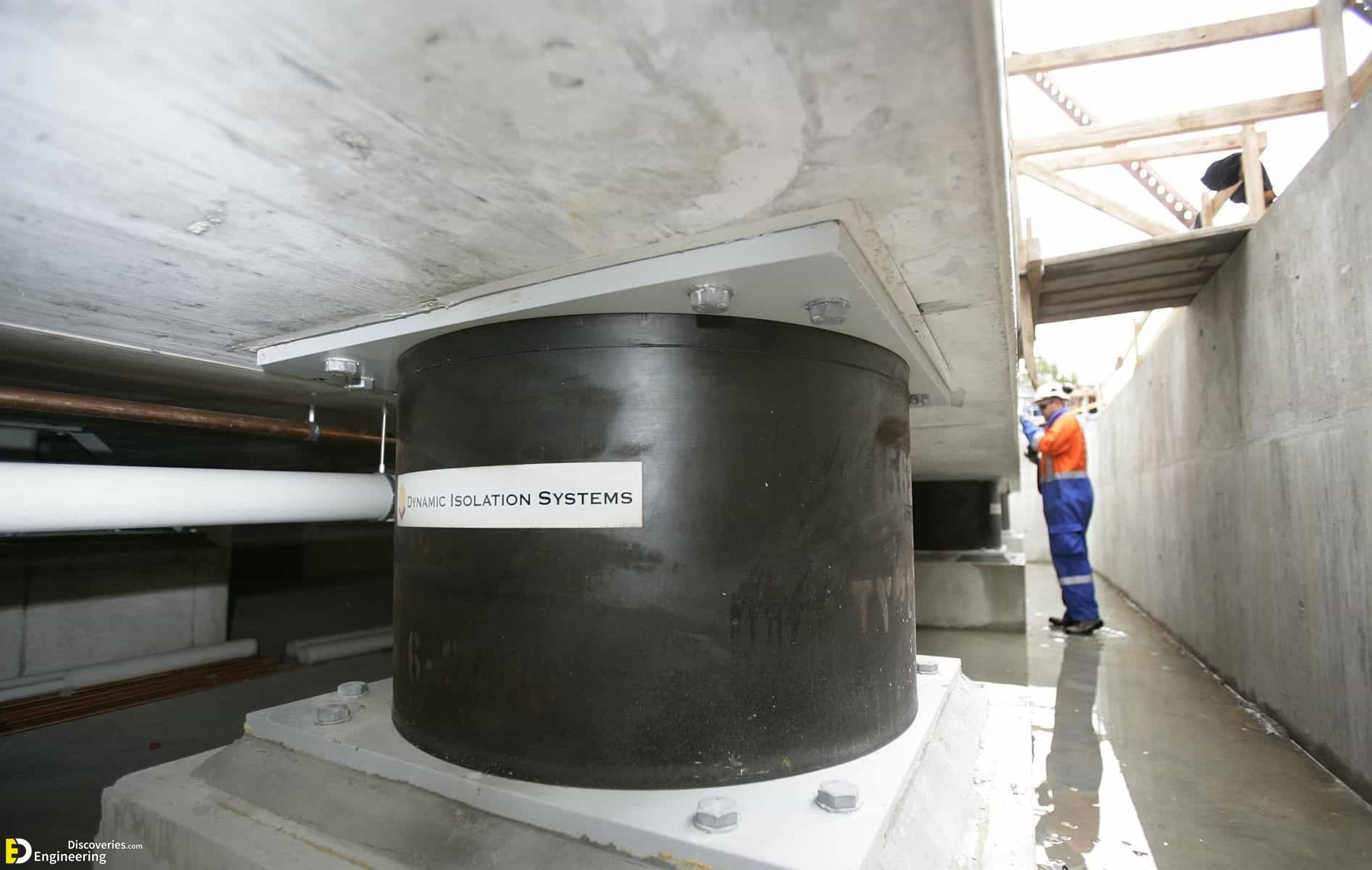

  • Elastomeric Bearings: Constructed from alternating layers of rubber and steel, these isolators exhibit flexibility in horizontal directions while maintaining vertical rigidity. This allows for controlled lateral displacement during seismic events.
  • Lead Rubber Bearings (LRBs): A common variant that incorporates a lead core to provide additional energy dissipation through plastic deformation.
  • Sliding Isolators: These utilize frictional sliding mechanisms, often combined with curved surfaces, enabling the structure to move horizontally while reducing energy transfer.

How Base Isolation Reduces Seismic Forces

By introducing flexibility at the base, base isolators shift the natural period of the building away from the predominant frequencies of ground motion. This phenomenon, known as period elongation, decreases the building’s acceleration response, protecting the structure and its occupants.

The Science Behind Seismic Dampers

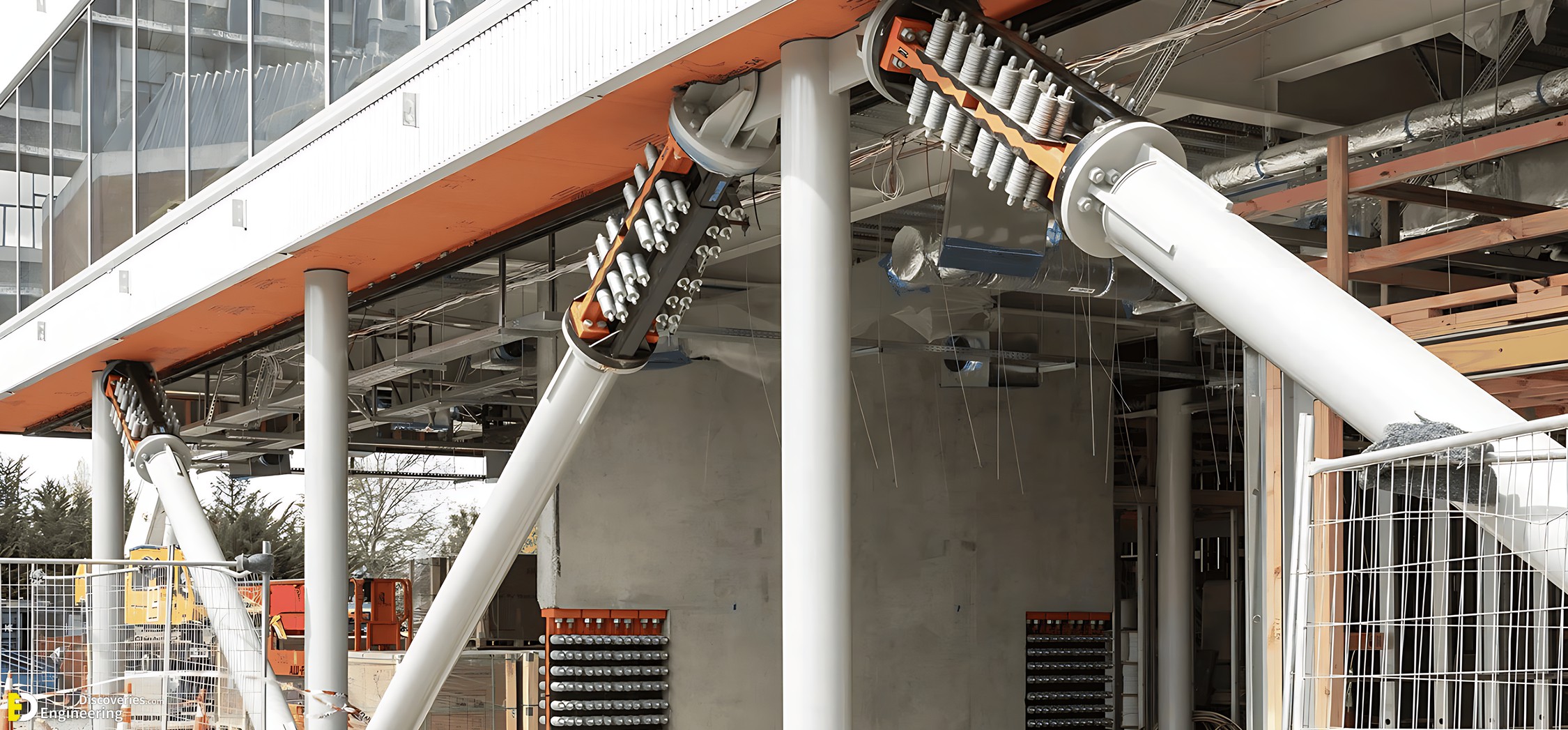

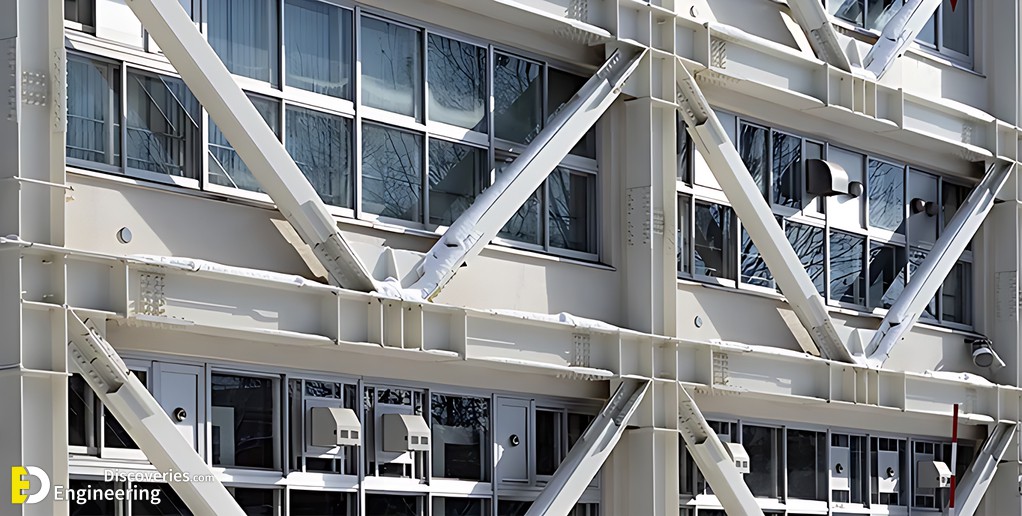

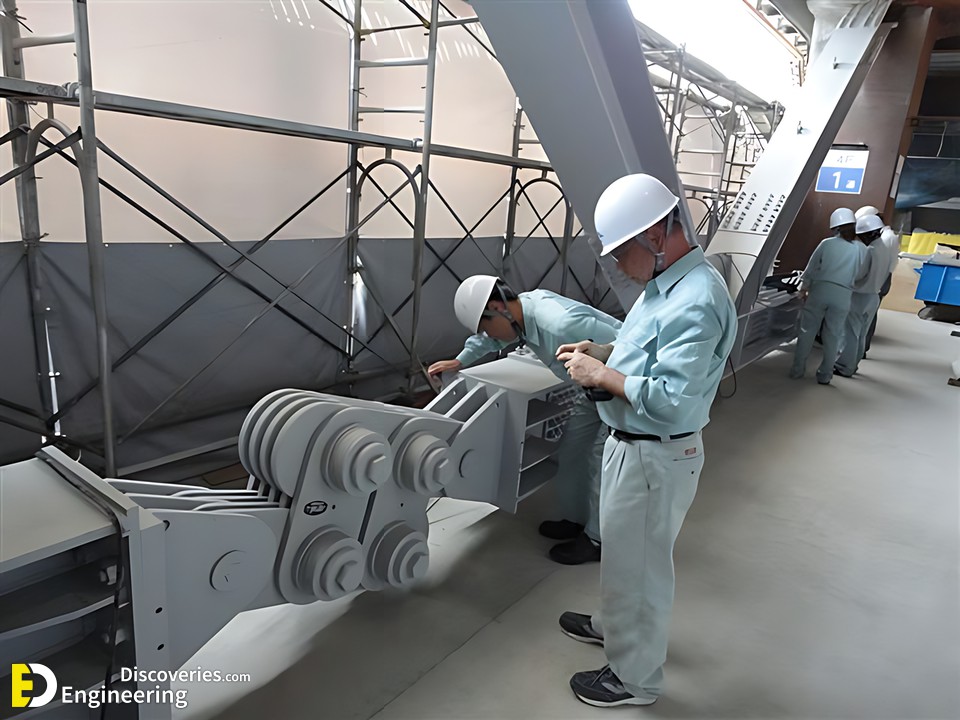

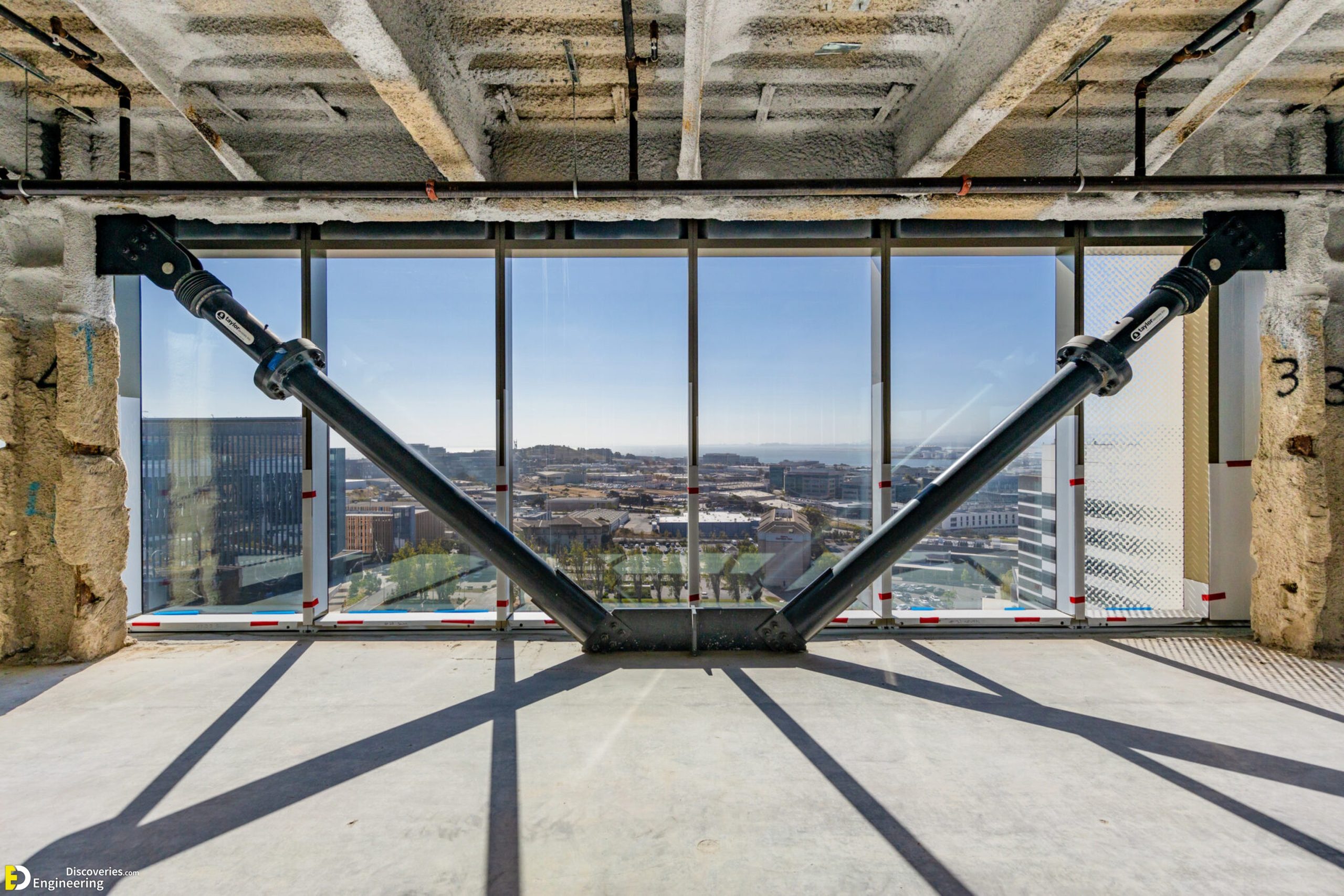

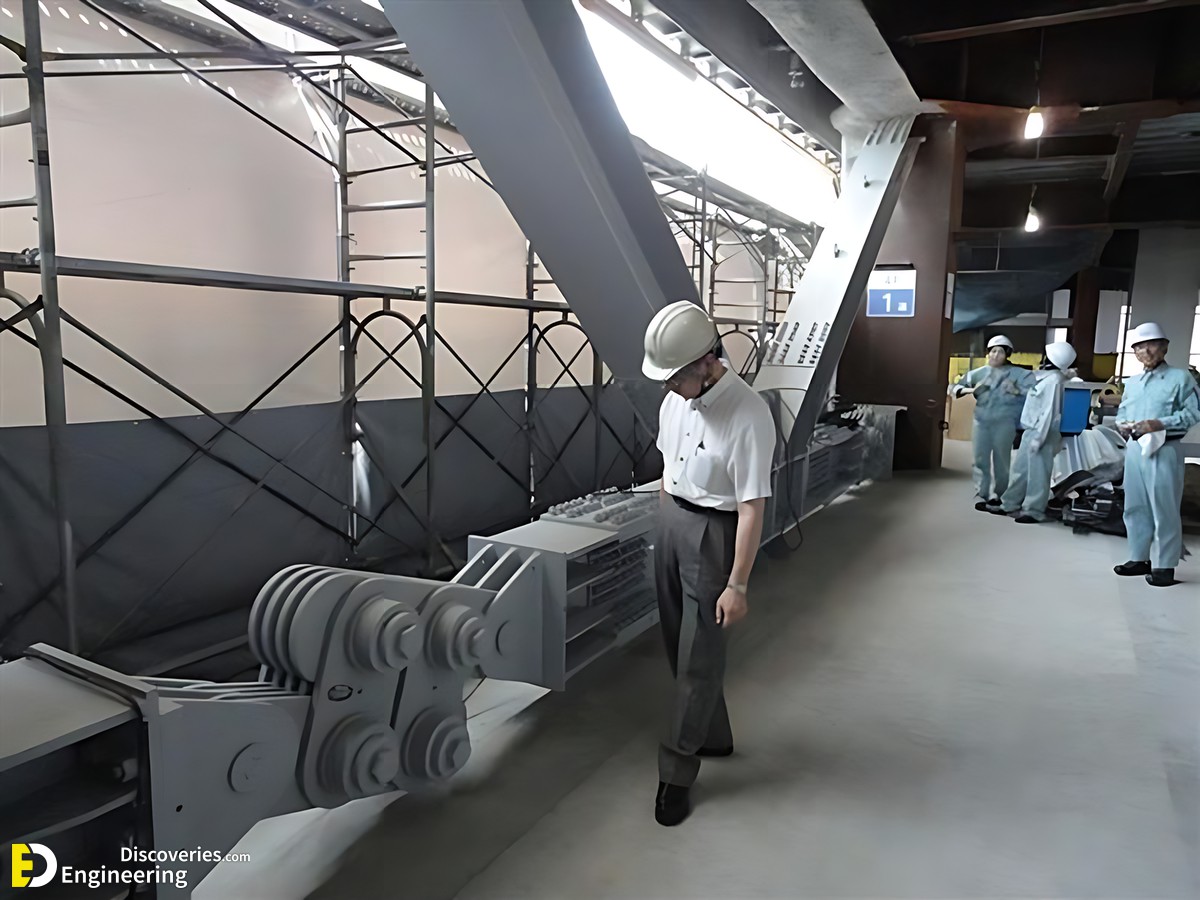

While base isolators mitigate the initial transfer of forces, seismic dampers act as energy dissipation devices that absorb and convert kinetic energy into heat or deformation energy, reducing the amplitude of vibrations.

Types of Seismic Dampers

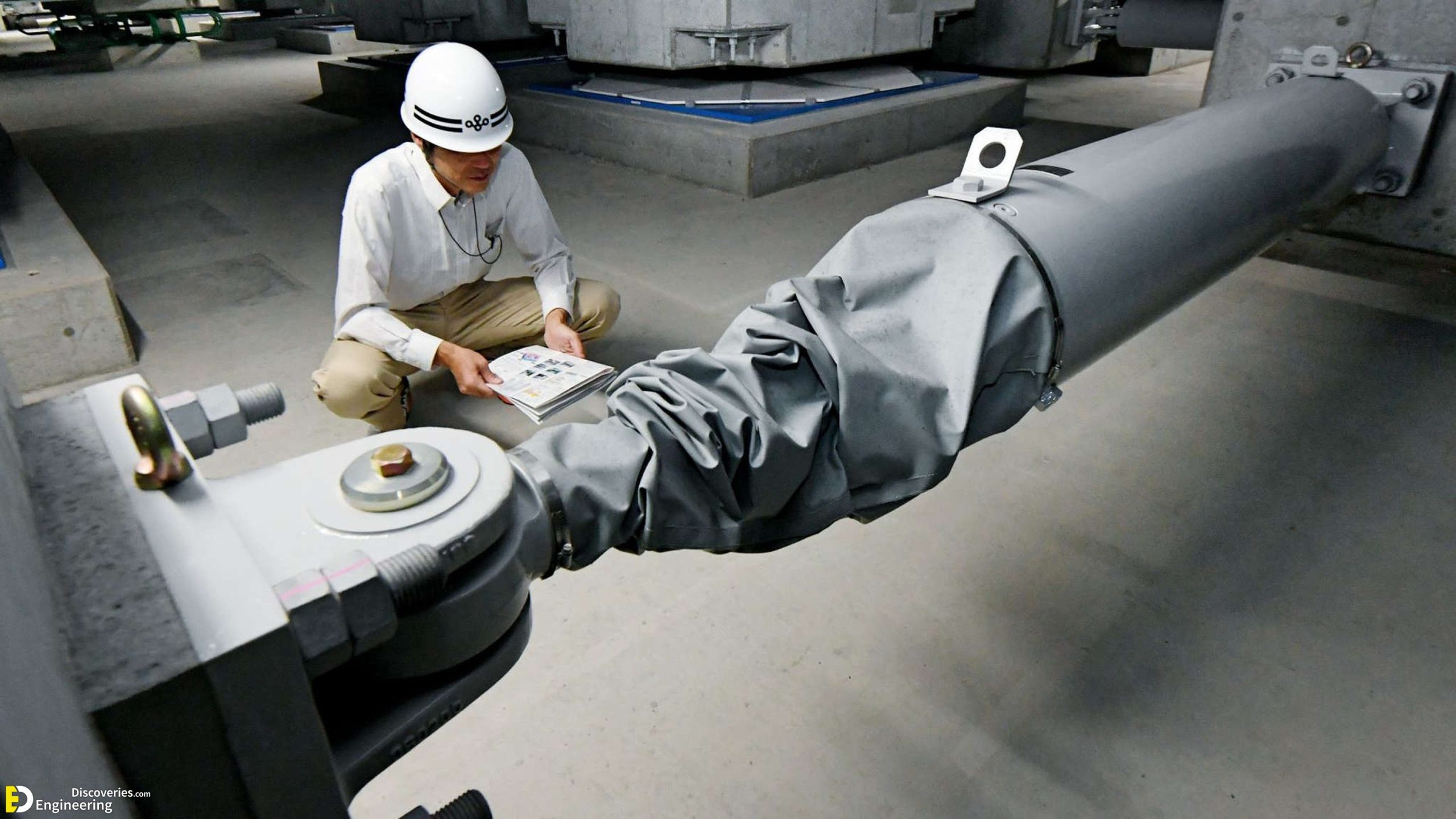

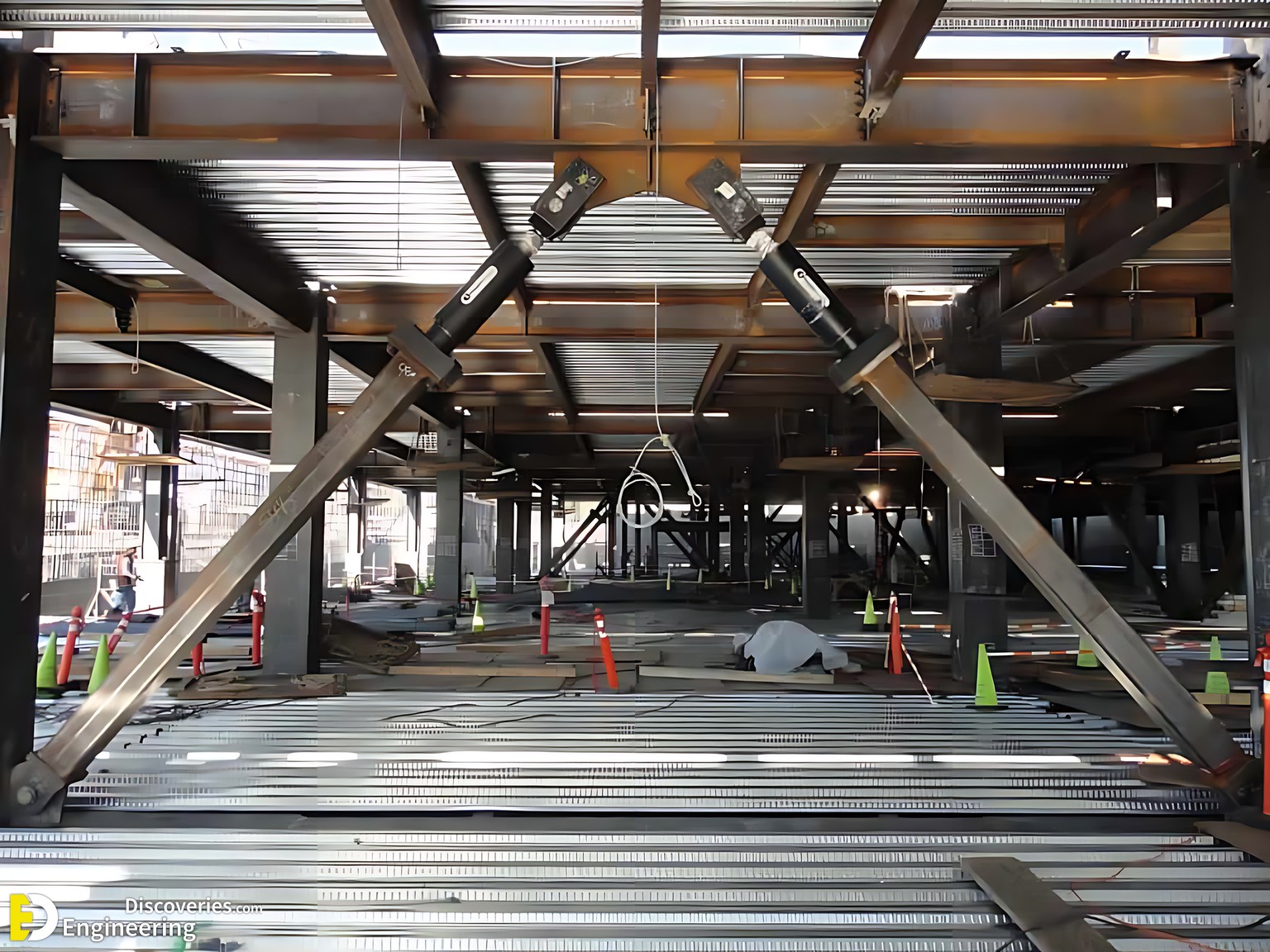

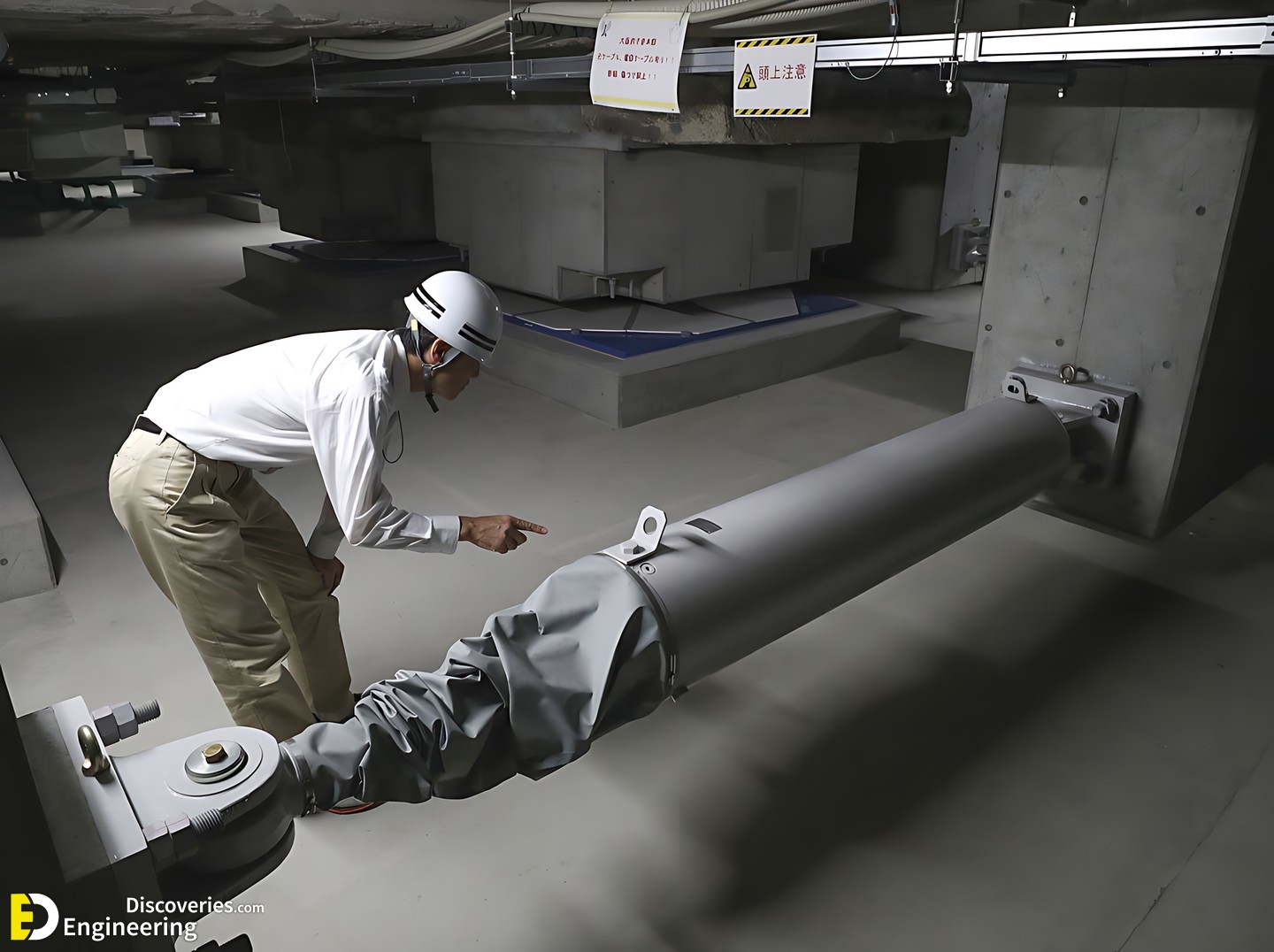

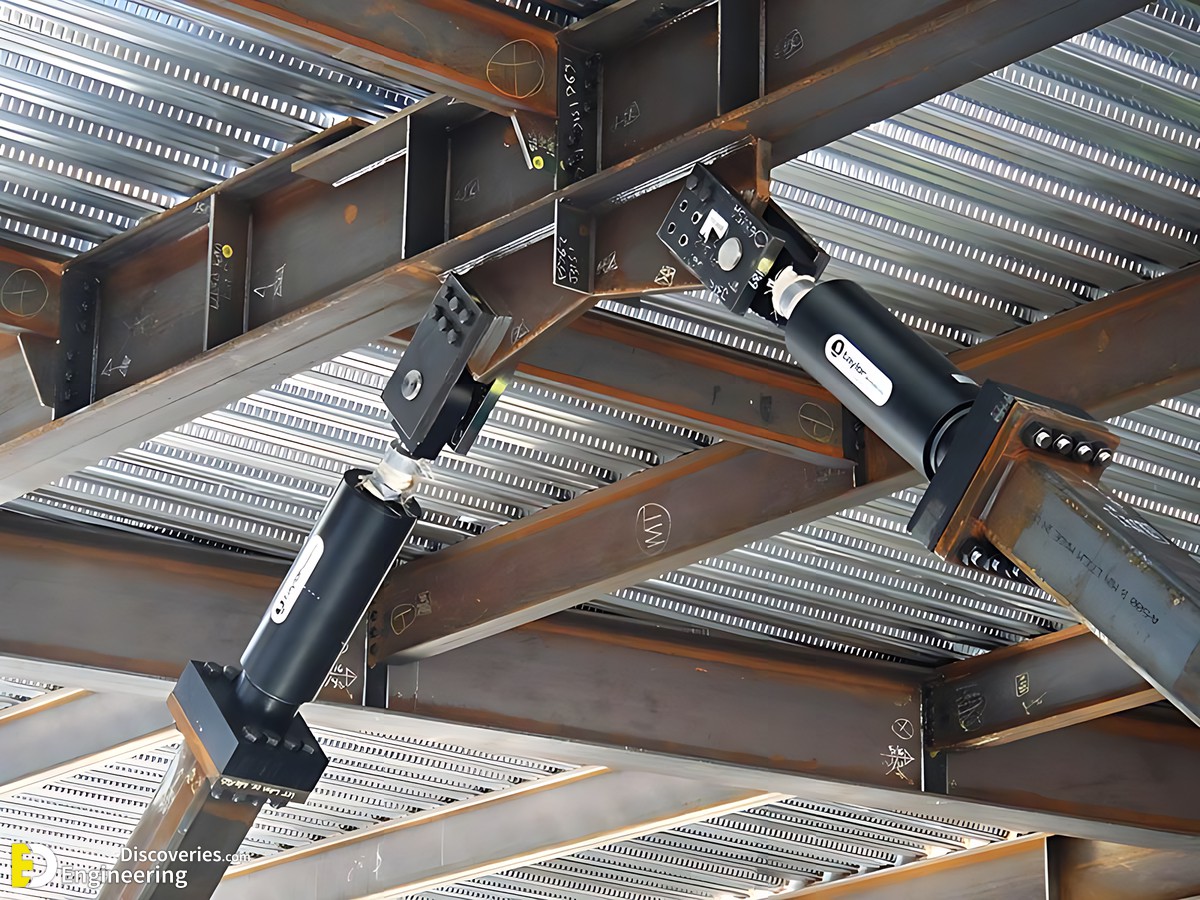

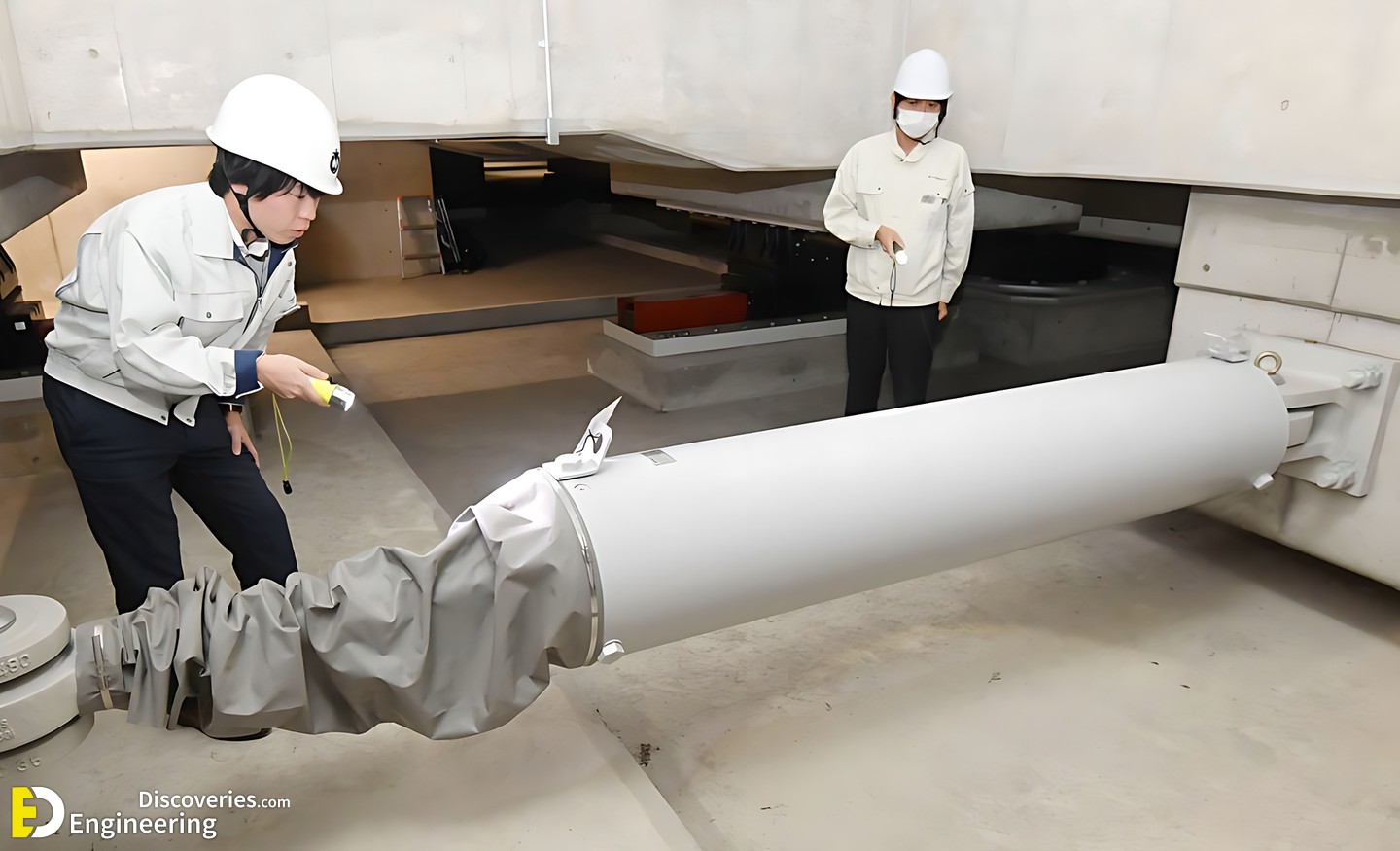

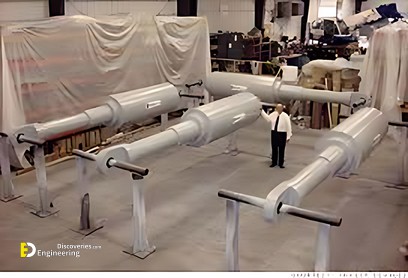

  • Viscous Dampers: Filled with highly viscous fluid, these dampers dissipate energy through fluid resistance as pistons move within the damper body.
  • Friction Dampers: Utilize the sliding friction between surfaces to dissipate energy, engaging during high-stress conditions to control displacement.
  • Tuned Mass Dampers (TMDs): Large masses installed at the top of a structure that counteract building sway by moving out of phase with the seismic forces.
  • Metallic Yielding Dampers: Rely on the plastic deformation of metals to dissipate energy, designed to yield under specified load thresholds.

Role of Dampers in Structural Resilience

Dampers enhance the damping ratio of the system, controlling the magnitude of oscillations during and after an earthquake. This not only protects the structural elements from excessive stress but also limits damage to non-structural components like interior partitions and cladding.

Comparative Performance: Base Isolators vs. Dampers

Both systems provide unique contributions to seismic resilience:

AspectBase IsolatorsDampers
FunctionDecouple structure from ground motionAbsorb and dissipate vibrational energy
InstallationAt the base of the structureThroughout the structural frame (beams, braces)
Effect on Natural PeriodIncreases significantly (period elongation)Minimal effect on natural period
Energy DissipationPassive isolation, moderate energy dissipationHigh-energy absorption through deformation/friction
Best ApplicationLow to medium-rise buildings, critical facilitiesHigh-rise buildings, retrofits, and critical zones

Synergistic Use of Both Systems

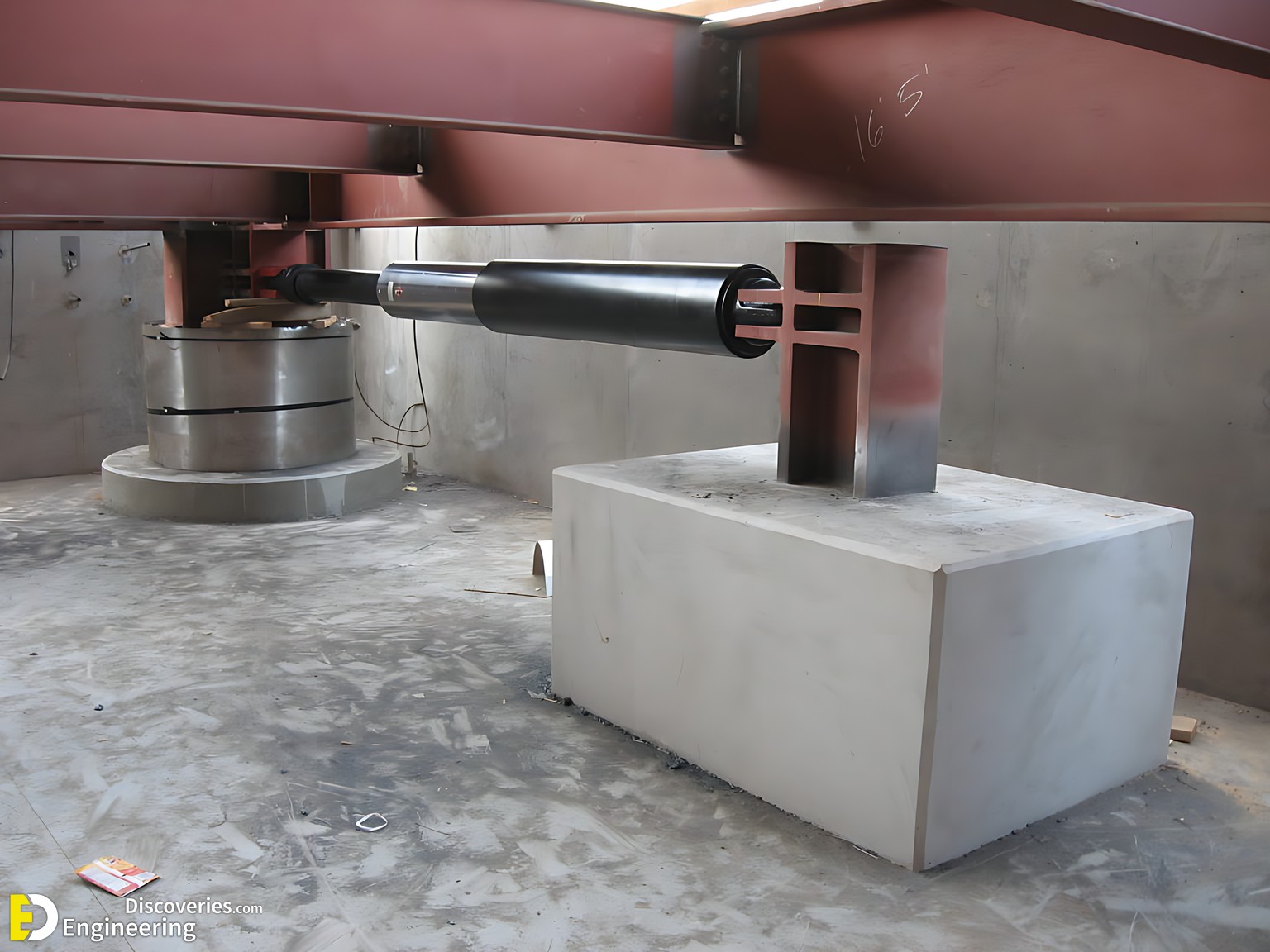

Advanced earthquake-resistant designs often incorporate both base isolators and dampers to maximize protection. While base isolators reduce transmitted forces, dampers absorb residual energy, providing a comprehensive defense mechanism.

Engineering Principles Underpinning Base Isolation and Damping

Seismic Isolation Theory

Base isolation is grounded in altering the dynamic characteristics of the structure:

  • Period Shift: A lengthened period reduces resonance risk by avoiding overlap with dominant earthquake frequencies.
  • Reduced Base Shear: By shifting the period, base isolators substantially lower the base shear forces, minimizing structural demands.

Energy Dissipation Mechanisms

Dampers employ principles of energy conversion and material yielding:

  • Viscous Effects: Hydraulic dampers exploit viscous drag to dissipate energy.
  • Plasticity: Metallic dampers deform plastically, converting kinetic energy into permanent material deformation.
  • Frictional Resistance: Friction dampers regulate motion through controlled friction, which absorbs seismic input.

Hysteresis Behavior

The hysteresis loops observed in dampers illustrate their energy absorption capacity, with wider loops indicating higher energy dissipation. This behavior ensures repeated protection across multiple seismic cycles.
