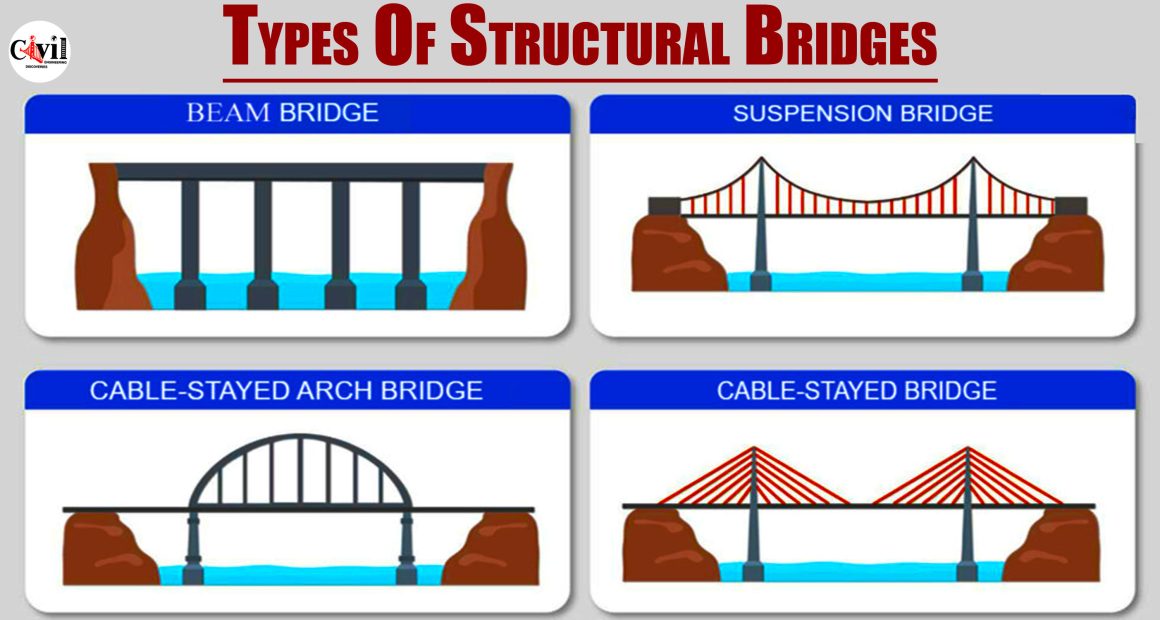

Bridges are essential engineering marvels that connect places and make transportation easier. Over the centuries, various types of bridges have been designed and constructed based on structural efficiency, material availability, and functionality. This article explores different types of structural bridges, explaining their characteristics, advantages, and applications.

1. Beam Bridge

A beam bridge is one of the simplest bridge types, consisting of horizontal beams supported by piers or columns. The weight of the bridge and its load is transferred directly to the supports.

Key Features:

• Simple design with horizontal beams
• Best suited for short spans
• Constructed using steel, concrete, or wood

Common Applications:

• Highway overpasses
• Pedestrian bridges
• Railway bridges

2. Arch Bridge

An arch bridge utilizes a curved structure that transfers loads efficiently through compression along the arch into the abutments.

Key Features:

• Curved arch design that distributes weight effectively
• Can be made of stone, concrete, or steel
• Long-lasting and aesthetically appealing

Common Applications:

• River crossings
• Historical and scenic locations
• Railway and highway bridges

3. Tied Arch Bridge

A tied arch bridge is a variation of the arch bridge where the arch is connected by a tie beam at the base, preventing the outward thrust on the supports.

Key Features:

• Uses a horizontal tie to absorb thrust
• Suitable for longer spans than traditional arch bridges
• Commonly made of steel

Common Applications:

• Urban bridges with limited space for abutments
• Highway crossings

4. Suspension Bridge

A suspension bridge is a long-span bridge where the deck is hung from cables that are anchored at both ends and supported by towers.

Key Features:

• Can span extremely long distances
• Uses steel cables for flexibility and strength
• Resistant to earthquakes and high winds

Common Applications:

• Large river crossings
• Coastal and bay bridges
• Iconic structures like the Golden Gate Bridge

5. Cable-Stayed Bridge

A cable-stayed bridge is similar to a suspension bridge but uses cables that are directly attached to towers, eliminating the need for main cables and anchorages.

Key Features:

• Cables radiate from pylons in a fan or harp pattern
• Requires fewer materials than suspension bridges
• Suitable for medium to long spans

Common Applications:

• City landmark bridges
• River crossings

6. Cantilever Bridge

A cantilever bridge consists of structures that extend from supports and meet in the middle without requiring additional piers.

Key Features:

• Built using cantilever arms extending from piers
• Does not require temporary supports in the middle
• Ideal for locations with deep waters or difficult terrain

Common Applications:

• Railway and highway bridges
• Large river and valley crossings

7. Truss Bridge

A truss bridge uses a framework of triangular units (trusses) to distribute forces efficiently and support heavy loads.

Key Features:

• Strong and lightweight due to the triangular framework
• It can span long distances
• Constructed from steel or wood

Common Applications:

• Railways
• Highways
• Military applications

8. Bascule Bridge

A bascule bridge, also known as a drawbridge, has a movable section that pivots upward to allow ships to pass through.

Key Features:

• Operates with counterweights for balance
• Typically used in areas with significant maritime traffic
• Can be single or double-leafed

Common Applications:

• Canal crossings
• Harbor entries
• Historic city bridges
