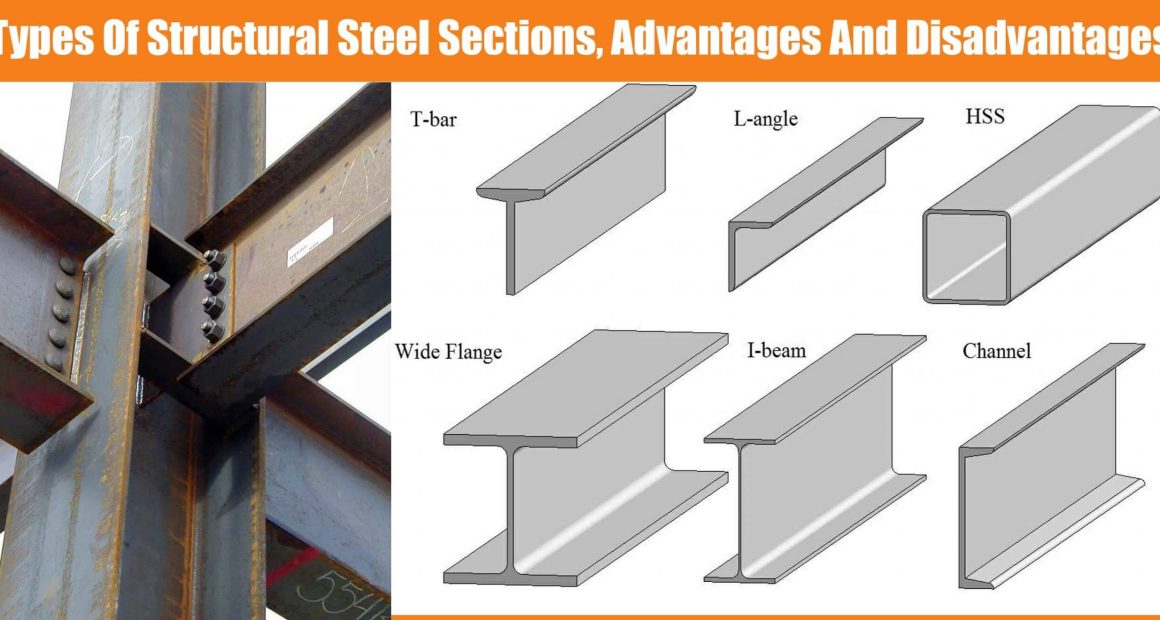

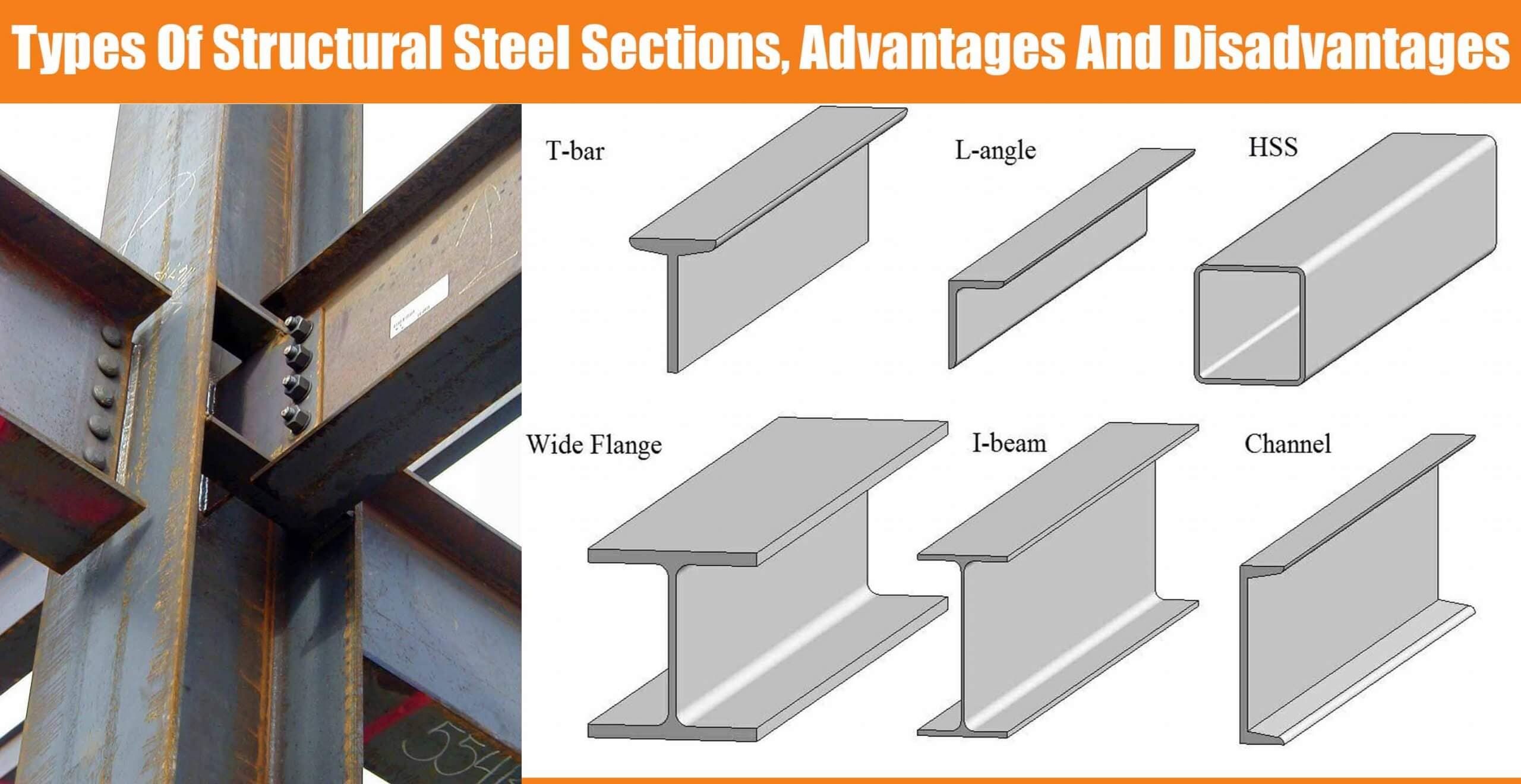

Structural steel is one of the most flexible and versatile building materials on earth. Engineers have used structural steel to accomplish feats thought impossible, building massive skyscrapers and expansive bridges that have remained for hundreds of years. To grasp the full potential of structural steel, one must understand its various shapes, sizes, and potential uses. Here is an overview of the many faces of structural steel.

American Standard Beam (S-Shaped)

Generally known as an S beam, the American standard beam has a rolled section with two parallel flanges, all connected by a web. The flanges on S-shaped beams are relatively narrow. The designation of the beam gives the builder information about each unit’s width and weight. For example, S12x50 represents a beam that’s 12 inches deep and weighs 50 pounds per foot.

Angle (L-Shaped)

Angle beams take an L shape, with two legs that come together at a 90-degree angle. Angle beams come in equal or unequal leg sizes. An unequal leg L beam may have one leg of 2x2x0.5 and one leg of 6x3x0.5, for example. L beams are typically used in floor systems because of the reduced structural depth.



Bearing Pile (H-Shaped)

When builders can’t find a structure on a shallow foundation, they use bearing piles to design a deep foundation system. Bearing piles are H-shaped to effectively transfer loads through the pile to the tip. Bearing piles work best in dense soils that offer most resistance at the tip. Individual piles can bear more than 1,000 tons of weight.

Channel (C-Shaped)

Structural C channels, or C beams, have a C-shaped cross-section. Channels have top and bottom flanges, with a web connecting them. C-shaped beams are cost-effective solutions for short- to medium-span structures. Channel beams were originally designed for bridges, but are popular for use in marine piers and other building applications.

Hollow Steel Section (HSS)

HSS is a metal profile that has a hollow, tubular cross-section. HSS units can be square, rectangular, circular, or elliptical. HSS structures are rounded, with radiuses that are about twice the thickness of the wall. Engineers commonly use HSS sections in welded steel frames for which units experience loading in different directions.

I-Beam

An I Beam, also known as an H beam or a universal beam, has two horizontal elements, the flanges, with a vertical element as the web. The web is capable of resisting shear forces, while the horizontal flanges resist most of the beam’s bending movement. Then I shape is very effective at carrying shear and bending loads in the web’s plane. The construction industry widely uses I beam in a variety of sizes.

Pipe

Structural steel pipes are important for a variety of construction applications, lending strength and stability. Pipes are hollow, cylindrical tubes that come in a variety of sizes. Engineers often use steel pipes to meet the needs of water, oil, and gas industry projects.

Tee

A tee beam, or T beam, is a load-bearing beam with a T-shaped cross-section. The top of this cross-section is the flange, with the vertical web below. Tee beams can withstand large loads but lack the bottom flange of the I Beam, giving it a disadvantage in some applications.

Custom Shapes

Today’s engineers are not limited to using only the most common shapes. Custom metal fabrication opens the doors to a variety of special structural steel shapes for any type of project. Using state-of-the-art tools and techniques, such as water jet, laser, and plasma cutting, metal fabricators can sculpt steel into myriad shapes for specific needs. If you can dream it, odds are an experienced metal fabricator can create it. To receive a free quote for custom structural steel fabrication, contact Swanton Welding, Inc. today.

The advantages of steel members are as follows

1- The steel members have high strength. Therefore, the steel members can resist high loads with the comparatively lightweight and small size of members. The steel members can be conveniently handled and transported because of their small size.

2- The steel members are gas and water-tight, because of the high density of steel (the unit weight of steel is 7.85kN/m3).

3- The steel members have a long service life. This is because of high and homogeneous strength and density properties of steel.

4- The steel members can be used as pre-fabricated members, because of ease of handling, fabrication and erection.

5- The steel members can be readily disassembled or replaced.

6- The existing steel structure and structural components may be strengthened by connecting additional sections or plates.

7- The steel structures may be inspected quickly and conveniently.

8- This material may be reprocessed/recycled in furnaces.

9- This material can be reused.

10- This material possesses high ductility and therefore suitable for earthquake resistance structures.

The disadvantages of steel members are as follows

1- The steel members are susceptible to corrosion. The corrosion necessitates their painting or the use of other methods of their protection.

2- The steel members are costly.
