What Is Concrete Footing Shear Failure?

Concrete footing shear failure occurs when shear forces exceed the footing’s capacity. This leads to cracks and potential structural instability. Shear failure is a critical issue in foundation design. It can compromise the overall strength and safety of a structure.

Causes of Shear Failure in Concrete Footings

Several factors contribute to concrete footing shear failure:

• Excessive Load: Heavy loads beyond design limits can cause shear stress.
• Weak Soil Conditions: Poor soil support increases shear vulnerability.
• Insufficient Shear Reinforcement: Lack of proper reinforcement weakens the footing.
• Design Errors: Incorrect footing dimensions and material choices can lead to failure.

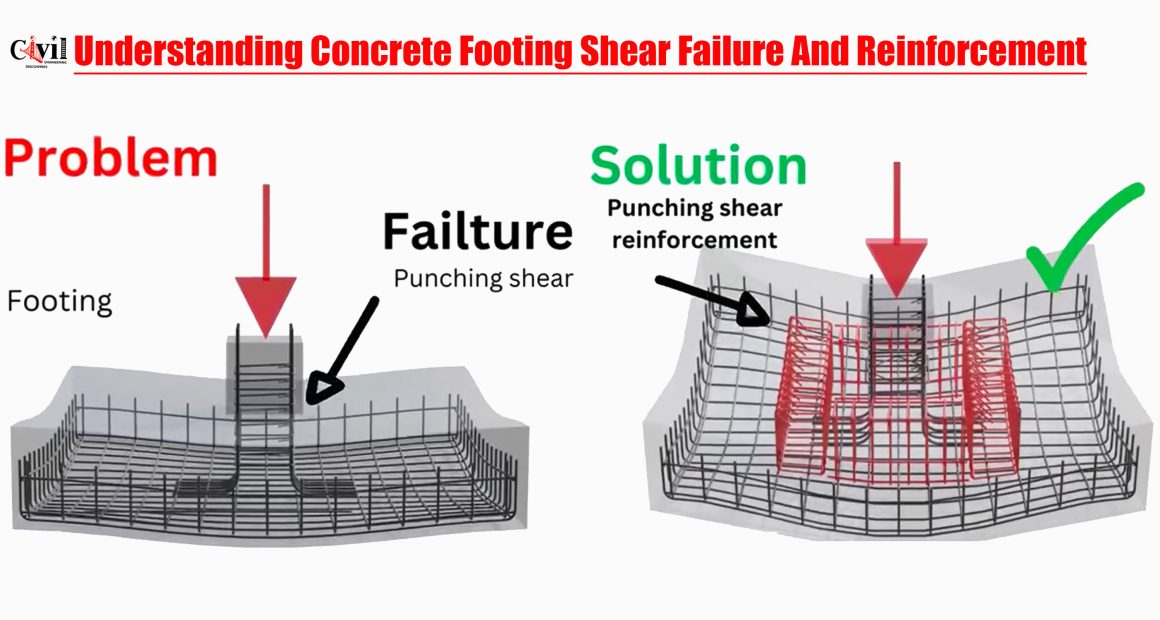

The Role of Shear Reinforcement in Concrete Footings

Shear reinforcement strengthens concrete footings and prevents failure. It redistributes forces, reducing shear stress and enhancing stability. The most common reinforcement methods include:

1. Steel Bars (Rebars)

Steel bars improve shear resistance by holding the concrete together. They prevent diagonal cracks and enhance load-bearing capacity.

2. Shear Stirrups

These U-shaped or closed-loop reinforcements provide additional support. They help in resisting shear forces and increase structural durability.

3. Fiber Reinforced Concrete (FRC)

Fibers mixed into concrete improve its tensile strength and reduce cracking. This reinforcement method is cost-effective and widely used.

Importance of Proper Footing Design

A well-designed footing prevents shear failure and ensures long-term stability. Important design considerations include:

• Load Assessment: Evaluating expected loads helps in determining reinforcement needs.
• Soil Analysis: Understanding soil properties ensures the footing is properly supported.
• Material Selection: Using high-quality concrete and reinforcement materials enhances strength.
• Code Compliance: Following engineering standards ensures safety and efficiency.

Preventing Shear Failure in Concrete Footings

To prevent shear failure, engineers should:

• Use Adequate Reinforcement: Install steel bars or stirrups as needed.
• Optimize Footing Dimensions: Ensure the footing has the right thickness and width.
• Enhance Concrete Quality: Use high-strength concrete with appropriate mix proportions.
• Regular Inspections: Monitor structural integrity to detect early signs of failure.

Conclusion

Shear failure in concrete footings is a serious structural concern. Proper reinforcement and design considerations prevent failure and improve durability. By using steel bars, shear stirrups, and quality materials, engineers can enhance footing strength and ensure long-term stability. Always follow engineering standards for safe and effective construction.
