Almost all of us have seen those colored (mostly orange, yellow, red, or white) balls on transmission and distribution power lines. If you ever wonder what they are and why it is used for? Let discuss in detail and don’t spoil the post as there is no rocket science everywhere

What are those Balls?

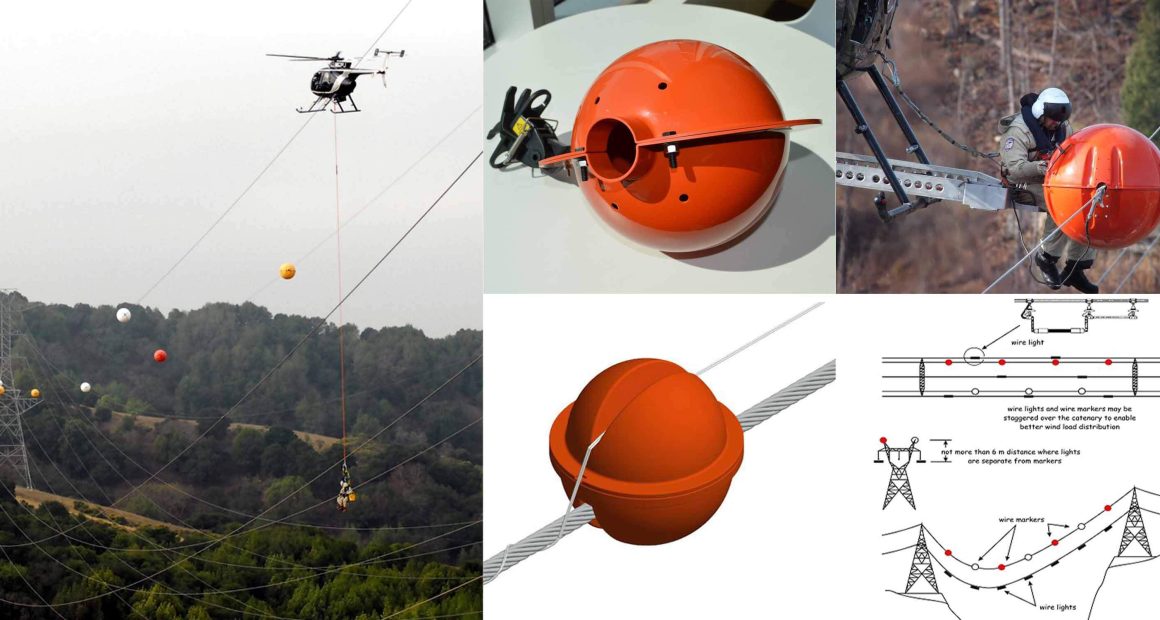

They are called “Marker Balls” and known as “Aerial Visibility Marker Balls”. They weigh about 7.7kg (17 Pounds) each. Mostly used color for marker ball is “International Danger Orange” ( British STD. 381C-1964-No. 557 or U.S. Engineer’s Spec. 595-121197) however, yellow, red, or white are also can be used in a specific situation depending on the surrounding for clear visibility recommended by FFA (Federal Aviation Administration).

The diameter of the marker balls used on power lines and less extensive catenary wires (those wires crossing a river, lake, canyon, etc) ) below 15m (50 feet) should not be less than 51cm (20 inches). For extensive catenary wires and power lines, the size should not be less than 91cm (36 inches).

What they are used for?

Aerial marker Balls are used for safety. According to the Federal Aviation Administration (FAA), it saves lives and infrastructure by making guy wire and power lines (Transmission, distribution, and communication lines) visible to the low flying helicopters, aircraft, and plans according to the Federal Aviation Administration(FAA ).

Some power lines marker balls glow due to the electric field on the power lines. In some cases, flashing marker balls are used on transmission poles, towers, and power lines for clear visibility.

The power lines conductors and skyline become almost invisible against the terrain as the human eye starts to loos its visual acuity at just a few degrees off dead center. Other reasons to unable to notice the power lines for pilots are light condition and dirty windscreens etc.

That is the exact reason why marker balls are installed on the power lines especially in the case of the overhead cables and wires crossing the major highways, freeways, valleys, deep gullies, and mostly fly low while landing at airports.

Next time, when you see those colored balls on power lines, remember that they are used for safety to save lives and aircraft and expensive electrical power system networks and infrastructure.
