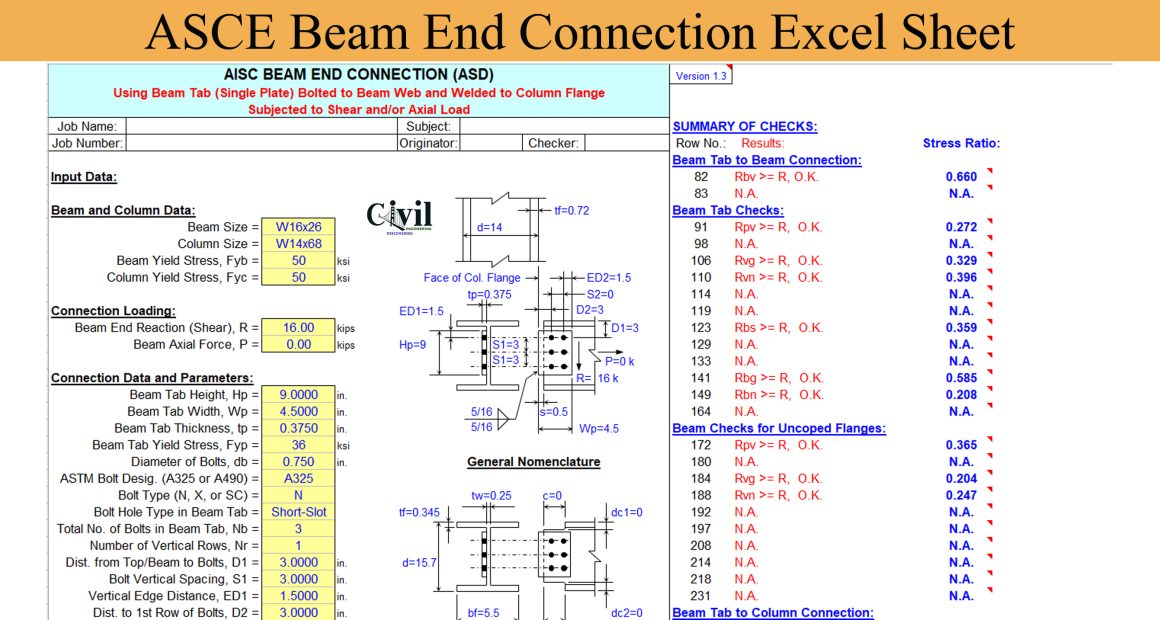

“BEAMTAB” is a spreadsheet program written in MS-Excel for the purpose of analysis of steel beam end connections using a beam tab (single plate) field bolted to the beam web and shop welded to either the column flange, column web, or girder web. The connections may be subjected to end shear reaction and/or axial load. Specifically, all applicable “limit states” for the end connection analysis pertaining to the beam tab (single plate), bolts, beam web, and either column flange or web, or girder web are checked.
