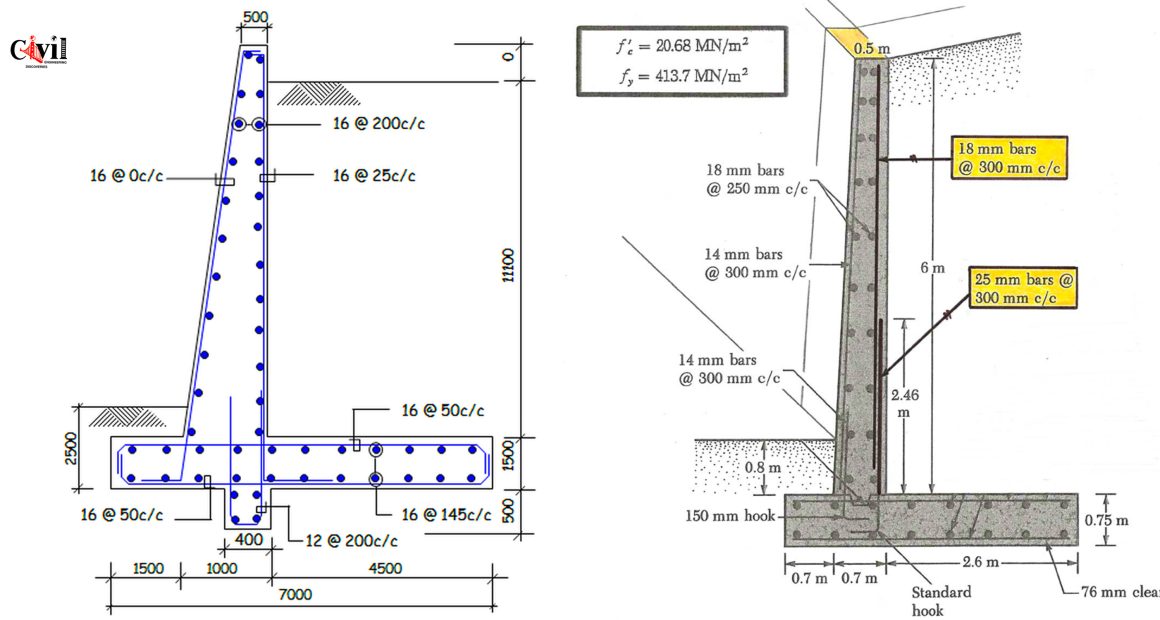

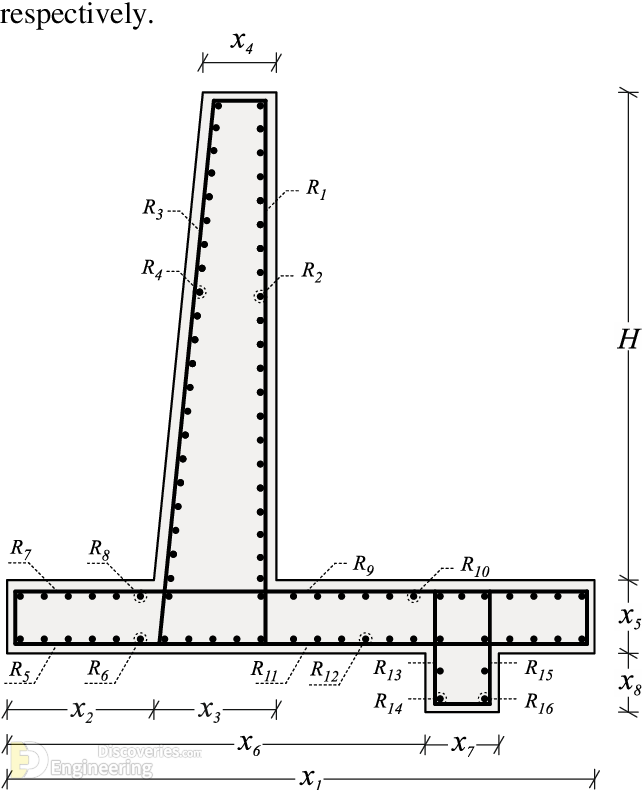

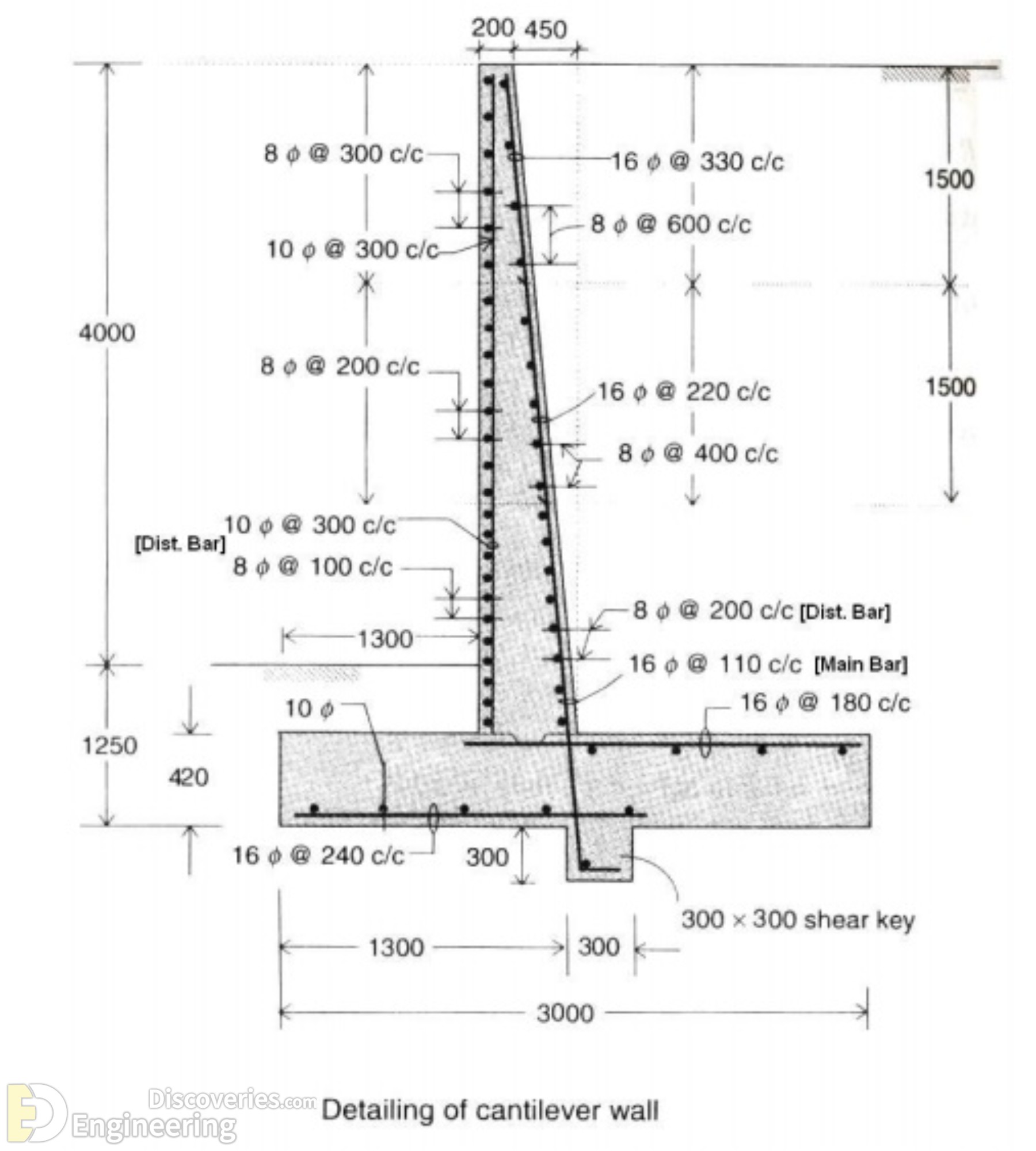

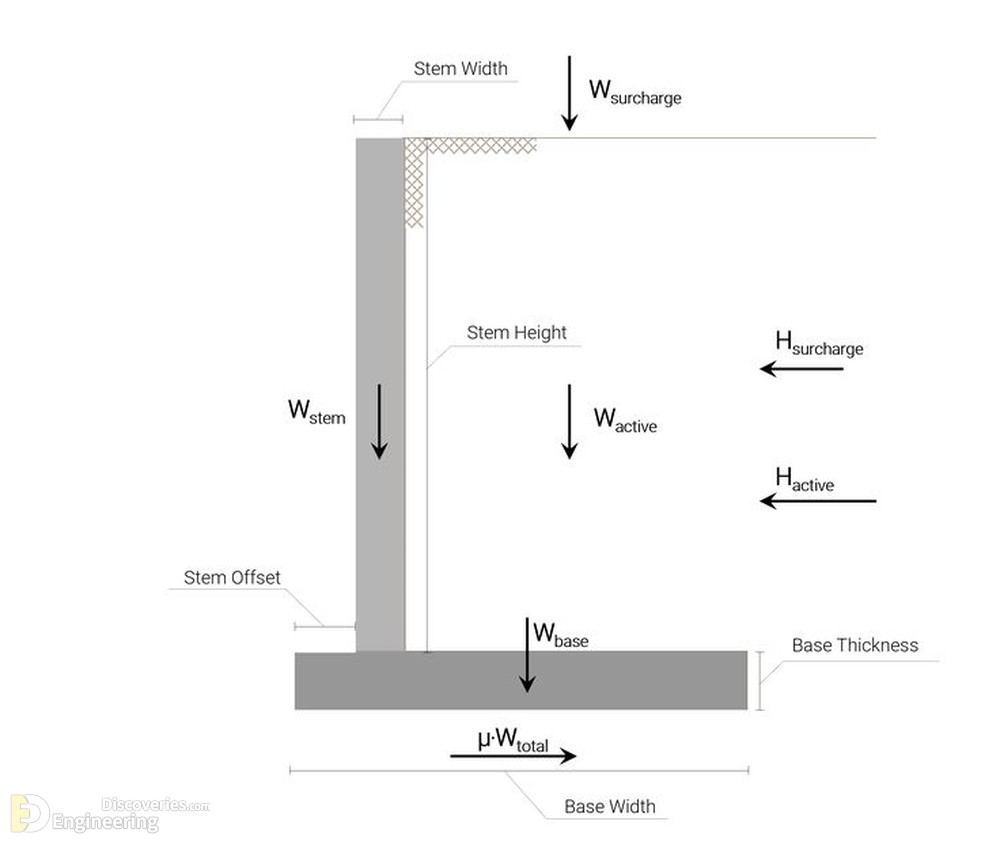

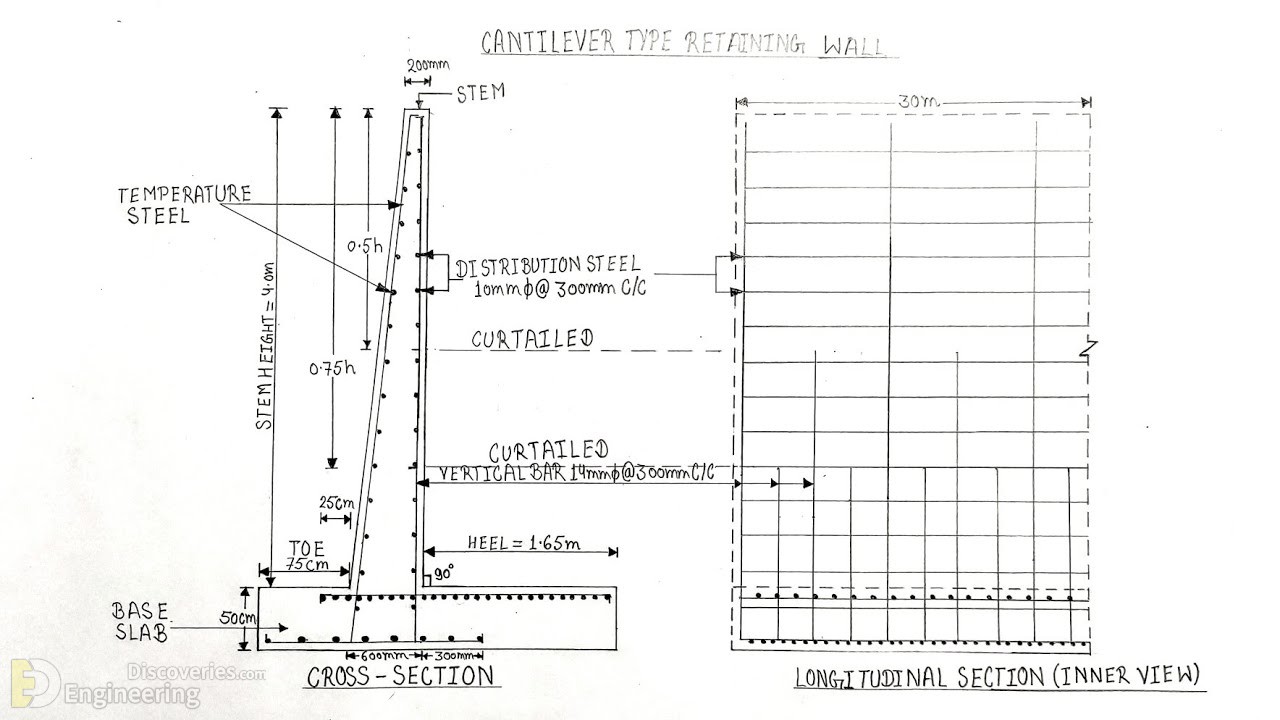

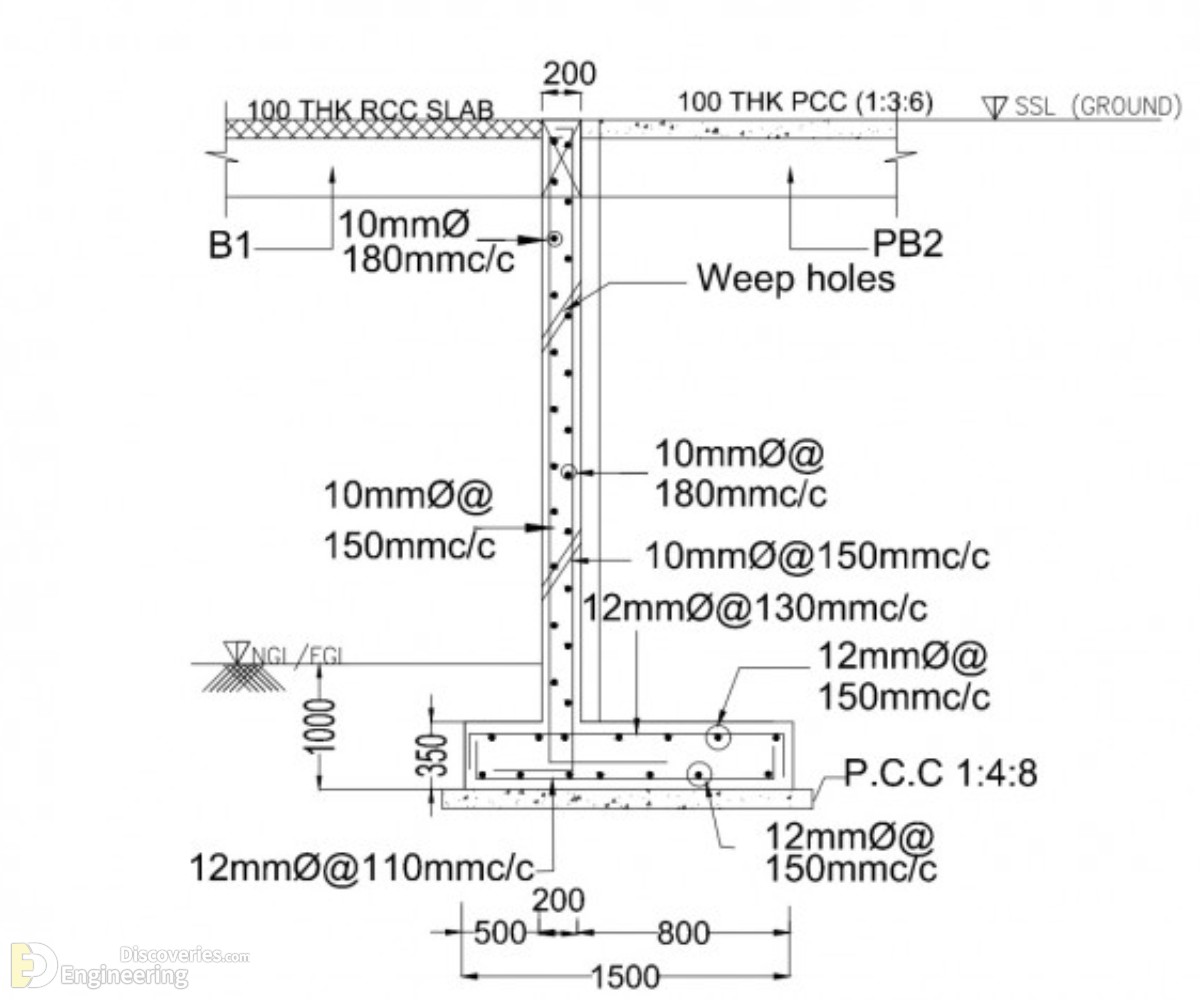

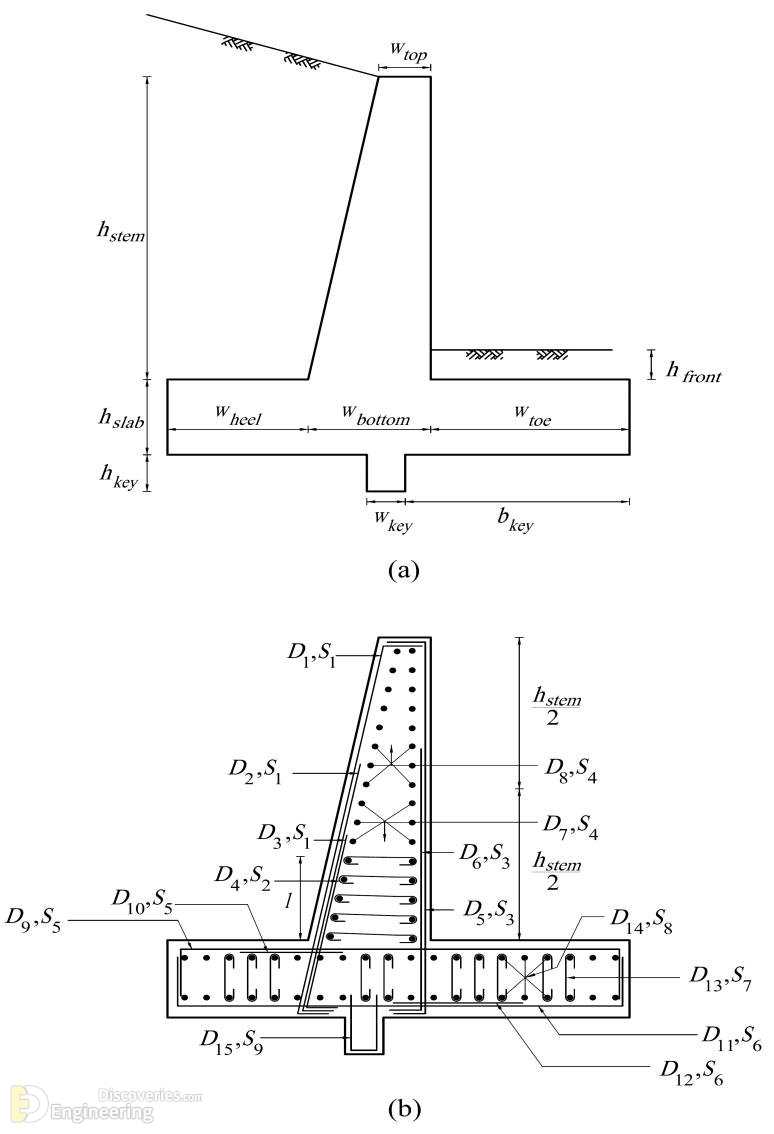

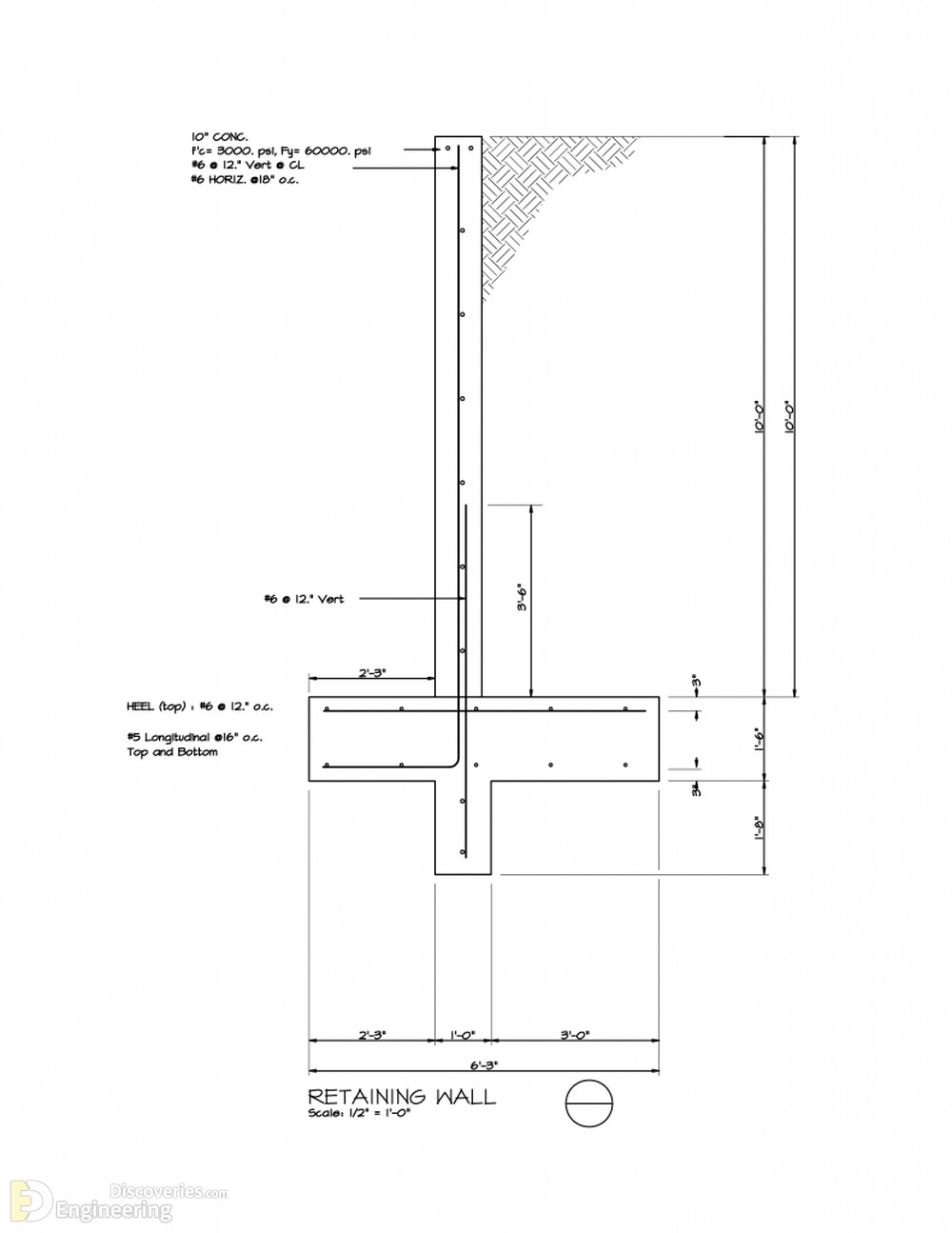

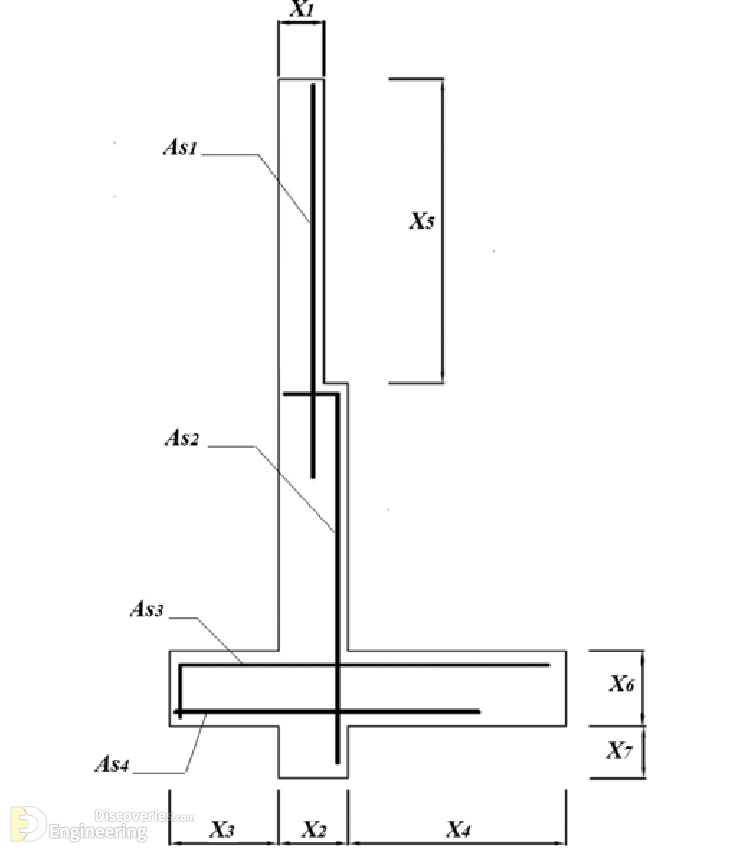

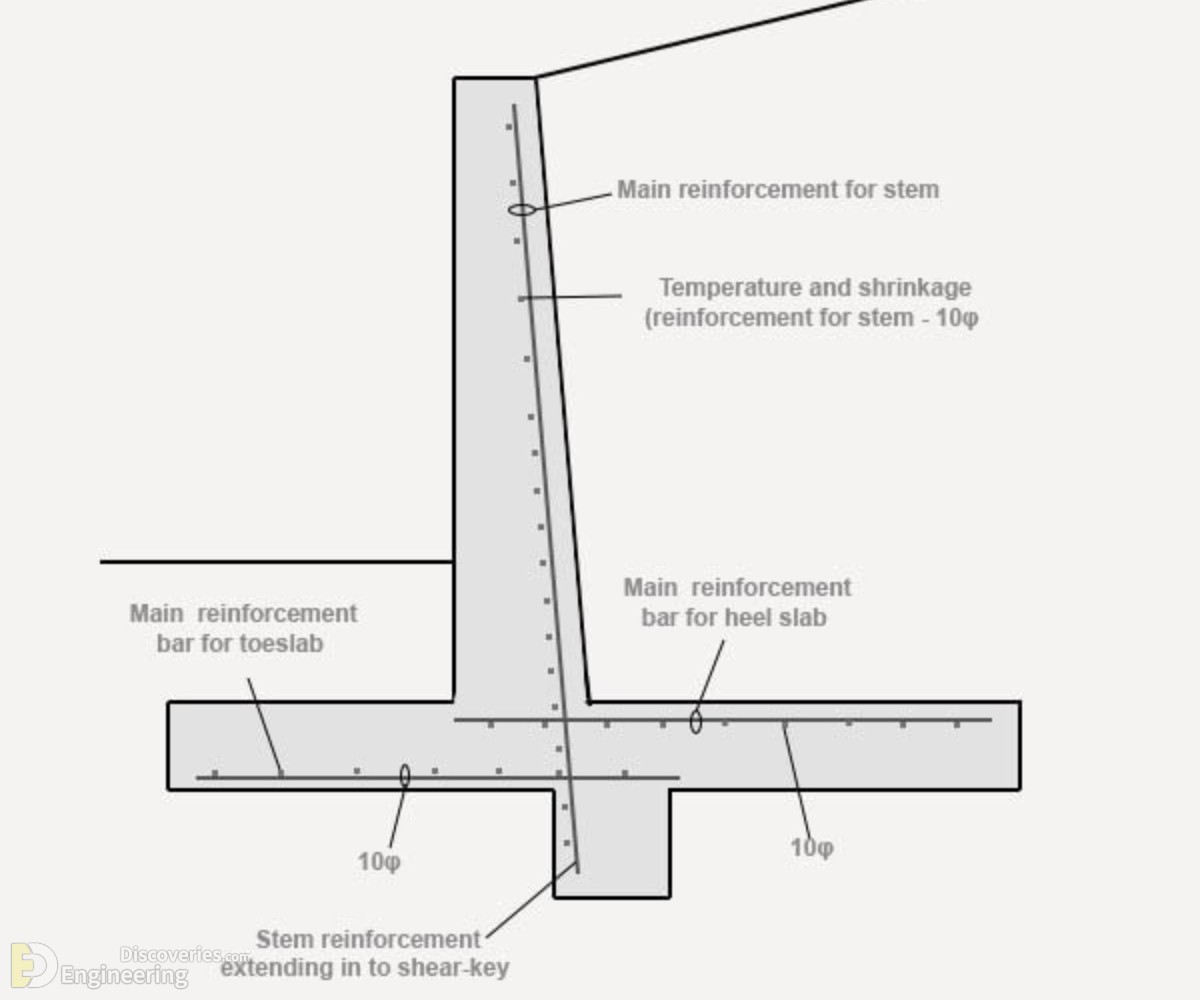

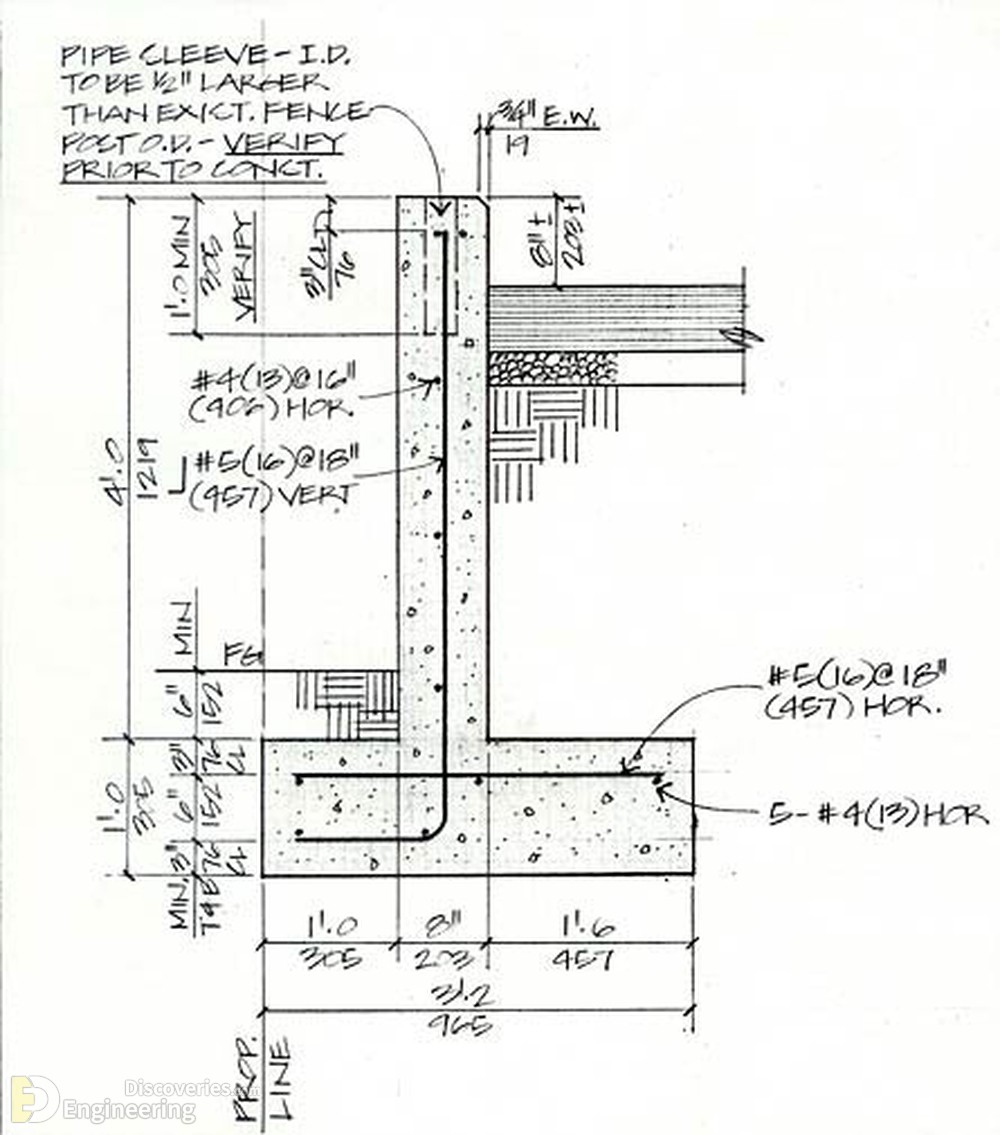

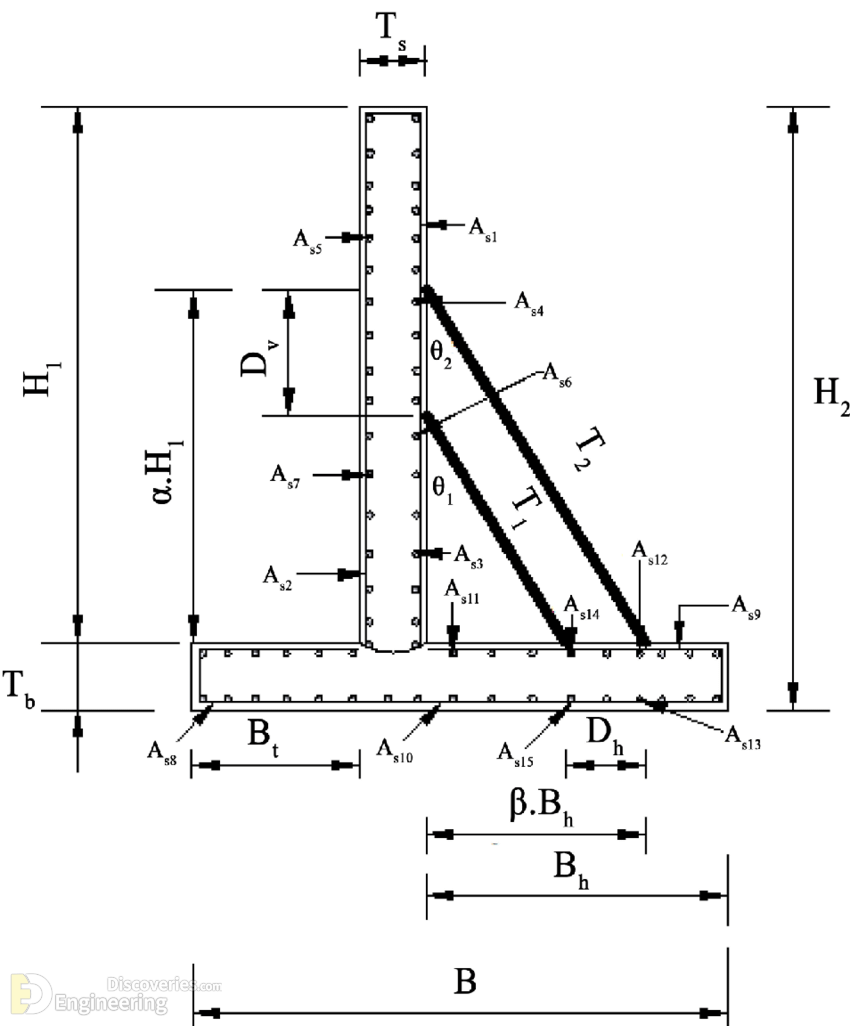

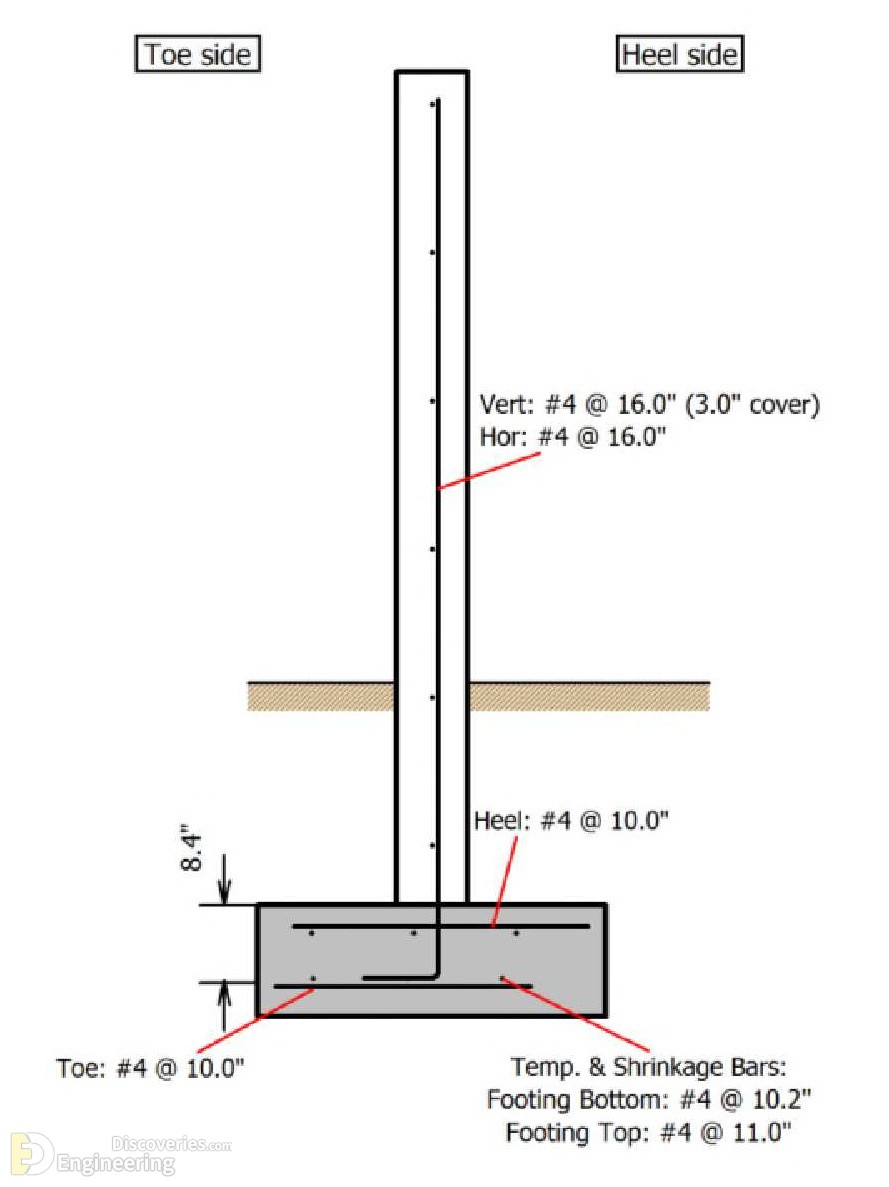

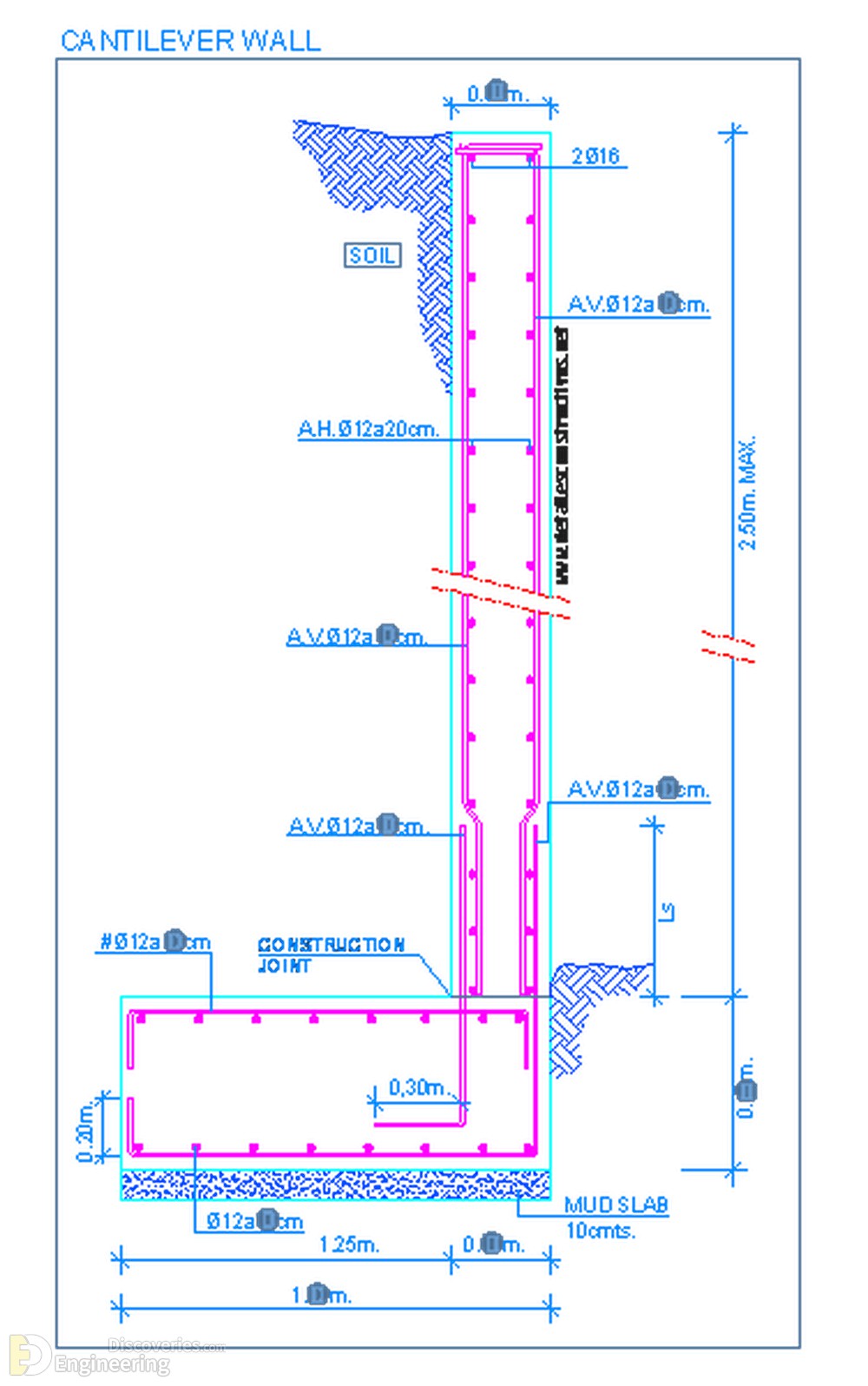

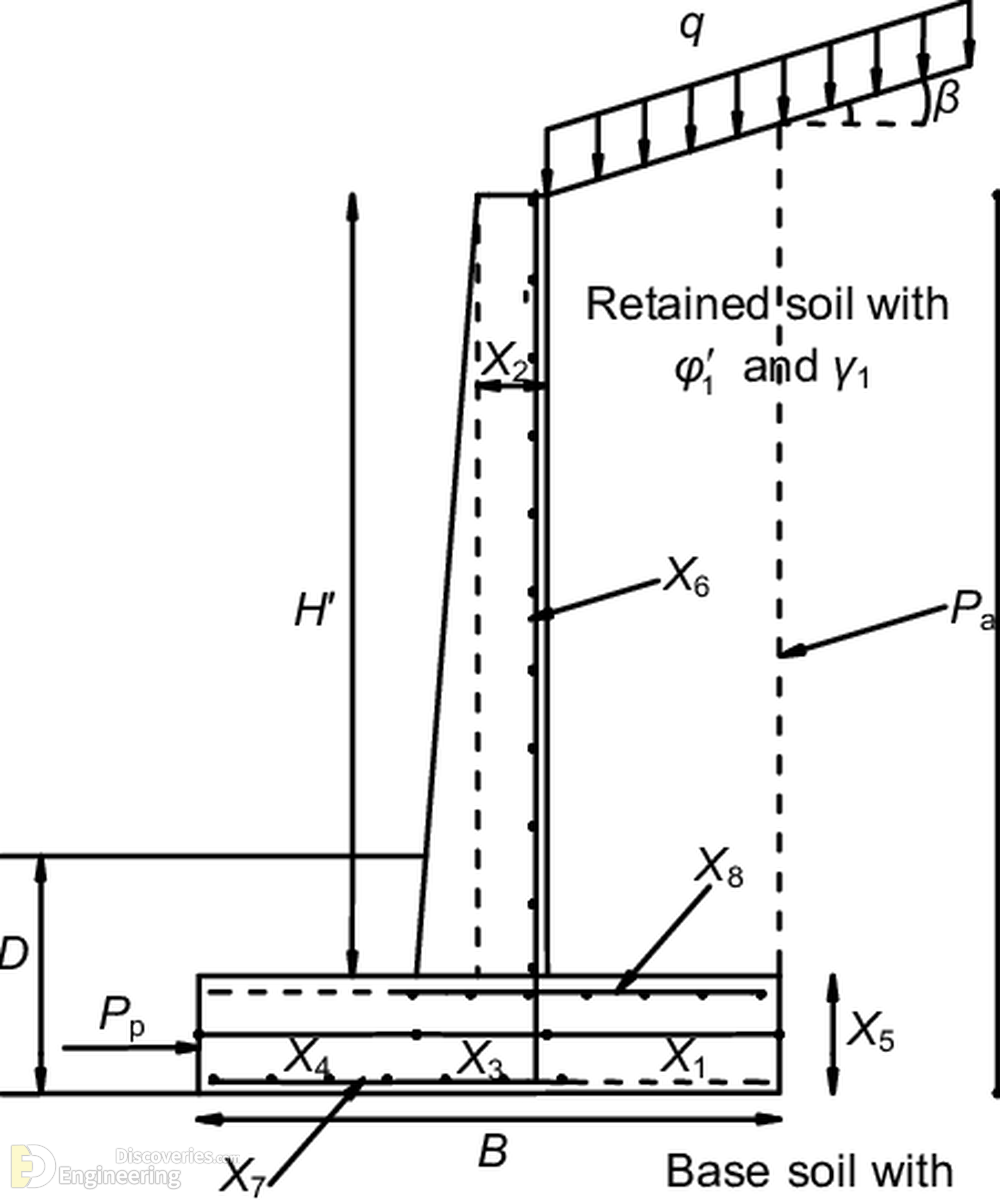

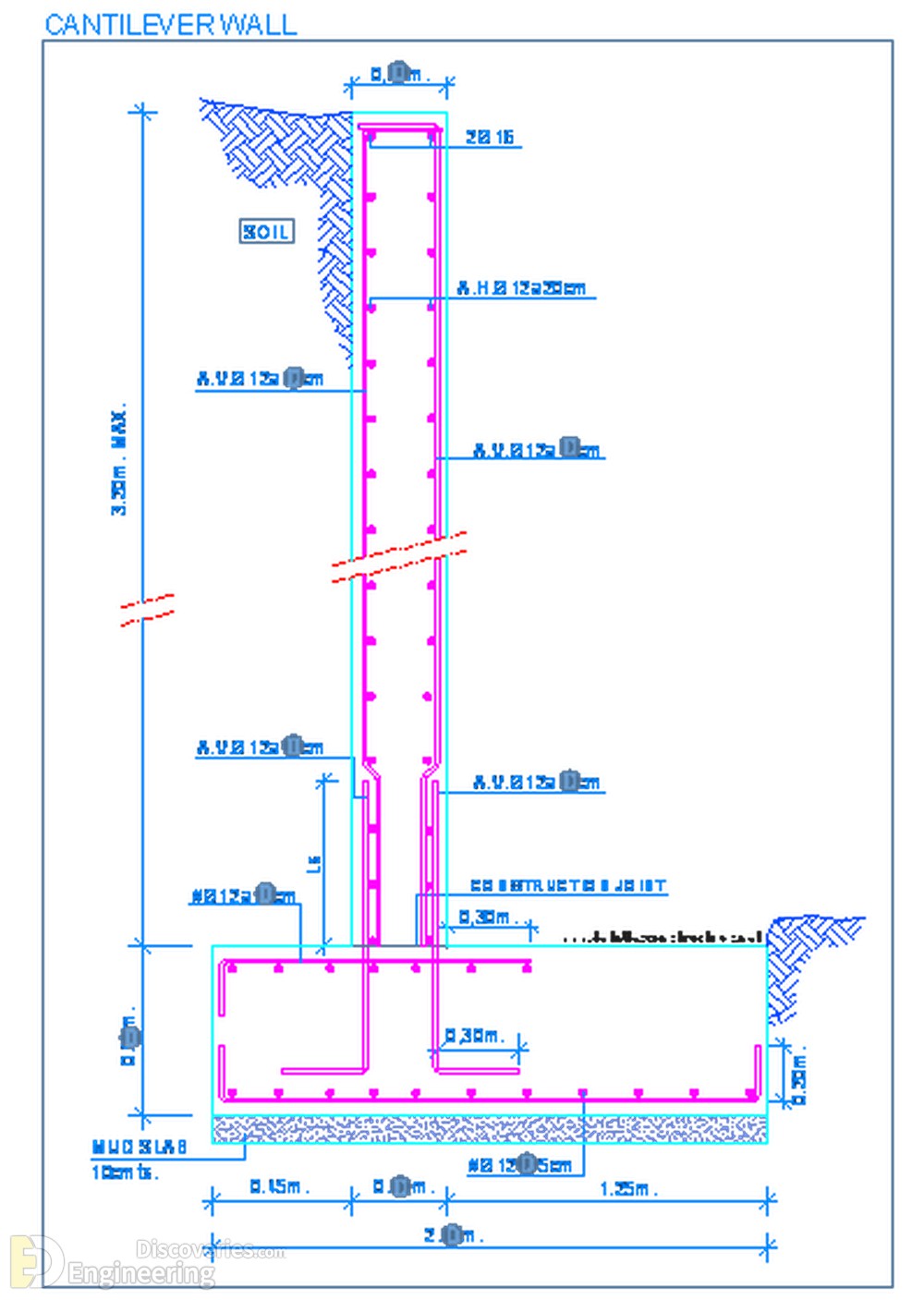

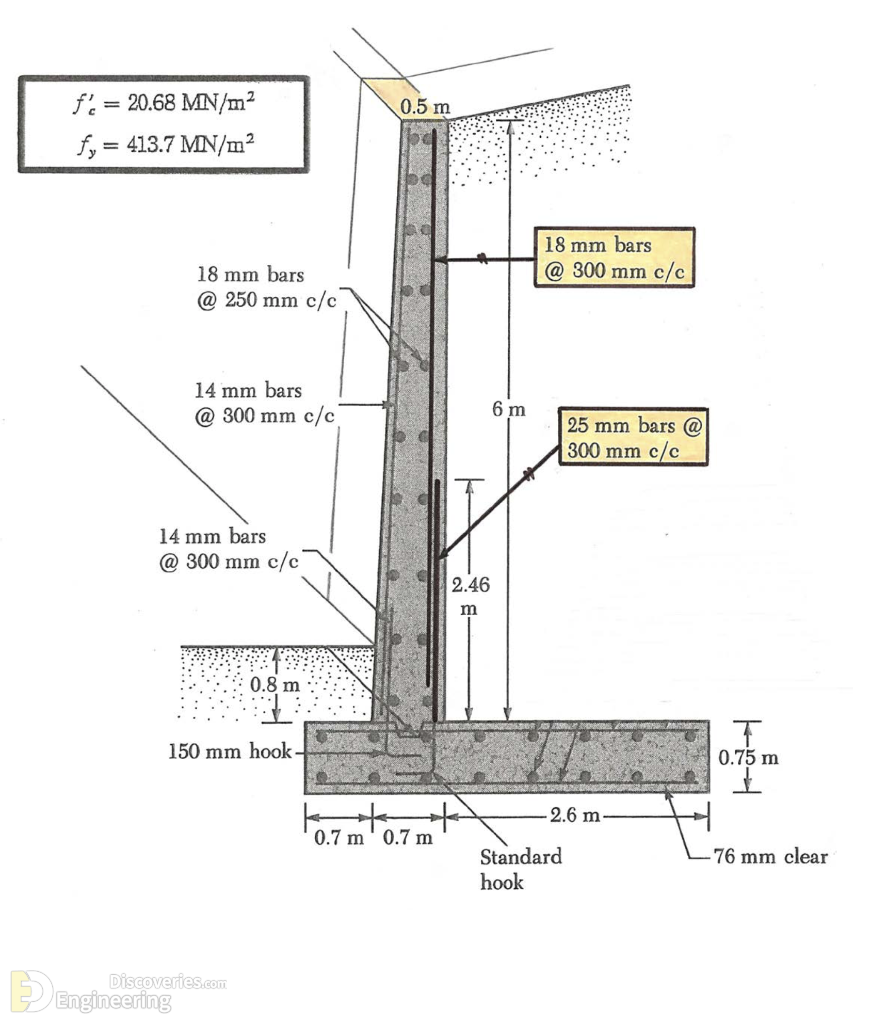

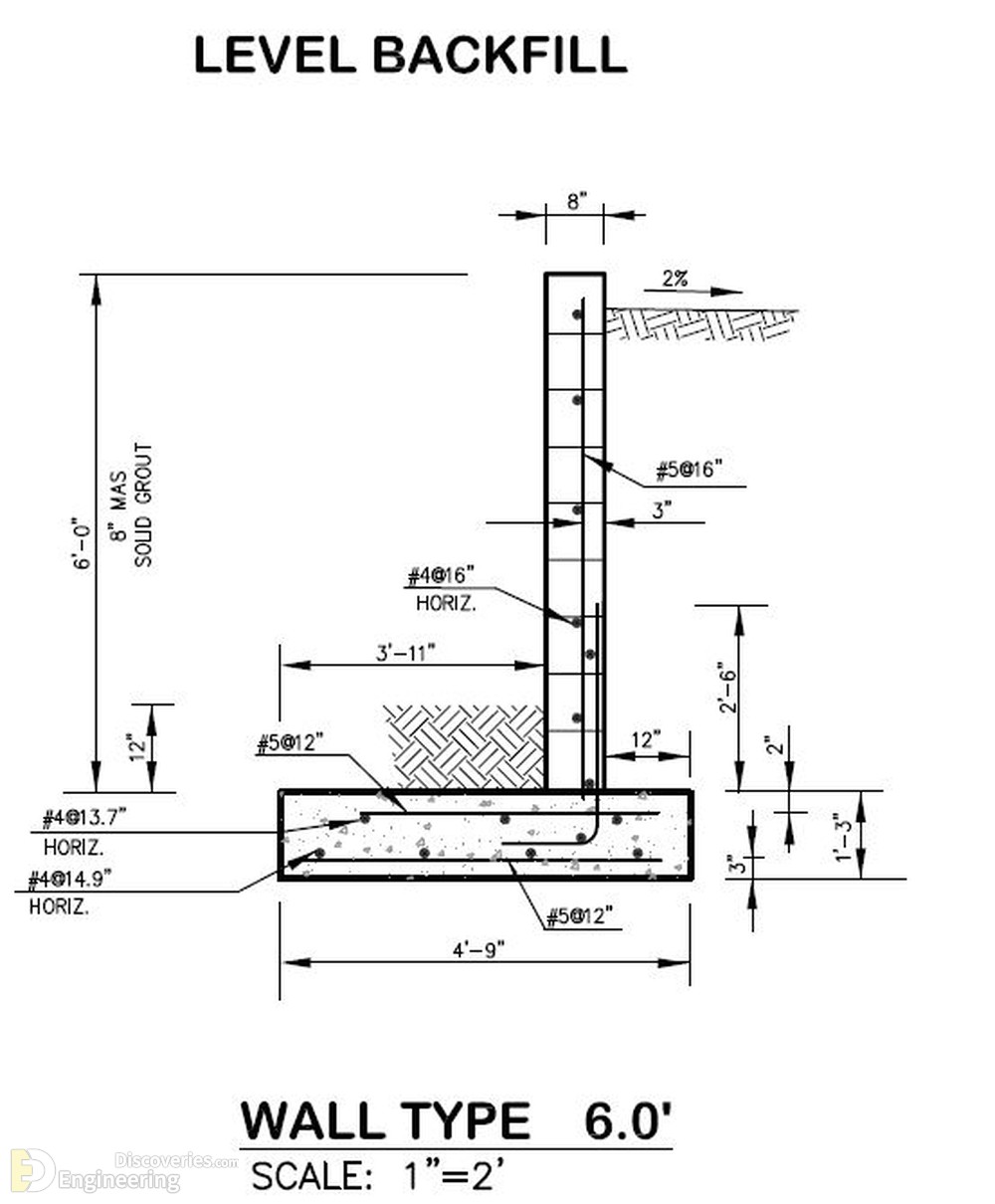

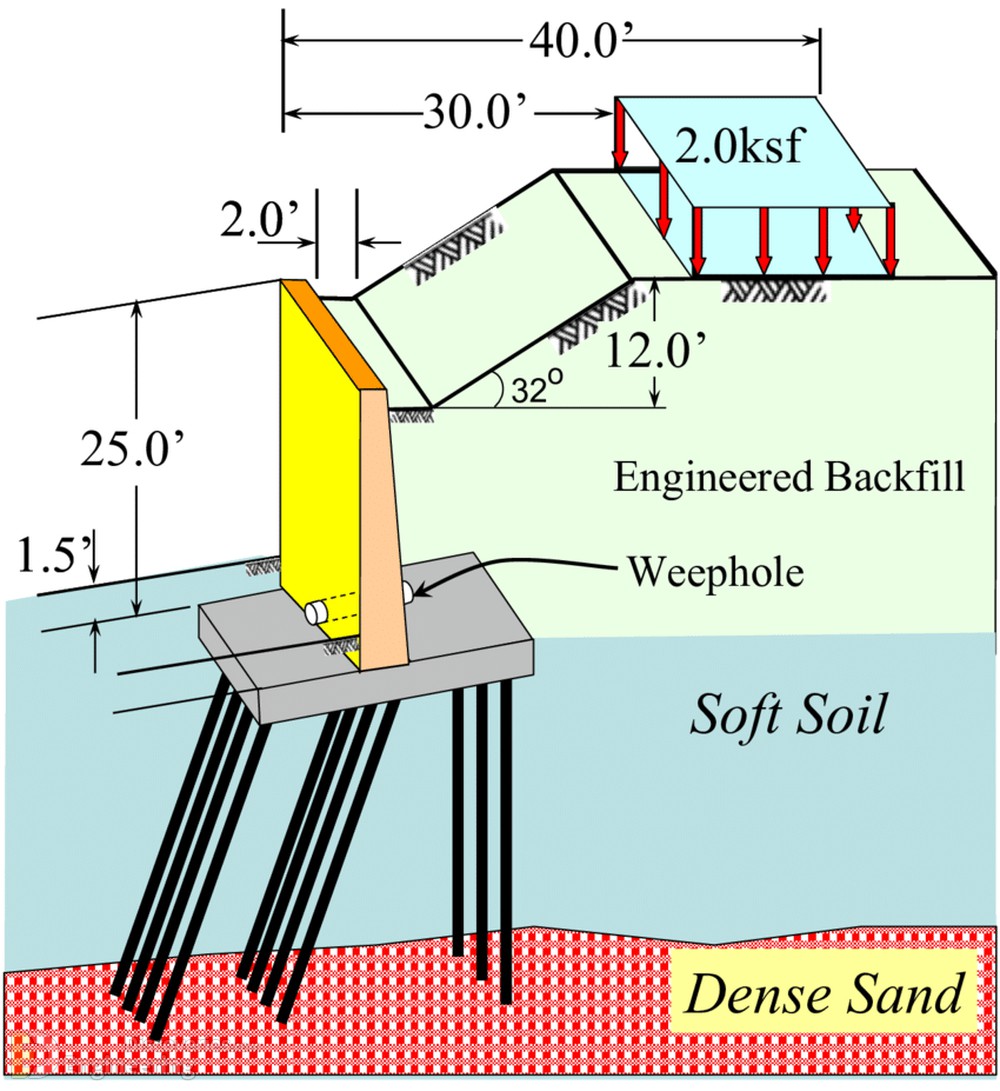

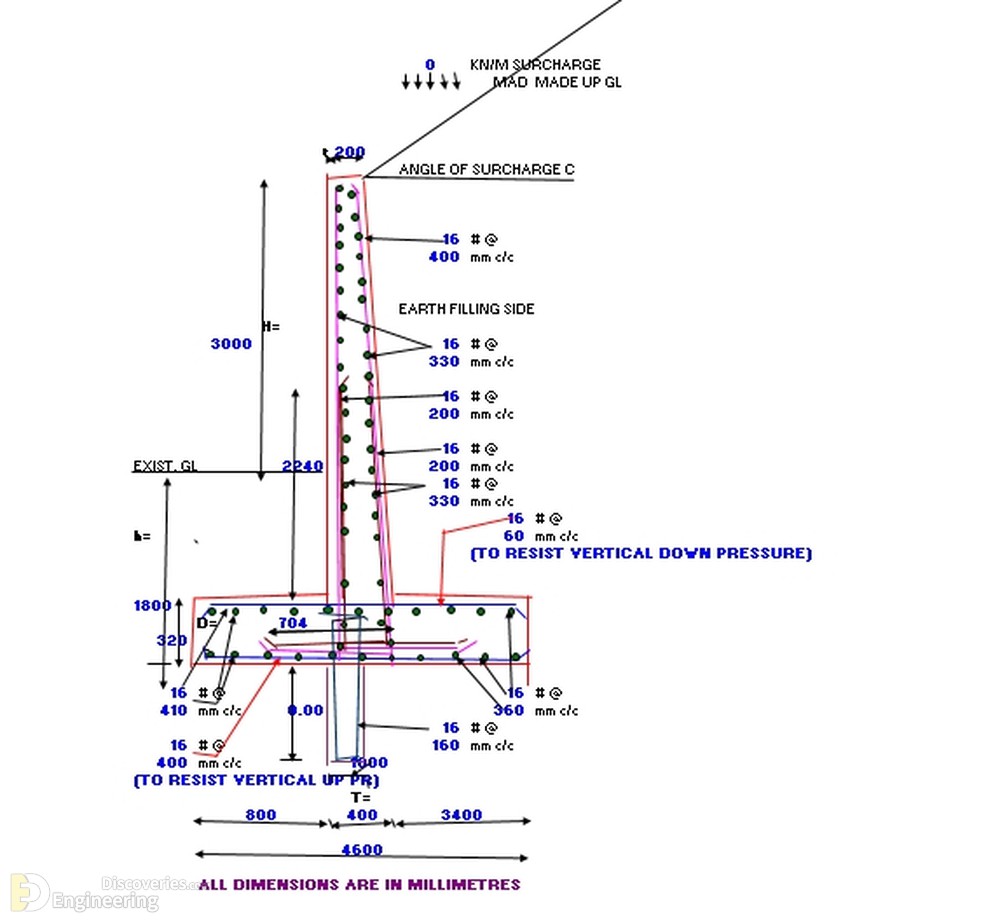

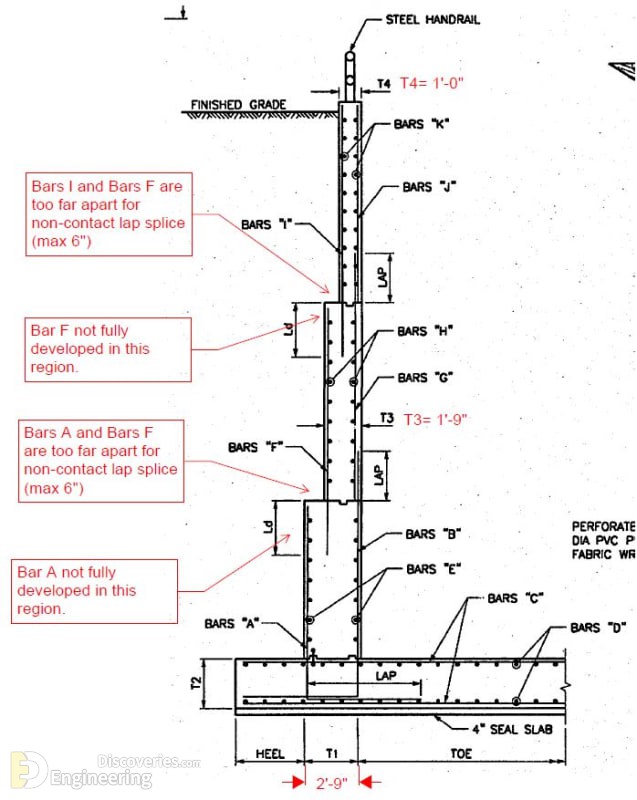

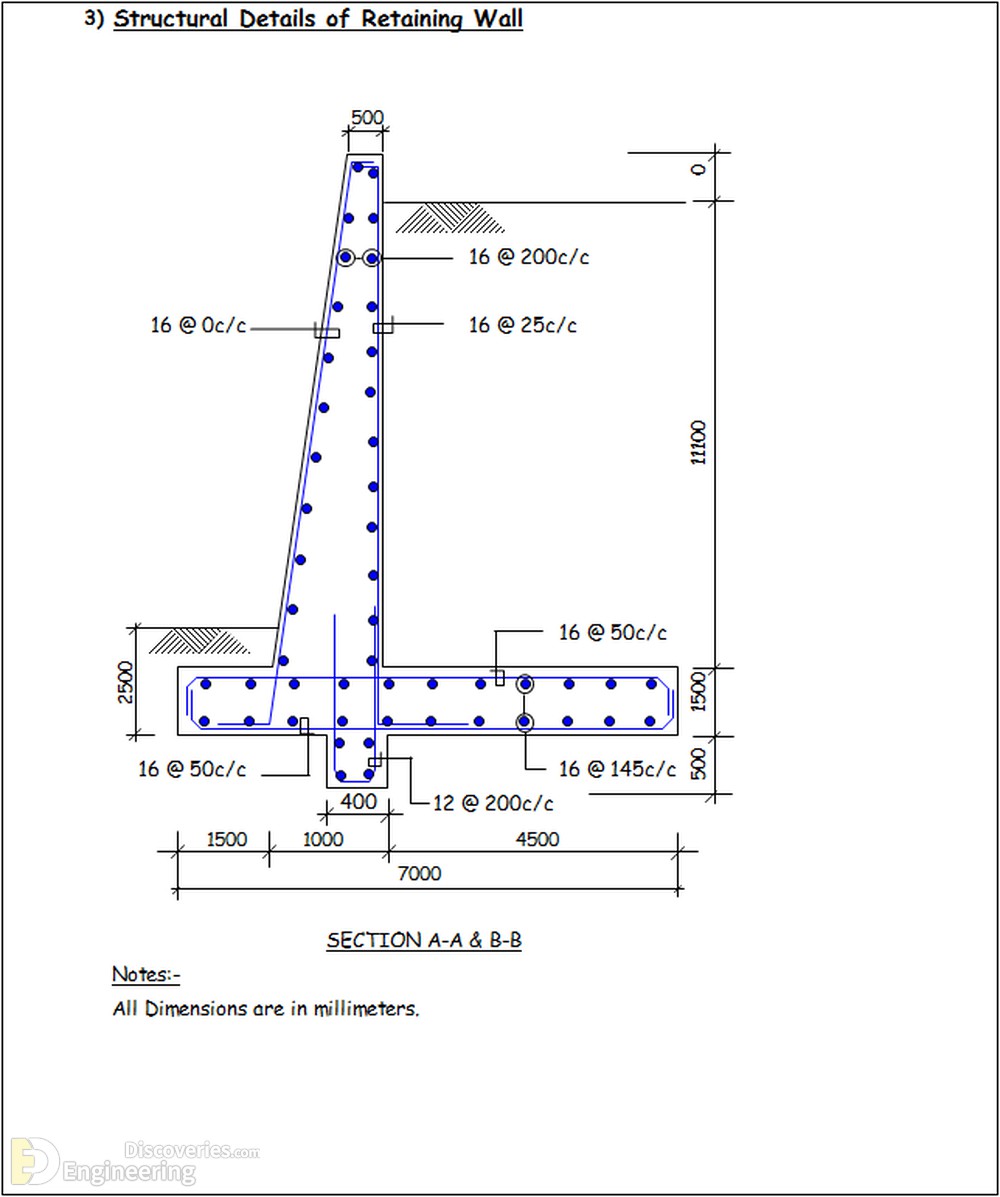

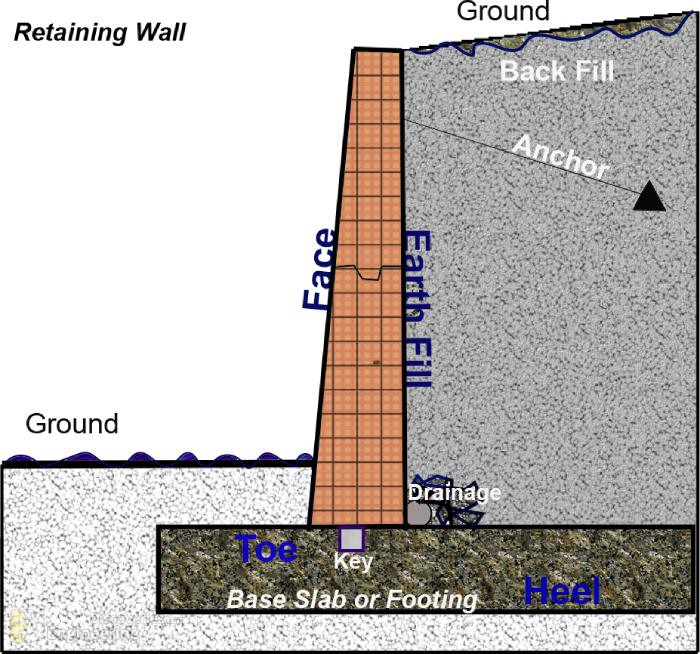

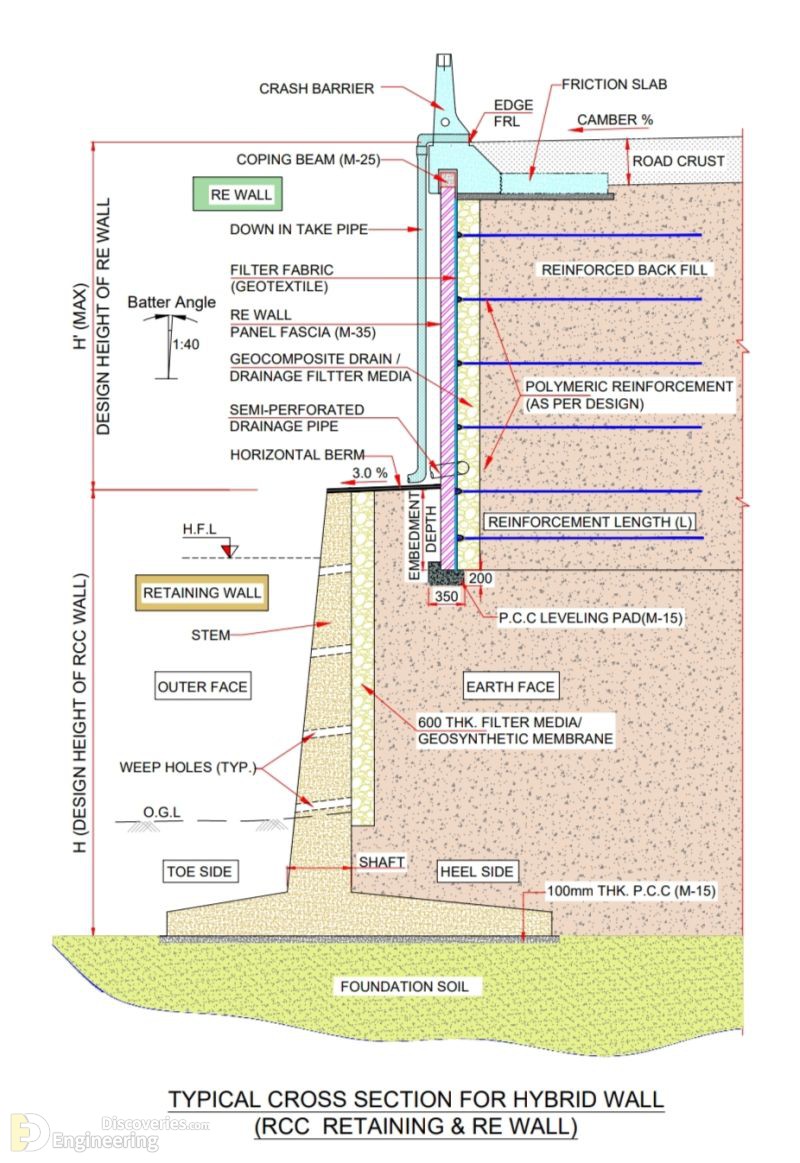

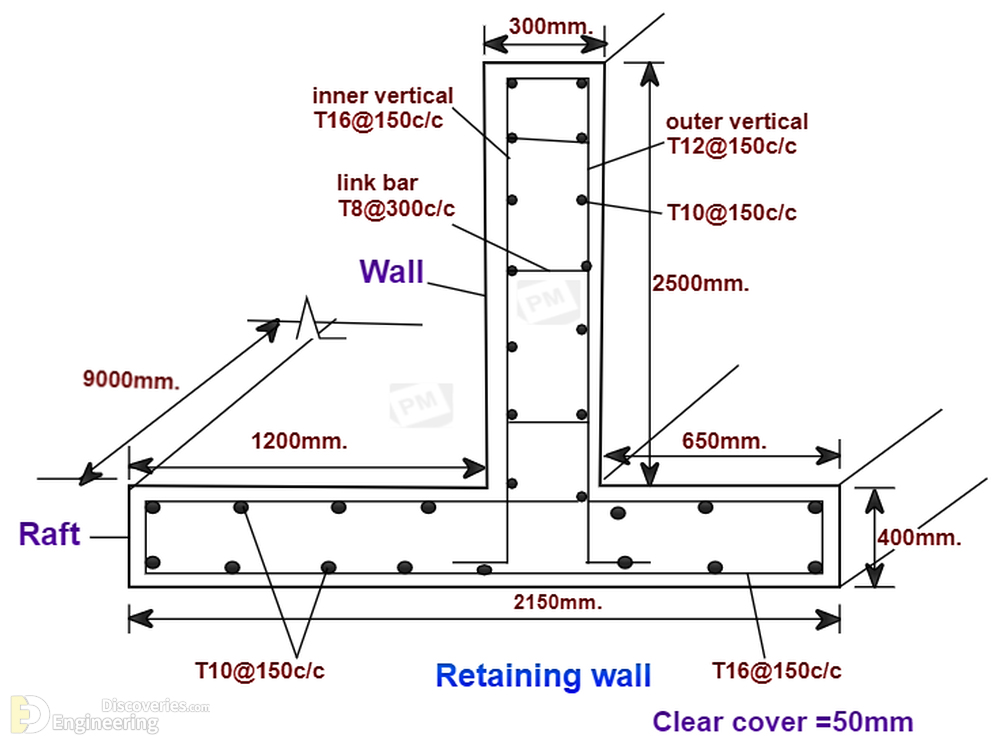

Reinforced concrete retaining walls are critical structures designed to hold back soil and prevent erosion or collapse in areas with significant elevation changes. The detailing of these walls involves meticulous planning and execution to ensure stability, durability, and effectiveness. Key elements in the construction include the design of the wall’s footing, stem, and reinforcement layout. The footing must be sufficiently wide and deep to distribute the load and prevent overturning. The stem, which is the vertical component, needs to be reinforced with steel bars to resist the lateral earth pressures. Proper drainage must also be incorporated to prevent water buildup behind the wall, which can increase pressure and lead to failure. During construction, formwork is set up to shape the wall, and concrete is poured and allowed to cure properly to achieve the desired strength. Quality control at every stage, from material selection to curing, is essential to ensure the longevity and performance of the retaining wall.
