Reinforcement steel bars, often referred to as rebars, are a critical component in modern construction. They provide the tensile strength needed in concrete structures, ensuring durability and stability. In this guide, we cover the most important information about steel bars, including their diameters, weights, lengths, and yield strengths.

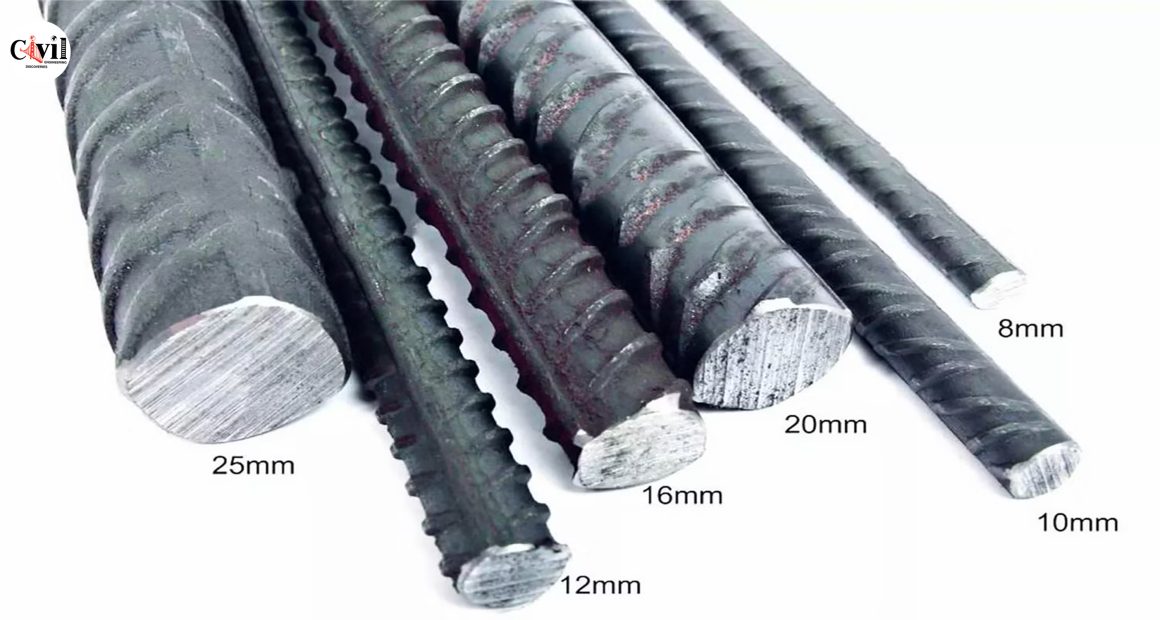

Common Diameters of Steel Bars
Steel bars come in various diameters, each suited for specific applications. The most commonly used diameters include:
- 6 mm
- 8 mm
- 10 mm
- 12 mm
- 16 mm
- 20 mm
- 25 mm
- 32 mm
These variations provide flexibility, catering to different construction requirements ranging from small residential projects to large-scale industrial structures.
Standard Length of Steel Bars
Steel bars typically come in a standard length of 12 meters or 40 feet. This standardization simplifies transportation, storage, and usage on construction sites.
Unit Weight of Steel Bars
The weight of steel bars is an important factor, as it directly affects calculations in construction projects. The unit weight varies depending on the diameter of the steel bar.
Formula to Calculate Unit Weight
The unit weight can be calculated using the following formulas:
- In kilograms per meter (kg/m):
Unit Weight (kg/m) = D2/162 - In kilograms per foot (kg/ft):
Unit Weight (kg/ft)=D2/533
Here, D represents the diameter of the steel bar in millimeters (mm).
This formula ensures accurate weight estimation for structural stability and cost control.
Yield Strength of Steel Bars
The yield strength of steel bars determines their capacity to withstand stress without permanent deformation. Different grades of steel offer varying levels of yield strength:
- Fe 415: 415 N/mm²
- Fe 500: 500 N/mm²
- Fe 550: 550 N/mm²
- Fe 600: 600 N/mm²
Higher yield strength grades, such as Fe 550 and Fe 600, are used in projects demanding greater durability, such as bridges and high-rise buildings.
Conclusion
Understanding the properties of reinforcement steel bars is vital for construction professionals. From selecting the right diameter and length to calculating unit weight and yield strength, each factor plays a key role in ensuring a project’s success. By mastering these essential notes, you can make informed decisions that enhance safety and efficiency in your construction work.
Would you like more insights or custom calculations on reinforcement steel bars? Let us know!
