One of the most important aspects of constructing a room is determining the exact number of bricks required to avoid shortages or excessive surplus. Calculating brick quantity accurately ensures cost-effectiveness and efficiency. This guide provides a step-by-step approach to determining the number of bricks needed for a room.

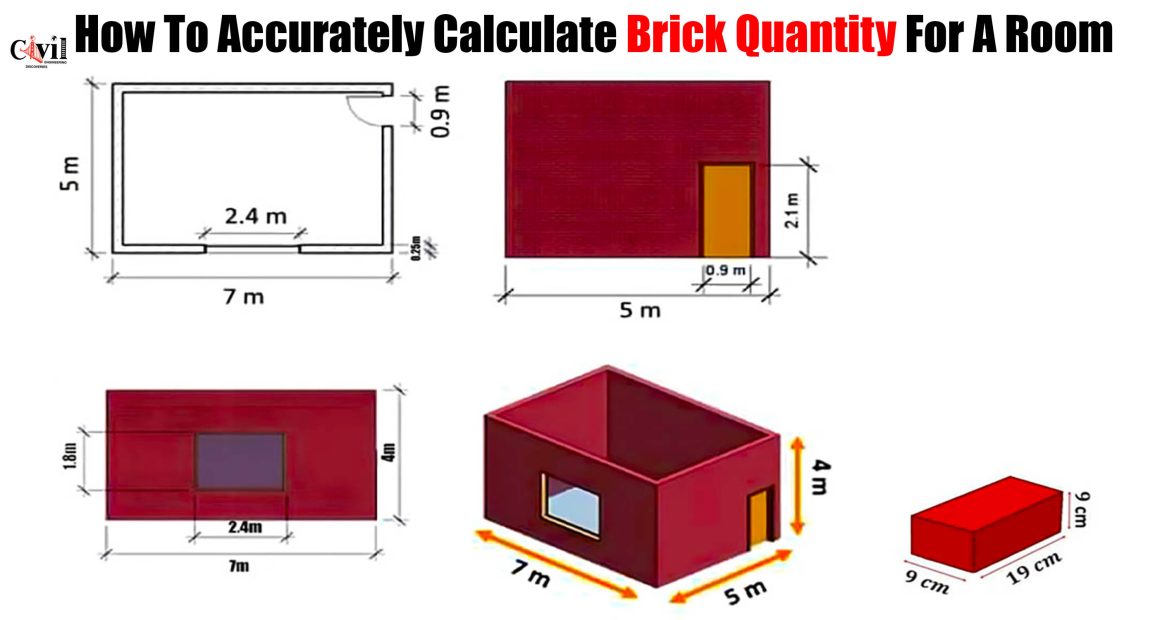

Room Dimensions and Wall Specifications
To start, let’s break down the key measurements:
Length of Room (L): 7 meters
Width of Room (W): 5 meters
Height of Room (H): 4 meters
Wall Thickness (T): 0.25 meters
Door Size: 2.1m x 0.9m
Window Size: 1.8m x 2.4m
Brick Size: 19cm x 9cm x 9cm
Calculate the Volume of Long Walls
The room has two long walls. Multiply the length by two:
Length of Long Wall = 7m x 2 = 14m
Next, find the volume of these walls:
Volume = Length x Height x Thickness
Volume = 14 x 4 x 0.25 = 14 m³
Deduct the Window Area
The window occupies part of the long wall:
Window Volume = 1.8 x 2.4 x 0.25 = 1.08 m³
Net Long Wall Volume = 14 – 1.08 = 12.92 m³
Calculate the Volume of Short Walls
For the short walls:
Length of Short Wall = [5 – (0.25 x 2)] x 2 = 9m
Volume = 9 x 4 x 0.25 = 9 m³
Deduct the Door Area
The door reduces the short wall volume:
Door Volume = 2.1 x 0.9 x 0.25 = 0.4725 m³
Net Short Wall Volume = 9 – 0.4725 = 8.53 m³
Total Wall Volume
Total Volume = 12.92 + 8.53 = 21.45 m³
Brick Volume Including Mortar
Mortar thickness is critical:
Mortar Thickness = 10mm = 0.01m
Brick Size with Mortar = 0.20 x 0.10 x 0.10 = 0.002 m³
Calculate the Number of Bricks
Number of Bricks = 21.45 / 0.002 = 10,725 bricks
Add Wastage Allowance
Factor in a standard 5% wastage:
Wastage = 10,725 x 5/100 = 536.25 bricks
Final Brick Quantity
Total Bricks = 10,725 + 536.25 = 11,261.25 bricks
Rounded Total ≈ of 11,262 bricks
Conclusion
With precise measurements and calculations, you’ll need approximately 11,262 bricks for this room. Always remember to include wastage to avoid material shortages.
