When constructing any structure, accurate material estimation is crucial. This guide provides a step-by-step calculation for determining the required quantity of cement, sand, and bricks for 1 cubic meter of brickwork.

Understanding the Basic Parameters

To begin, we must consider essential factors such as the mortar ratio, mortar thickness, and cement density:

• Mortar Ratio = 1:6 (Cement: Sand)
• Mortar Thickness = 10mm = 0.01m
• Density of Cement = 1440 kg/m³

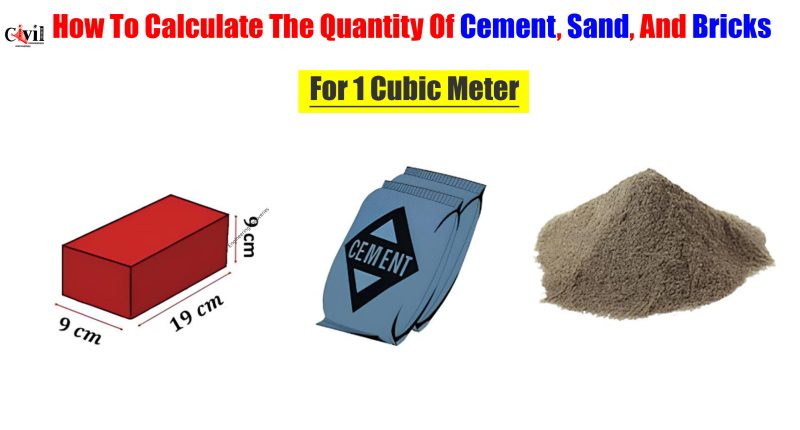

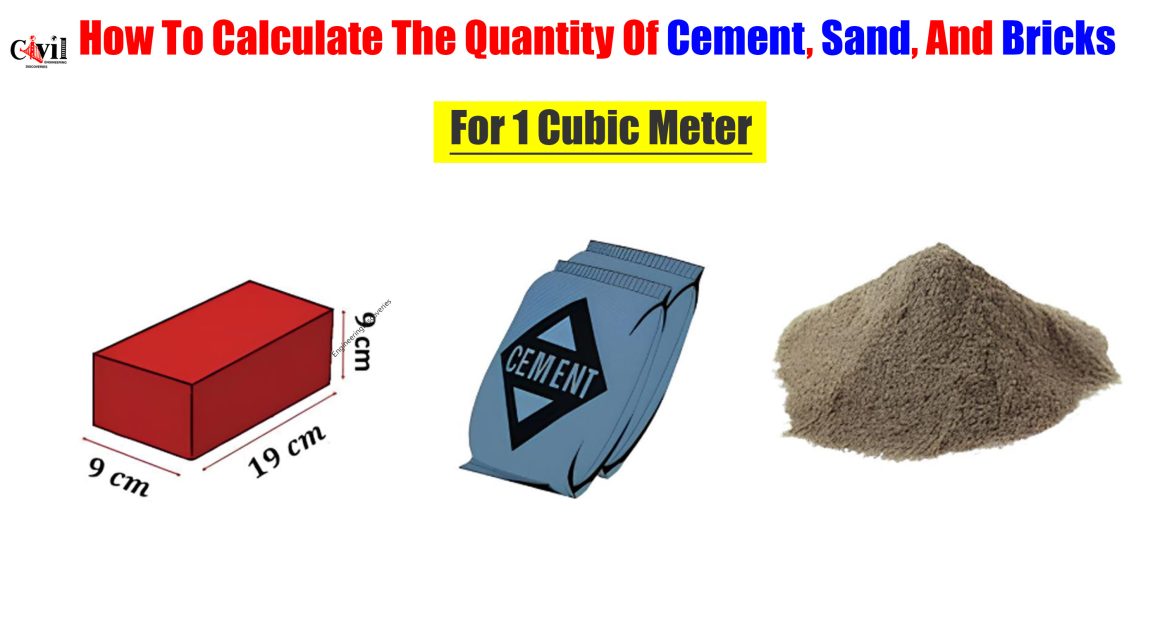

Brick Calculation for 1m³

The number of bricks required depends on their dimensions, both with and without mortar.

Volume of a Brick (Without Mortar)

• L × W × T = 0.19m × 0.09m × 0.09m
• Volume = 0.001539 m³

Volume of a Brick (With Mortar)

• L × W × T = 0.20m × 0.10m × 0.10m
• Volume = 0.002 m³

Total Number of Bricks Required

• 1m³ / 0.002m³ = 500 Bricks

Mortar Calculation for 1m³

Mortar fills the gaps between bricks, and its volume must be considered.

Wet Volume of Mortar

• 1m³ – (500 × 0.001539m³)
• Wet Volume = 0.2305m³

Dry Volume of Mortar

Since mortar shrinks after mixing, a dry-to-wet conversion factor of 1.33 is applied:

• 0.2305m³ × 1.33 = 0.306565m³

Cement Requirement for 1m³

Using a 1:6 mortar ratio, we calculate the amount of cement needed.

Quantity of Cement

• (1/7) × 0.306565 × 1440 = 63kg

Cement in Bags

• 63kg / 50kg (per bag) = 1.26 bags ≈ 2 bags

Sand Requirement for 1m³

Volume of Sand

• (6/7) × 0.306565 = 0.26277m³

Conversion to Cubic Feet

• 0.26277 × 35.3147 ft³ = 9.28 ft³

Final Material Estimation for 1m³ Brickwork

For 1m³ of brickwork, the following quantities are required:

• Total Number of Bricks = 500 Bricks
• Cement = 63kg (≈ 2 bags)
• Sand = 9.28 ft³
