Bridges are engineering marvels that connect people and places. To fully understand their functionality, let’s dive into a bridge’s essential components and roles. This guide covers each element in detail, making it easier to grasp the complexity behind these structures.

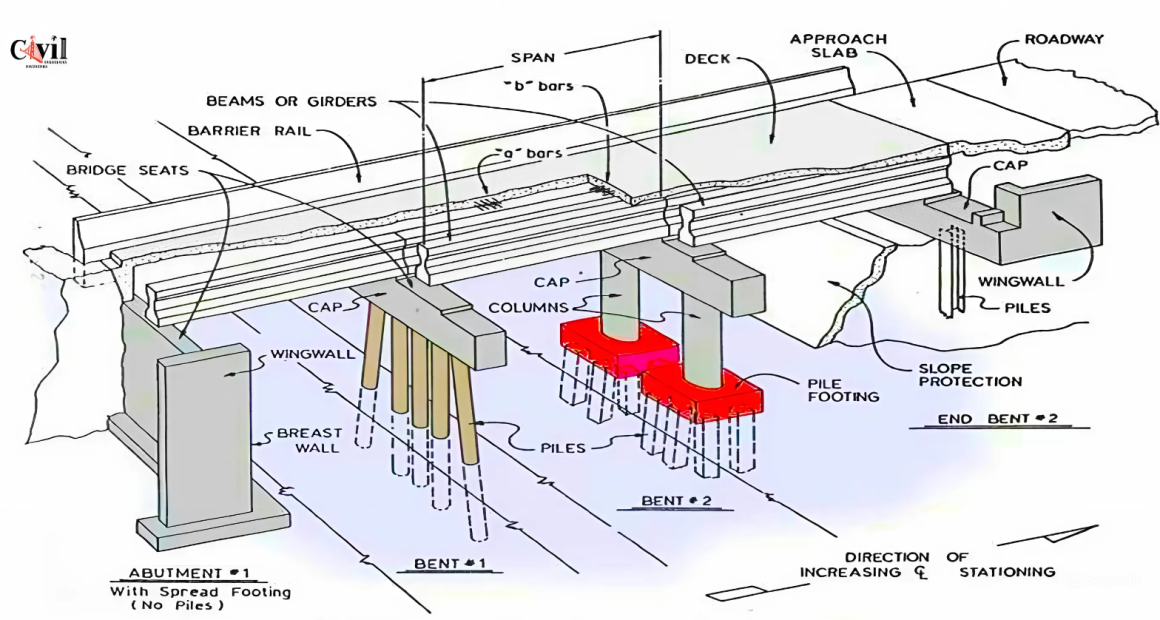

1. Abutment and Wingwalls

What Are Abutments?

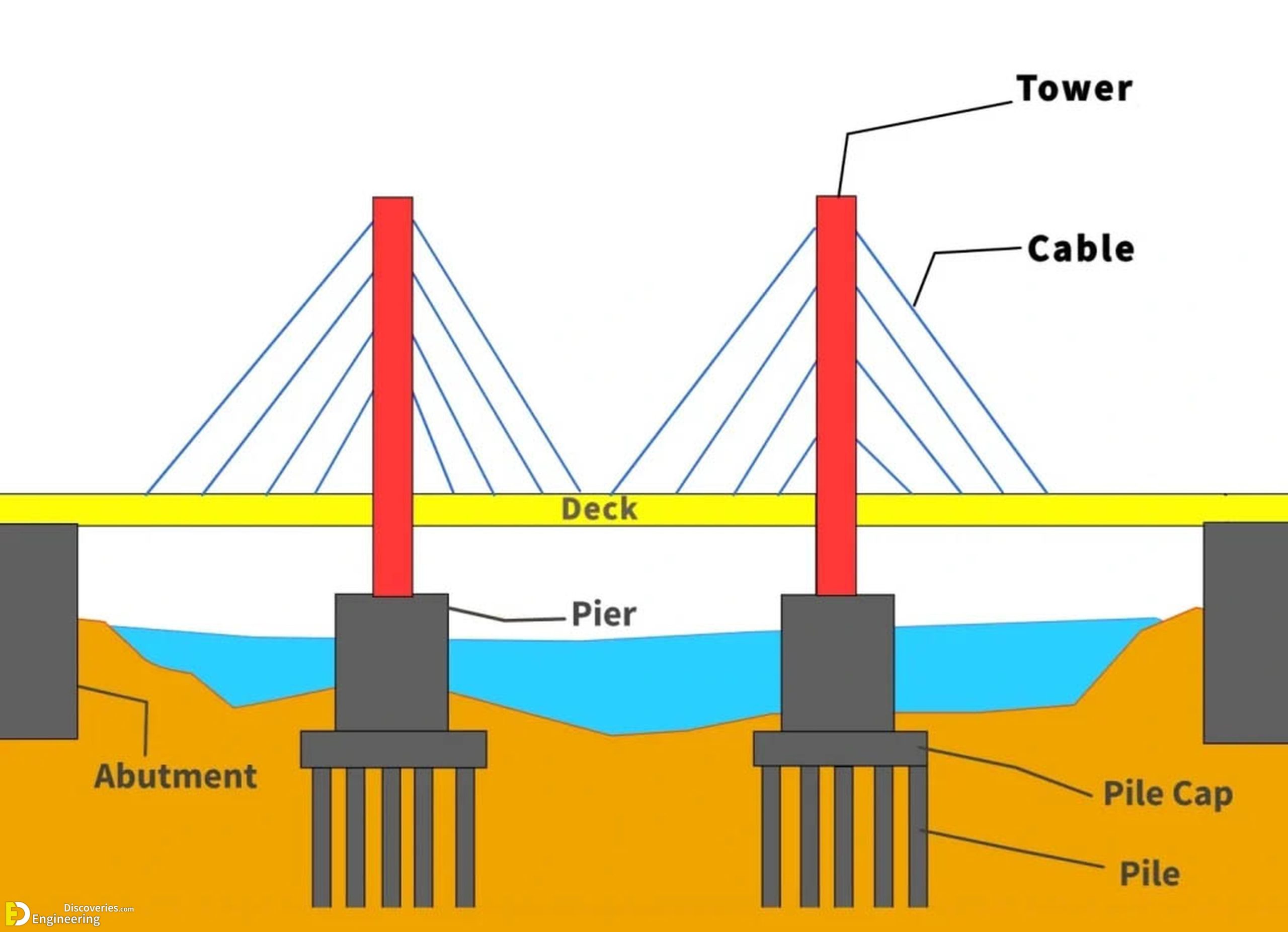

Abutments are the primary supports at both ends of a bridge. They hold the structure’s weight and transfer loads to the ground. They also support the bridge deck and prevent the structure from shifting.

The Role of Wingwalls

Wing walls extend from the abutments to retain the soil and provide a smooth transition to the roadway. These walls ensure that the embankments on either side remain stable.

2. Bridge Deck

What is the Deck?

The deck is the surface where vehicles and pedestrians travel. It distributes the live load of traffic to the supporting beams or girders.

Reinforcement Bars (“a” and “b” Bars)

Steel reinforcement bars, commonly referred to as “a” and “b” bars, are embedded within the deck for added strength and durability. They enhance the deck’s resistance to tension and prevent cracking under heavy loads.

3. Beams or Girders

Beams or girders are horizontal supports underneath the deck. These components bear the deck’s load and transfer it to the bridge’s substructure. They are crucial for maintaining the stability and integrity of the entire structure.

4. Piles and Pile Footings

Piles

Piles are long vertical supports driven deep into the ground to reach stable soil or rock layers. They provide a solid foundation for the bridge, especially in areas with loose or unstable soil.

Pile Footings

Pile footings distribute the weight from the bridge’s columns to the piles. These footings ensure uniform load distribution and prevent uneven settlement.

5. Bents and Columns

Bents

Bents are vertical structural frames consisting of columns and caps. They provide intermediate support for the bridge span, ensuring the deck remains stable over longer distances.

Columns

Columns are vertical members of the bents. They transfer the deck’s load to the pile footings or abutments below.

6. Barrier Rails

Barrier rails are installed on both sides of the deck to ensure the safety of vehicles and pedestrians. These barriers prevent accidental falls and provide a sense of security for bridge users.

7. Approach Slab

The approach slab forms the transition between the roadway and the bridge deck. It ensures a smooth and safe ride for vehicles entering or exiting the bridge.

8. Slope Protection

Slope protection prevents soil erosion around the abutments and bridge ends. It stabilizes the surrounding area and protects the bridge’s foundation from environmental factors.

9. End Bents

End bents, also known as “bridge ends,” support the deck and provide a seamless connection to the roadway. They play a critical role in handling both vertical and horizontal forces.

10. Span

The span is the distance between two supports, such as abutments or piers. A longer span reduces the need for additional support, making the bridge more cost-effective and visually appealing.
