Determining the effective span of beams in structural engineering is critical for accurate design and safety. Clause 22.2 of IS 456 provides guidelines for calculating the effective span for supported beams or slabs, especially when the beam is not built integrally with its supports. Here, we will break down the concept of effective span, its calculation methods, and an example for clarity.

What is Effective Span?

The effective span of a beam or slab is essentially the distance considered for load-bearing calculations. It’s crucial to assess how much load a structure can support. For simply supported beams or slabs that aren’t built integrally with their supports, the effective span is determined using two possible values, choosing the smaller one for conservative design.

Clause 22.2 of IS 456: Effective Span Calculation

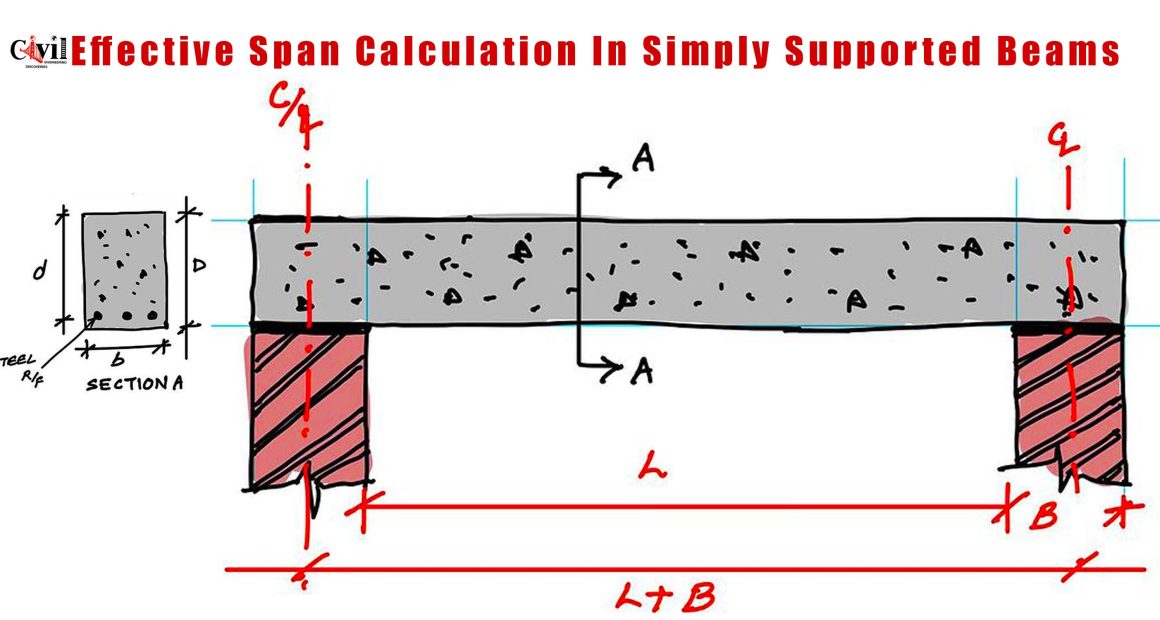

According to IS 456, the effective span for a simply supported beam is determined by:

• The clear span (L) plus the effective depth (d) of the beam.
• The center-to-center distance of the supports (L + B).

The effective span (Leff) is then given by:

Effective Span=min⁡(L+d,L+B)

Explanation of Terms

• Clear Span (L): The distance between the inner faces of the supports.
• Effective Depth (d): The depth from the top of the beam to the centroid of the reinforcement steel
• Width of Support (B): The thickness or width of the supporting wall or column.

Detailed Example Calculation

Consider a beam with:

• Clear Span (L) = 10 meters
• Support Width (B) = 230 mm (0.23 meters)
• Effective Depth (d) = 450 mm (0.45 meters)

Using the formula provided in IS 456, we calculate the effective span by determining the minimum of the two values:

1. L + d: 10 + 0.45 = 10.45 meters
2. L + B: 10 + (0.23 / 2) + (0.23 / 2) = 10.23 meters

Thus, the effective span is:

Effective Span=min⁡(10.45,10.23)=10.23 meters

Importance of Effective Span in Beam Design

Calculating the effective span accurately ensures the beam is neither undersized nor oversized for its purpose. It directly impacts load distribution, bending moments, and overall stability. Misestimating this span could lead to structural inefficiencies or safety risks.
