Structural beam deflection is a critical factor in construction and engineering. It refers to the degree to which a structural beam bends under load. Managing deflection is essential to ensure safety, durability, and functionality in buildings and structures.

What Is Structural Beam Deflection?

Beam deflection occurs when a load is applied to a beam, causing it to bend or deform. This bending depends on several factors, including the beam’s material, size, shape, and the type of load. Excessive deflection can lead to structural failure, cracks, or other damage.

Key Factors Affecting Beam Deflection

1. Material Properties
   The elasticity of the material plays a vital role. Materials like steel have high elasticity and resist deflection better than others.
2. Load Type and Placement
   The load’s magnitude, type, and position determine how much a beam deflects. Uniformly distributed loads cause different deflection patterns compared to point loads.
3. Beam Geometry
   The beam’s length, cross-section, and moment of inertia significantly influence deflection. Thicker and shorter beams generally resist deflection more effectively.
4. Support Conditions
   Fixed, supported, or cantilever beams react differently under similar loads. Proper support minimizes unwanted deflection.

Why Is Beam Deflection Important?

Excessive deflection can compromise the structural integrity of buildings. It may cause cracking in walls, ceilings, and floors, leading to costly repairs. Additionally, deflection affects the performance of sensitive equipment in structures like hospitals or laboratories.

Acceptable Limits for Deflection

Deflection limits are typically specified in building codes. For example:

• For beams in residential buildings, the deflection should not exceed L/240, where L is the beam span.
• For more sensitive applications, stricter limits, such as L/360, are required.

How to Minimize Structural Beam Deflection

1. Choose the Right Material

Using materials with high stiffness, like steel or engineered wood, can reduce deflection. Materials with higher elasticity modulus are more resistant to bending.

2. Optimize Beam Design

Increase the beam’s cross-sectional area or use composite materials for greater strength. Designing with an adequate moment of inertia reduces deflection risks.

3. Adjust Load Distribution

Spread loads evenly to reduce stress on specific areas. Use load-balancing techniques to minimize concentrated forces.

4. Reinforce Support Systems

Enhance the beam’s support structure by adding intermediate supports or strengthening existing ones. Cantilever beams benefit significantly from extra support points.

Tools to Calculate Beam Deflection

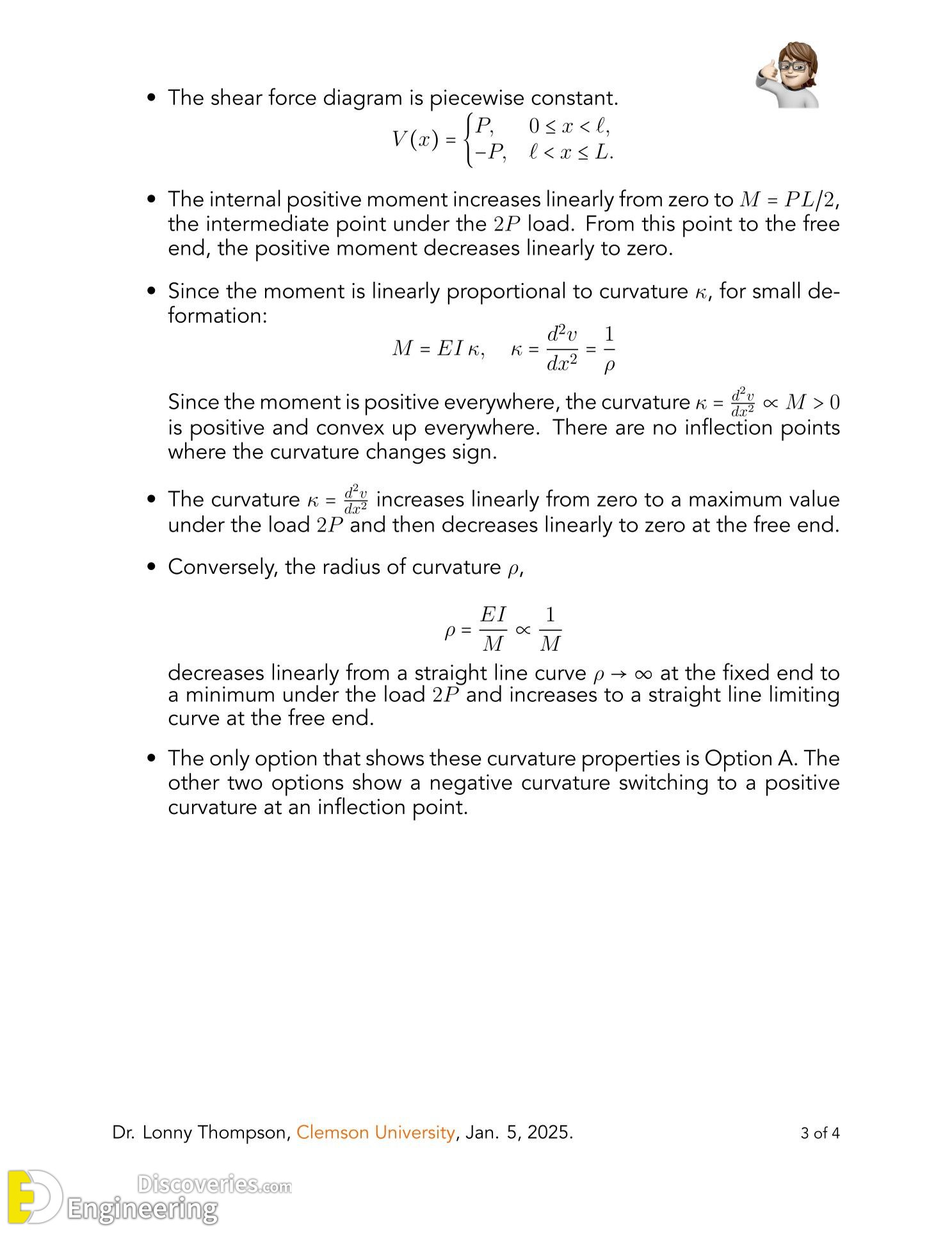

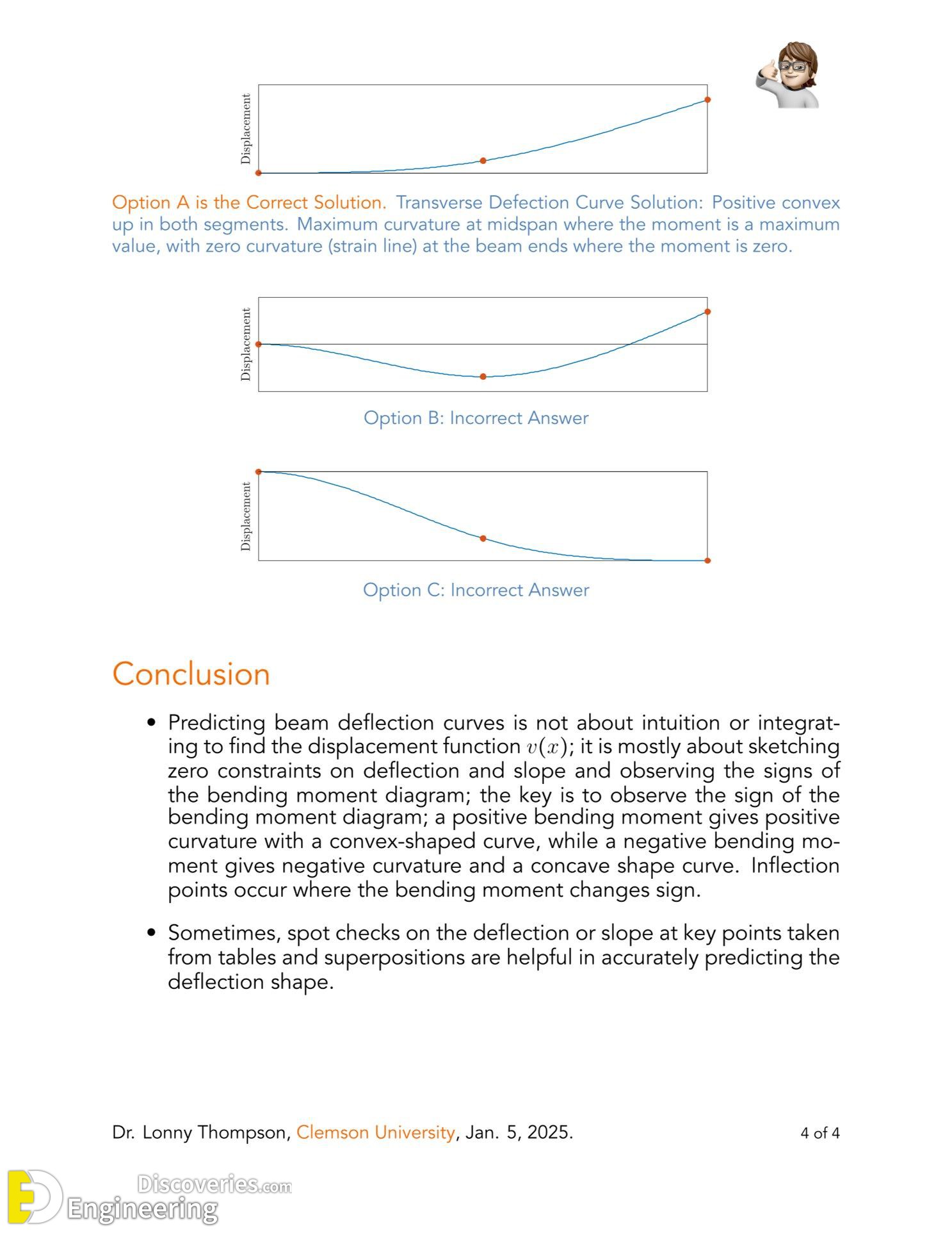

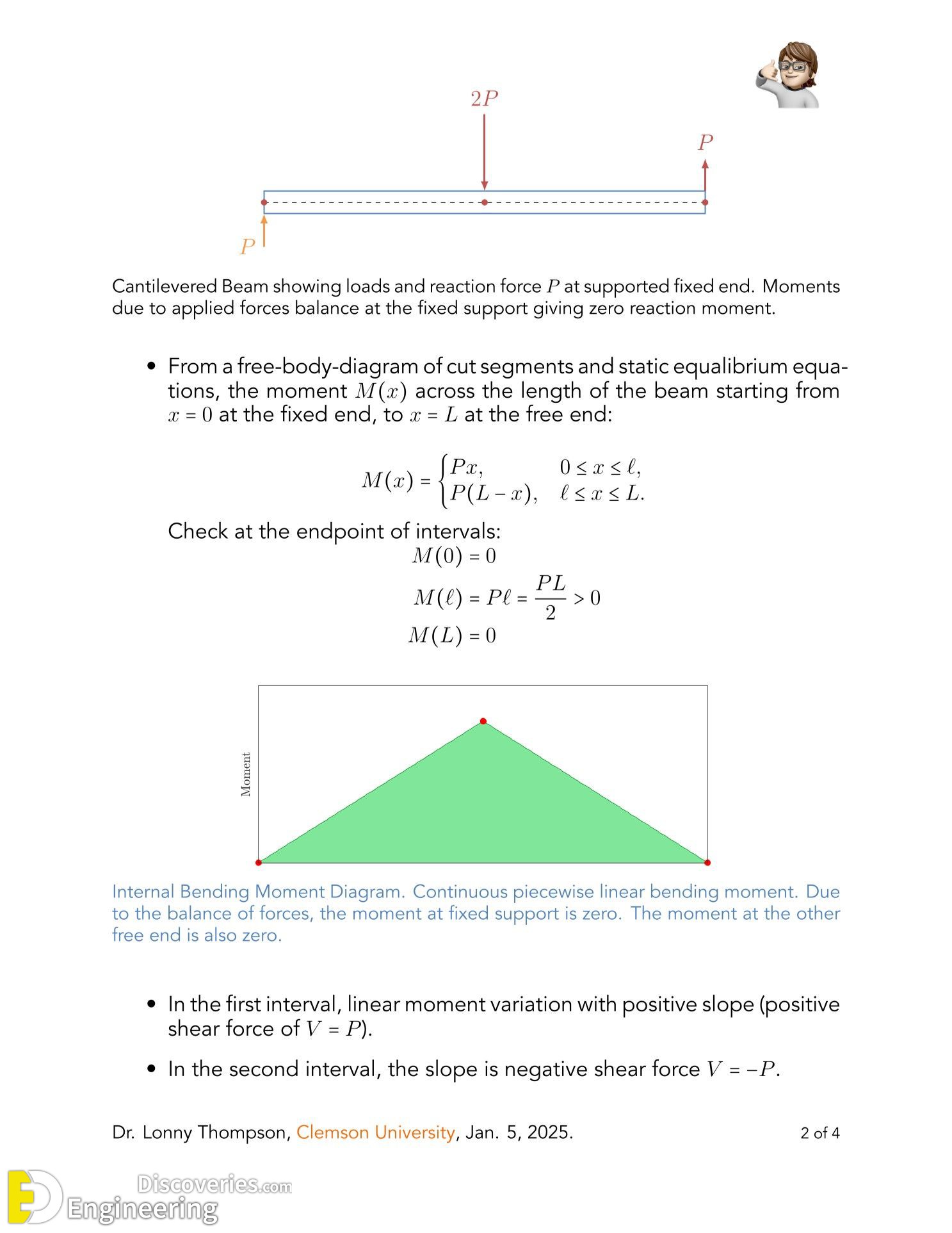

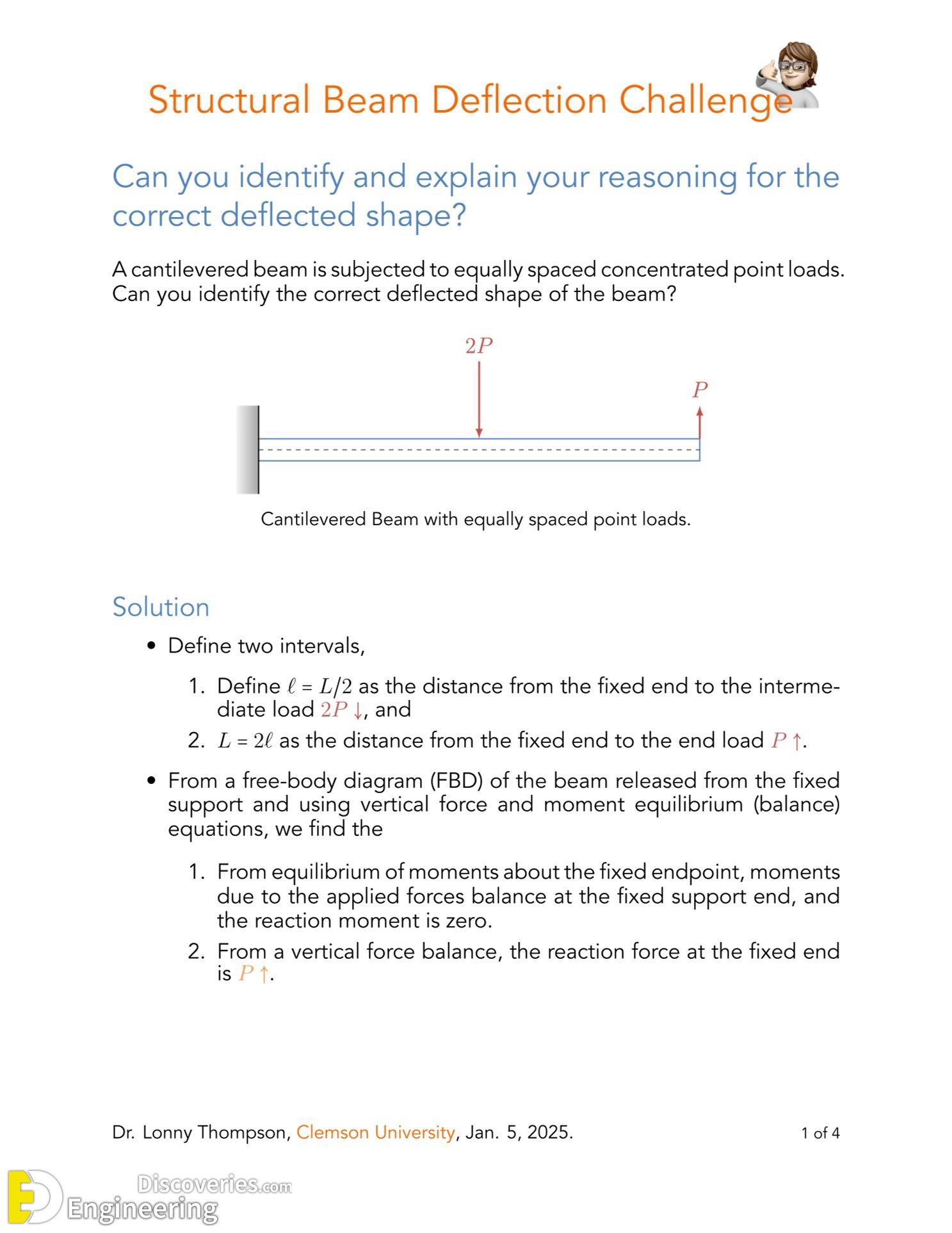

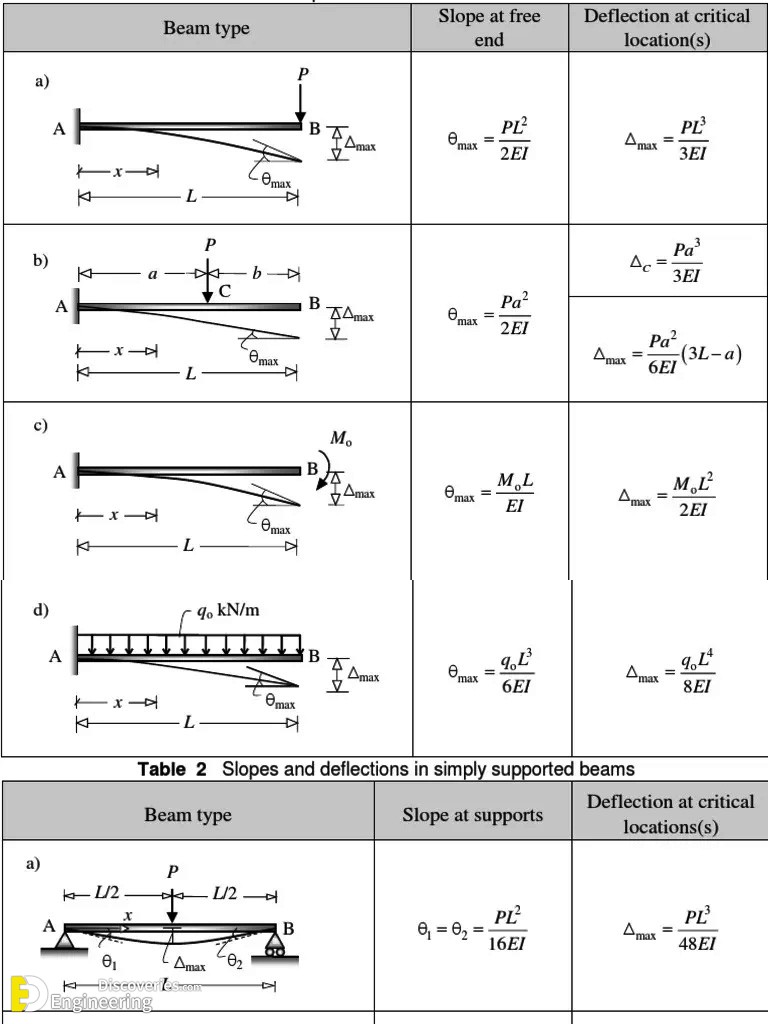

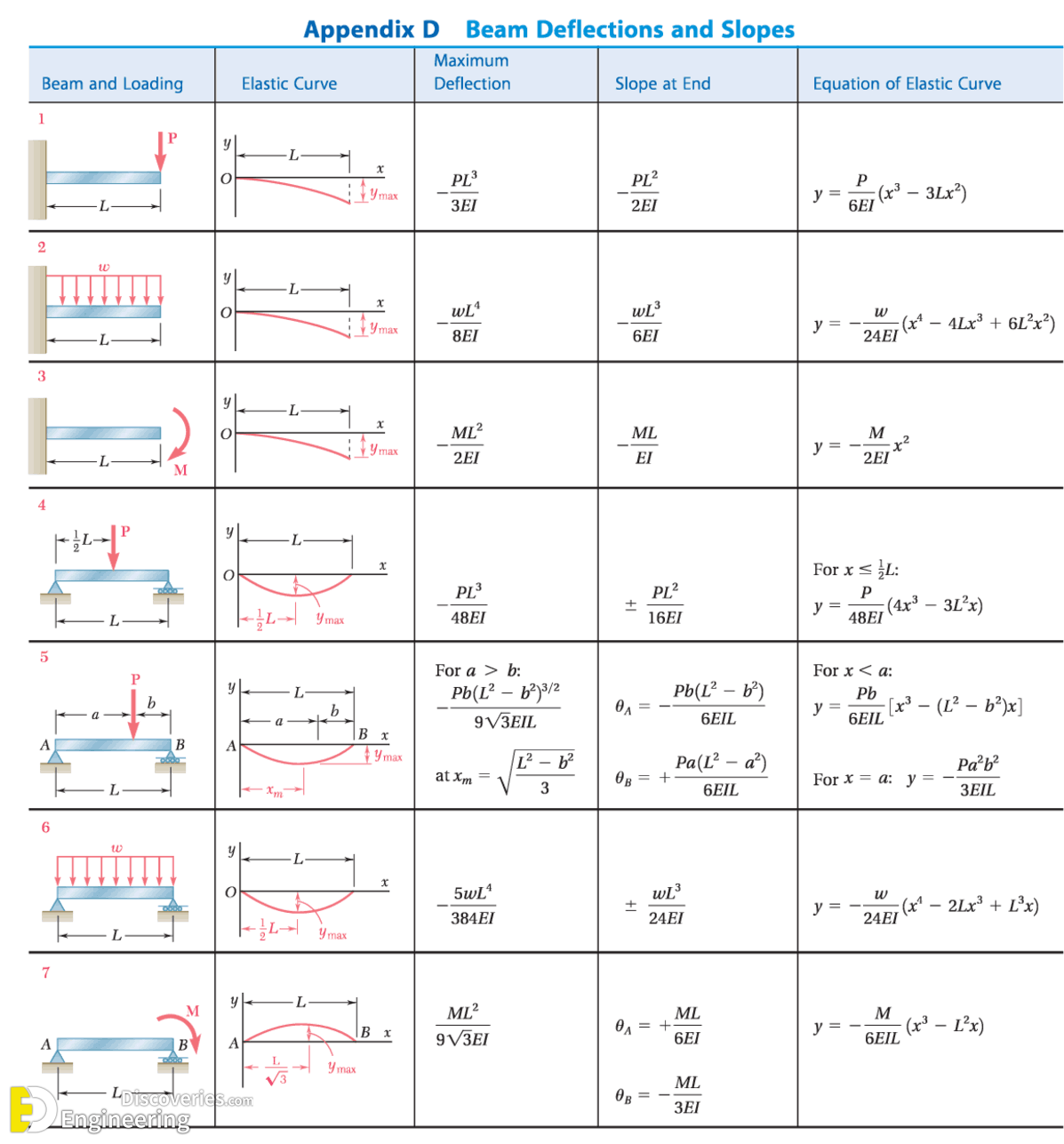

Accurate deflection calculations require formulas based on structural analysis principles. Common methods include:

• Euler-Bernoulli Beam Theory: Useful for simple beams and basic load scenarios.
• Finite Element Analysis (FEA): Ideal for complex geometries and advanced load conditions.
• Online Calculators: Quick and accessible tools for preliminary calculations.
