Importance of Proper Frame Corner Detailing

Ensuring the safety and durability of reinforced concrete structures is crucial. Structural elements must not only withstand high loads but also exhibit ductile behavior. This prevents localized failures from escalating into catastrophic collapses. One critical aspect of this is the reinforcement detailing in frame corners.

Challenges of Traditional Frame Corner Detailing

Detail 1, a conventional reinforcement method, has long been considered difficult to execute accurately on-site. Its complexity increases the risk of improper placement, reducing structural performance. Due to these challenges, a more practical alternative, Detail 2, was introduced and tested for its efficiency.

Introducing a Simpler and Stronger Alternative

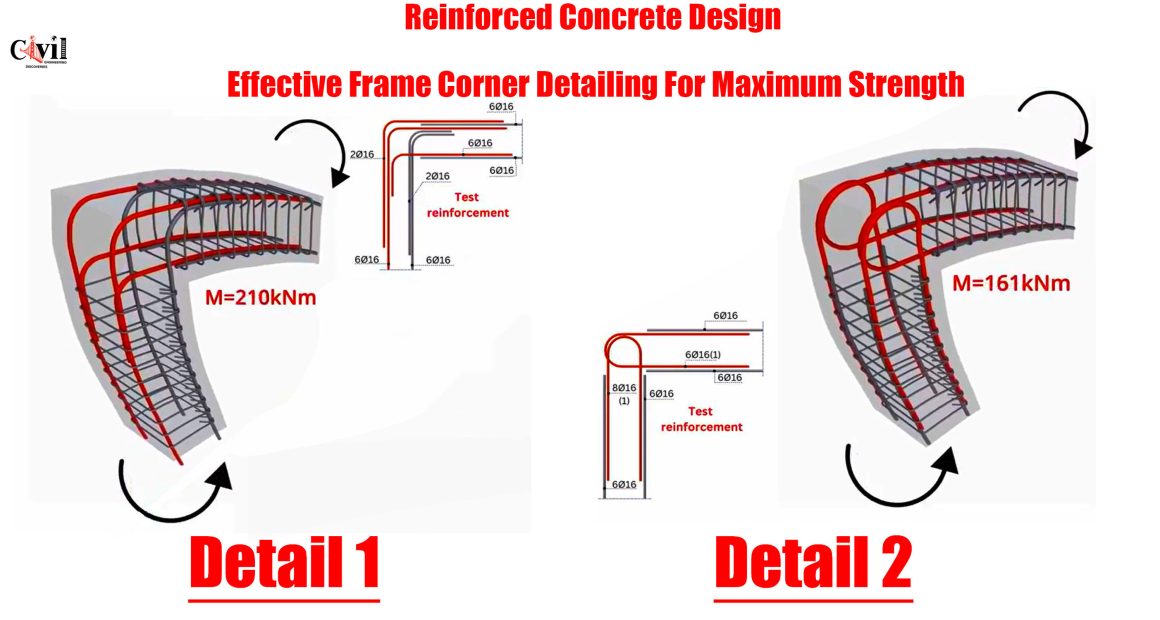

Detail 2 offers a significant improvement in both constructability and performance. All reinforcement bars are spliced within the corner region in this method, simplifying execution while maintaining structural integrity. A study conducted at Chalmers University of Technology in Sweden confirmed its suitability as a replacement for Detail 1.

Performance Comparison: Detail 1 vs. Detail 2

Performance under different loading conditions is crucial for evaluating reinforcement details. When tested for opening moments:

• Detail 1 (6Ø12 rebar configuration): Achieved a moment capacity of 11.9 kNm.
• Detail 2: Demonstrated a significantly higher moment capacity of 34.0 kNm.

These results highlight the superior strength and efficiency of Detail 2, making it a preferred choice for modern structural applications.

Considerations for Beam-Column Connections

Despite its advantages, Detail 2 requires careful implementation in beam-column connections. The risk of concrete spalling must be addressed to maintain overall structural stability. Proper anchorage, material selection, and construction quality are essential to maximizing the benefits of this detail.

Conclusion: Enhancing Structural Performance with Detail 2

By replacing the traditional Detail 1 with the more efficient Detail 2, reinforced concrete frame corners can achieve higher moment capacities and improved constructability. This advancement ensures safer and more resilient structures, emphasizing the importance of meticulous reinforcement detailing in modern engineering practices.
