Support in a structure is a member which helps others member to resist loads. Different types of supports, their reactions and applications for structures and their details is discussed. Supports in a structure transfers the load to the ground and provides stability to the structure supported on it.

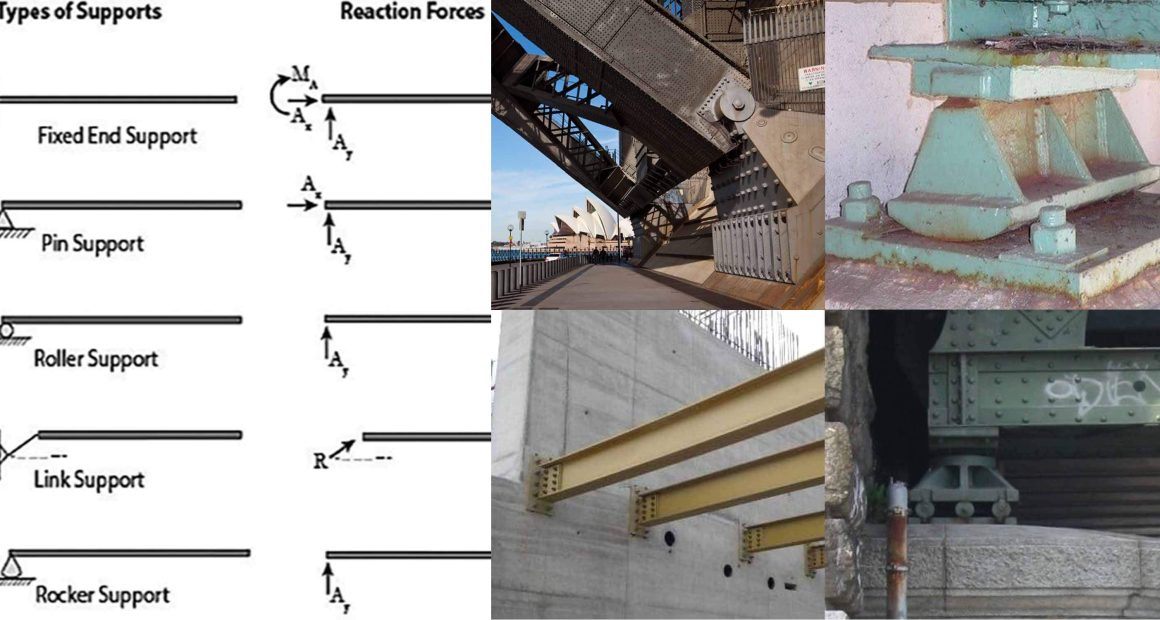

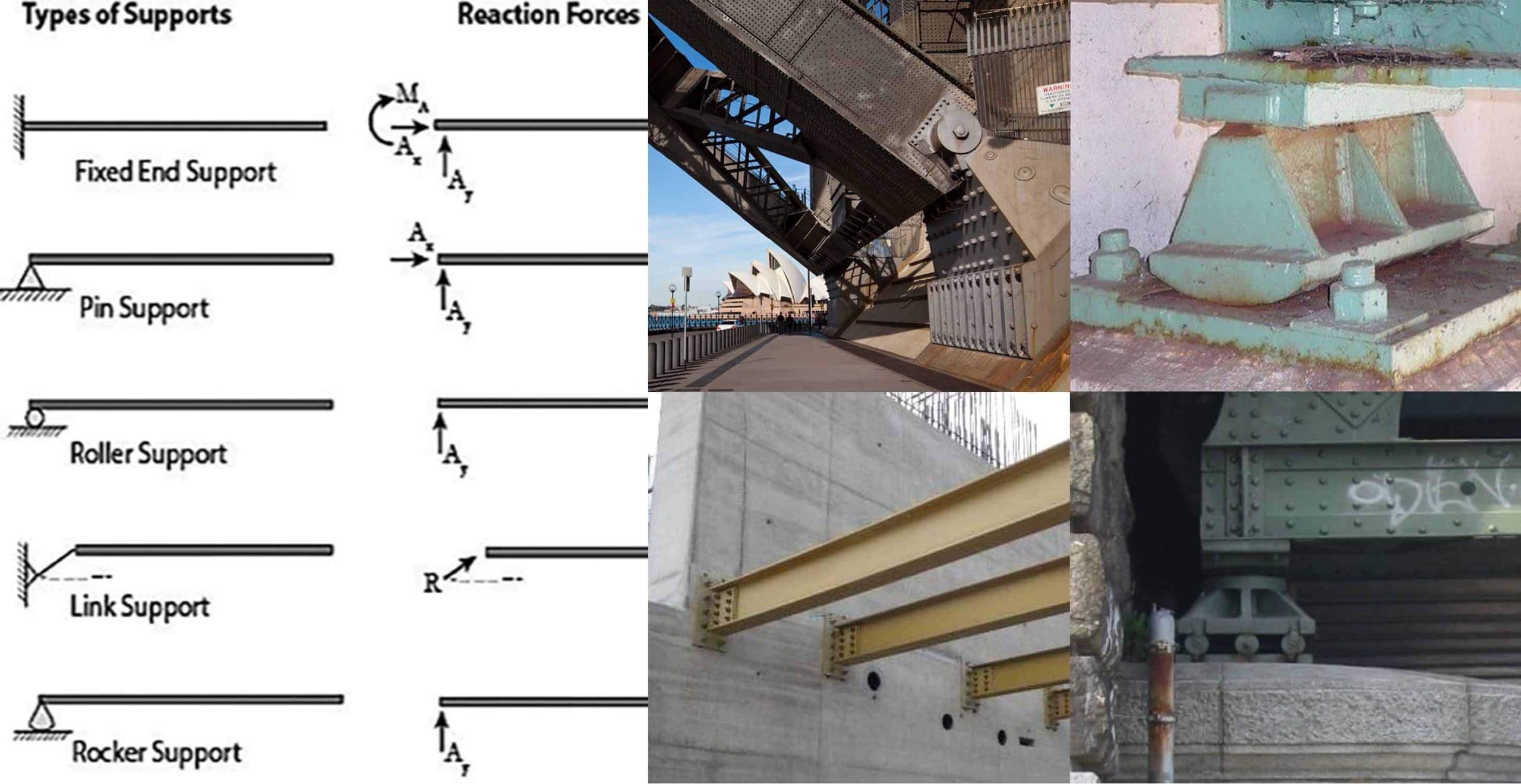

Types of Supports and Reactions in Structures and Their Applications

The types of supports can be mainly classified into two types

1- External supports

2- Internal supports

External Supports and Reactions and Applications in a Structure

The supports which are usually provided externally without disturbing the structural members are external supports. Different types of external supports are as follows:

1- Fixed support

2- Pinned support or hinged support

3- Roller support

4- Rocker support

5- Link support

6- Simple support

1- Fixed Support and Reactions and Applications in a Structure

Fixed supports are also called as rigid supports. Fixed supports are restrained against both rotation and translation so they can resist any type of force or moment. In structural analysis, there are three unknowns to find for fixed support which can satisfy all the three equations of equilibrium. To provide good stability to the structure, at least one rigid support should be provided. Beam fixed in the wall is a good example of fixed support.

Fig: Fixed Support – Beam Fixed in Wall















2- Pinned Support and Reactions in a Structure

Pinned support or hinged support can resist both vertical and horizontal forces but they cannot resist a moment. It means hinged support is restrained against translation. Using equations of equilibrium, one can find out the components of horizontal and vertical forces. Best example for hinged support is door leaf which only rotates about its vertical axis without any horizontal or vertical movement. The rotation of pinned support or hinged support is allowed in only one direction and is resisted in other direction. Hinged supports are also used in three hinged arched bridges with two supports at ends and third hinge is provided at the centre of the arch which is called an internal hinge. The figure below shows hinges support of the Sydney Harbor Bridge.

Fig: Hinge Support of Sydney Harbor Bridge

3- Roller Support and Reactions and Applications in a Structure

Roller supports only resists perpendicular forces and they cannot resist parallel or horizontal forces and moment. It means the roller support will move freely along the surface without resisting horizontal force.

Fig: Roller Support on One End of a Bridge
4- Rocker Support and Reactions and Applications in a Structure

Rocker support is similar to roller support. It also resists vertical force and allows horizontal translation and rotation. But in this case, horizontal movement is due to curved surface provided at the bottom as shown in the below figure. So, the amount of horizontal movement is limited in this case.

Fig: Rocker Support in a Structure

Link is supporting allows rotation and translation perpendicular to the direction of link only. It does not allow translation in the direction of link. It has a single linear resultant force component in the direction of link which can be resolved into vertical and horizontal components.

6- Simple Supports in a Structure and Their Reactions

Simple support is just support on which structural member rests. They cannot resists lateral movement and moment like roller supports. They only resist vertical movement of support with the help of gravity. The horizontal or lateral movement allowed is up to a limited extent and after that, the structure loses its support. It’s just like a brick resting longitudinally on two bricks. This type of support is not commonly used in structural purposes. However, in the zones of frequent seismic activity simple supported structures can be seen.

Fig: Simple Supports in a Structure
Internal Supports and Reactions and Applications in a Structure

Internal supports are provided internally in the structural member which means internal support divides the full member into parts. So, the external reactions can be found for each part which will be quite easier for the analysis. Following are the types of internal supports provided in a structure:

1- Internal hinge

2- Internal roller

1- Internal Hinge Support in a Structure

Similar to hinge support internal hinge also resists translation in both directions and allows only rotation. In structures, for axial members, internal hinges are provided and for beam members, middle hinges are provided. These can be widely seen in arch type bridges at the centre of the arch.

Fig: Internal Hinge Support in a Structure
Fig: Three Hinged Arch with Internal Hinge Support
2- Internal Roller Support in a Structure

Internal roller supports are the same as roller supports but they are provided in the middle of the structural member.

Fig: Internal Roller Support

This type of internal roller supports are used in tower cranes or harbour cranes so, using the horizontal movement of support heavy materials or members can be shifted from one place to another place.
