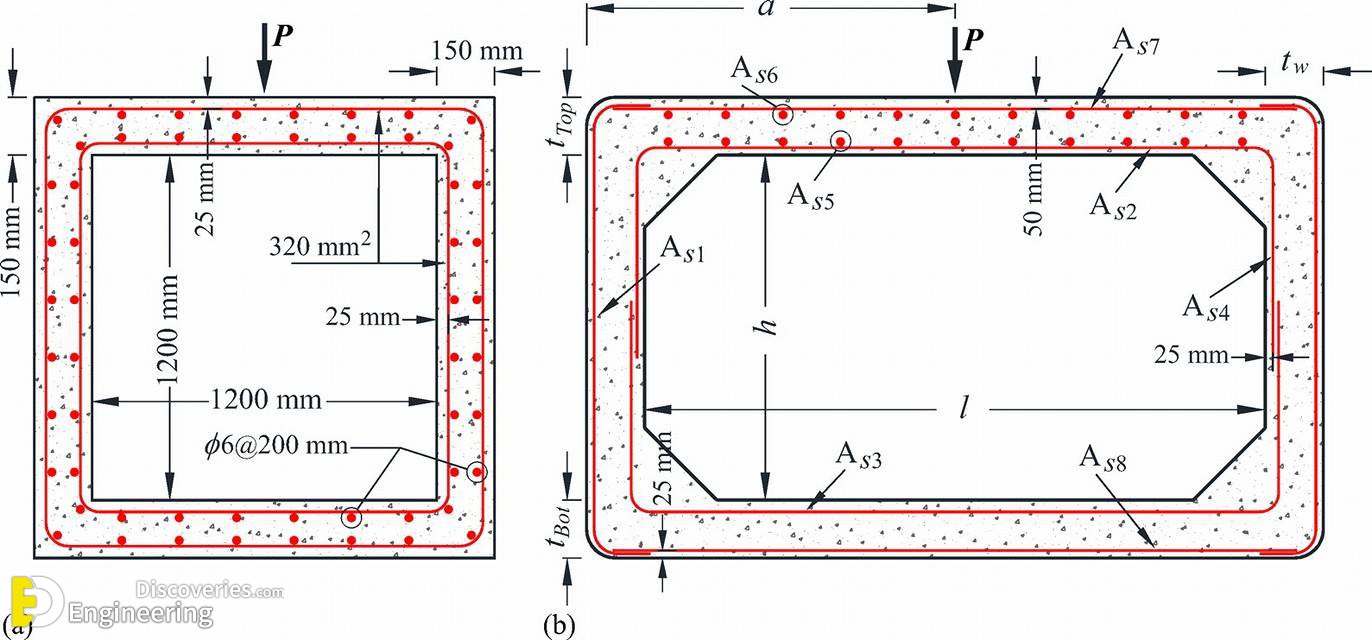

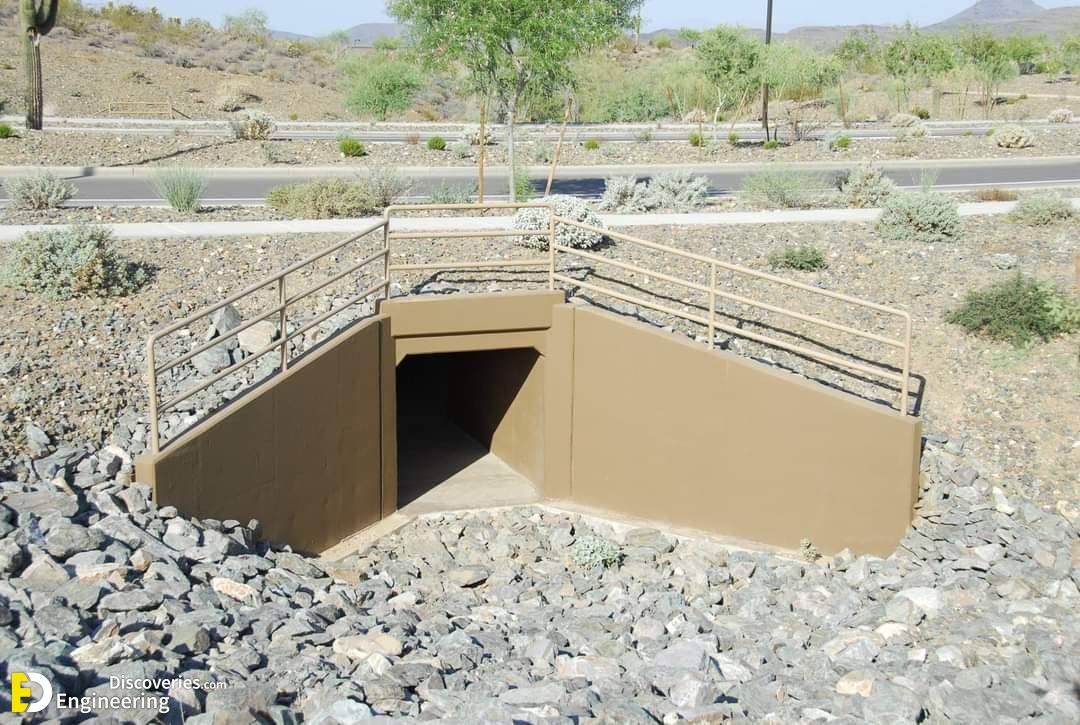

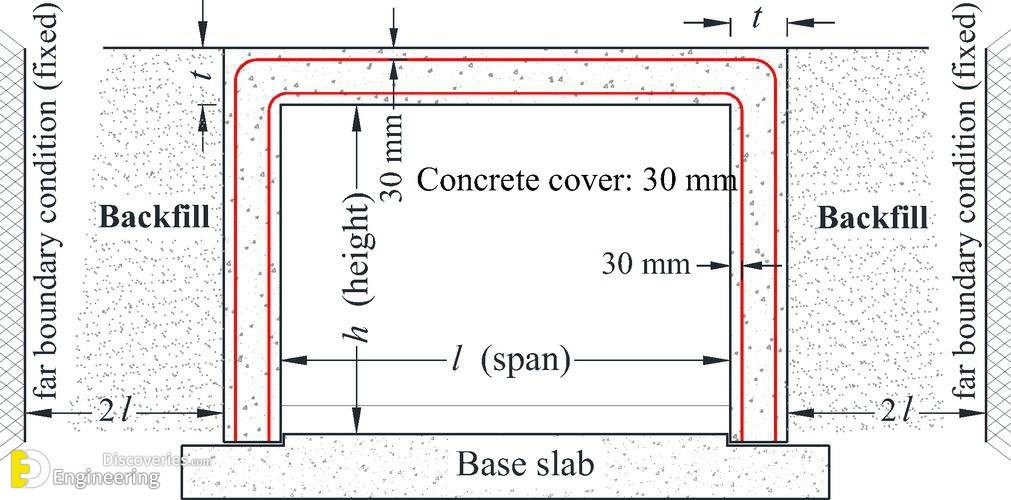

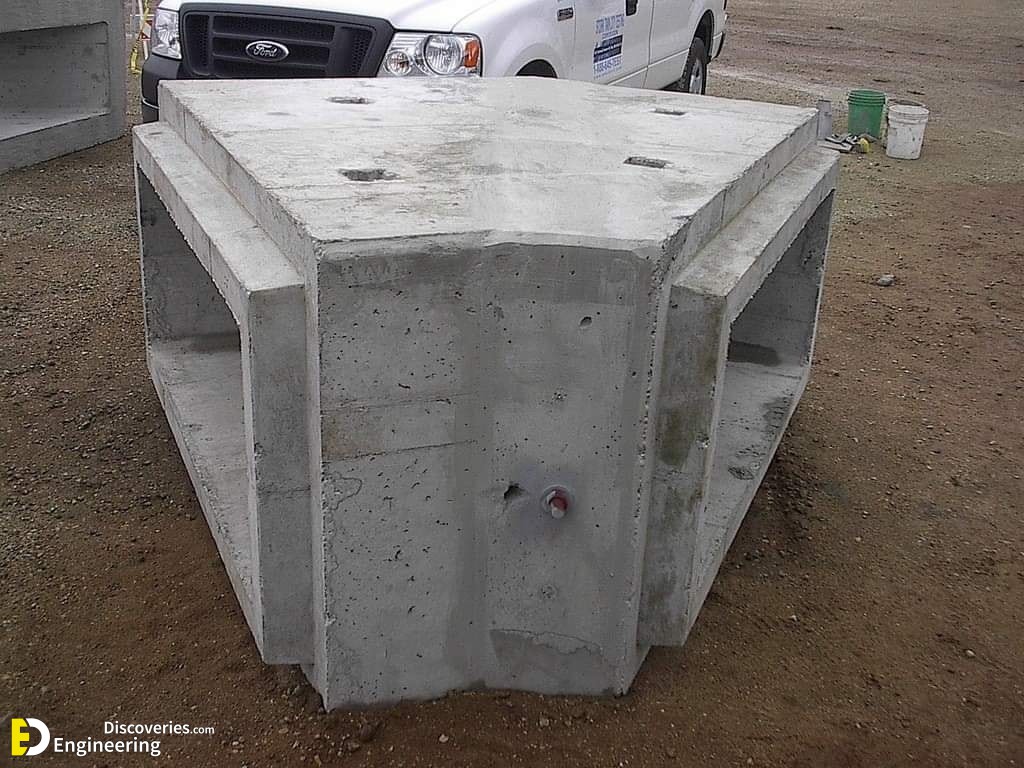

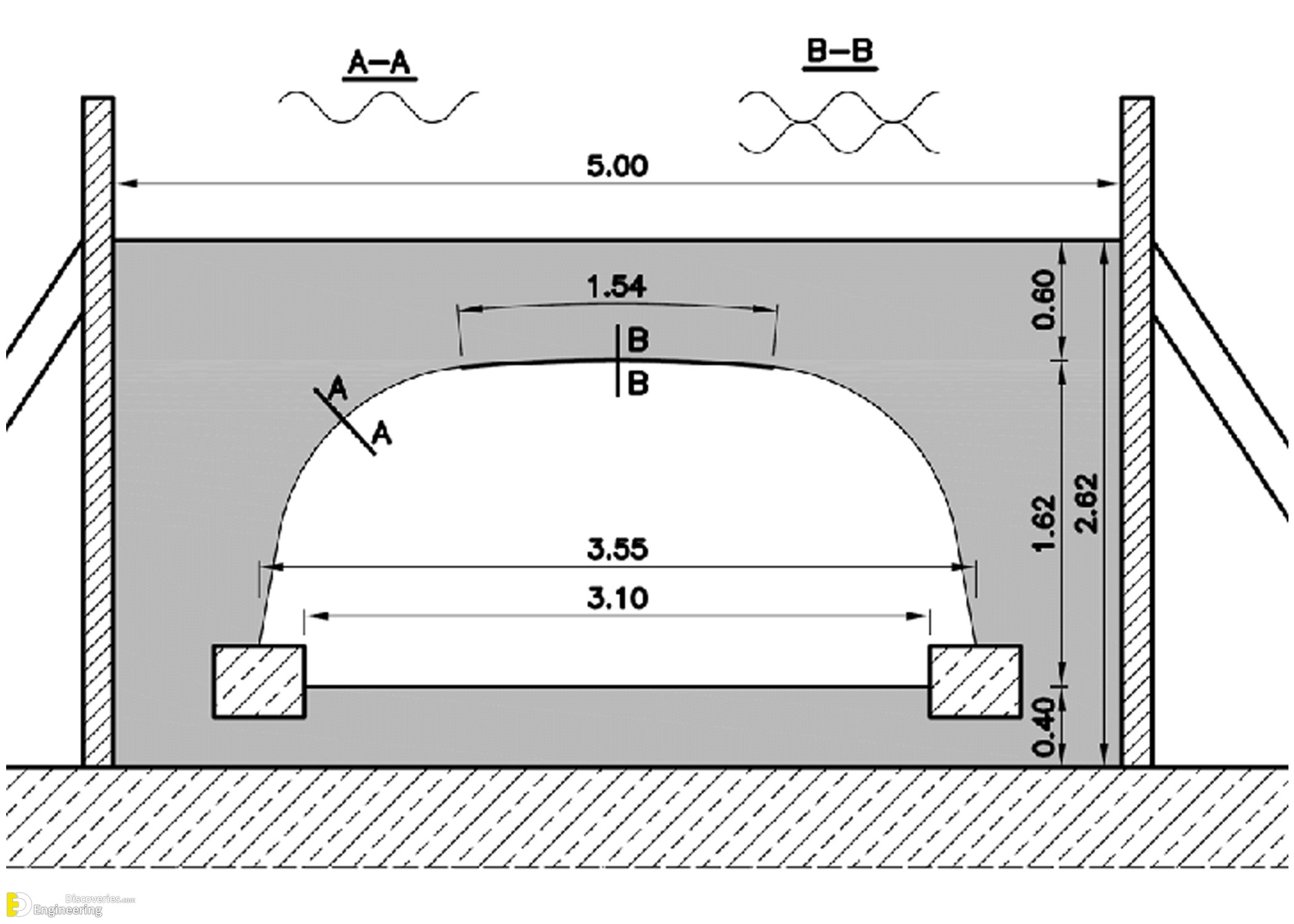

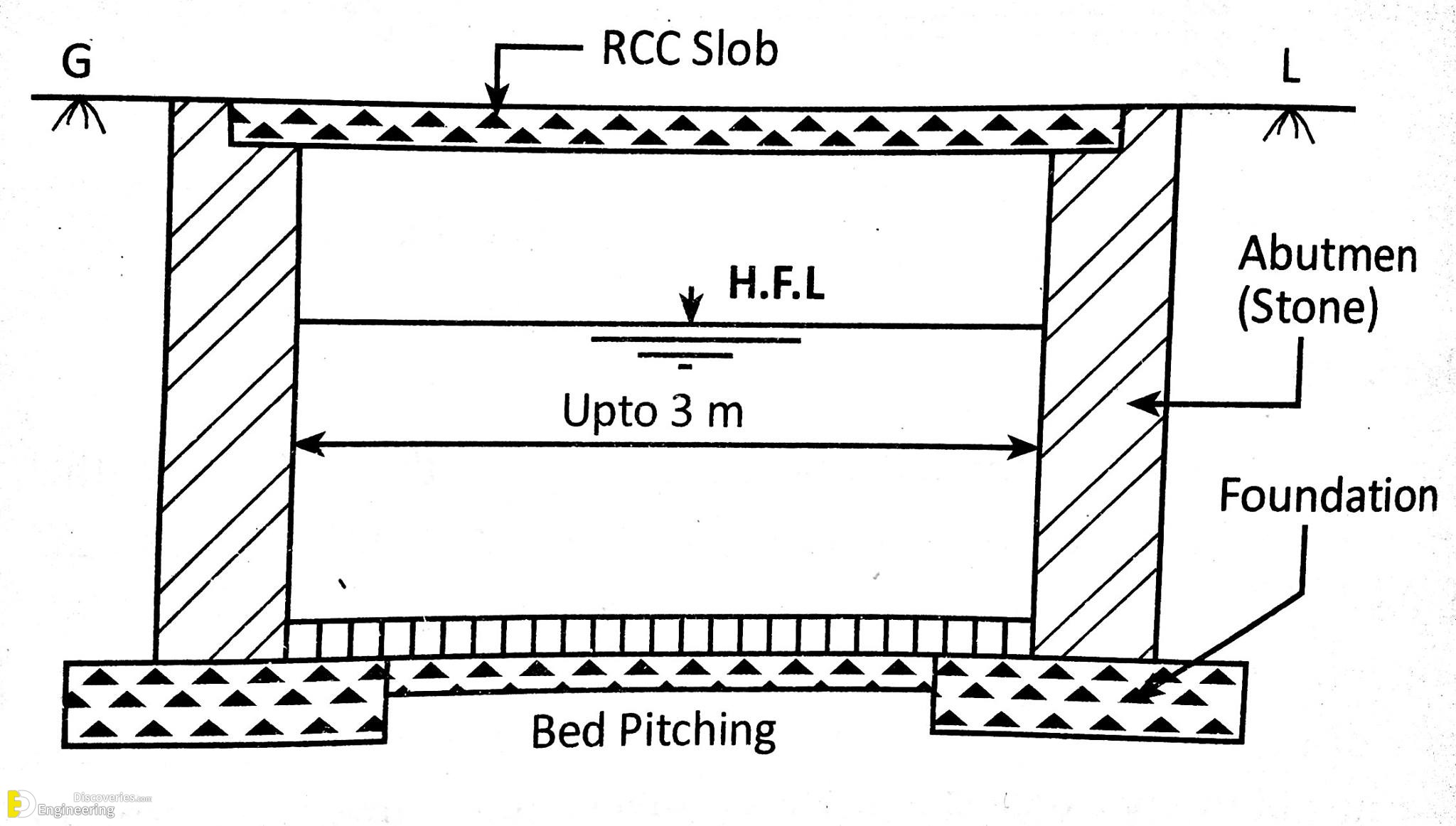

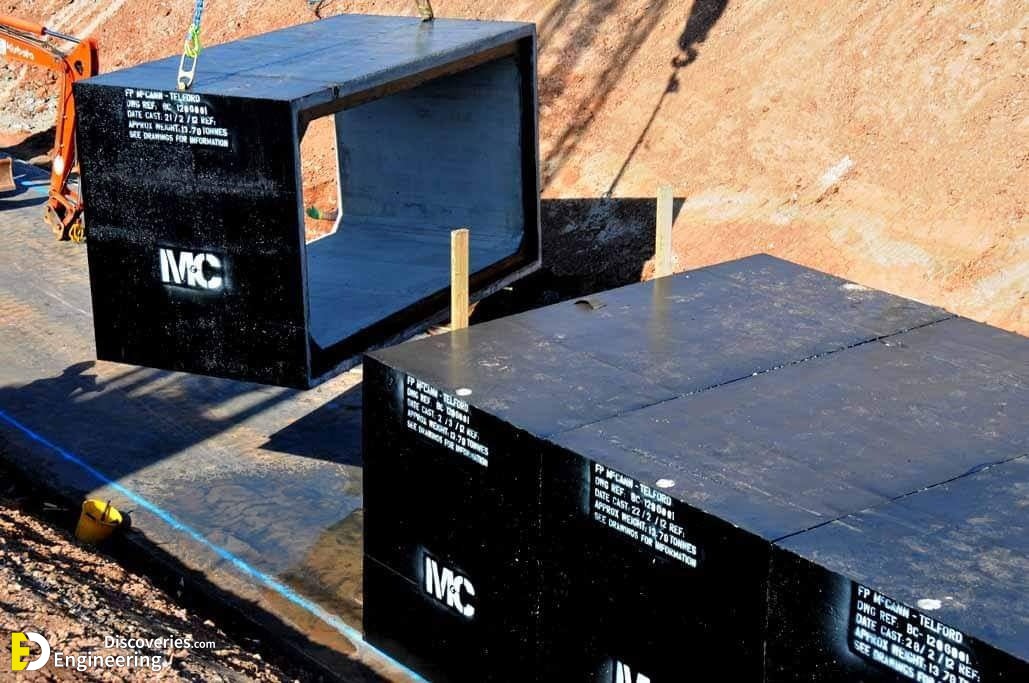

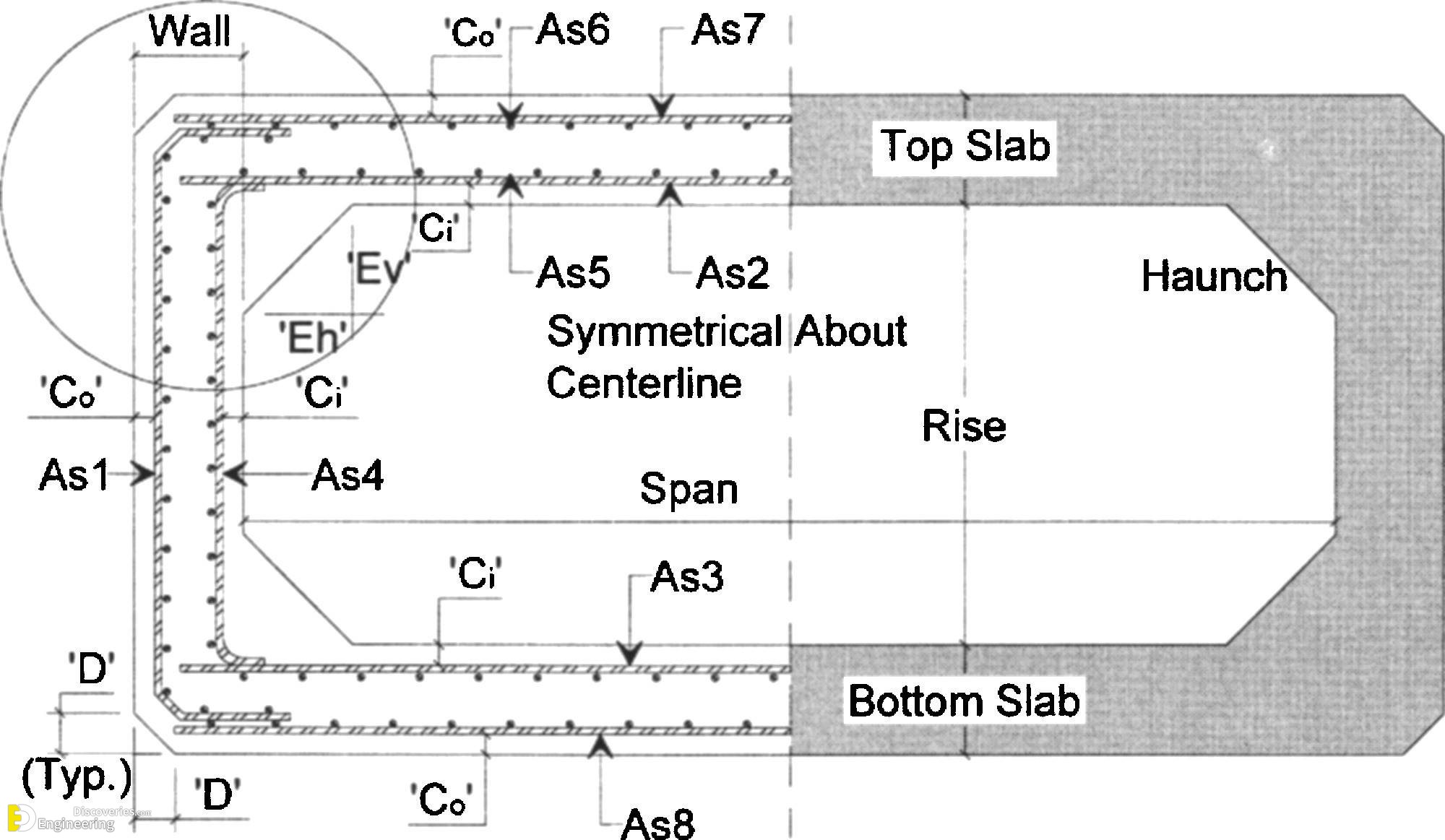

Concrete culverts are vital components of infrastructure, facilitating the smooth flow of water beneath roads and railways. Understanding their details is essential for effective construction and maintenance. Culverts are typically made of reinforced concrete (RCC), ensuring durability and strength. Key details include the dimensions, such as diameter or span length, which vary based on the intended application and hydraulic requirements. Additionally, factors like inlet and outlet configurations, bedding, backfilling, and jointing methods are crucial for proper installation and functionality. Comprehensive knowledge of these aspects ensures efficient design and construction practices, leading to resilient infrastructure capable of withstanding diverse environmental conditions. Below are 25 photos illustrating various RCC concrete culvert details, showcasing different designs, configurations, and construction stages to aid in understanding their complexities and applications.
